Product Overview
Description

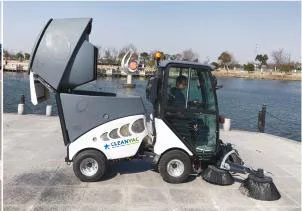

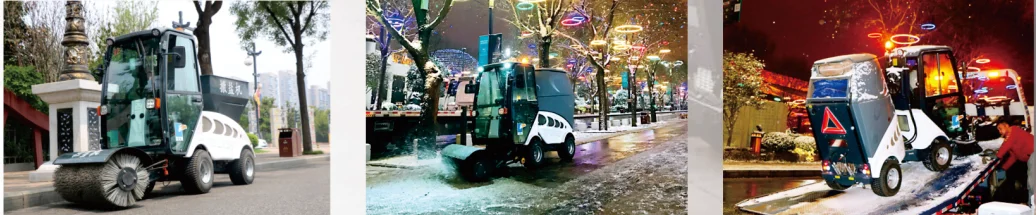

CLEANVAC vacuum sweeping machine compact street sweeper runway road sweepers street sweepers
This battery sweeper SS300E is designed with hydraulic control system, equipped with large capacity battery, low level noise and exhaust, There are panoramic glasses in cab, the field of vision is very open. with the help of water sprinkler device, it can avoid the secondary dust pollution very well. Especially suitable for small and medium-sized road, non-motor vehicle driveways,large plaza, industrial parks and etc.

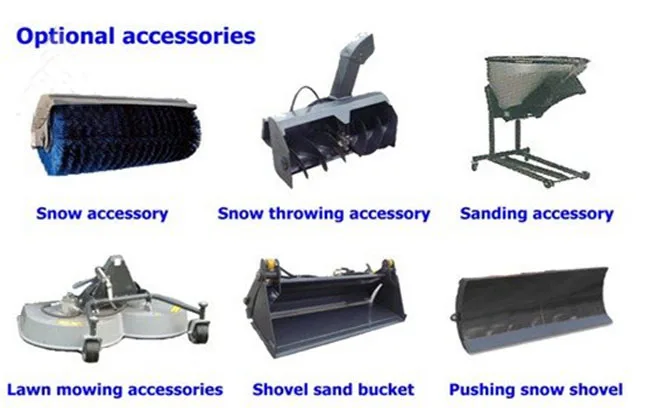

CLEANVAC SS300E is an outdoor multifunctional special equipment that equipped with a full set of special attachments, outdoor work can be completed without interruption throughout the year, spring and autumn for cleaning and vacuuming, summer used to mow the lawn, pruning, winter can be used to sweepsnow, sprinkle salt,etc.At the front of the vehicle is equipped with a quick plugin, put on different attachments have different functions, domestic initiative and fill the gaps.
CLEANVAC sweeper SS300E is an ergonomic designed outdoor multifunctional special equipment, large spacious cab, surrounded by wide vision, the entrance position low and wide, the wheel and seat areadjustable to accommodate different operators. Seat with suspension device, very comfortable. Joystick and all operating control accessories are placed in the best position to facilitate the operator to operate, and provide a safe and comfortable operating environment.
Product Description
1.Double brushes, sweeping width 1200mm, small and flexible, good passability, can enter the standard size elevator. Shuttle to each floor to clean.
5. Drive motor after high power, strong climbing ability.
2. It can be quickly connected to the battery design. The volume is light and the function is complete. The maintenance is simple. The turning radius is small. Even in a narrow range, it can be operated freely.
3. Highlights: Try the targeted design of new models: use silent fan, noise reduction main brush motor, working noise is not higher than 65dba. Dust collection system; and adopts energy-saving outer rotor motor with high power, fast speed and low noise. Different fans can be selected according to different environments.
4. Reliable high-quality parts, effectively reducing maintenance and repair costs.
5. Drive motor after high power, strong climbing ability.
6. Imported electronic control system, over-current protection, multi-function snow pusher with large quantity and favorably, under-voltage protection.
7 . The use of high-performance maintenance-free batteries. No leakage. No harmful gas.
8. Humanized seat design. Comfortable. The front-to-back distance is adjustable, suitable for people with different physical physiques.
9. Concise operation console, coupled with car-style lighting controller, makes it easier for you to operate.
10. Steel chassis, strong load-bearing capacity, durable tires.

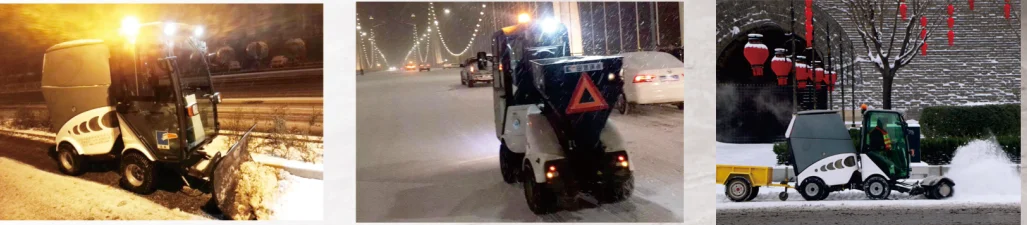

11. Mechanized operation is not only efficient, effective, as small as dust, the price of the multi-functional snow pusher, sand, soil, and the source of the multi-functional snow pusher are directly supplied, as large as stones, broken bricks, leaves, cigarette boxes, andwiped away. The machine is clean wherever it goes, and avoids the phenomenon of dust, difficult to clean, and missed cleaning during manual cleaning.
No | Item | Value |
1 | Dimension | 2850X1170X2100mm (without brush) 3250X1170X2100mm (2 brushes) 3550X1170X2100mm (4 brushes) |
2 | Wheelbase | 1350mm |
3 | Wheel base (front/rear) | 820/930mm |
4 | Minimum turning radius | 1970mm |
5 | Front / rear overhang | 1620/580mm |
6 | Ground clearance | 60mm |
7 | Approach angle (hard) | ≤22° |
8 | Departure angle | ≤40° |
9 | Through the corner | ≤18° |
10 | Gradeability | 20% (no load) 15% (full load) |
11 | Slope braking | 15% |
12 | Left side tipping stability | 18% |
13 | Right side tipping stability | 18% |
14 | Drive method | Rear axle drive |
15 | Driving motor | 5KW |
16 | Fan motor | 5.5KW |
17 | Max speed | 18km/h |
18 | Working speed | 0-10kw/h |
19 | Dustbin Capacity | 800L |
20 | Steering method | Hinged steering |
21 | Noise | ≤79 |
22 | Dust removal water tank volume | 150L |
23 | Tire Model | 20x10-10 |
24 | Battery | 72V/400Ah, lithium battery |
CLEANVAC Electric sweeper SS300E battery maintenance
Electric cleaning---in the battery maintenance method and how to extend its service life. In order to protect the battery of the electric cleaning vehicle and prolong the service life of the battery, the following points should be paid attention to during the normal use of the cleaning machine:
1: When the electric sweeper or electric floor scrubber is charging, the charger will be unplugged after the charging indicator shows that the charging is complete. Dongguan multi-function snow pusher, do not charge for too long; charging will damage the battery and charger;
2: Charge the newly purchased electric sweeper or washing machine for the first three times. Please charge it for 10-12 hours for each charge, and then charge it after each use. The sweeper motor bottle can be used after three full discharges after charging. status;
3: After using the new battery for half a year, please check the electrolyte level. If it is lower than the scale line, please add distilled water (this article---lead-acid water battery only)
4: Try not to leave the sweeper motor bottle in a state of power loss for too long;
5: In the process of using the electric sweeper, if it is immersed in water, please take it out immediately, do not continue to use it, it will damage the battery.
1: When the electric sweeper or electric floor scrubber is charging, the charger will be unplugged after the charging indicator shows that the charging is complete. Dongguan multi-function snow pusher, do not charge for too long; charging will damage the battery and charger;
2: Charge the newly purchased electric sweeper or washing machine for the first three times. Please charge it for 10-12 hours for each charge, and then charge it after each use. The sweeper motor bottle can be used after three full discharges after charging. status;
3: After using the new battery for half a year, please check the electrolyte level. If it is lower than the scale line, please add distilled water (this article---lead-acid water battery only)
4: Try not to leave the sweeper motor bottle in a state of power loss for too long;
5: In the process of using the electric sweeper, if it is immersed in water, please take it out immediately, do not continue to use it, it will damage the battery.
Specification
item | value |
Machine Type | Floor Sweeper |
Applicable Industries | Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, other, Advertising Company |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Turkey, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Russia, Malaysia, Australia, Morocco, Sri Lanka, Kazakhstan, Kyrgyzstan |
Showroom Location | Turkey, Philippines, Brazil, Indonesia, none |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Condition | New |
Place of Origin | Jiangsu, China(Mainland) |
Brand Name | CLEANVAC |
Fuel | Diesel |
Certification | ce, RoHS |
Use | Cleaning |
Cleaning Process | Vacuum cleaning |
Cleaning Type | Clean-in-Place(CIP) |
Material | plastic |
Power | 18.5kw |
Dimension(L*W*H) | 3080*1160*1950 |
Warranty | 1 Year |
After-sales Service Provided | Video technical support |
