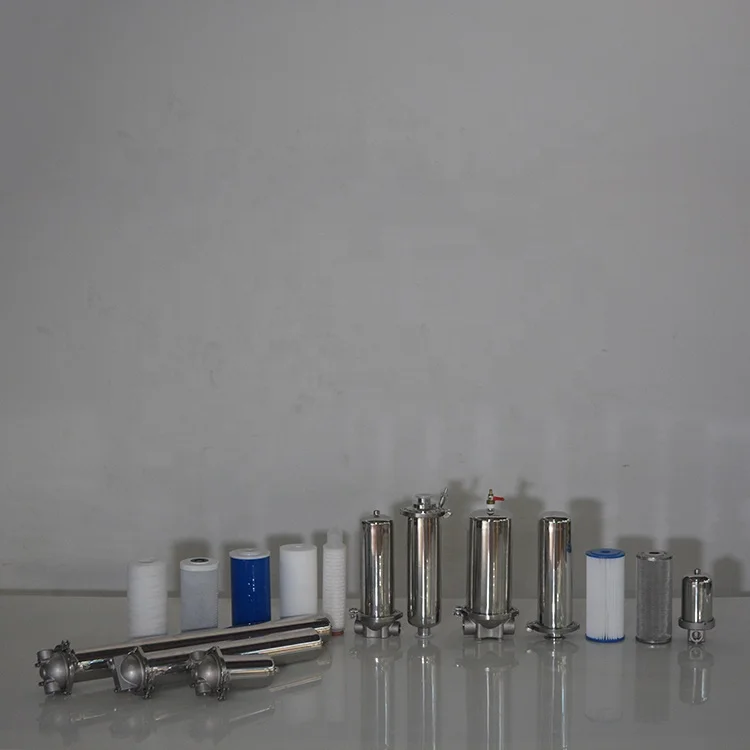

High quality environmental protection filter housing water stainless steel

Product Overview

Description

Product Description:

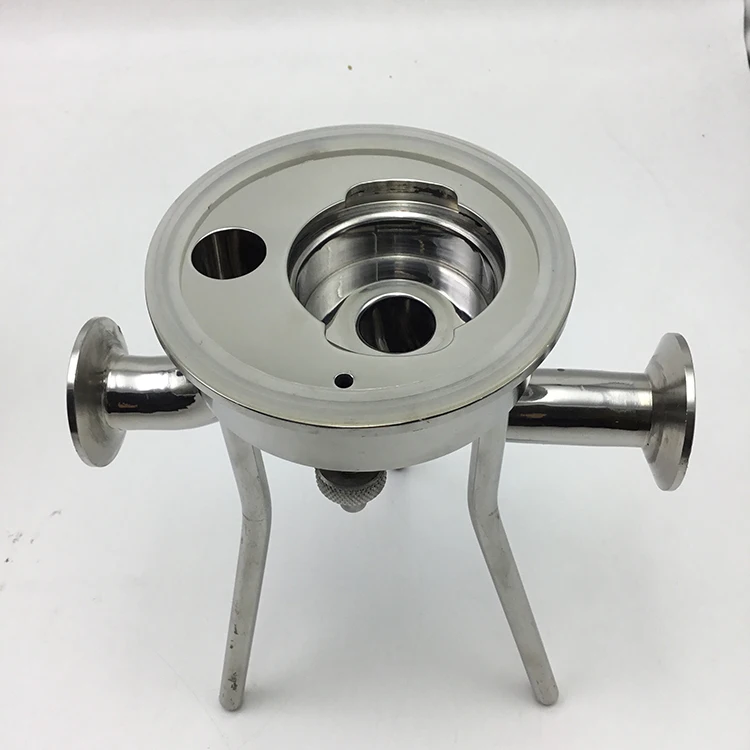

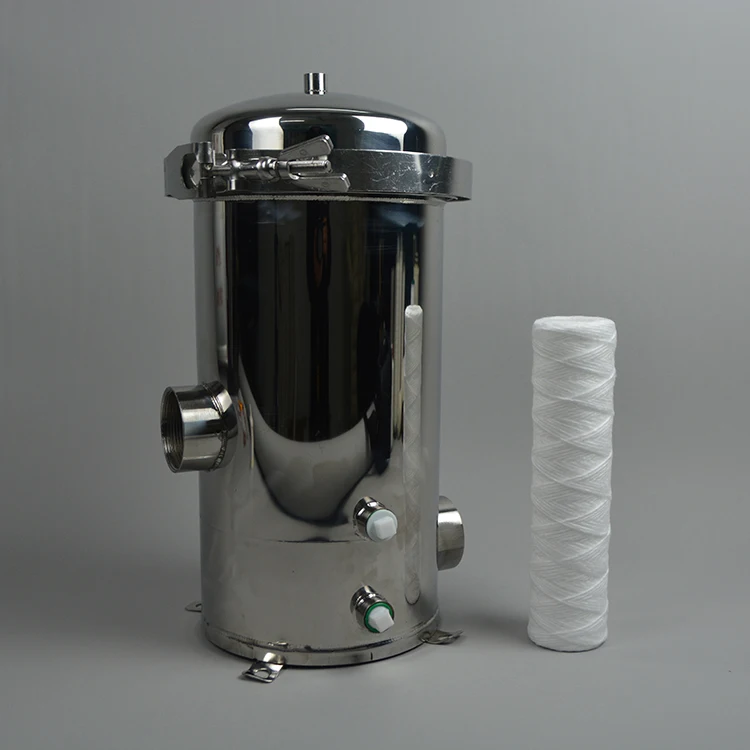

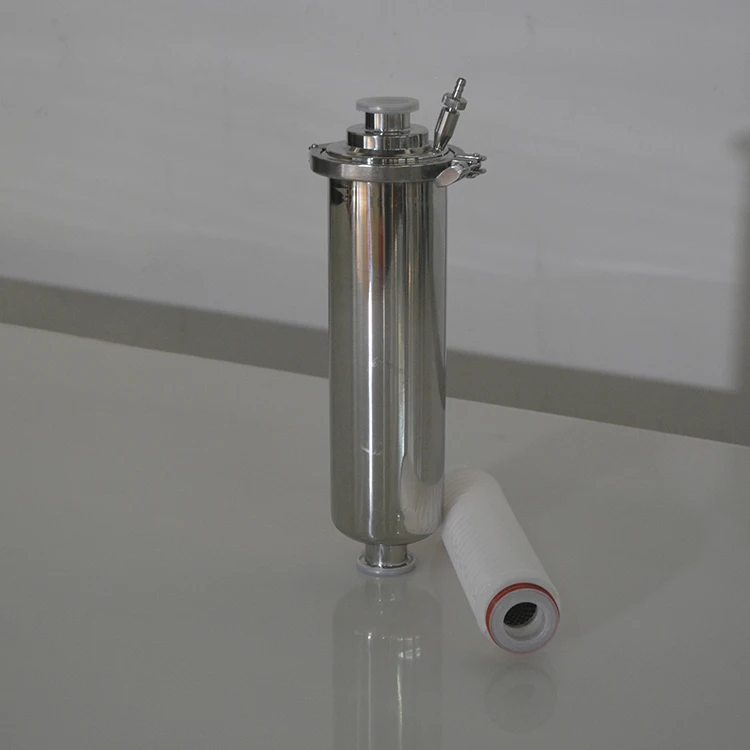

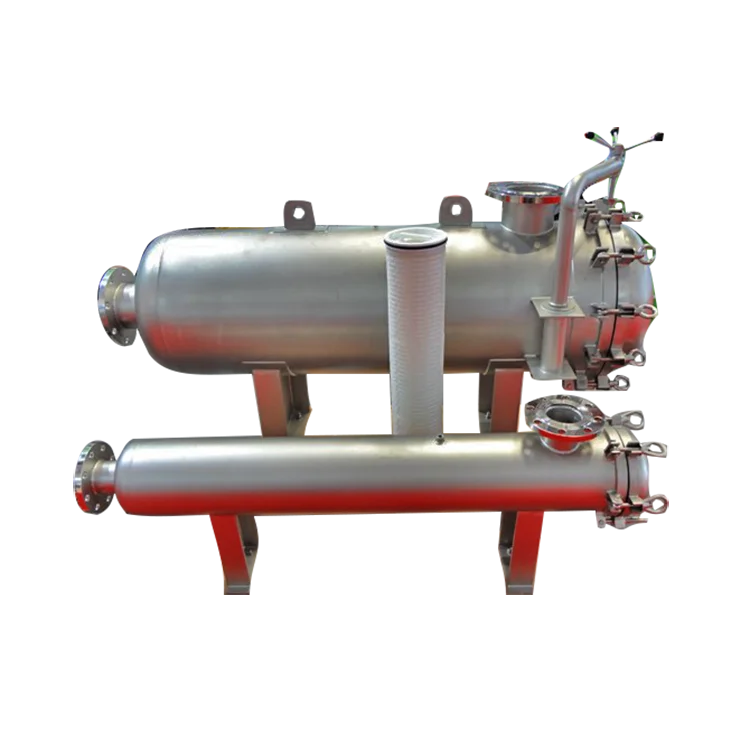

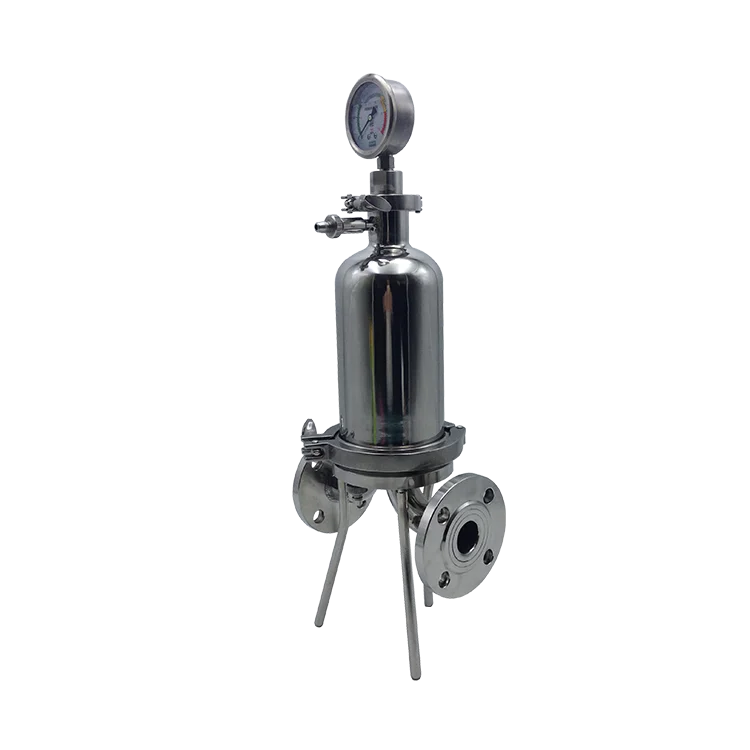

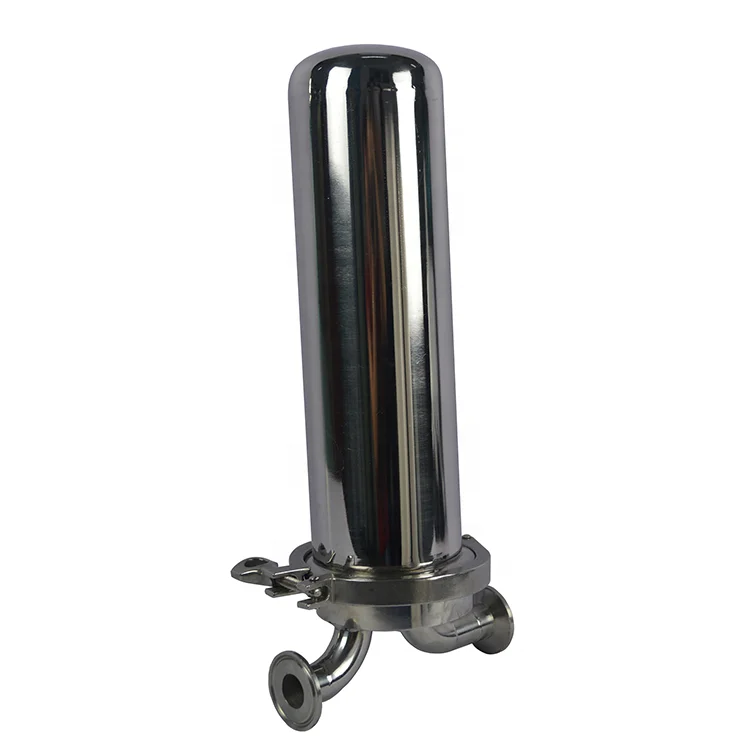

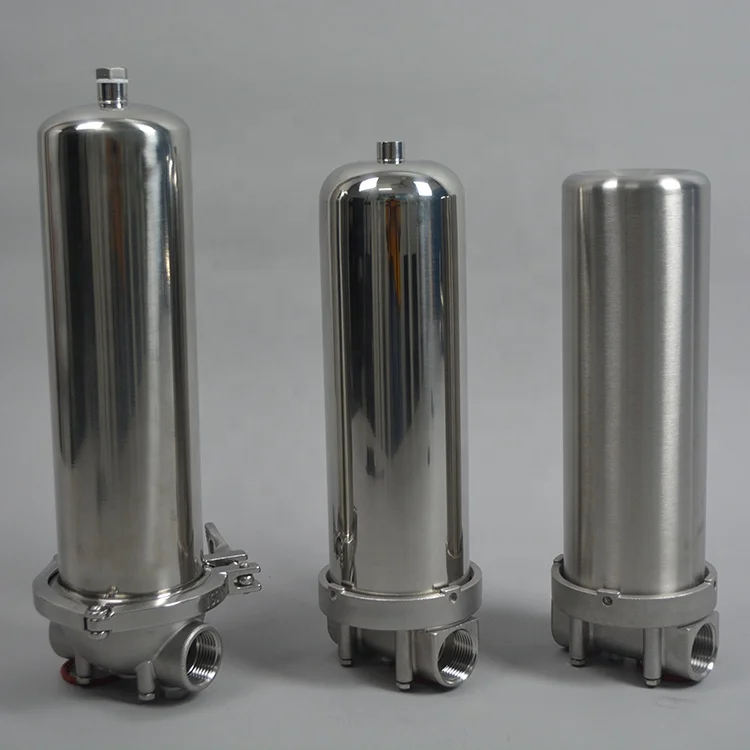

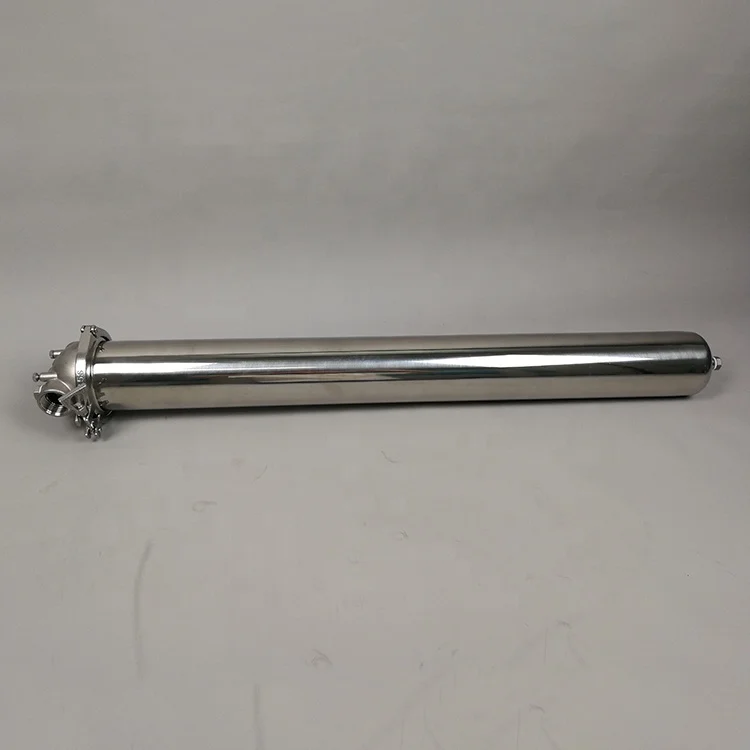

LVYUAN  stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities. The length can be 5 inch to 40 inch, to meet the different high flow rates requirements for your filtration applications. We have the simple filtration cartridge filter housings and the sanitary filter housings for optional, the sanitary type of housings are designed by the high requirements of the biopharmaceutical industry.

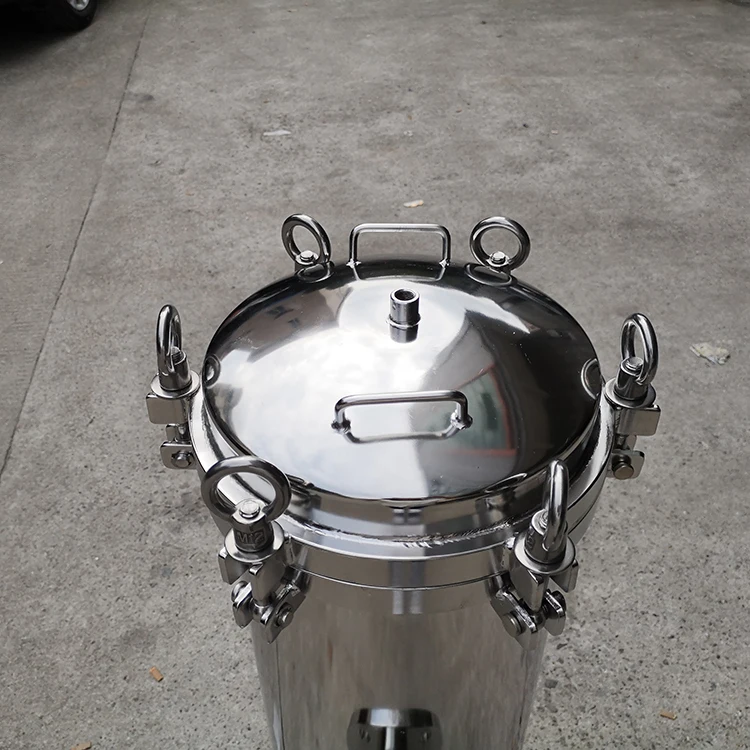

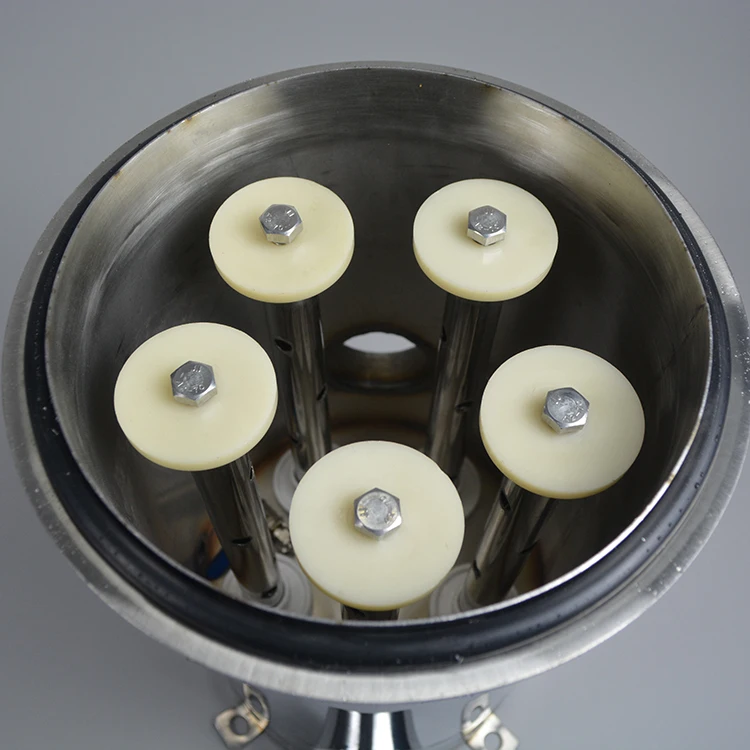

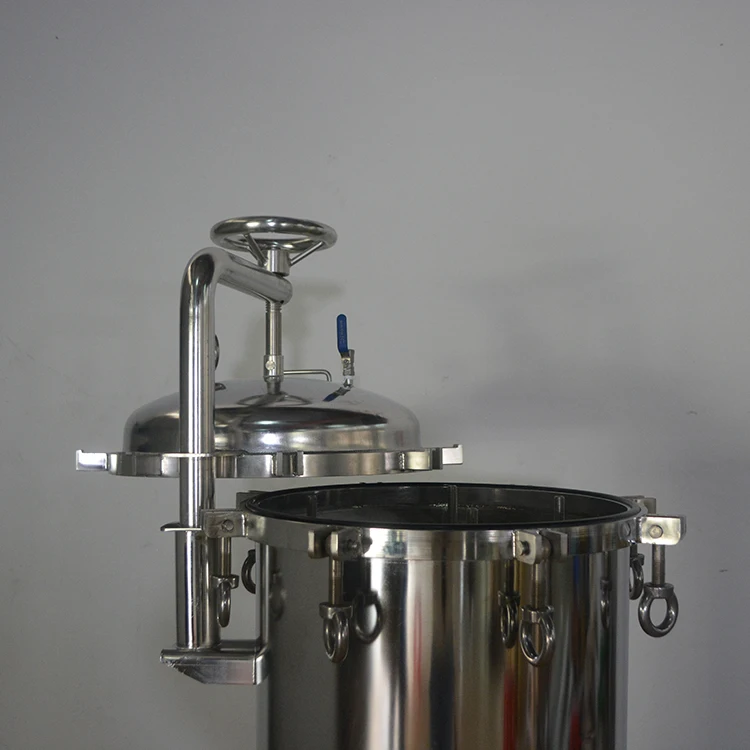

Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.The housings are available to accept either 222, 226 o-ring or DOE filter configurations. Housings of 1 to 100 round filter cartridges are available. Vent and drain allow easy venting, draining and sampling. Swing away bolts or the trip clamps, to allow easy opening and secure sealing.

Material	Stainless Steel 304, 316L
Brand name	Customized
Place of origin	China
Model Number	LY-SSFH
End code	222/226/DOE/SOE
Cartridge filters quantity	1 to 100 cores
Usage	Water/Oil/Gas/Air purification
Standard	National/ASME
Filter cartridge length	10/20/30/40/50/60 inch
Top cap installation method	Lifting bolts, Flange, Tri clamp
Connection	Flange/Thread/Pogoda
Seal material	EPDM/Silicone/Viton/PTFE
Working temperature	50F° to 250 F°
Max. working temperature	100psi to 235psi
Filter cartridge diameter	2.5/2.7/4.5 inch
Polishing	Electrolytic polishing/Sandblast
