Huawei B315S 22 4g cpe modem router for up to 32 devices 4g lte wi fi router

Huawei B315s-22 4G LTE CPE Router

The Hotspot 150 Mbps White or black

The HUAWEI B315s-22 LTE CPE (B315s-22 for short) is a wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services.

Model: B315s-22

Operating Frequency:

(4G) : LTE-FDD 2600/2100/1800/900/800MHz

(4G) : LTE-TDD 2600MHz

(3G): UMTS/HSPA/WCDMA 900/2100MHz

(2G) : EDGE/GPRS/GSM 850/900/1800/1900MHz

Features:

ü  Access to LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/GPRS/GSM wireless networks

ü  Access to Gigabit Ethernet networks

ü Connect up to 32 Wi-Fi devices

ü  External antenna port

ü  USB 2.0 host port

ü  Support voice function

ü  WPS

ü  SMS

SPECIFICATIONS

Supported frequencies:Ports: 1 x WAN/LAN, 3 x LAN, 1 x USB, 1 x Tel, 1 SIM slot

4G: (FDD) 2600/2100/1800/900/800MHz (TDD) 2600MHz

3G: HSUPA/HSDPA/UMTS/DC-HSPA+ 900/2100MHz

2G: EDGE/GPRS/GSM 850/900/1800/1900MHz

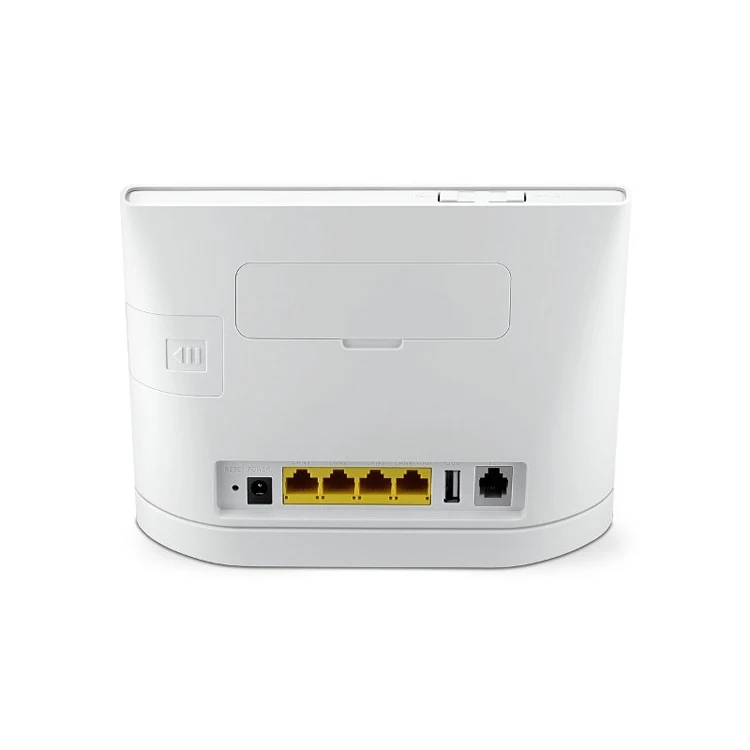

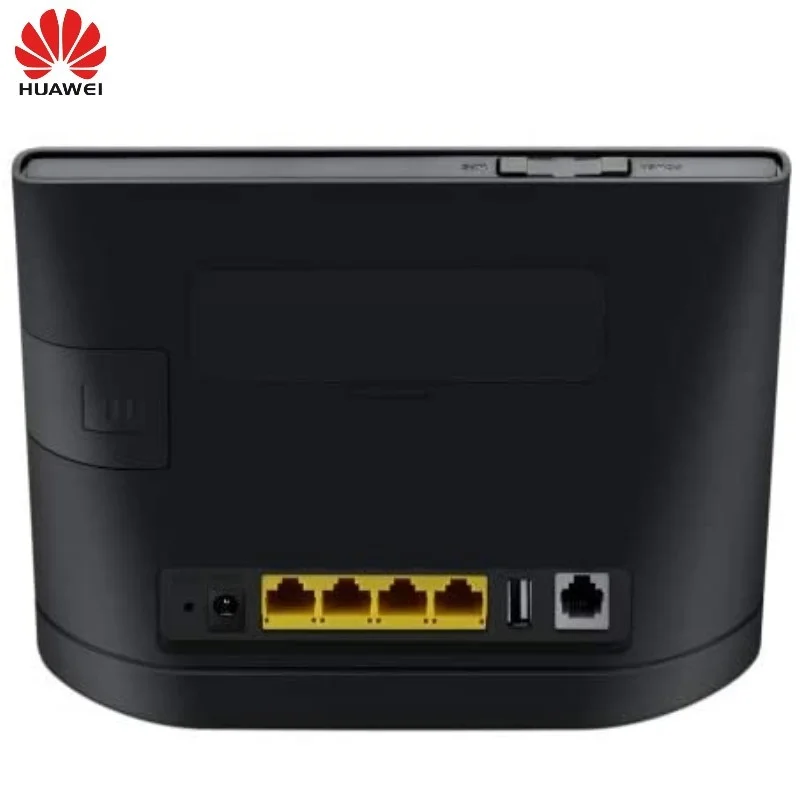

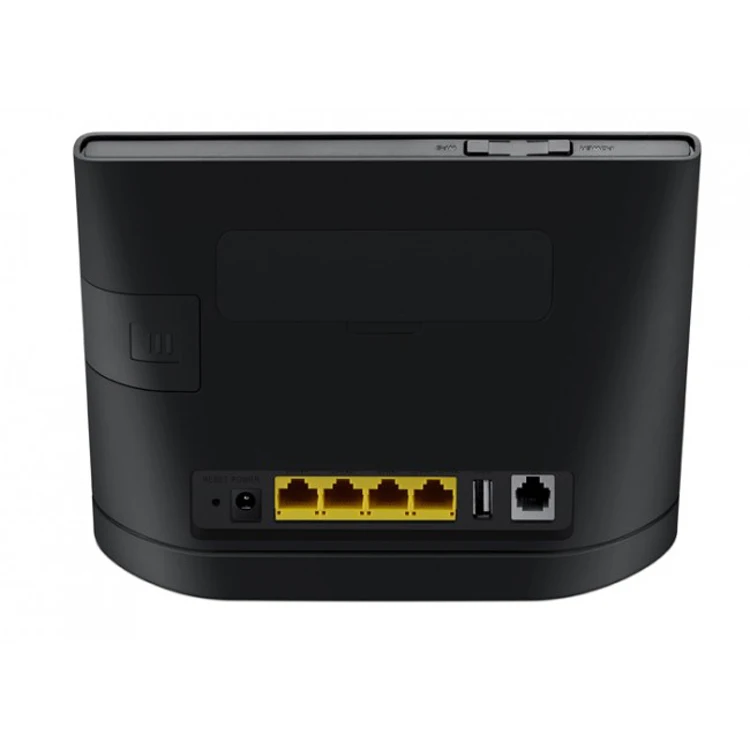

Ports: 1 x WAN/LAN, 3 x LAN, 1 x USB, 1 x Tel, 1 SIM slot

Transmission speed 4G (MAX): Download 150 Mbit/s, upload 50 Mbit/s

Transmission speed 3G (MAX): Download 42 Mbit/s, upload 5.76 Mbit/s

WI-FI: Wi-Fi (802.11 b / g / n)

Additional antenna location: two antenna ports

Dimension: 186 mm(W) x 139 mm(H) x 46 mm(D)

Weight: 275g

Operating systems:

Windows XP/ Windows Vista/ Windows 7/ Windows 8/8.1

Mac OS 10.7/ Mac OS 10.8/ Mac OS 10.9

Package Contents:

1. B315s-22

2. Lan Cable

3. Switch power adaptor HW- HW-120100E6W 12V 1A

4. 4G Aantenna(Optional)
