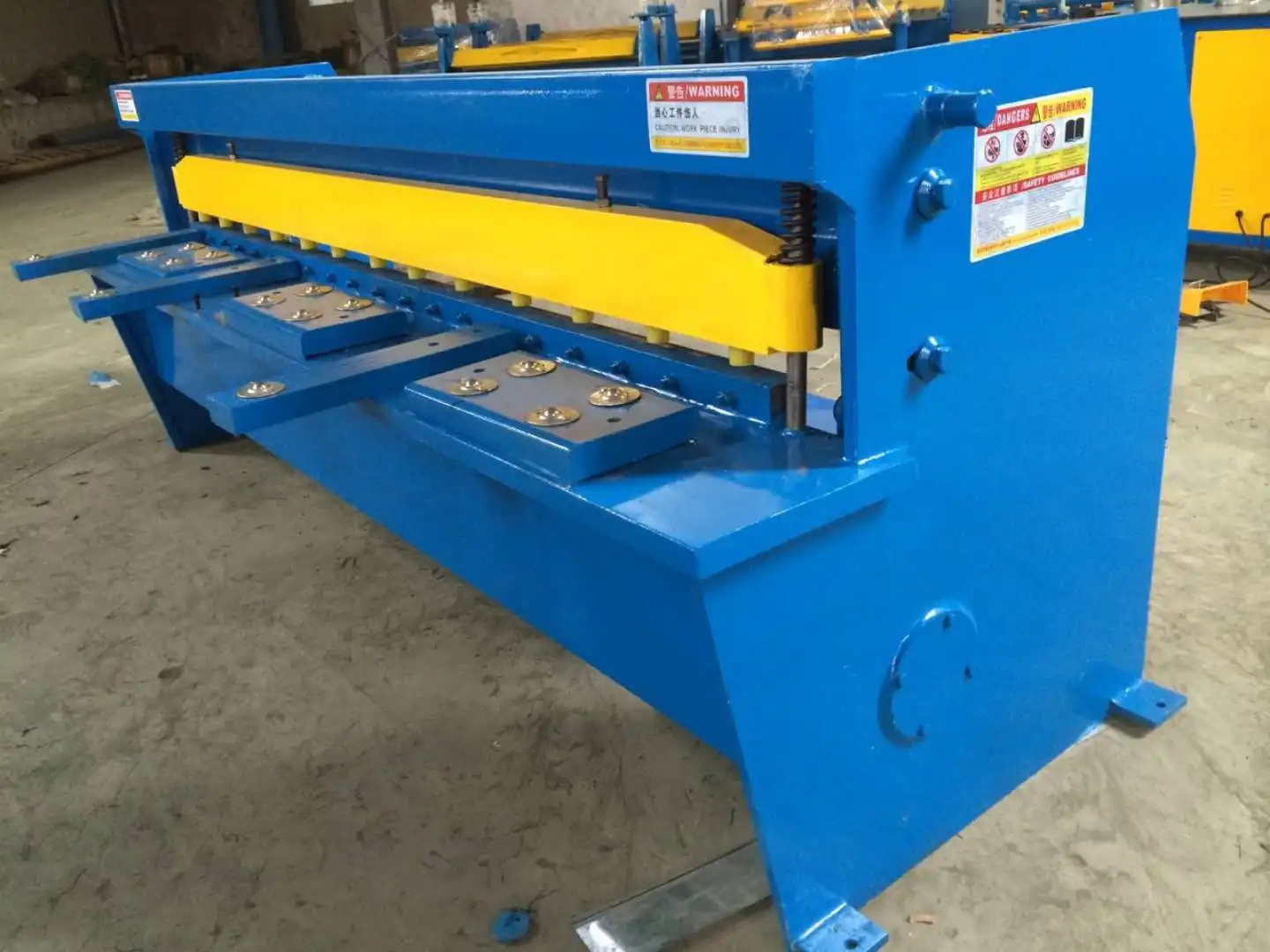

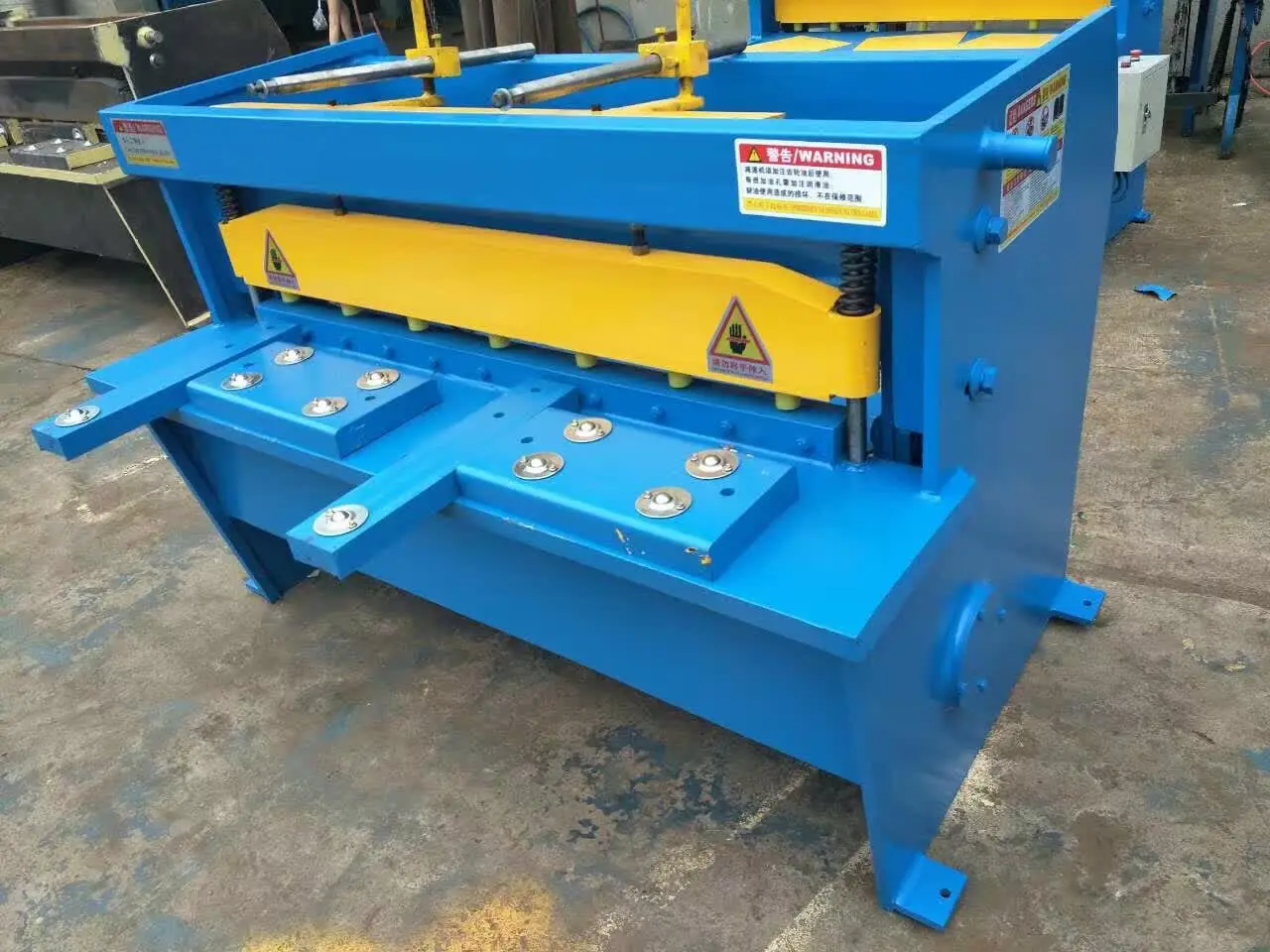

Q11 1.5x3000 nc iron small electrical mechanical shearing machine
- Category: Shearing Machine >>>
- Supplier: Anhui,Sanxin,Heavy,Industry,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Machine Features
1. The machine base is steel- welding , the structure is compact, good rigidity.
1. The machine base is steel- welding , the structure is compact, good rigidity.
2. Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth.
3. Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
4. The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact structure, gear have good lubrication, low noise and long life.
5. The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shearing speed.
3. Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
4. The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact structure, gear have good lubrication, low noise and long life.
5. The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shearing speed.
Specification
Model | Max Cutting Thickness (mm) | Max Cutting Length (mm) | Cutting Angle | Stroke | Backgauge(mm） | Motor(kw) | Dimension(mm) |
Q11-2x1000 | 2 | 1000 | 2°14'' | 34 | 350 | 3 | 1600x1050x1100 |
Q11-2x1300 | 2 | 1300 | 2°14'' | 34 | 350 | 3 | 1900x1050x1100 |
Q11-2x1500 | 2 | 1500 | 2°14'' | 26 | 350 | 3 | 2100x1100x1150 |
Q11-2x2000 | 2 | 2000 | 2°14'' | 26 | 350 | 3 | 2800x1100x1200 |
Q11-2x2500 | 2 | 2500 | 2°14'' | 26 | 350 | 3 | 3300x1100x1200 |
Q11-3x1300 | 3 | 1300 | 2°14'' | 26 | 450 | 4.5 | 1900x1100x1200 |
Q11-3x1500 | 3 | 1500 | 2°14'' | 26 | 450 | 4.5 | 2100x1100x1200 |
