Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
BEVERAGE bottle Blow Molding Machine PET Plastic Blowing machine
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Zhangjiagang,Fillex,Beverage,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Fillex Fcatory Real Scene Shoots
Zhangjiagang Fillex Beverage Machinery Co., Ltd.
Beverage Food Water Filling Production Line
Over 10000 Square Meters Standard Workshop
70 Professional Engineers
3 Branches: Indonesia, Dubai, Saudi Arabia
15 Years Professional Experience
CE Product Quality Certification
ISO 9001 Quality Management System
Address: Linjiang Green Industrial Park 90m Northeast, X202 Road,Leyu Town 215621, Zhangjiagang City, Jiangsu Province，China
WELCOME TO FILLEX
WELCOME TO CHINA
Product Description

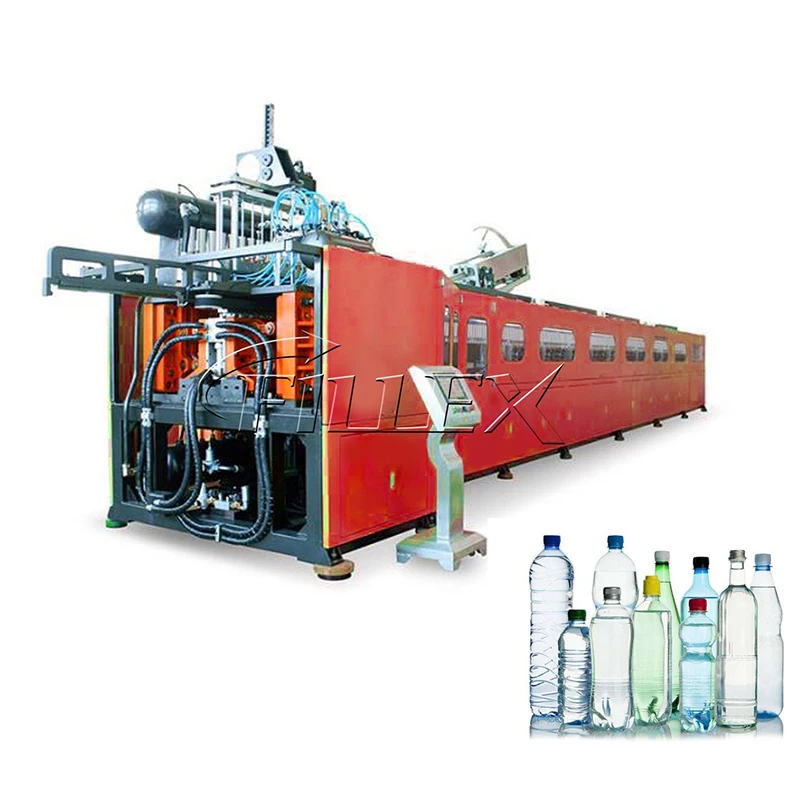

Servo high speed blow molding machine
Servo high-speed bottle blowing machine has a stable infrared heating system, the infrared lamp can realize stepless pressure regulation, the bottle embryo pitch is small, the heating efficiency is high, and the heating energy consumption is reduced by 30-40%. Servo drive spacing change system, fast embryo pick-up servo, accurate embryo separation pitch. Servo driven mold closing and stretching, bottom mold and mold opening and closing linkage, bilateral pneumatic pressurization compensation, reduce running vibration and noise, realize high-speed accurate mold opening and closing, improve the efficiency and stability of bottle blowing. The bottle blowing machine is equipped with a high-pressure recovery system to reduce the consumption of high-pressure gas by 30%. The mould of bottle blowing machine adopts drawer structure and is equipped with auxiliary device for assembling and disassembling mould, which is safe and time-saving. Man machine interface control, simple operation, high degree of automation. The automatic bottle blowing machine is suitable for water bottle, oil bottle, medicine, juice bottle, seasoning bottle, carbonated beverage, cosmetic bottle and other packaging containers.
1. Servo motor is used to drive the opening and closing die and the bottom die in a continuous structure; Achieve high speed, high precision, stability, light, energy saving, environmental protection effect.
2. The mold bottle cavity adopts oil heating or electric heating, and the temperature resistance of the bottle is up to 95 ~ 90℃; Single cavity blowing capacity up to 900 ~ 700 bottles \\ cavity \\ hours.
3. Servo motor drives the stepping and stretching system, which greatly improves the speed, flexibility and accuracy of bottle blowing.
4. High-pressure air blowing with air source recovery system (air source recovery up to 30%) can save 30KW/hour power consumption. It can save the investment cost and floor space of low-voltage air compressor, and achieve the effect of energy saving and environmental protection.
5. Mold positioning and installation, mold replacement can be completed easily and quickly within half an hour.
6. Human-machine interface control, high automation and simple operation; Small machine area, saving floor space;
7. Scope of application (PET) : hot filling beverage bottles such as juice, tea drinks and functional drinks
2. The mold bottle cavity adopts oil heating or electric heating, and the temperature resistance of the bottle is up to 95 ~ 90℃; Single cavity blowing capacity up to 900 ~ 700 bottles \\ cavity \\ hours.
3. Servo motor drives the stepping and stretching system, which greatly improves the speed, flexibility and accuracy of bottle blowing.
4. High-pressure air blowing with air source recovery system (air source recovery up to 30%) can save 30KW/hour power consumption. It can save the investment cost and floor space of low-voltage air compressor, and achieve the effect of energy saving and environmental protection.
5. Mold positioning and installation, mold replacement can be completed easily and quickly within half an hour.
6. Human-machine interface control, high automation and simple operation; Small machine area, saving floor space;
7. Scope of application (PET) : hot filling beverage bottles such as juice, tea drinks and functional drinks
Bottle Blow Molding Machine For Water Filling Machine Line
Automatic : Full Automatic / Semi Automatic
Bottle Capacity : 200ml-2L / 5L /10L / 3Gallon / 5 Gallon
Machine Capacity : 1000/2000/4000/6000/8000/9000/12000
Bottle Capacity : 200ml-2L / 5L /10L / 3Gallon / 5 Gallon
Machine Capacity : 1000/2000/4000/6000/8000/9000/12000
Material : PP/PE Bottle
Product: carbonated water, soft drinks, edible oil, juice and sport drinks, tea and milk or chemical bottles.
Product: carbonated water, soft drinks, edible oil, juice and sport drinks, tea and milk or chemical bottles.
The bottle blow molding machine has the advantages of small area, high energy efficiency and high productivity per unit time. The device for conveying bottle embryo to heating and extending blow out molding adopts linear mechanism. Blow molding machine is controlled by man-machine interface, simple operation, modular design and easy maintenance. blow molding machine can save cost and increase competitiveness.

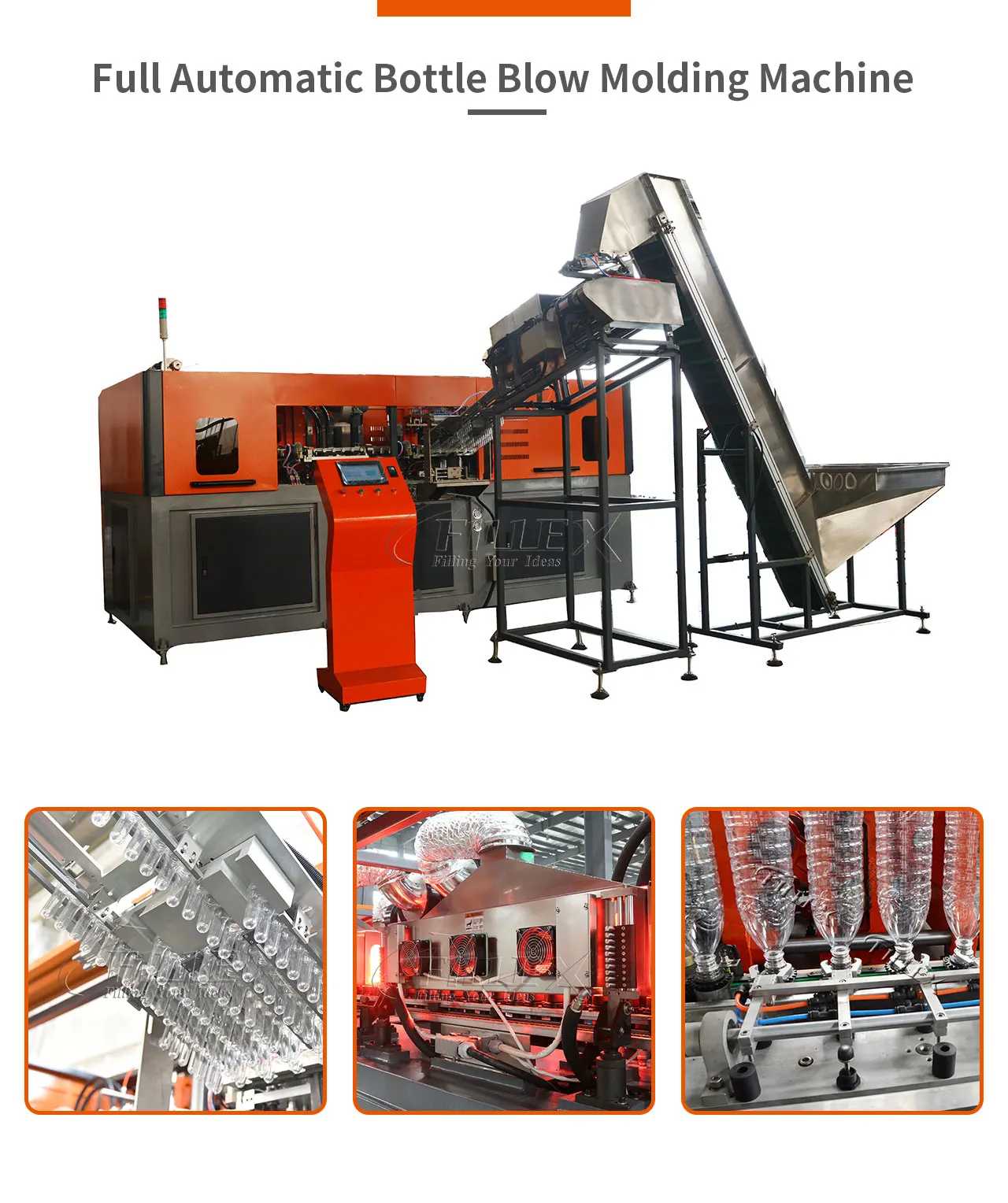

Automatic High Speed PET Bottle Blow Molding Machine
1. Automatically arrange the preform into the pre-heater, bottle will drop out automatically from mould.
2. Adopting high technology Micro PLC controller. Ensure the machine working properly and stable.
3. Pre-heater use single unit rotation heating design, preform heating center distance smaller, heating speed more faster, compare to old design with double unit rotation heating design, Electricity save 20%.
4. Special mould locking system enables faster mould locking while saves the source a lot.
5. Suitable for mineral water bottle, carbonated beverage, fruit juice bottle, oil bottle, cosmetic bottle.
Features:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle
shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could
adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect
safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost, high efficiency, easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle
shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could
adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect
safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost, high efficiency, easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.
Items | unit | ServoPet 9C0.6L | ServoPet 6C0.6L | ServoPet 4C0.6L | ServoPet 2C0.6L | ServoPet 6C2L | ServoPet 4C2L |
Cavity Pitch | mm | 76 | 76 | 76 | 76 | 114 | 114 |
Preform Heating Pitch | mm | 76 | 76 | 76 | 76 | 114 | 114 |
No. of Cav. | cav. | 9 | 6 | 4 | 2 | 6 | 4 |
Max Container Volume | L | 0.6 | 0.6 | 0.6 | 0.6 | 2 | 2 |
Neck Diameter Range | mm | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 |
Max Container Diameter | mm | 70 | 70 | 70 | 70 | 108 | 108 |
Max Container Height | mm | 240 | 240 | 240 | 240 | 320 | 320 |
Heating Power | BPH | 12000 | 8000 | 5000 | 3000 | 8000 | 6000 |
Rated Power | KW | 98 | 80 | 56 | 46 | 98 | 80 |
Power consumption | KW | 60-70 | 45-55 | 30-40 | 25-35 | 60-70 | 45-55 |
Blowing Pressure | Mpa | 2.6-3.2 | 2.6-3.2 | 2.6-3.2 | 2.6-3.2 | 2.6-3.2 | 2.6-3.2 |
Air Consuming | m3/min | 10 | 8 | 6 | 4 | 8 | 6 |
Size | mm | 4930*2110*2500 | 4200*2050*2500 | 3300*1800*2100 | 3000*1600*2100 | 4930*2110*2700 | 4200*2050*2700 |
Weight | kg | 8000 | 5500 | 4500 | 4000 | 8500 | 5800 |

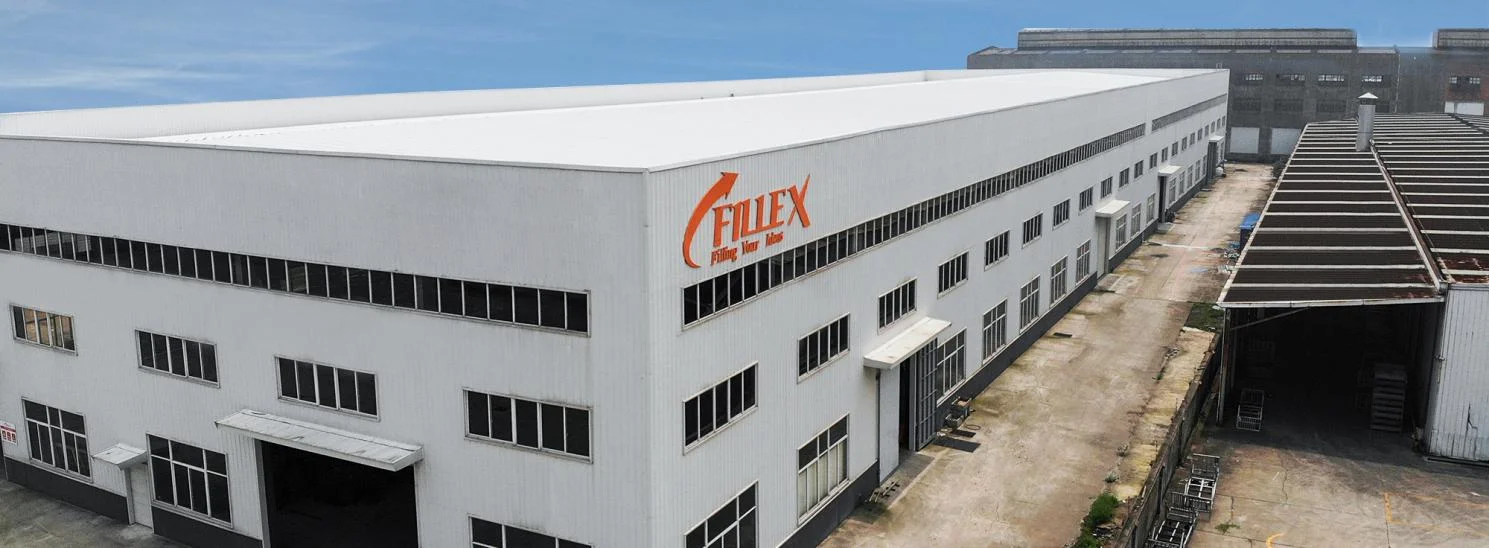

Company Profile
FILLEX BEVERAGE MACHINERY
Bottle Blow Molding Machine System
1.Bottle Blow Molding Machine Water Bottle Series - 2000-24000bph on 500ml
2.Bottle Blow Molding Machine Hot Fill Series - 1000-12000bph on 500ml
3.Bottle Blow Molding Machine Large bottle series - 1000-5000bph on 5L 10L
4.Bottle Blow Molding Machine Extra Large bottle series-150bph on 20L 5 gallon
1.Bottle Blow Molding Machine Water Bottle Series - 2000-24000bph on 500ml
2.Bottle Blow Molding Machine Hot Fill Series - 1000-12000bph on 500ml
3.Bottle Blow Molding Machine Large bottle series - 1000-5000bph on 5L 10L
4.Bottle Blow Molding Machine Extra Large bottle series-150bph on 20L 5 gallon
Filling Machine System
1.5000-36000bph Bottle Water filling machine Production Line
2.5000-36000bph Carbonated Soft Drink liquid filling machine
3.5000-36000bph Juice/Tea/Milk Beverage filling machine Production Line
4.3000-24000bph Oil/Condiments Sauce Viscous Liquid filling machine
5.1000-24000bph Glass Bottle Beer filling machine
6.100-600CPM Tin Can filling machine
7.5000-36000bph Beverage Middle Temperature/Ultra-clean Production Line
8.100-3000BPH 3/5 Gallon Barrel Water filling machine
Processing System
1.1-100TPH Drinking Water Treatment System
2.1-30TPH Beverage Processing System
3.1-30TPH Beverage Sterilizer System
4.1 Beer Brewing System
Post Packing System
1.5000-36000 Shrink Sleeve / Hot Glue / Sticker Labeling Machine
2.5000-36000 Secondary Packing Equipment
3.Shrinking Wrapping Machine
4.Carton Packing Machine
5.Palletizer
Bottle Preform & Cap Injection Molding Machine
One-stop Solution
With systems from FILLEX for filling non-sparkling water, you can rely on our high quality and ideal hygienic conditions combined with maximum cost and energy efficiency. Whichever container shape you prefer - we will find the best solution for your requirements.

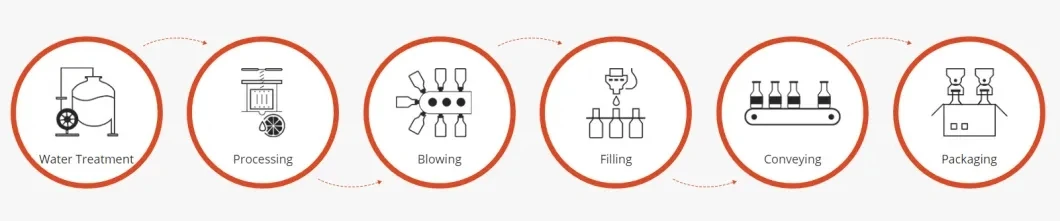

Turnkey project
