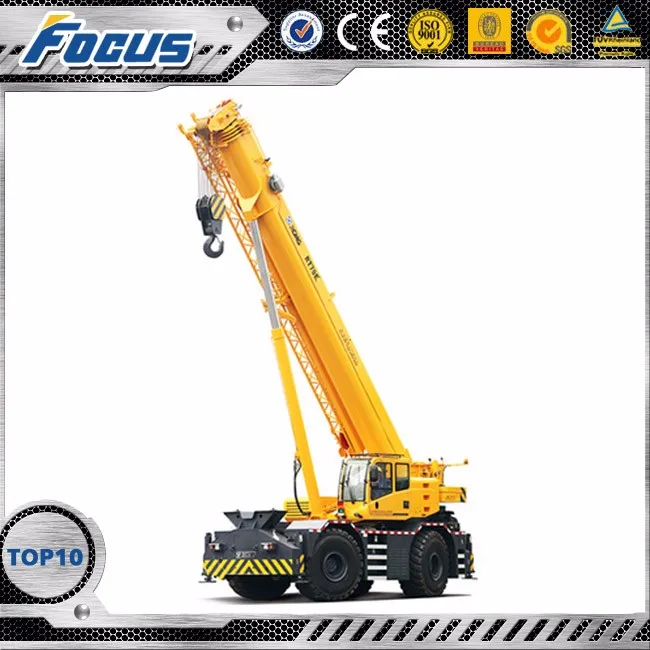

Best Chinese Rough Terrain Crane RT70 Good Price

Product Overview

Description





Rough-Terrain Crane XCM RT70



Main parameters:

Max. rated total lifting capacity:70T

Full-extend boom:11.3M

Full-extend boom+jib:43.9M

Boom length:58.1M



Main configuration:

*Engine:QSB6.7(194kw)

* Wire rope

* Hirschmann PAT

*Heater

*Full dimension cab



XCM RT70E has larger working radius, stronger lifting capacity.Fast transferring, high operation efficiency, optimized customer benefits!38 safety provisions, complete safeguard!



OUR SERVICE:

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

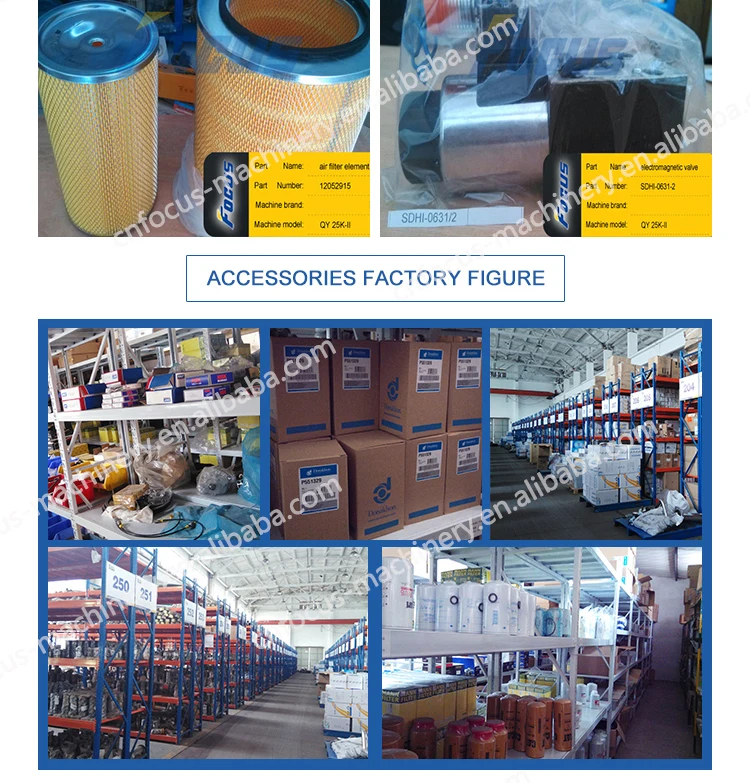

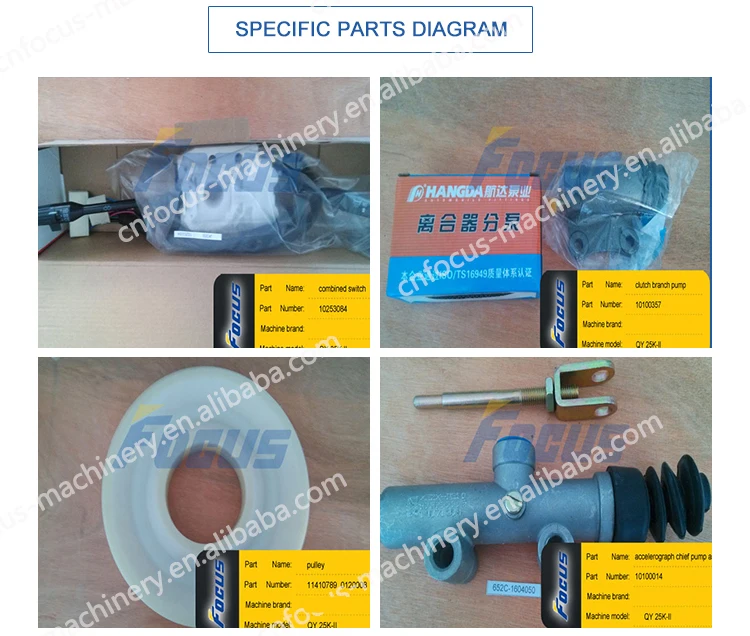

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.





Dimension	Unit	XCM RT70E
Overall length	mm	13135
Overall width	mm	3180
Overall height	mm	3750
Weight
Total weight in travel	kg	49000
Power
Engine model		QSB6.7
Engine rated power	kW/(r/min)	194
Engine rated torque	N.m/(r/min)	842
Travel
Max. travel speed	km/h	25
Min. turning diameter	m	12.2
Min. ground clearance	mm	467
Approach angle	°	20
Departure angle	°	17.5
Max. grade ability	%	65
Fuel consumption for 100km	L	-
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	2.5
Turning radius at turntable tail	m	4.1
Max. lifting torque	kN.m	2033
Full-extend boom	m	11.3
Full-extend boom+jib	m	43.9
Boom length	m	58.1
Working speed
Boom lifting time	s	120
Boom full extension time	s	130
Max. swing speed	r/min	-
Max. speed of main winch (single rope)	m/min	-
Max. speed of aux. winch (single rope)	m/min	2
