Npack Full Automatic Ketchup Packing Machine Tomato Paste Hot Sauce Filling Machine with Heating and Mixing
- Category: >>>
- Supplier: Shanghai Npack Automation Equipment Co. Ltd.
Share on (1600176187467):
Product Overview
Description

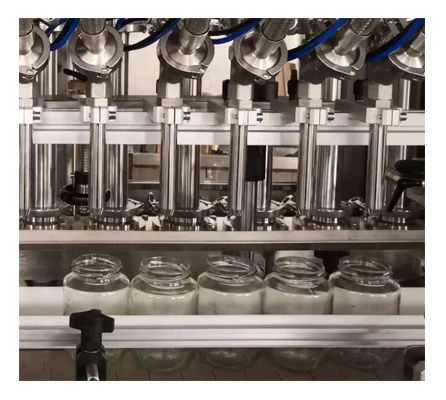

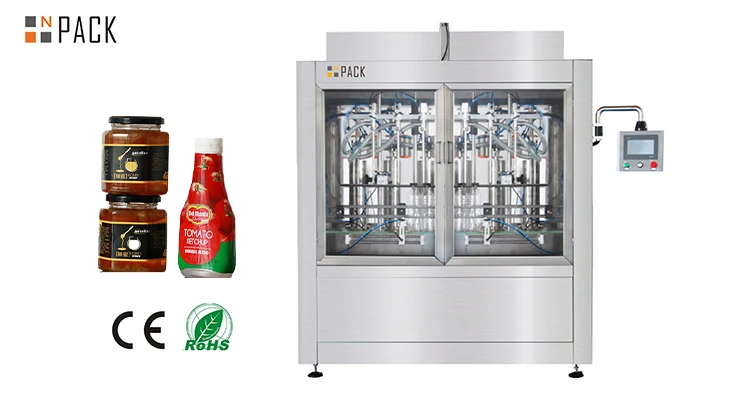

Automatic Sauce Filling Machine
Npack automatic sauce filling machine integrates light, machine, electricity and gas,adopts piston type quantitative principle, with high filling accuracy, simple operation and convenient maintenance. The main material of the equipment is SS304 stainless steel, which meets the sanitary requirements. suitable for filling more viscous sauces such as garlic sauce, Douban sauce, chili sauce, mushroom sauce,ketchup,peanut butter and so on.It can be widely used in automatic packaging production of food and sauce industry.
Model | NP-VF-2 | NP-VF-4 | NP-VF-6 | NP-VF-8 | NP-VF-10 | NP-VF-12 | NP-VF-16 | ||||||
Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 | ||||||
Range | 100-500ML,100-1000ML,1000-5000ML | ||||||||||||
Capacity base on 500ml | 12-14 bpm | 24-28 bpm | 36-42 bpm | 48-56 bpm | 60-70 bpm | 70-80 bpm | 80-100 bpm | ||||||
Air Pressure（mpa） | 0.6 | ||||||||||||
Accuracy（%） | ±0.1-0.3 | ||||||||||||
Power | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W | |||||||||||
Main Features
1. The equipment rack adopts closed structure, which is safe to operate and sanitary to use.
2. The high precision piston metering device of granular sauce filling machine is driven by servo motor, which is accurate and reliable;
3. It is made of SUS304 stainless steel, which meets the requirements of food production.
4. The automatic hot sauce filling machine adopts high-quality sealing elements and effective anti dripping measures to ensure no dripping on the filling site;
5. The equipment has its own material storage box, which can clean the pipeline independently, and it is convenient for cleaning and refueling.
2. The high precision piston metering device of granular sauce filling machine is driven by servo motor, which is accurate and reliable;
3. It is made of SUS304 stainless steel, which meets the requirements of food production.
4. The automatic hot sauce filling machine adopts high-quality sealing elements and effective anti dripping measures to ensure no dripping on the filling site;
5. The equipment has its own material storage box, which can clean the pipeline independently, and it is convenient for cleaning and refueling.

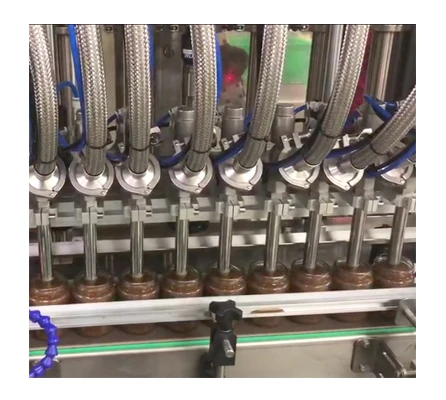

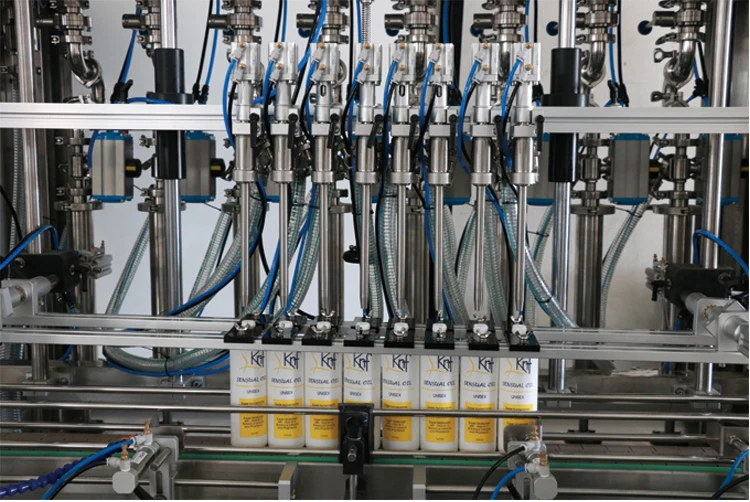

High Pressure Endure SS Hose and Sanization Filling Head
1.Food grade 304ss hose
2.Shut off filling heads
3.With drop collection tray
4.High filling accuracy
5.Diving Nozzles are optional for bubble sauce,like honey
6.304SS Food contruction,no dead corner
7.High quality and food grad O rings and seals inside of the nozzles

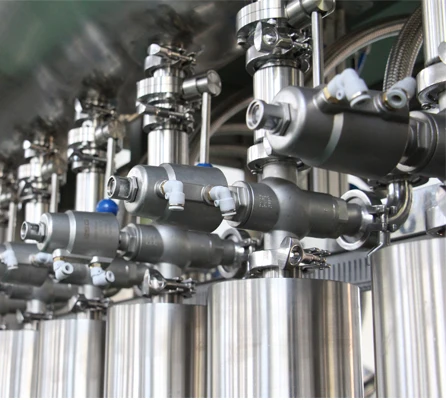

ESG Valve
1.Easy disassembly three way connectors, No dead corner
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably, and no dead corner
4.Sutiable for thin to viscous liquid and Sauce

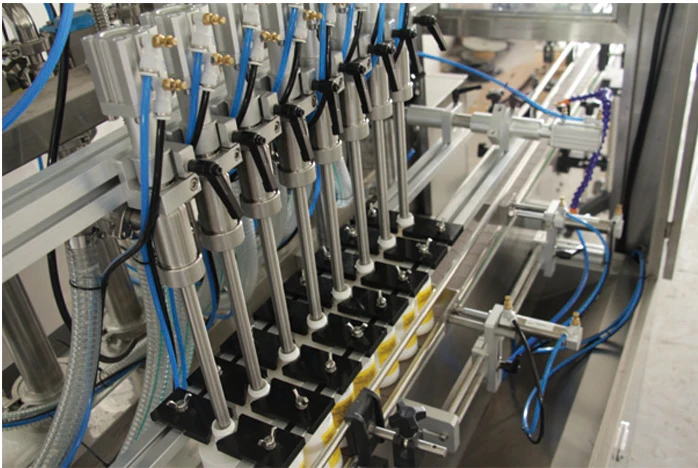

Tools Free Adjustment System
1. No need tools adjustment for different size of bottles
2. All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen
High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics:
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy Cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option
6.Mixing and heating fuction for potion

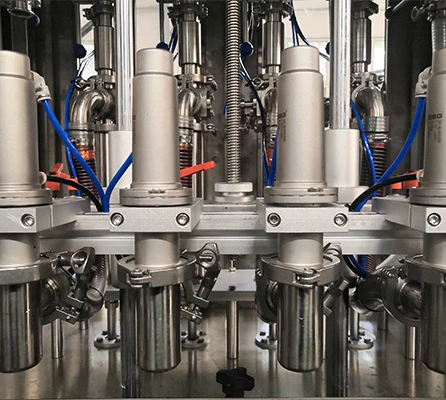

Automatic Piston Take Off
1.Easy cleaning
2.No need tools to clean the pistons which gurantee the food grade,save time and labor.
3.CIP system is for option
