MPPT солнечный vfd однофазный 0,75 кВт 1.5кВт 2.2квт солнечный насос инвертор 3hp регулятор частоты насоса
- Category: >>>
- Supplier: Shenzhen M-Driver Technology Co. Ltd.
Share on (1600176500973):
Product Overview
Description
MPPT solar vfd single phase 0.75kw 1.5kw 2.2kw solar pump inverter 3hp frequency pump controller
frequency converter freqency inverter ac driver
Product Description
Specifics
_______________________________________
| 220V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 400V DC |
| Recommended MPPT voltage range | 250~350V DC |
| Recommended input Operation Voltage | 310V DC |
| Grid or backup generator input | |
| Input voltage | Single phase 220V(-15%~30%) |
| Output Specification | |
| Rated output voltage | 3PH 220V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| 380V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 800V DC |
| Recommended MPPT voltage range | 450~600V DC |
| Recommended input Operation voltage | 540V DC |
| Grid or backup generator input | |
| Input voltage | Three phase 380V(-15%~30%) |
| Output specification | |
| Rated ouput voltage | 3PH 380V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| Protection | |
| Built-in Protection | Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc. |
| General Parameters | |
| Application site | No direct sunshine, no dust,corrosive gas,combustible gas, oil mist, steam,dripping or salinity etc. |
| Altitude | 0~2000m |
| Derated use above 1000m, per 100m, the rated output current decrease 1% | |
| Environment Temperature | -10°C~40°C (Environment Temperature be 40°C~50°C, please keep derated use) |
| Humidity | 5~95%, non-condensation |
| Vibration | less than 5.9 m/s²(0.6G) |
| Storage Temperature | -20°C~+70°C |
| Efficiency | Rated Power Run≥93% |
| Installation | Wall or rail mounting |
| Protectiion Grade | IP20 |
| Cooling | Forced Air Cooling |

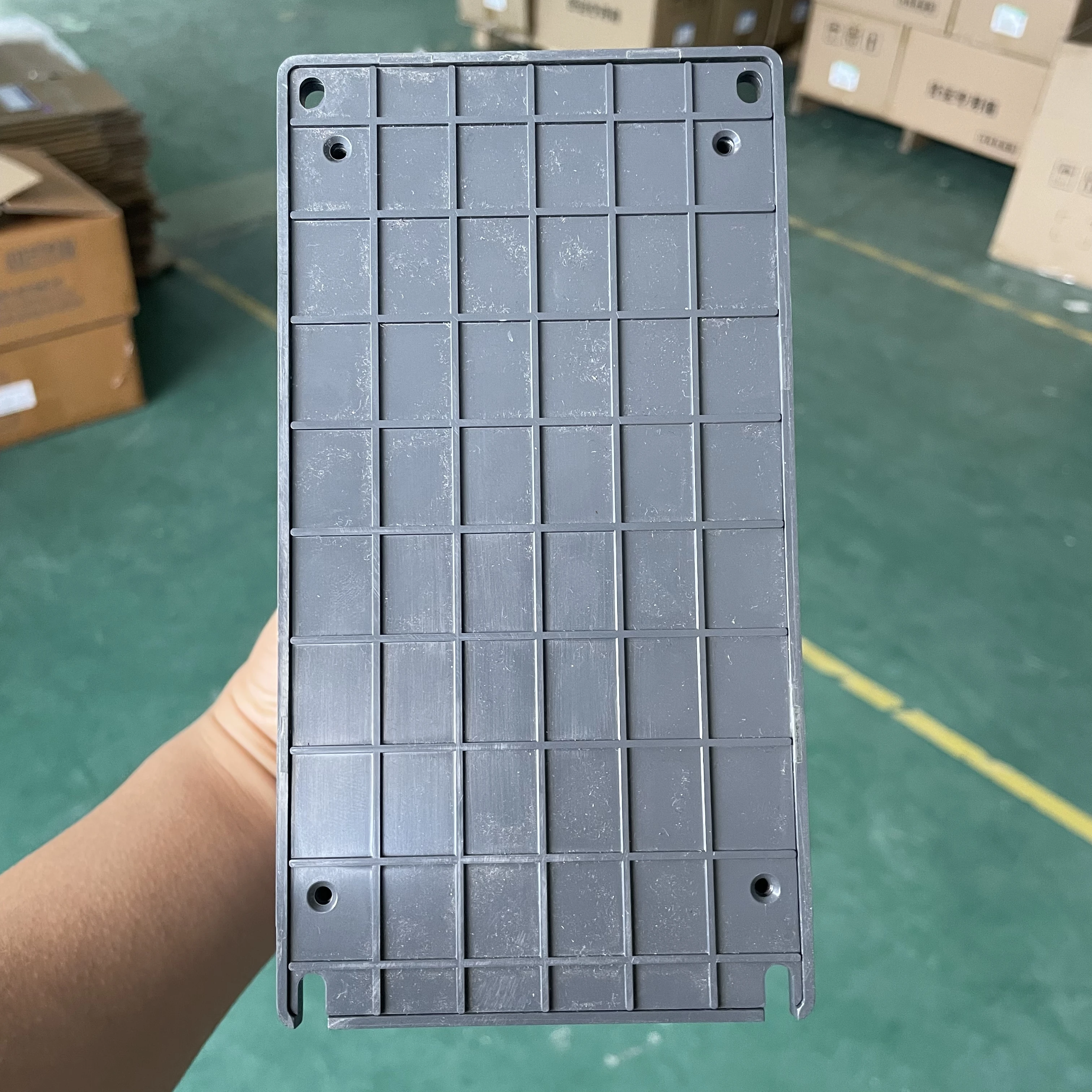

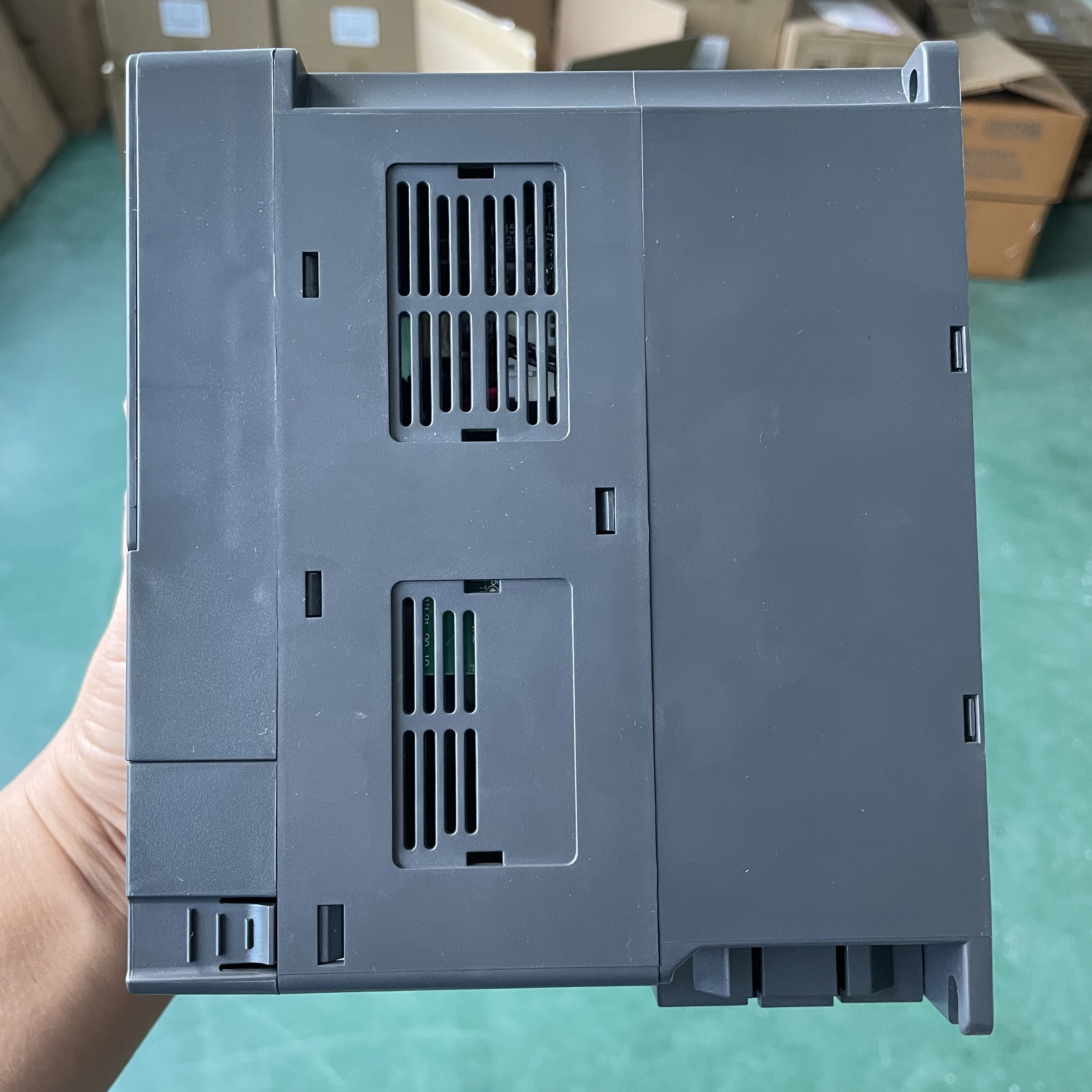

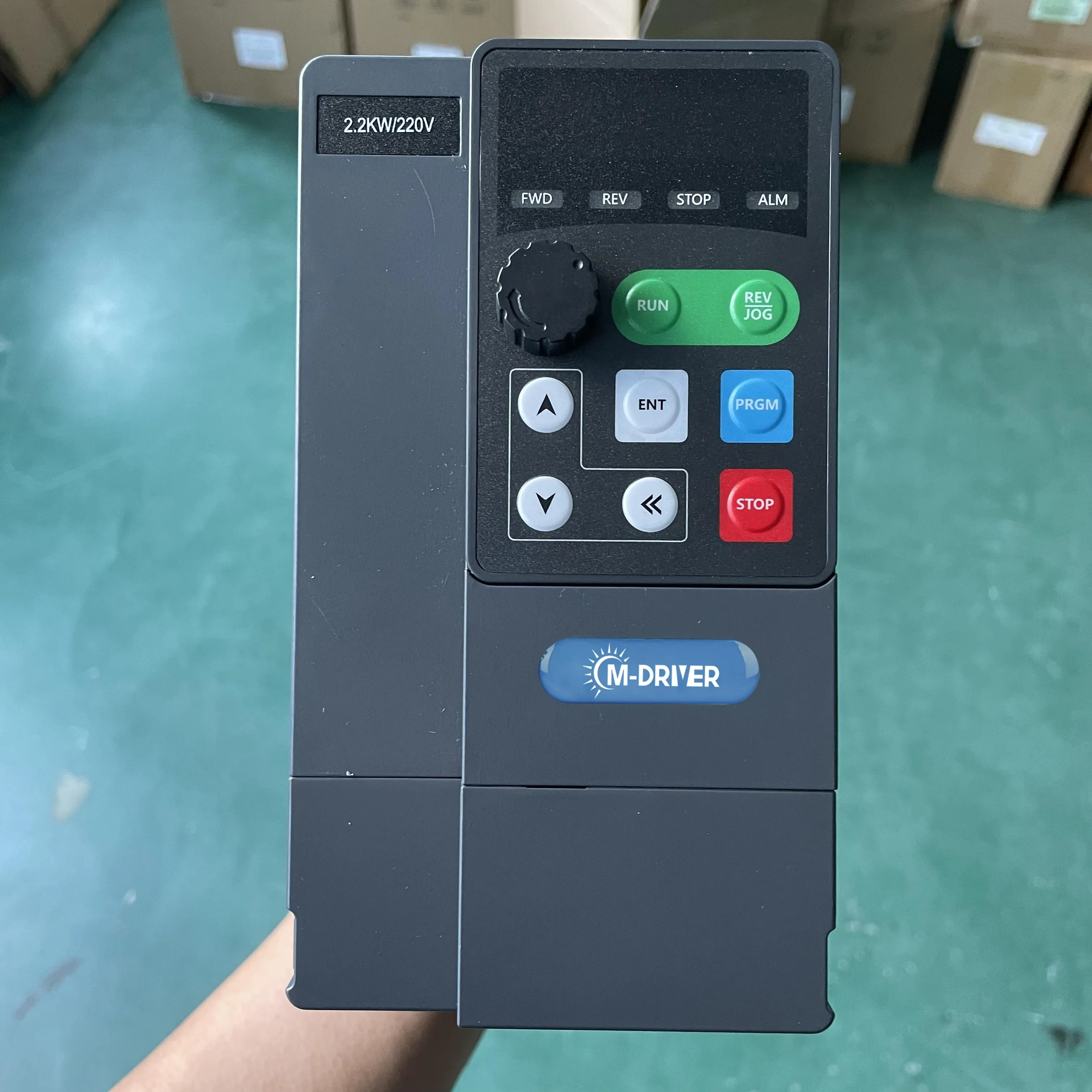

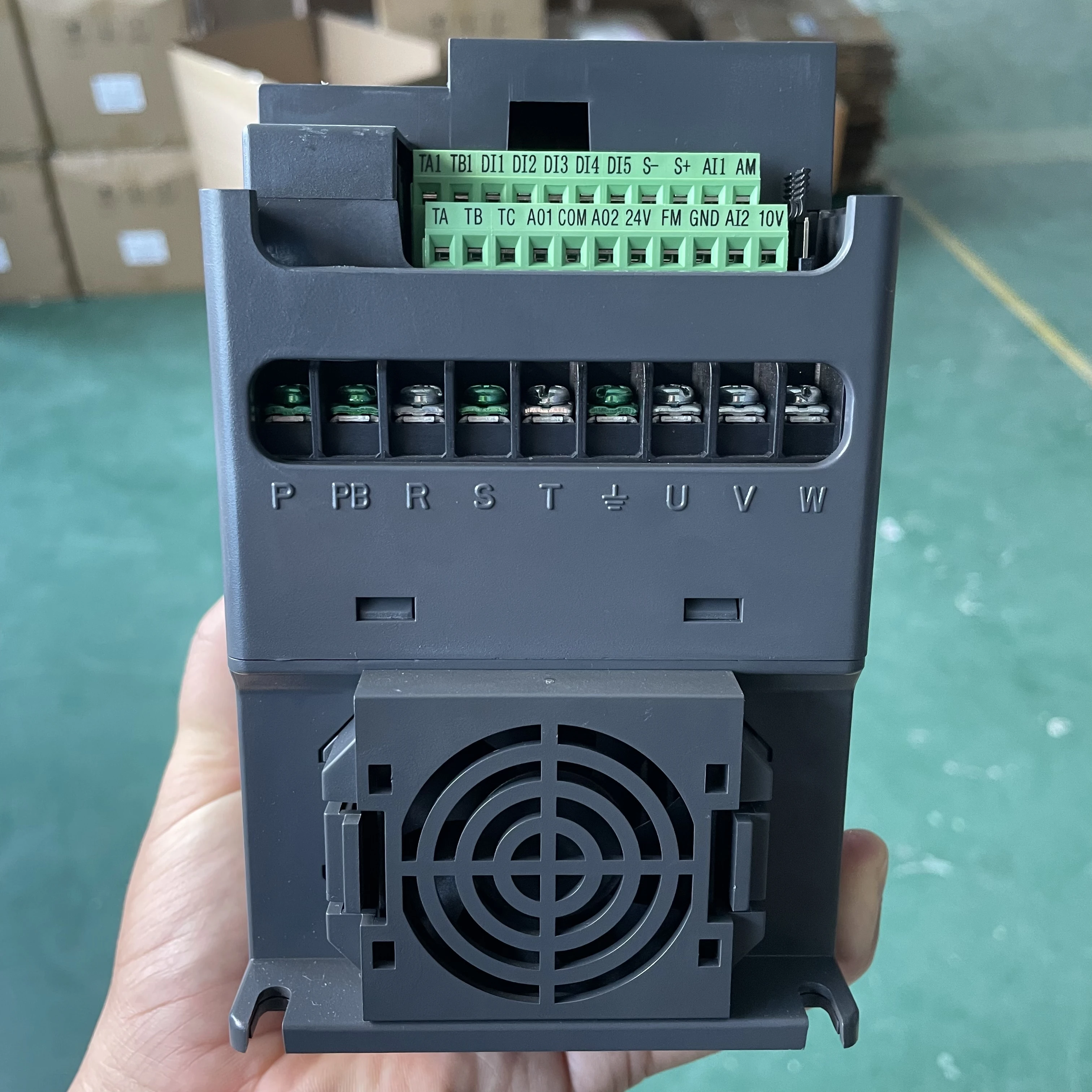

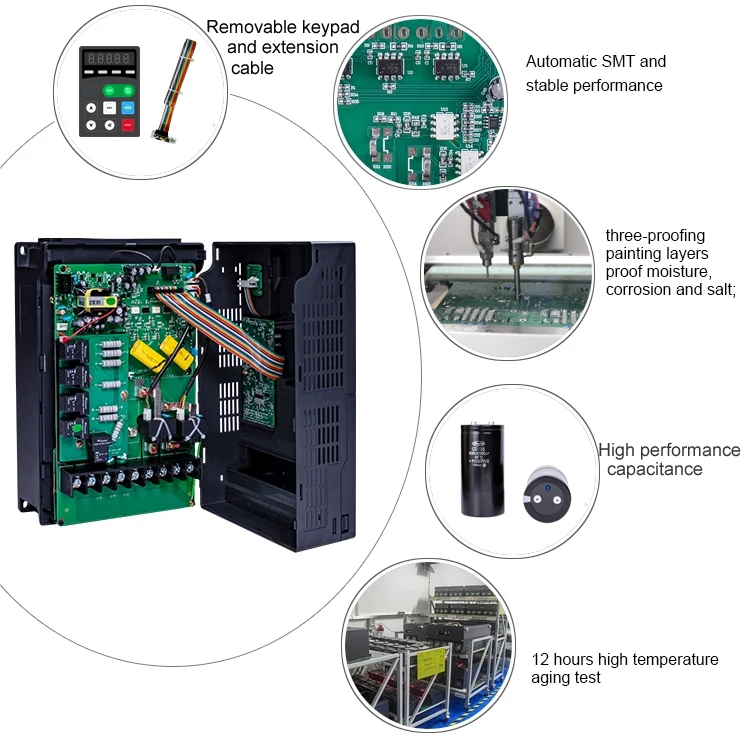

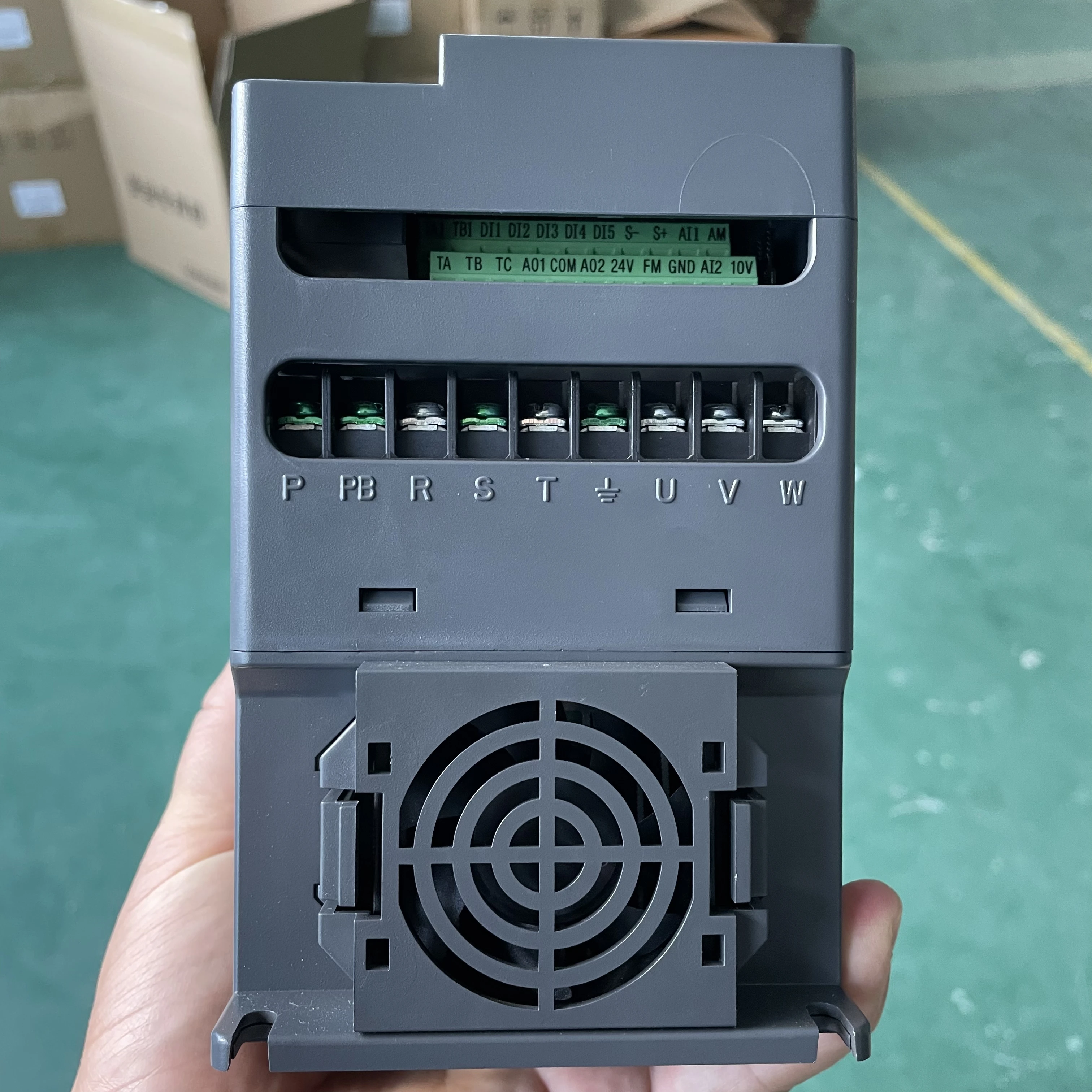

Product details
_______________________________________

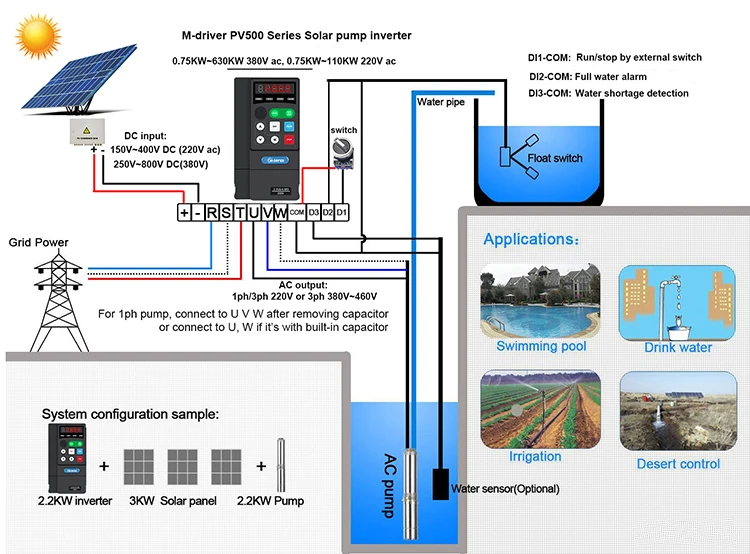

Connection diagram
_______________________________________

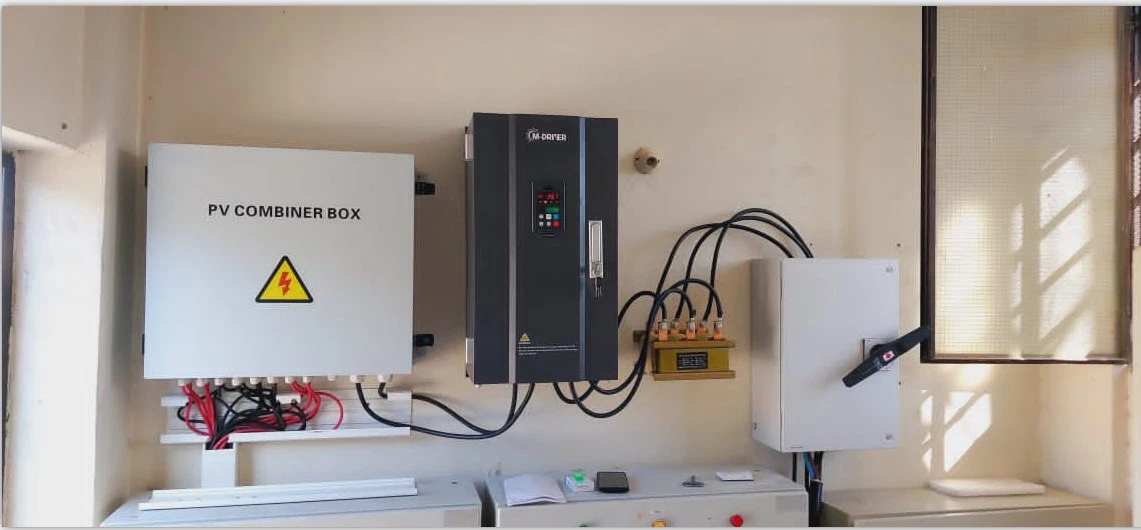

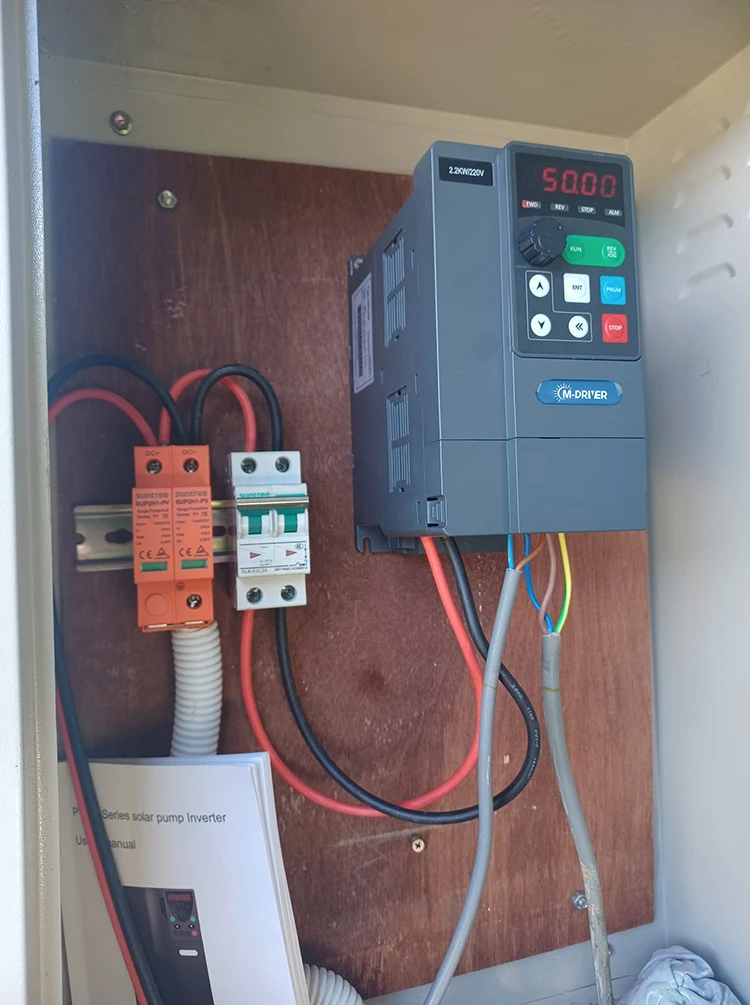

Application
Packaging & Shipping
Company Information
FAQ
Q 1: Are you trading company or manufacturer ?
We are factory.
Q 2: How long is your lead time?
Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.
Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.
Q 5: What is the standard of package?
Single small carton or plywood crate.
Q 6. Is there any discount ?
The discount will depend on the quanlity you purchase.
Q 7. What is your supply capacity?
The daily production is 500pcs.
Q 8. Do you provide warranty for the goods?
Yes, we provide 18 months warranty for all the goods.
Q 9. Could M-driver provide technical support?
Yes, we worked 19 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
