MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector
MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector
MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector
MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector
MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector
MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector
MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector

MDC 3/4/5/6/7/8/9 pin male Female din socket 90 degree right angle Din Power Jack Circular Din Connector

Share on:


Price:$0.18 - $0.21
Price in USD:Details

Quantity:


Product Overview

Description



Specification


Product Name
Din Connector
Item Number
MDC-02 Din Connector
Electronic Life
>10000CYCLES
Mechanical Life
>10000CYCLES
Contact Resistance
<0.03Ω
Insulation Resistance
≥100MΩ
Withstand Voltage
AC250V(50Hz)/min
Insertion and Extraction Force
5-35N
Storage Temperature
-20°C~70°C


Product Description


A DIN connector encompasses several types of cables that plug into an interface to connect devices. It has an architecture that is composed of multiple pins that are within a protective circular sheath.

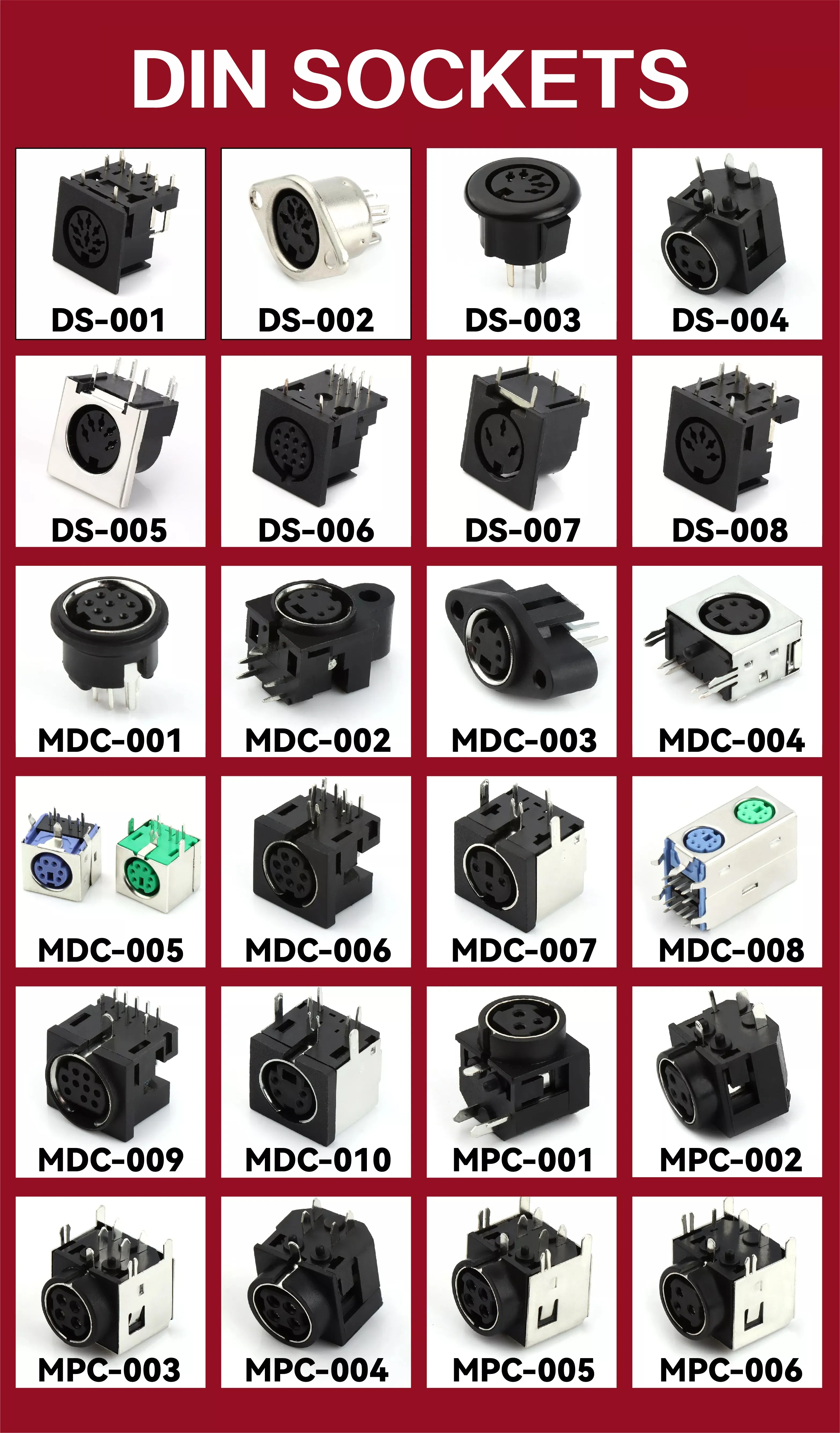

Type:DS/MPC/MDC and so on.

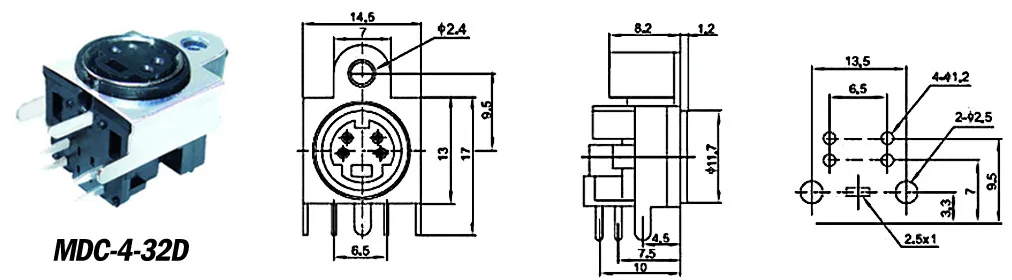

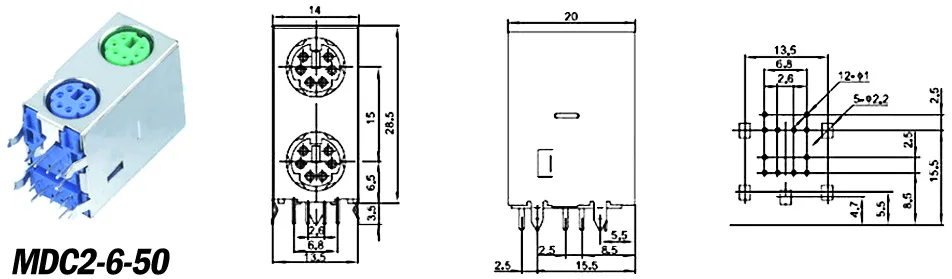

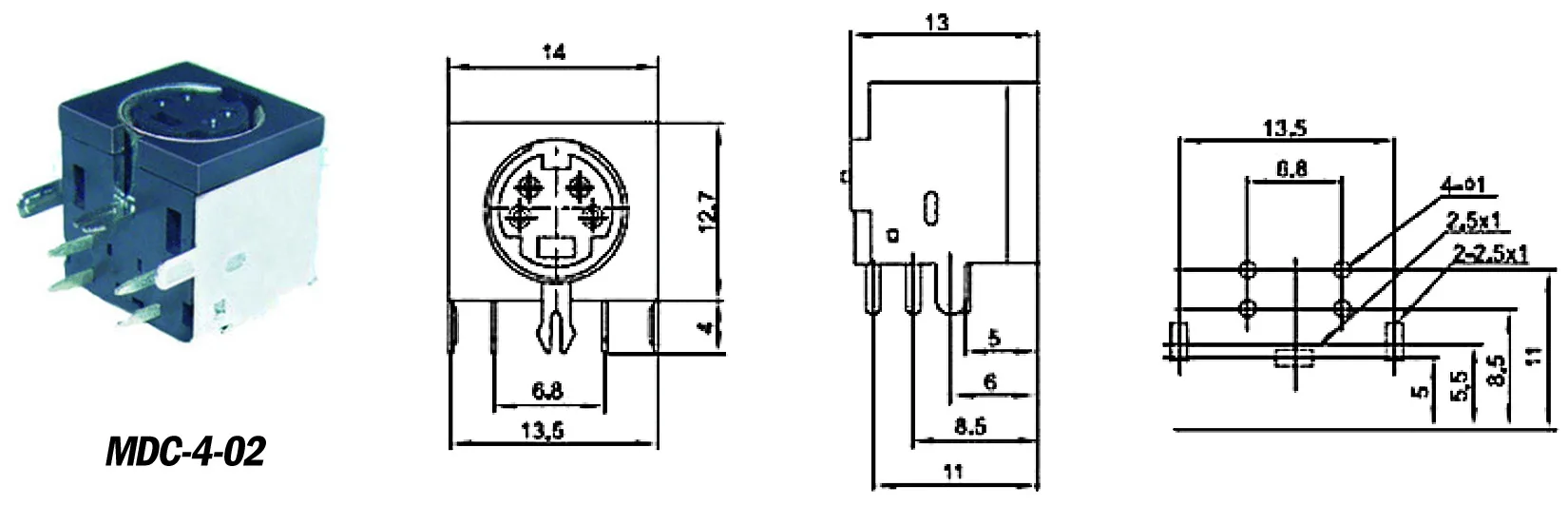

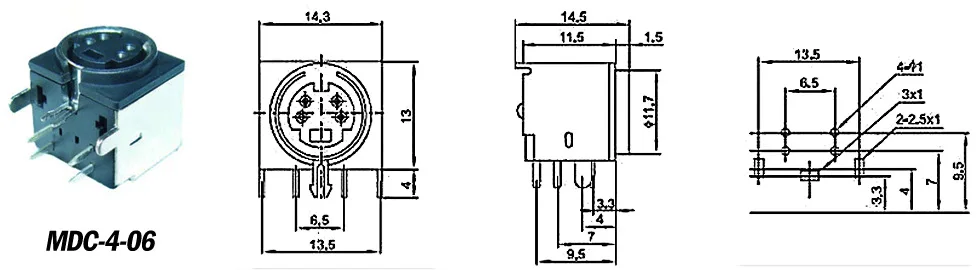

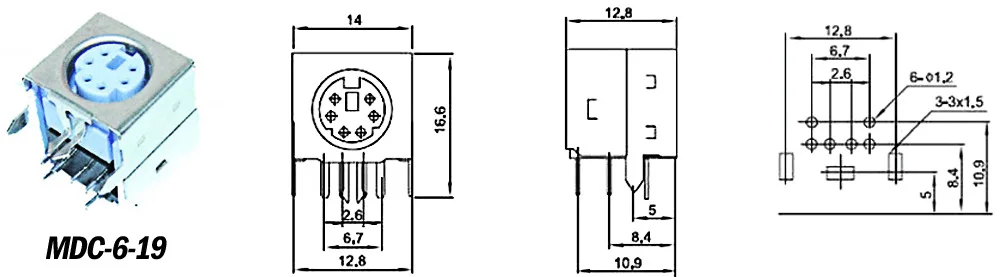

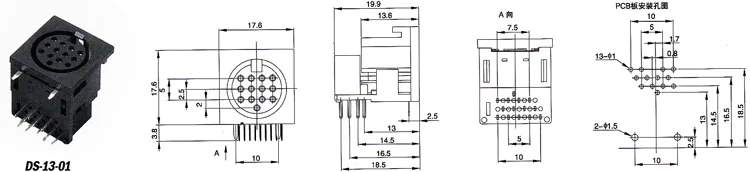

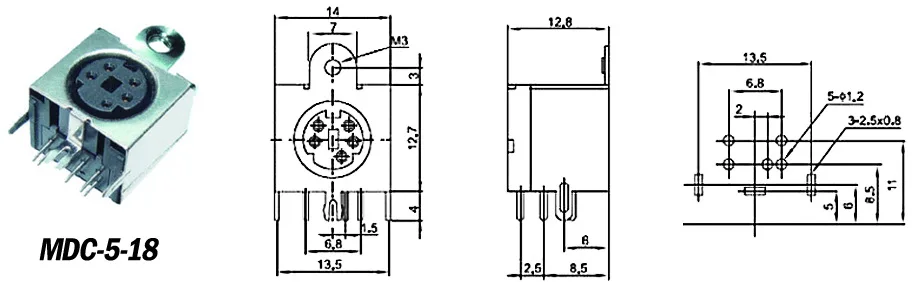

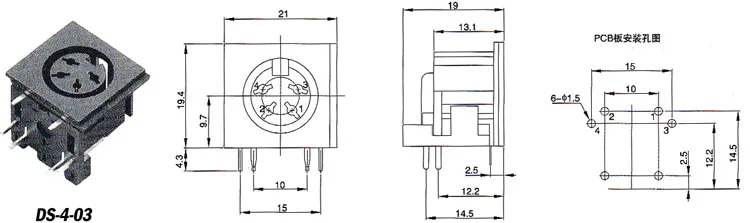

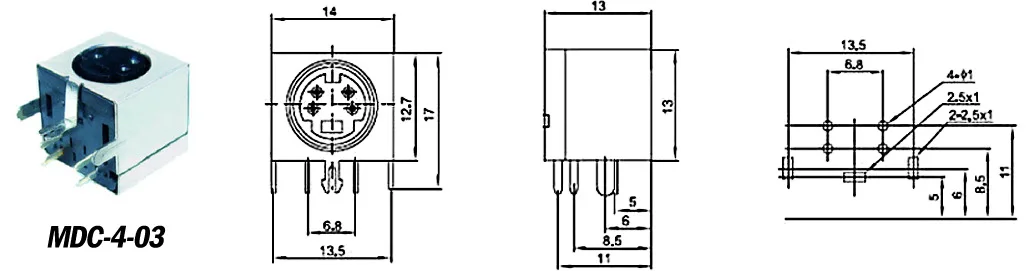

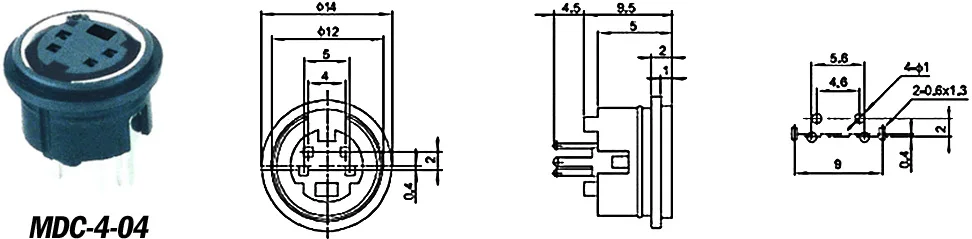

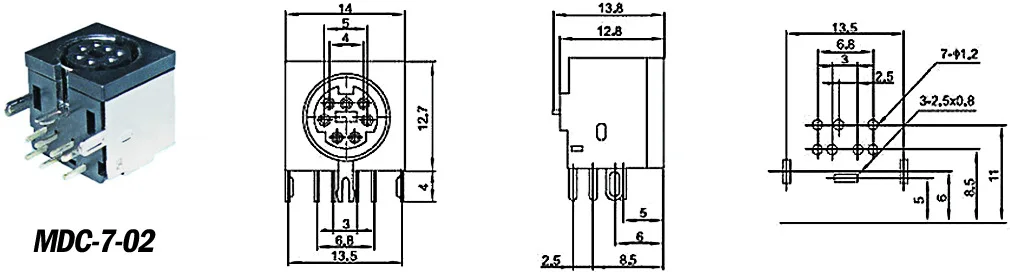

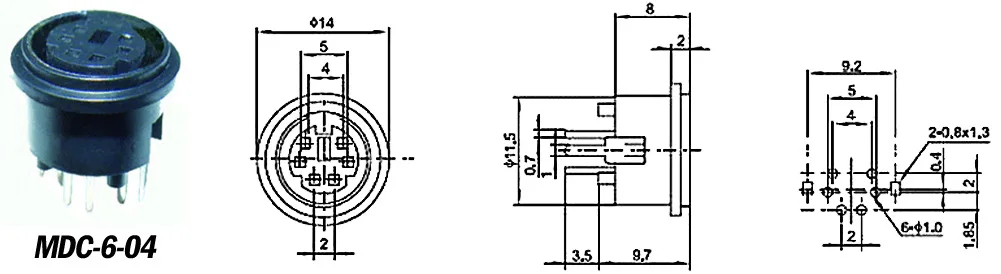

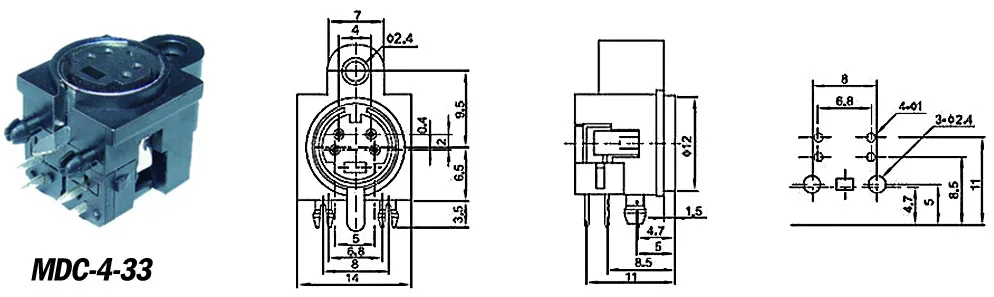

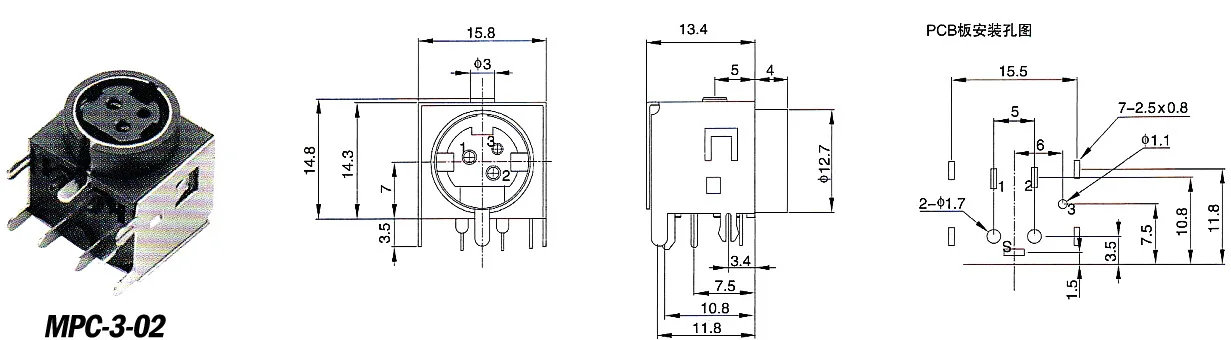

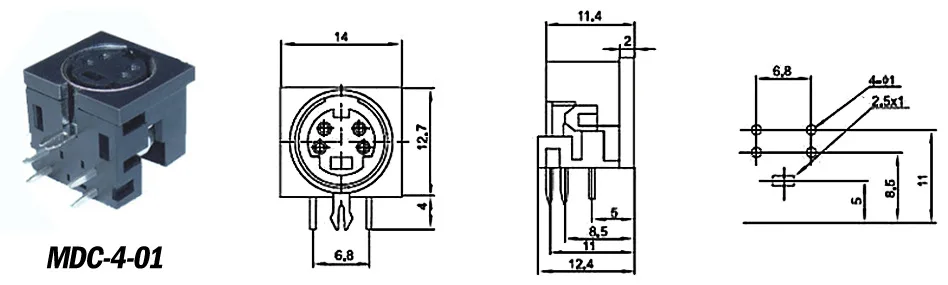

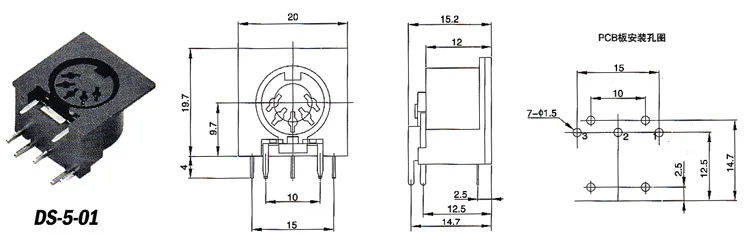

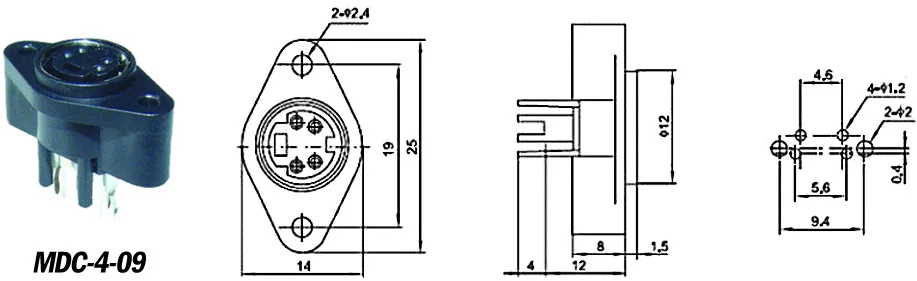

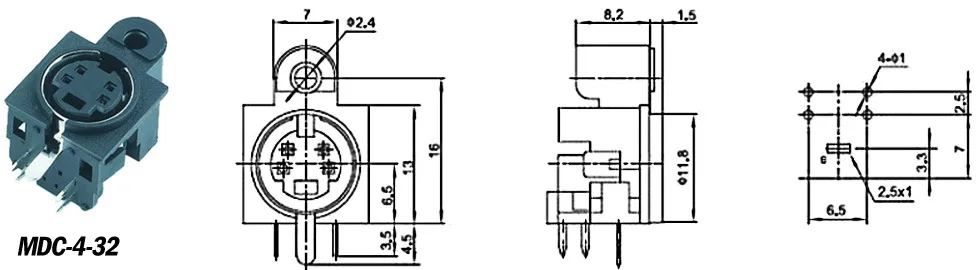

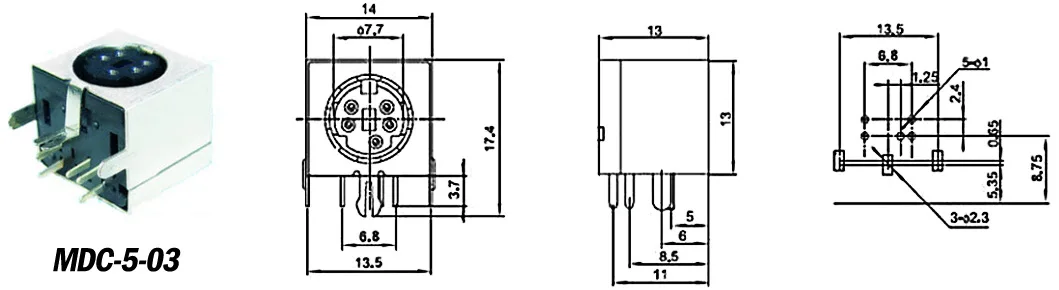

Product drawing
























































If you didn't find the suitable item here, Please CONTACT US to get the product You Need! There are many Models for Options.
