Product Overview

Description



Products Description

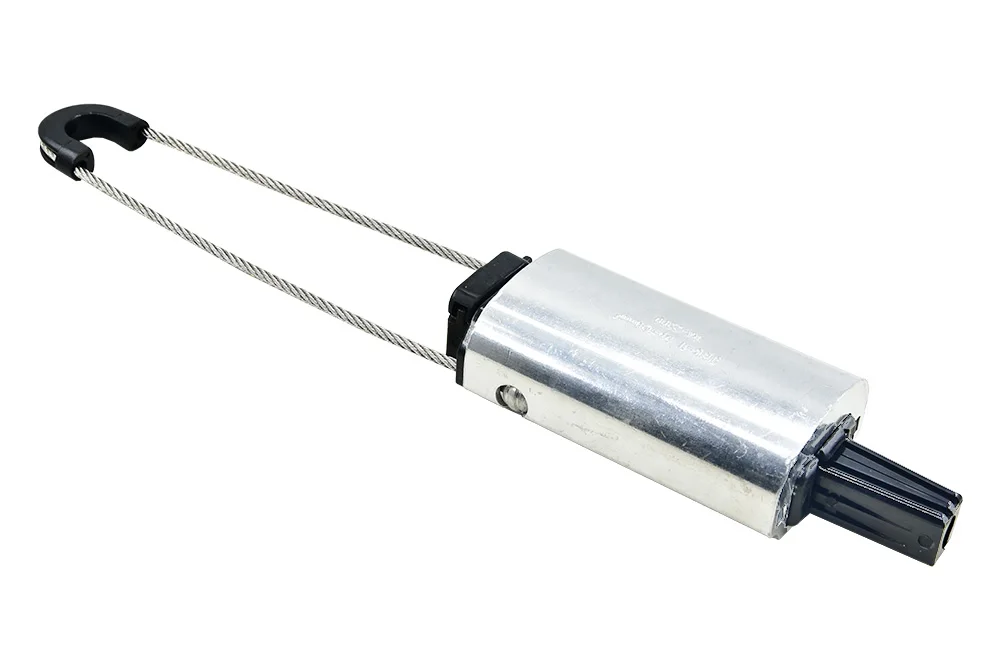

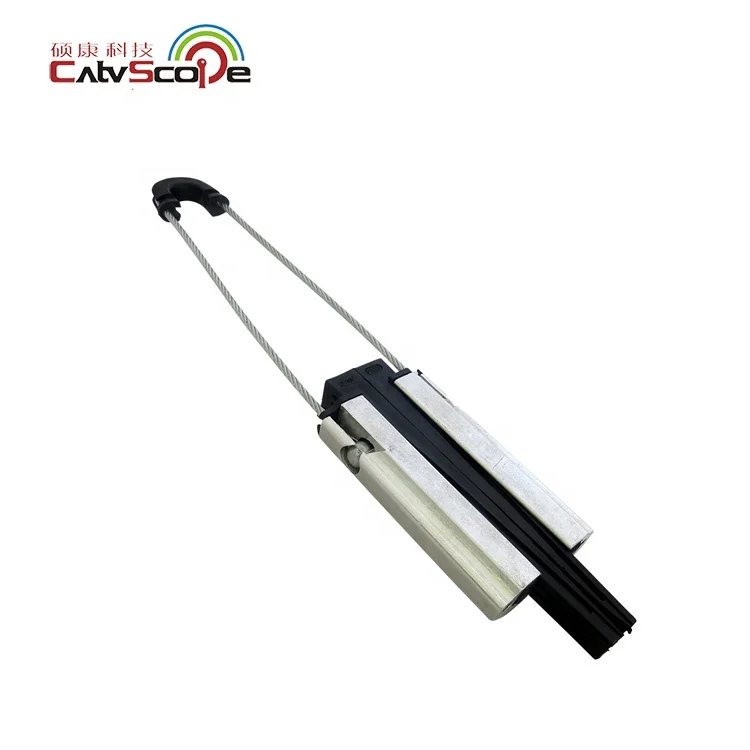

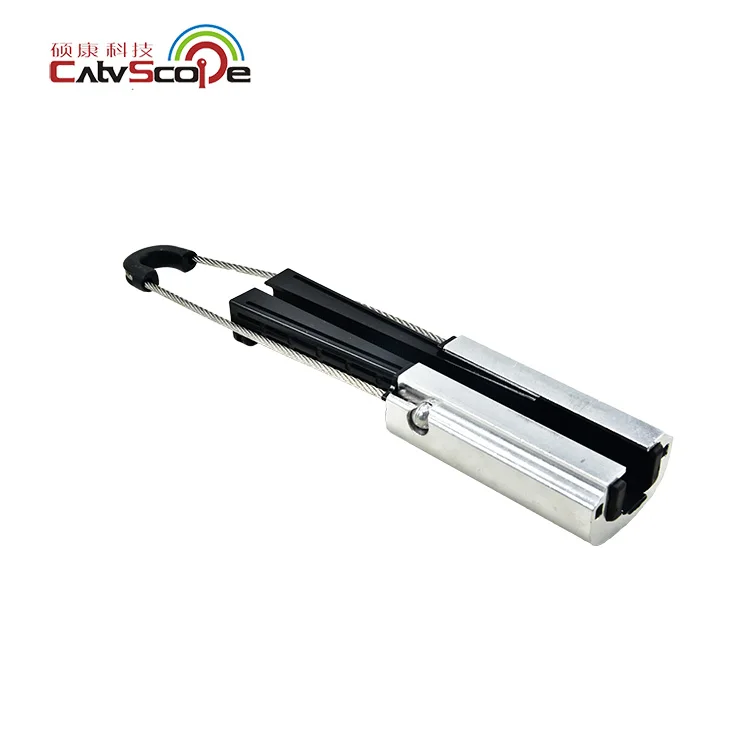

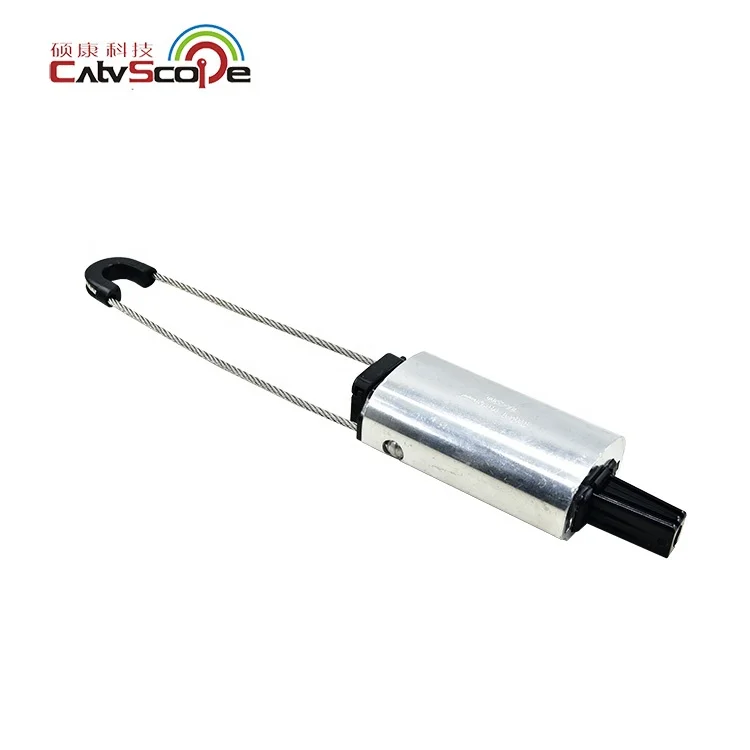

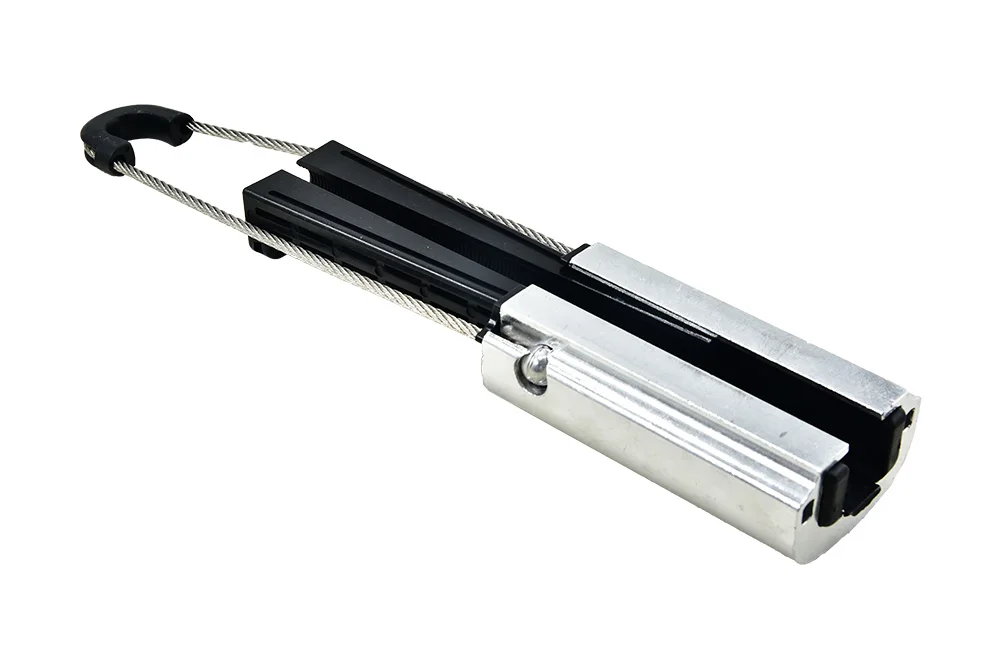

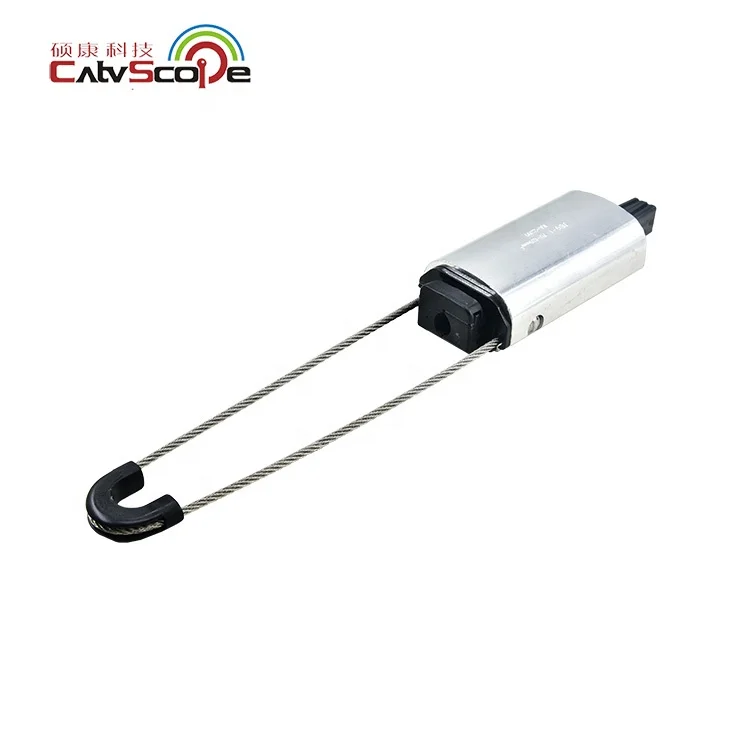

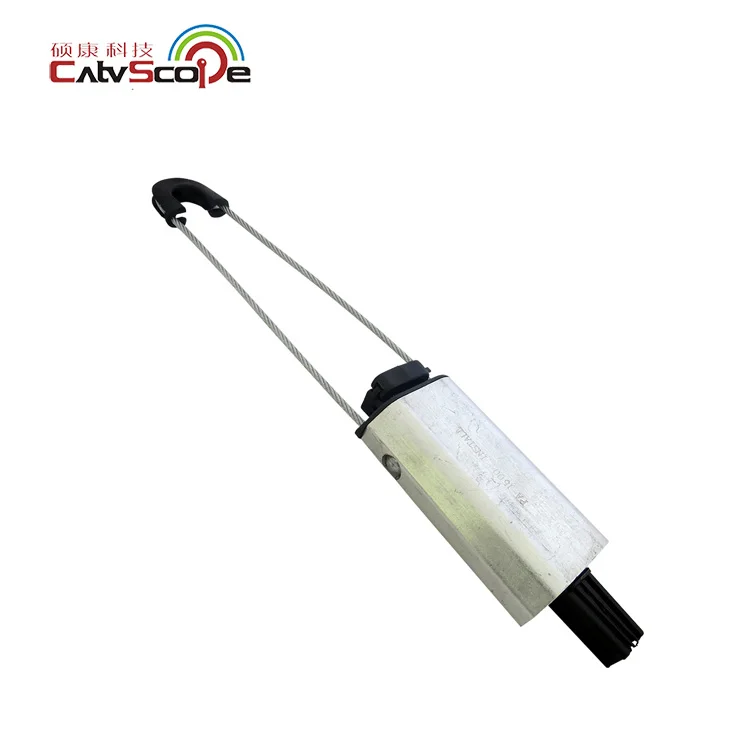

Anchor clamp PA-1500, is used for anchoring low voltage aerial bundle conductor cable with insulated neutral messenger. In short, this dead end clamp is anchor clamp for ABC cable. This wedge type tension clamp is made of plastic wedge which can be self-adjusting and aluminum alloy cast body.


Features


1. Easy to install and long-term usage
2. Suitable for pole and wall mounted usage
3. the raw materials of the product are corrosion resistant material
4. Easy to install with brackets, stripping, buckles and hooks available
5. High tension load reaches 15 KN


Product Paramenters


Items
Parameters
Product code
PA-1500
ABC Cable size, mm2
50-70
ADSS Cable size, mm
8-12
Product color
Black, Steel
MBL, kN
15
Weight, kg
0.4 kg
Package
40*30*11 cm, 26 PCS/CTN


Model
Airfoil section, mm2
Minimum destructive load, KN
Weight, KG
PA-1000
25-35
10
0.4
PA-1500
50-70
15
0.4
PA-2200
70-95
21
0.45
