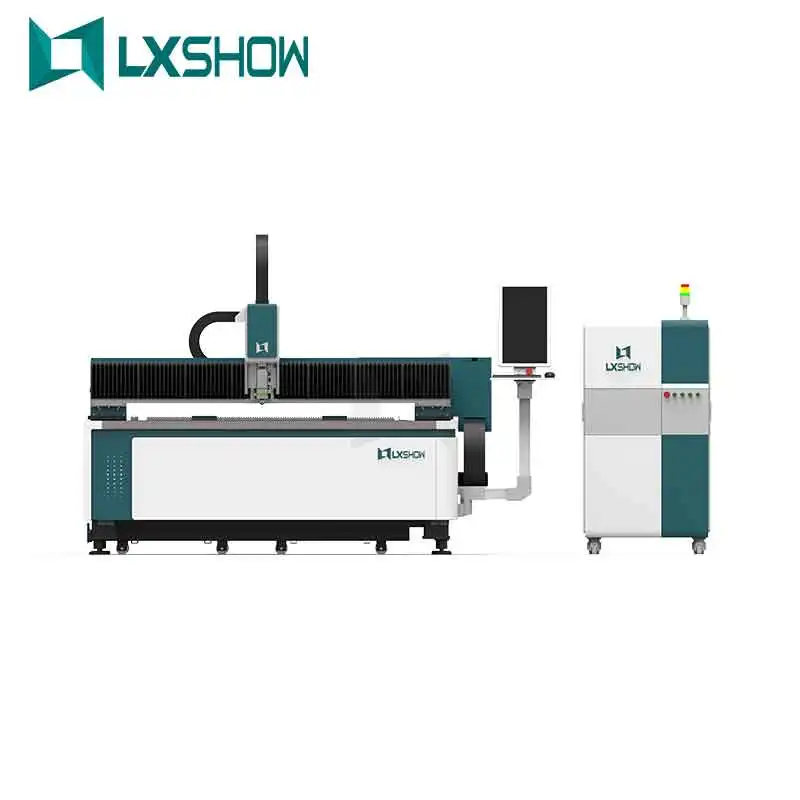

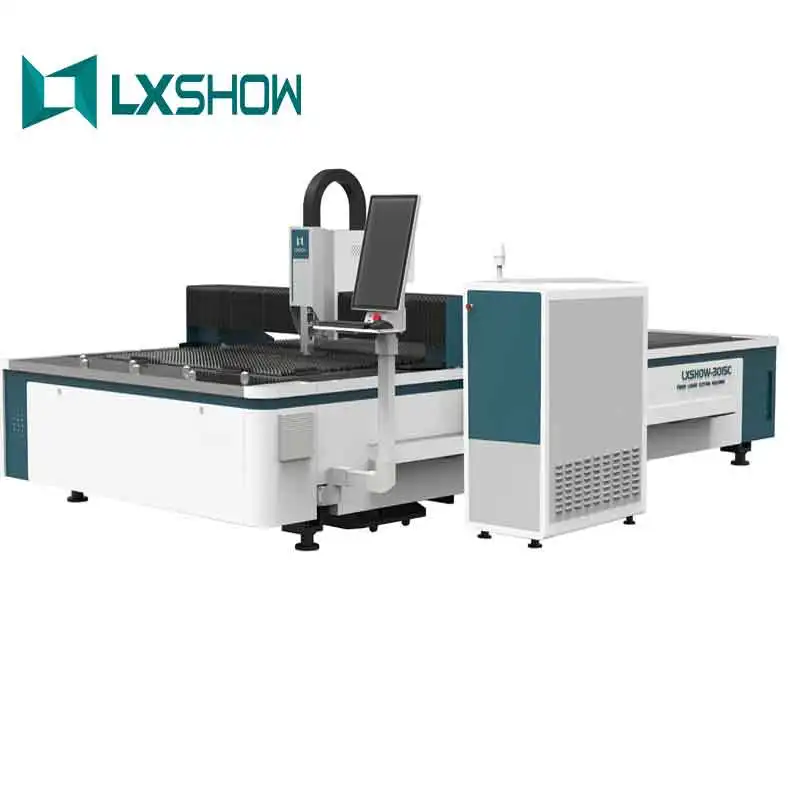

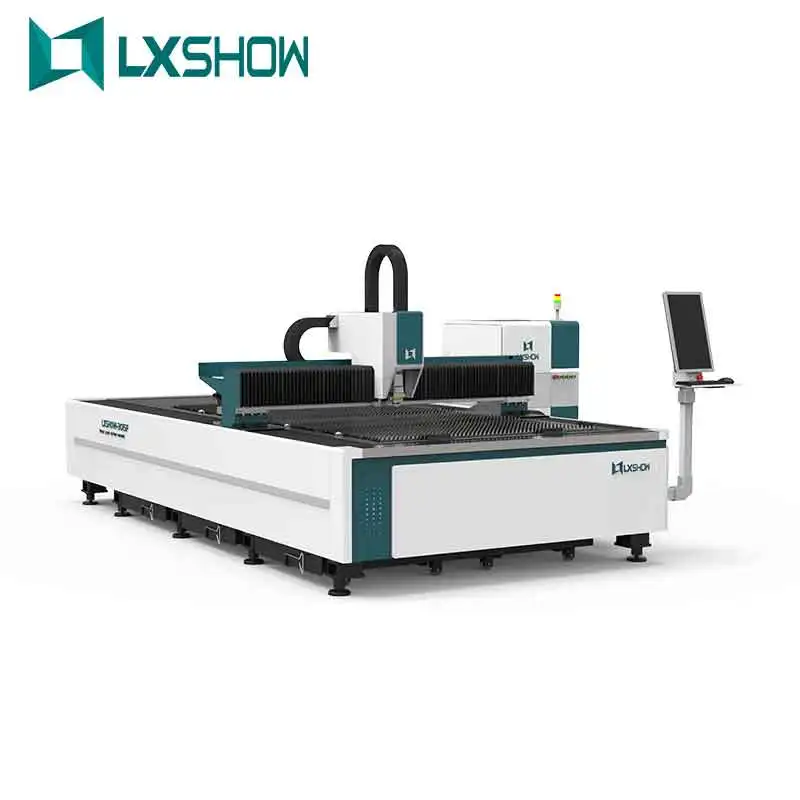

3 Years AfterSales Warranty 2000w 1.5kw 1000watt 3015 cutter for stainless steel fiber laser machine cutting 10mm metal
- Category: Laser Cutting Machines >>>
- Supplier: Jinan Lxshow Machinery Co. Ltd.
Share on (1600176659934):
Product Overview
Description
We only do one thing, professional cutting
Our Advantages
1.3 year warranty，Main parts
2.20% faster delivery than others
3.24 hour online service, support free customization
3.24 hour online service, support free customization
Products Description

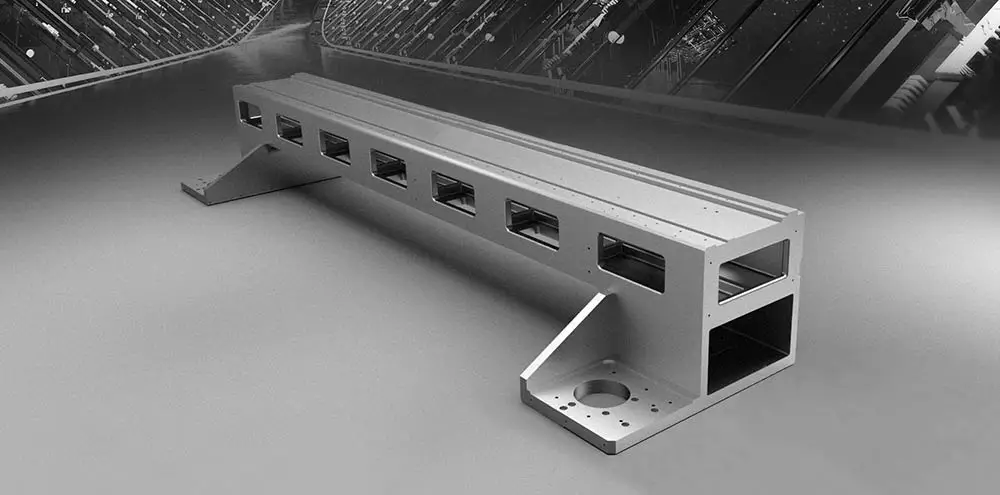

Brand New Cast Aluminum Beam
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

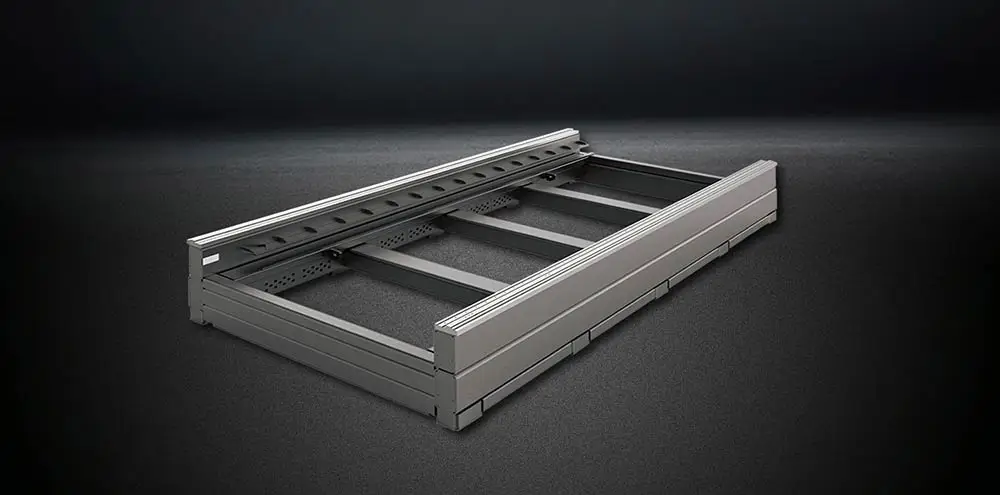

The Segmented Rectangle laser Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of metal plate.
Stiffeners are arranged inside the plates to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed
Stiffeners are arranged inside the plates to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed

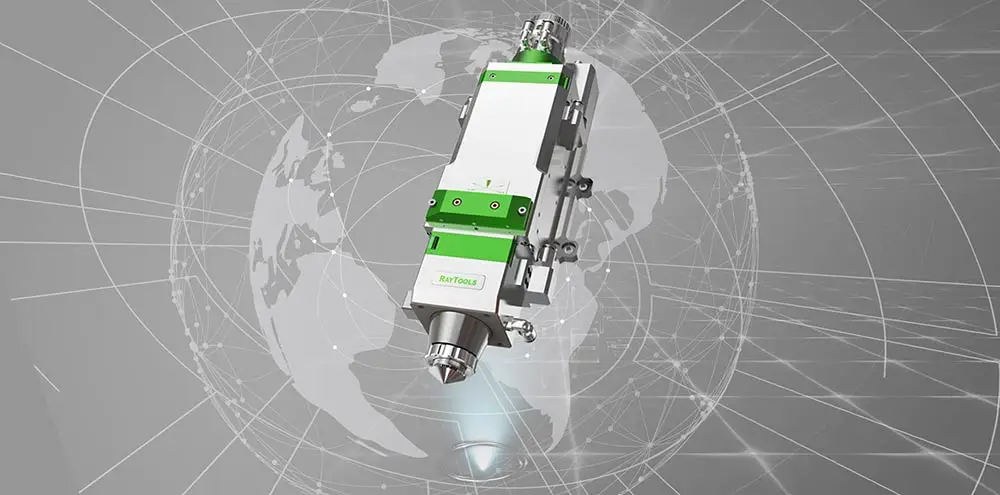

Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

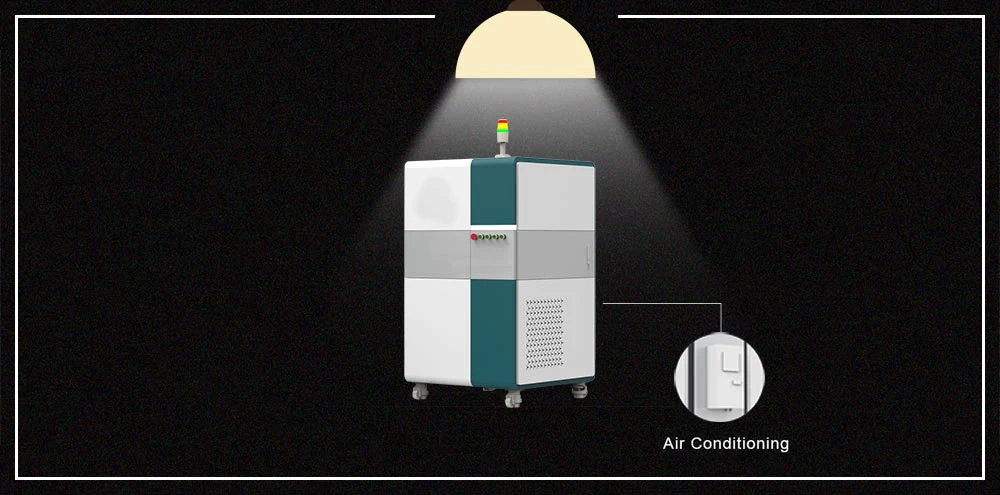

Independent Control Cabinet
Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

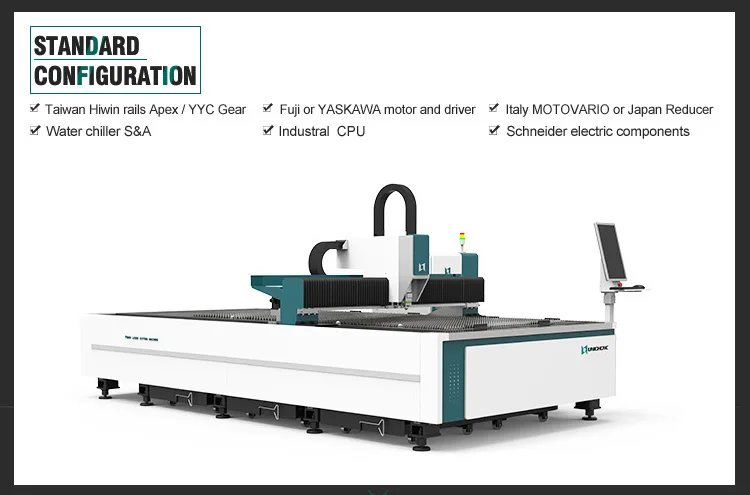

Transmission And Precision

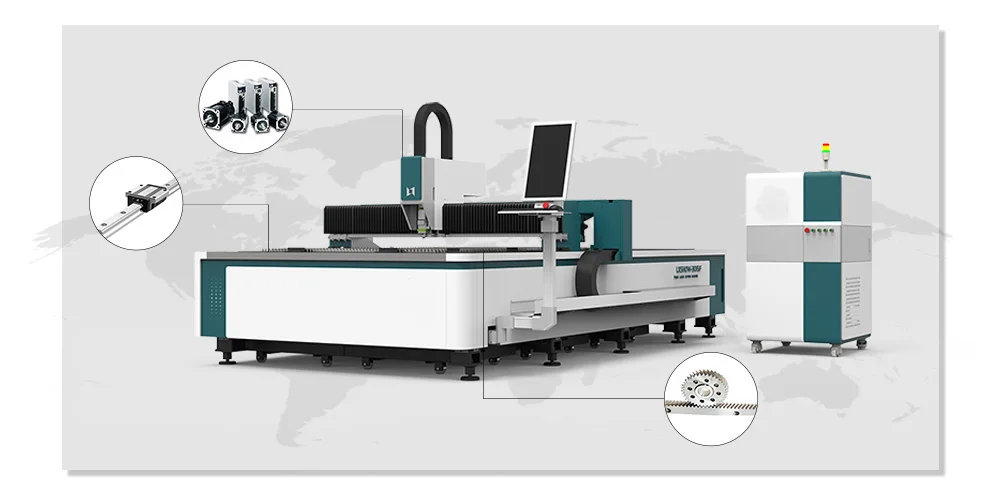

UNICHCNC fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Features for fiber metal laser cutting machine
1. Excellent Path Quality
Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed
2. High Cutting Speed
Cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running
3. Stable Running
Adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours.
4. Low Cost
4. Low Cost
Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption.It is only about 20%-30% of traditional CO2 laser cutting machine.
5. Easy Operations
Fiber line transmission, no adjustment of optical path.
6.3RD Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Application

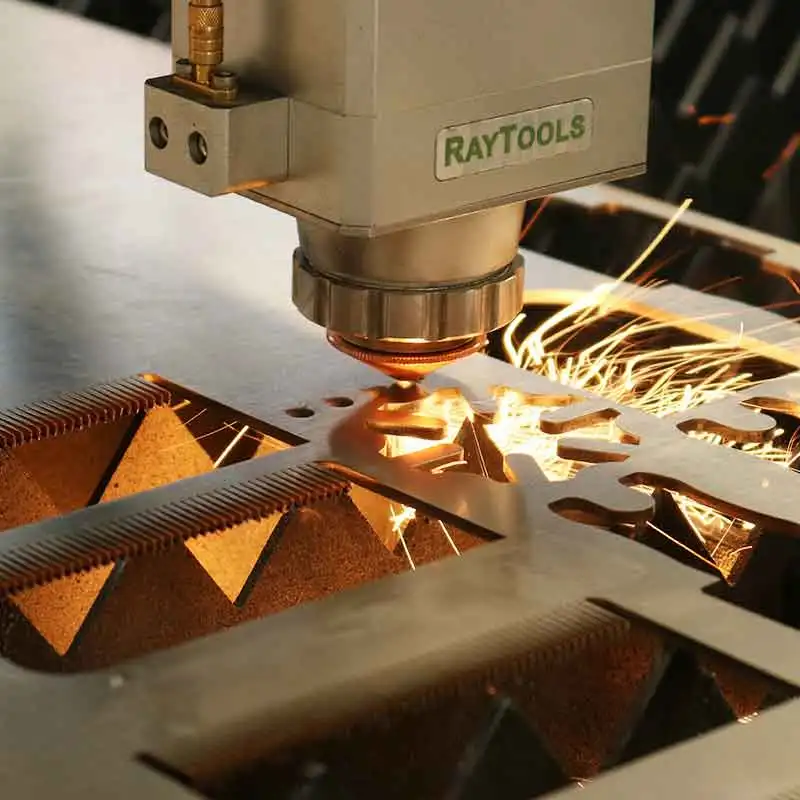

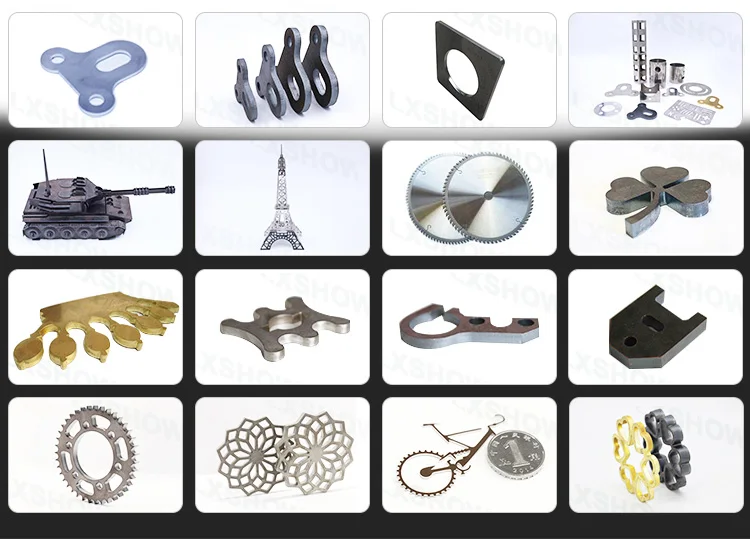

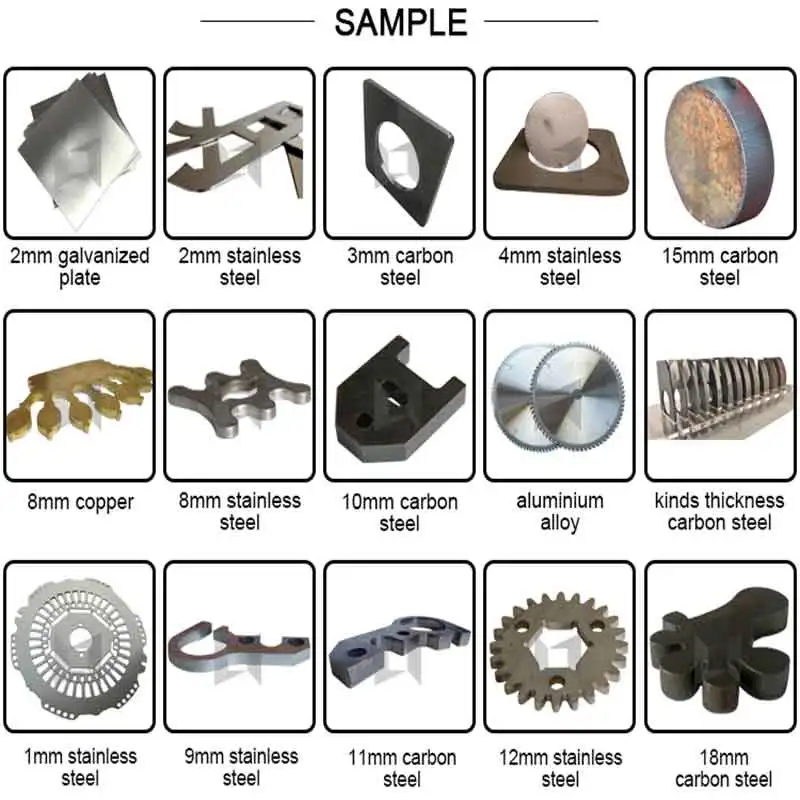

Cutting samples
Applicable materials for laser cutting machine for metal
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube),Galvanized Sheet, Aluminum Plate(tube),Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube),Galvanized Sheet, Aluminum Plate(tube),Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc

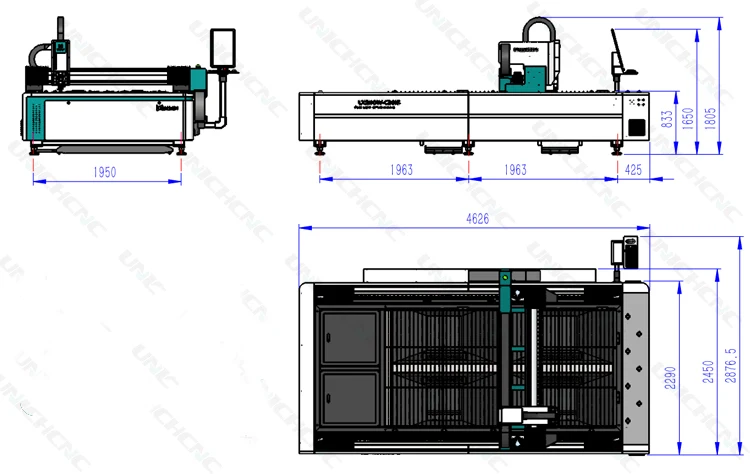

Specification
1 | Machine Name | Metal Plate Fiber laser cutting machine |
2 | Model | LX3015C |
3 | Laser machine cutting area | 3000x1500mm 2500x1300mm 4000x1500mm 6000x1500mm 4000x2000mm |
4 | Fiber Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W |
5 | Max cutting speed | 1--30m/min(it will according to metal material and laser power) |
6 | Cutting thickness | Detailed in the following cutting thickness |
7 | Application Material | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
Cutting thickness
Quality Control
Quality is our paramount mission that underpinning the lifeline of the company, and it is the most important factor to maintain long-term business relationships with customers. Special attention is paid to the quality of every unit of fiber laser cutting machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter. The laser interferometer and laser collimator are used through the mechanical assembling process. In the laser assembling process,the laser power meter and optical microscope are adopted.

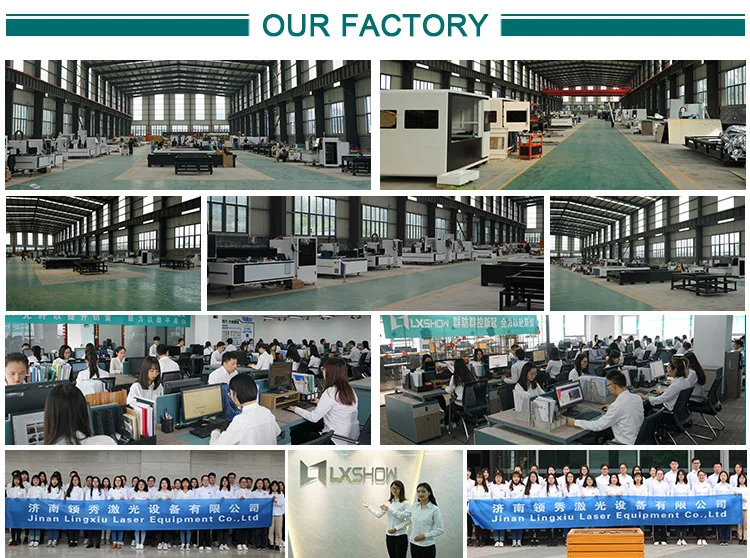

Company Information
Each machine has passed the ISO CE certification.
Q1:What is the cutting size of this machine?
A:1500*3000mm For plate and tube,it also can be customized as needed.
Diameter:20-215mm,Maximum length 6M Round/Square tube.
Q2:Is the cutting speed of the tube the same as cutting plate?
A: Cutting speed is similar, the maximum cutting speed is 60m/min.
Q3:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.

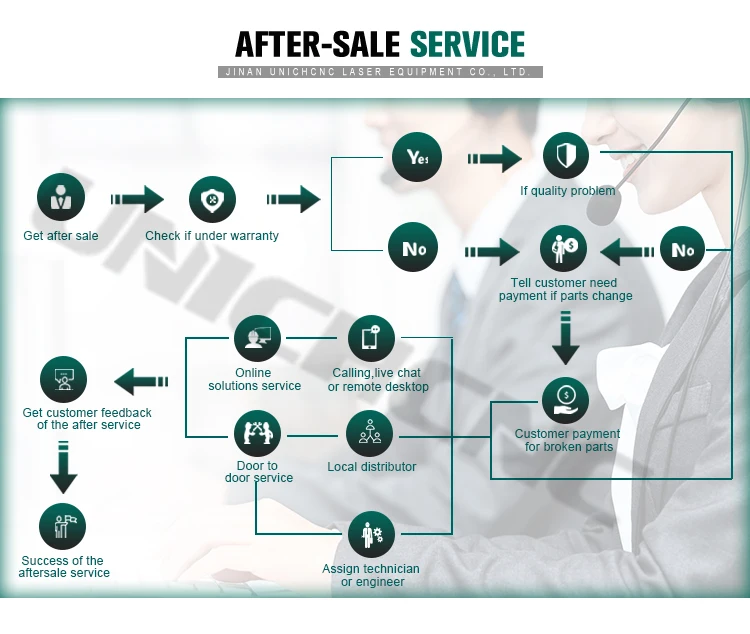

Q4:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
A:1500*3000mm For plate and tube,it also can be customized as needed.
Diameter:20-215mm,Maximum length 6M Round/Square tube.
Q2:Is the cutting speed of the tube the same as cutting plate?
A: Cutting speed is similar, the maximum cutting speed is 60m/min.
Q3:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
Q4:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
Q5:Pro, please be sure to note that the price of this machine does not include the generator,because we support product customization,different generator prices are not the same, for more information, welcome to contact us.
