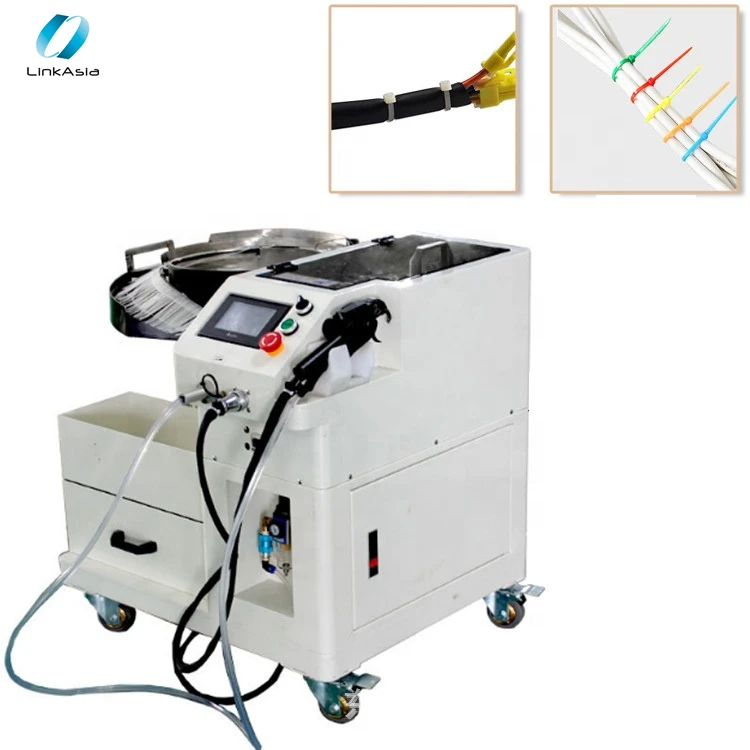

Automatic pistol gun type automobile nylon strap machine cable tying machine Handheld nylon cable tie machine
- Category: >>>
- Supplier: Dongguan Link Asia Group Of Industries Co. Ltd.
Share on (1600176705232):
Product Overview
Description
Details Images
Products Description
Features:

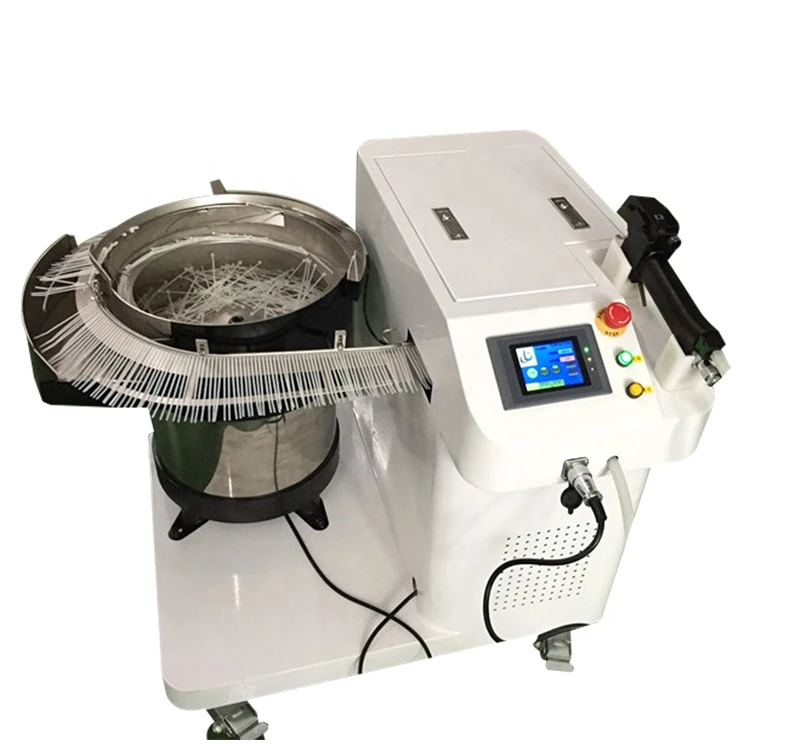

1.The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips
2.Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3.0.7 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary
time, the whole cycle a total of about 1.3 seconds.A machine can replace 7-8 workers. A year can save wage costs over 20 million;
4.Waste collected automatically in a waste box via a dedicated recovery system (optional);
5.Hand held tip lightweight ,compact design grip, easy to hold, long-term use will not feel tired;
6.Tying the intensity or tension can be adjusted by the knob;
7.Host body own PLC control system, touch screen Chinese /English display, simple operation;
8.In automatic production line can be conjunction with robot to achieve fully automatic cable tie,Also it can be fixed to the
table using as the desktop cable tie machine.
1.The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips
2.Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3.0.7 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary
time, the whole cycle a total of about 1.3 seconds.A machine can replace 7-8 workers. A year can save wage costs over 20 million;
4.Waste collected automatically in a waste box via a dedicated recovery system (optional);
5.Hand held tip lightweight ,compact design grip, easy to hold, long-term use will not feel tired;
6.Tying the intensity or tension can be adjusted by the knob;
7.Host body own PLC control system, touch screen Chinese /English display, simple operation;
8.In automatic production line can be conjunction with robot to achieve fully automatic cable tie,Also it can be fixed to the
table using as the desktop cable tie machine.
Cable ties Specifications | 2.5X100 mm |
Minimum tie bundle diameter | 1mm |
The maximum wire harness diameter | 20mm |
The maximum beam tube diameter | 18mm |
Banding efficiency | 0.8 s/pcs |
Power supply | Host body AC 220V 50 / 60Hz |
Hand held tips | DC 24V (automatic translation) |
Barometric pressure | 5 Kg/ cm² |
Size | L 650 X W 550 X H 650 mm(Machine can be placed on the bottom assembly line) |
Hand held tips size | 220X 85 X 52 mm |
Weight | Host body 80 kg (With 4 wheels move easily) |
Hand held tips 1.1kg |
Machine Video
Product packaging
Company Profile
Link Asia Automation founded in 2006, which is top-supplier of wire processing machine.
We mainly focus on research and development, production and customization, learning from Japan and Taiwan techniques and experience.
Our end customers always specialized in aspect of electronic, home appliance, motor vehicle, lighting etc.
Our end customers always specialized in aspect of electronic, home appliance, motor vehicle, lighting etc.
Our clients and markets spread almost all over china and Vietnam, Indonesia, India, Brazil, Colombia, USA, Mexico, Italy.
Our main products include Auto wire cut strip crimp and tinning machine, auto cut strip and crimping machine.
Our main products include Auto wire cut strip crimp and tinning machine, auto cut strip and crimping machine.
Auto cutting splitting and stripping machine for ribbon cable, Heat shrink tube cutter, Cable winding and tie machine, Terminal applicators.
Easy-operation, overseas after-sale service available, high-efficiency is our outstanding advantage over other competitors, which helps our users save more labor cost and enhance the production rate. Quality is our culture. Welcome to join us for win-win situation.
Easy-operation, overseas after-sale service available, high-efficiency is our outstanding advantage over other competitors, which helps our users save more labor cost and enhance the production rate. Quality is our culture. Welcome to join us for win-win situation.
We will support you all with our technical experience and service wholeheartedly.
