Many students now know that in physical chemistry experiments, oxygen, nitrogen, hydrogen, argon and other gases are often used. These gases are generally stored in special high-pressure gas cylinders, when used through the pressure relief valve to reduce the gas pressure to the required range of the experiment, and then through other control valve fine tuning, so that the gas input system. So do you know how gas reducers work? If it's not very clear, you can see how the staff of Ningbo KANGWEI is introduced to you.
How gas reducers work:
The gas decompressor is a valve that automatically maintains the outlet pressure by adjusting the ining pressure to a required outlet pressure and relying on the energy of the medium itself. From the point of view of fluid mechanics, the pressure reducer is a throosic element that can change the local resistance, that is, by changing the throtter area, the flow rate and the dynamic energy of the fluid change, resulting in different pressure losses, so as to achieve the purpose of decompression. Then rely on the control and adjustment system adjustment, so that the pressure behind the valve fluctuations and spring force balance, so that the pressure behind the valve in a certain error range to maintain a constant.
Gas pressure reducer is the use of control valve body opening and closing part of the opening and closing parts to adjust the flow of the medium, the pressure of the medium is reduced, while using the effect of the pressure behind the valve to adjust the opening and closing part of the opening and closing parts, so that the pressure after the valve remains within a certain range, and in the valve body or valve after the injection of cooling water, the temperature of the medium is reduced, this valve is called a decompression and temperature reduction valve. The pressure reducer fast and easy automation selection is included. The valve is characterized by keeping the outlet listening pressure and temperature value within a certain range under the constantly changing in-in pressure.
1,Product Descriptions

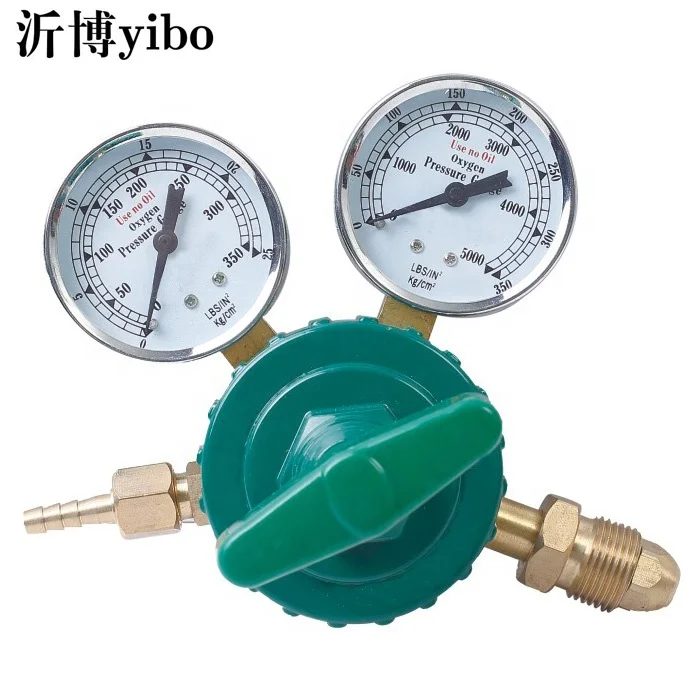

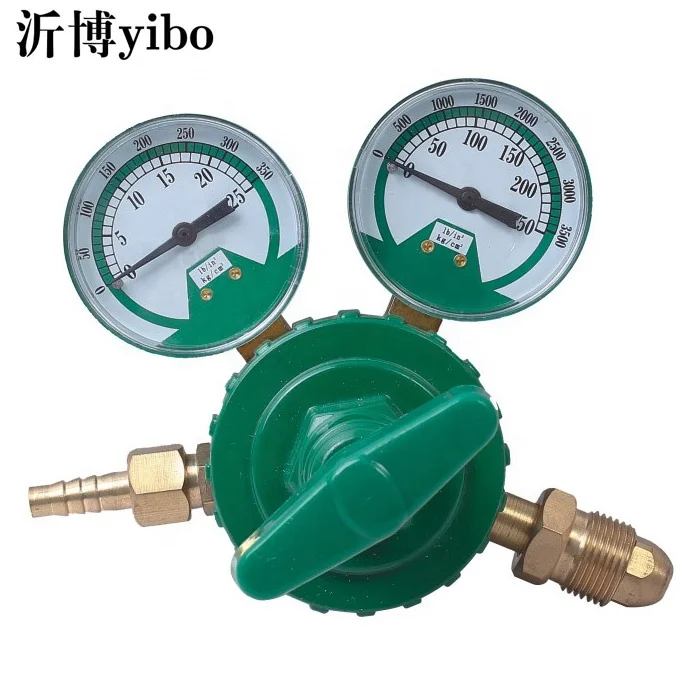

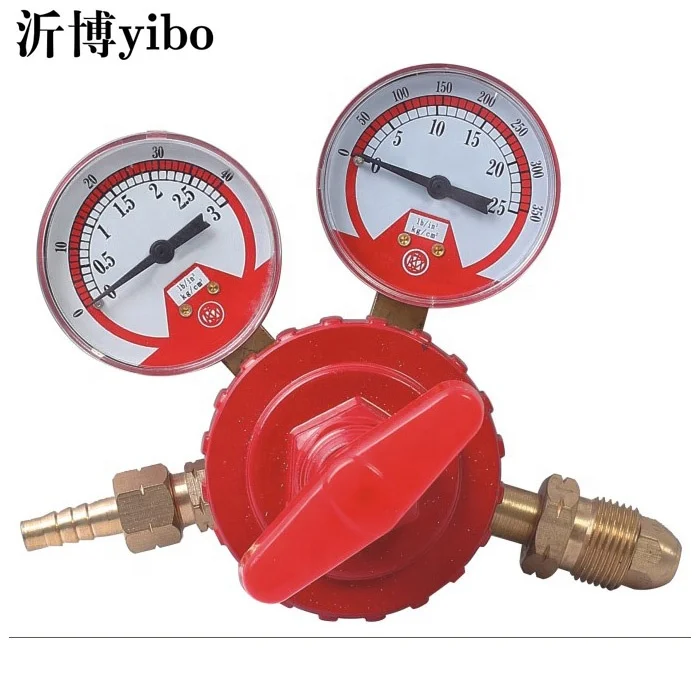

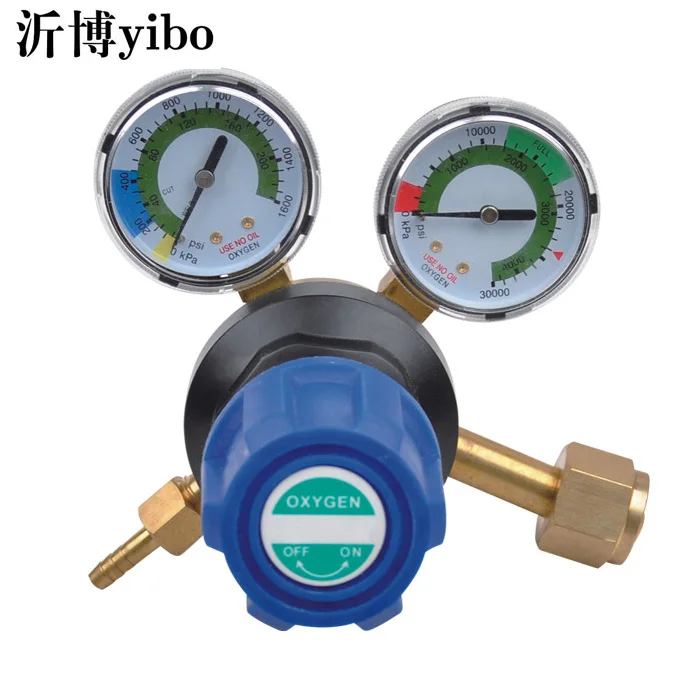

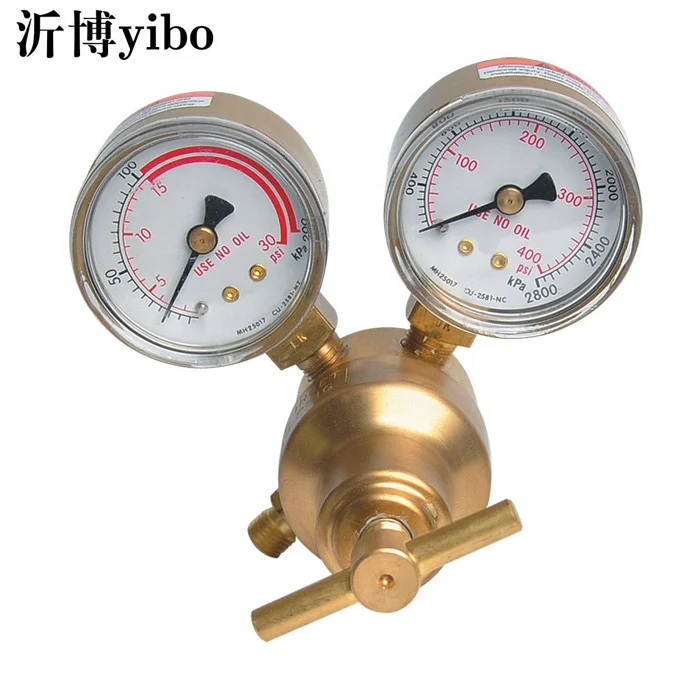

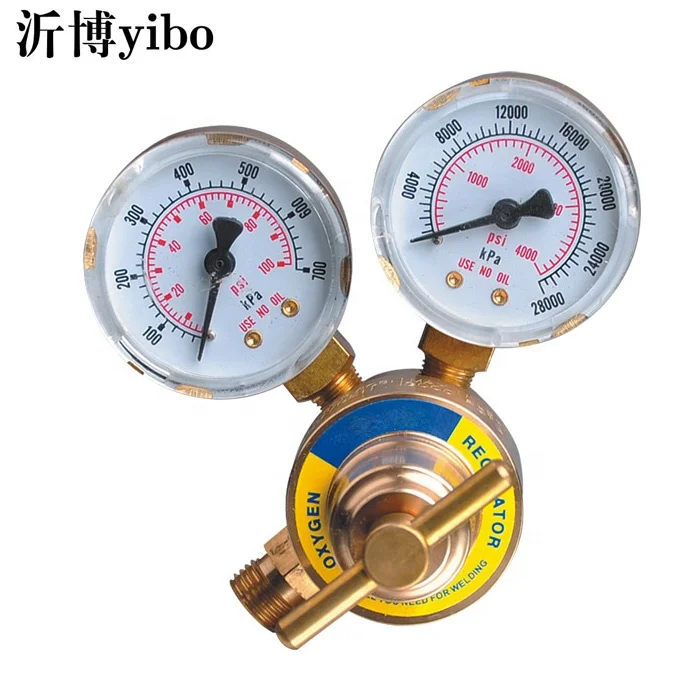

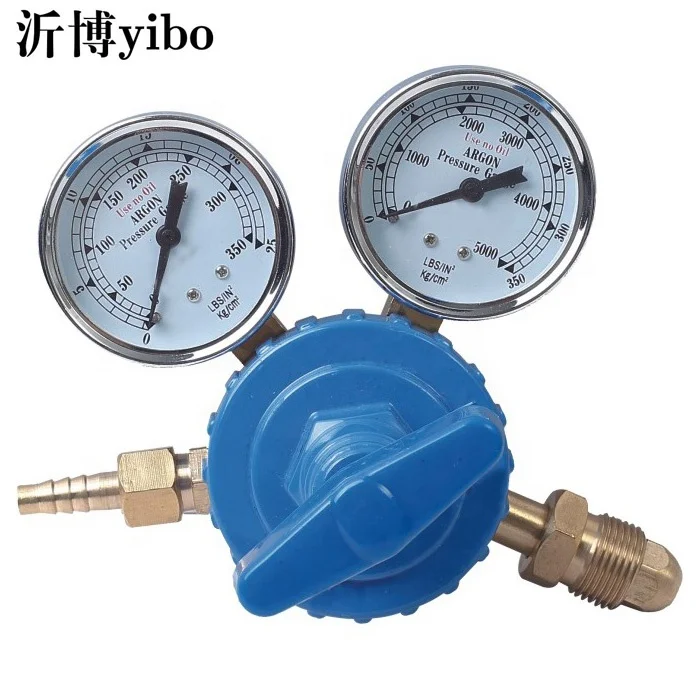

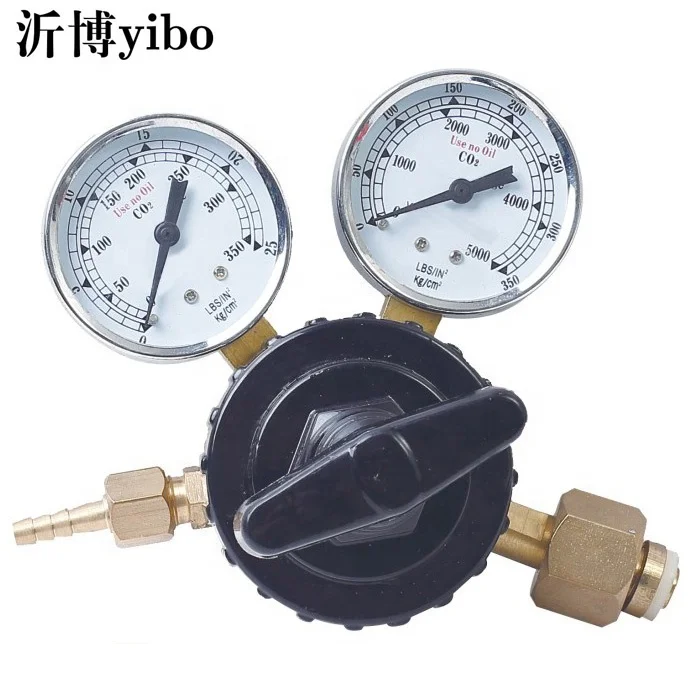

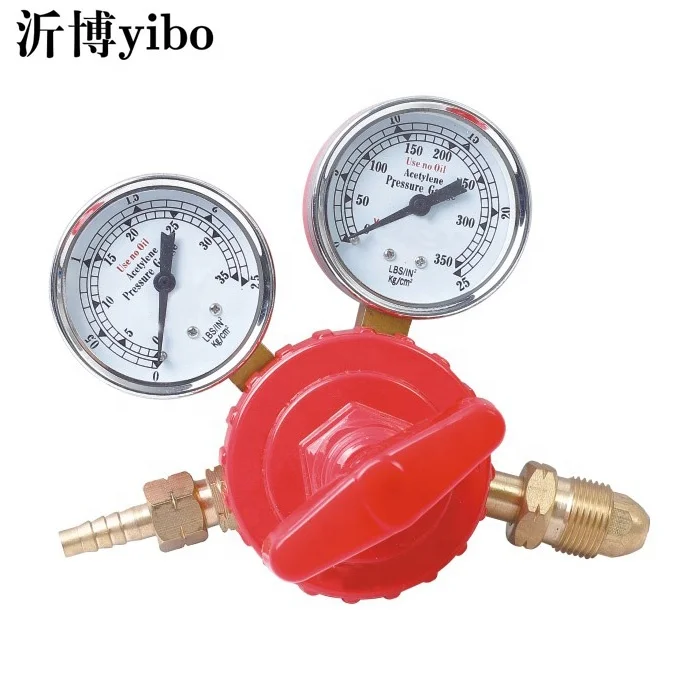

REGULATORS&GAUGE, Regulators OR-96B,China

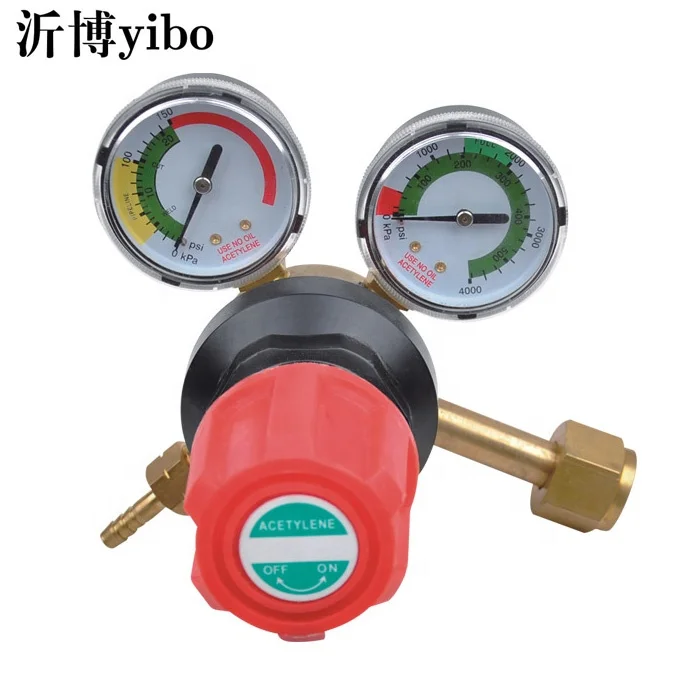

welding regulator, for oxygen, we also have other types of regulators for ,acetylene, ARGON,CO2 gases
1.Forged brass body; bonnet for maximum strength.
2.Oxygen safety relief valve is set for safe operation.
3.Sintered metal inlet filter to trap impurities.
4.No soldered joints, for easy maintenance.
5.Easy to read dual scale gauges (BAR/P.S.I) with virtually unbreakable crew-on lean lens
6.Gauges meet EN 562 and BAM approved dual scale (Bar/Psi) and marked for maximum working pressure.
7.Models are available for 200 or 300 Bar Max. inlet pressure.
8.300Bar Max. inlet pressure need to be indicated when orders.
9.Outlet with control valve
gas |
Input pressure
(KG) |
Output pressure
(KG) |
Gauge pressure range (bar) |
Inlet connector |
Outlet Connector |
Input |
Output |
OXYGEN |
210 |
15 |
250 |
25 |
G5/8"-14 |
G3/8"-18 |
Acetylene |
15 |
1.5 |
25 |
2.5 |
G5/8-LH |
G3/8-LH |
PROPANE |
15 |
1.5 |
25 |
2.5 |
G5/8-LH |
G3/8-LH |
ARGON |
210 |
15 |
250 |
25 |
G5/8 |
G3/8 |
CO2 |
210 |
15 |
250 |
25 |
W21.8 |
G3/8 |
NITROGEN |
210 |
15 |
250 |
25 |
G5/8 |
G3/8 |
2,Products Details
3,Packing Instruction
4,Certificates We Own
,

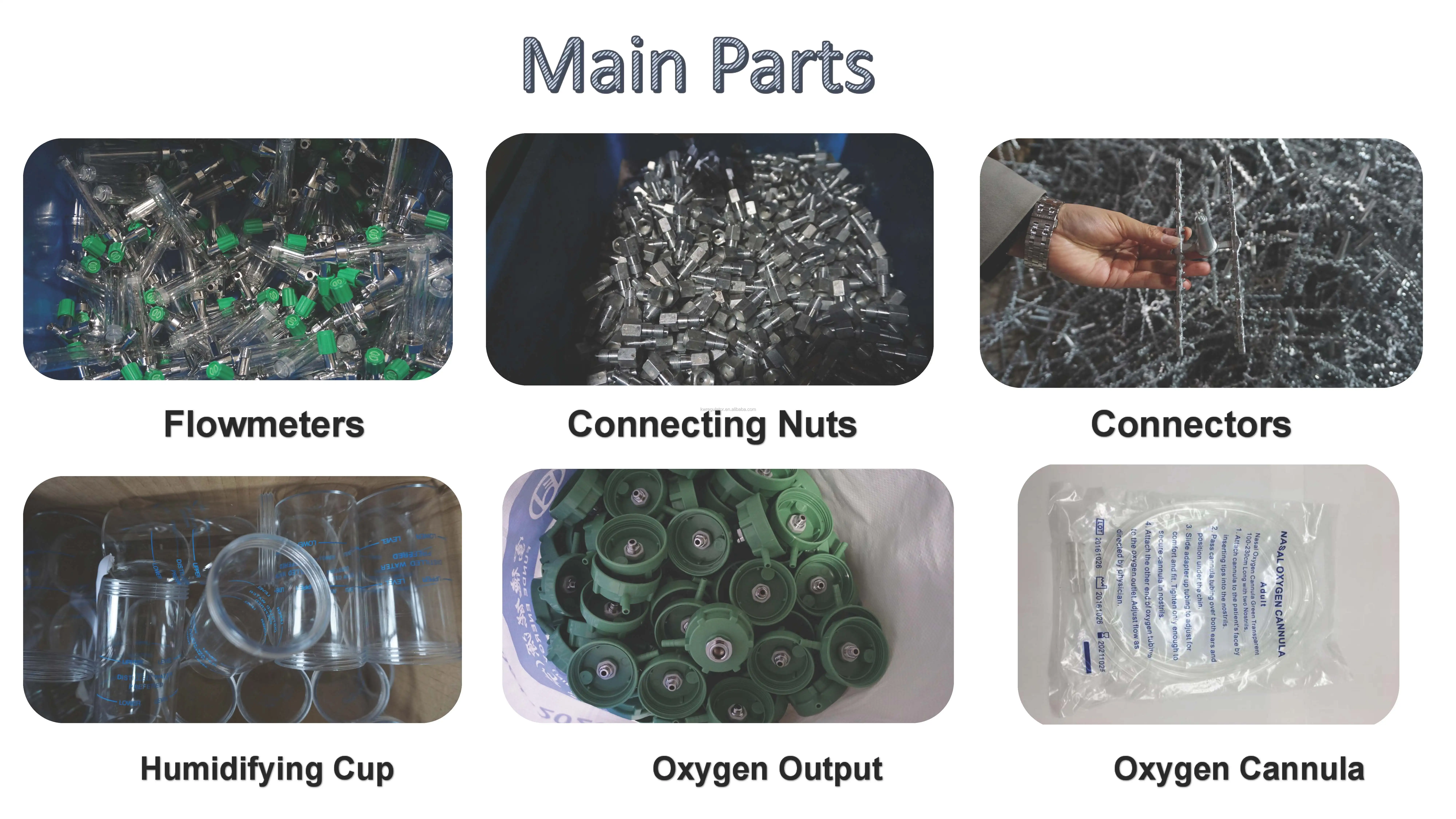

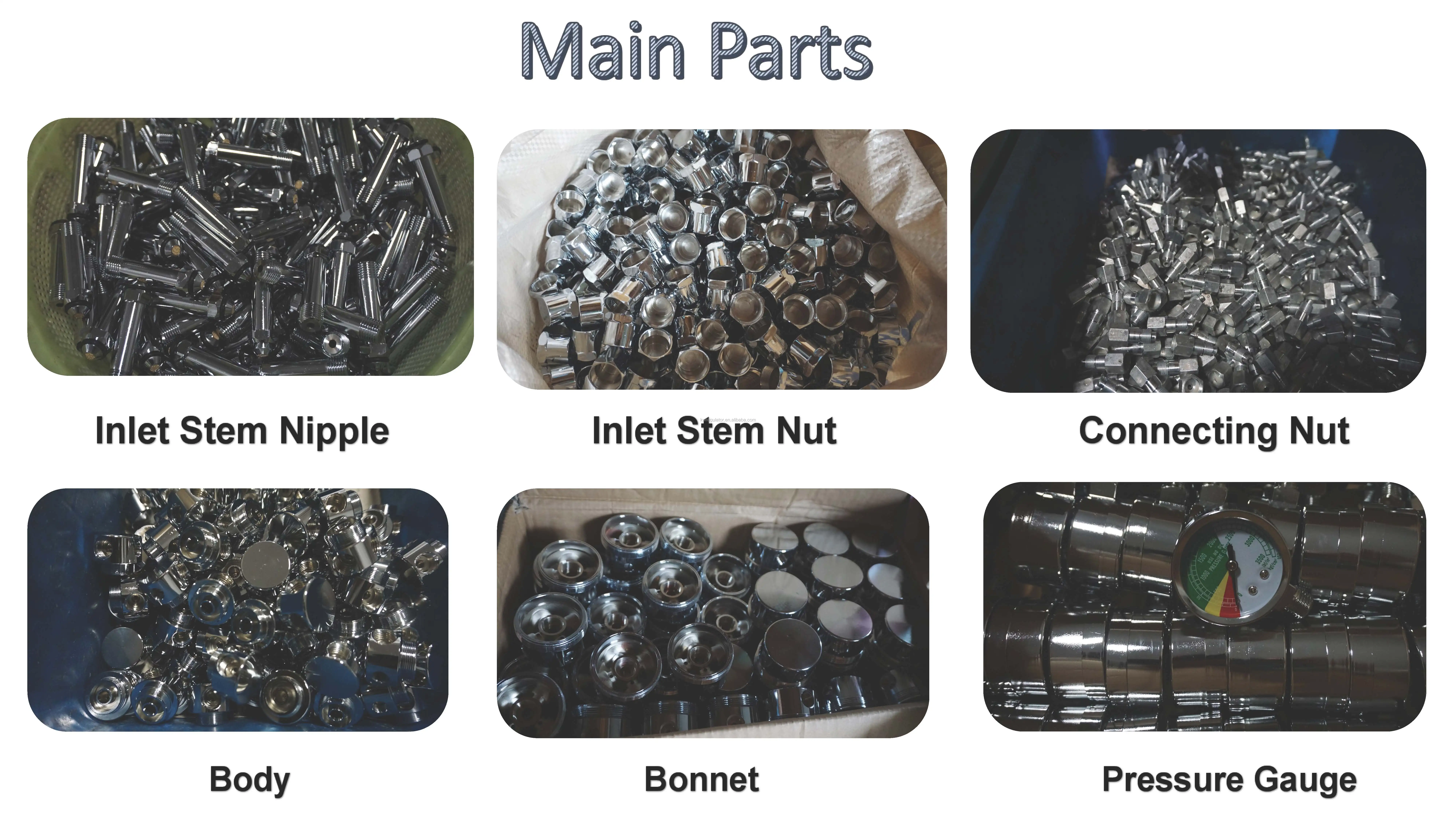

5,Manufactring Process Related

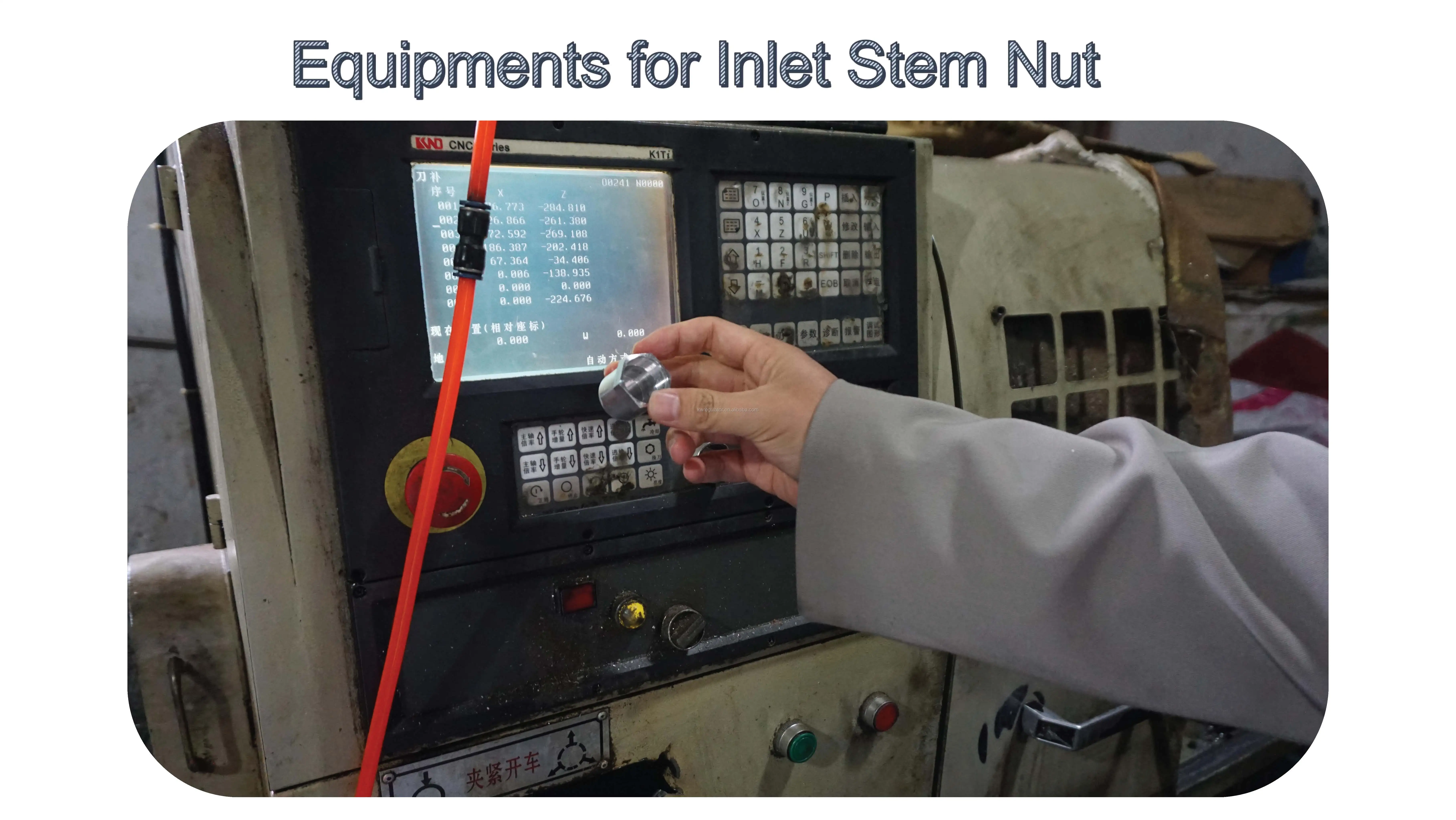

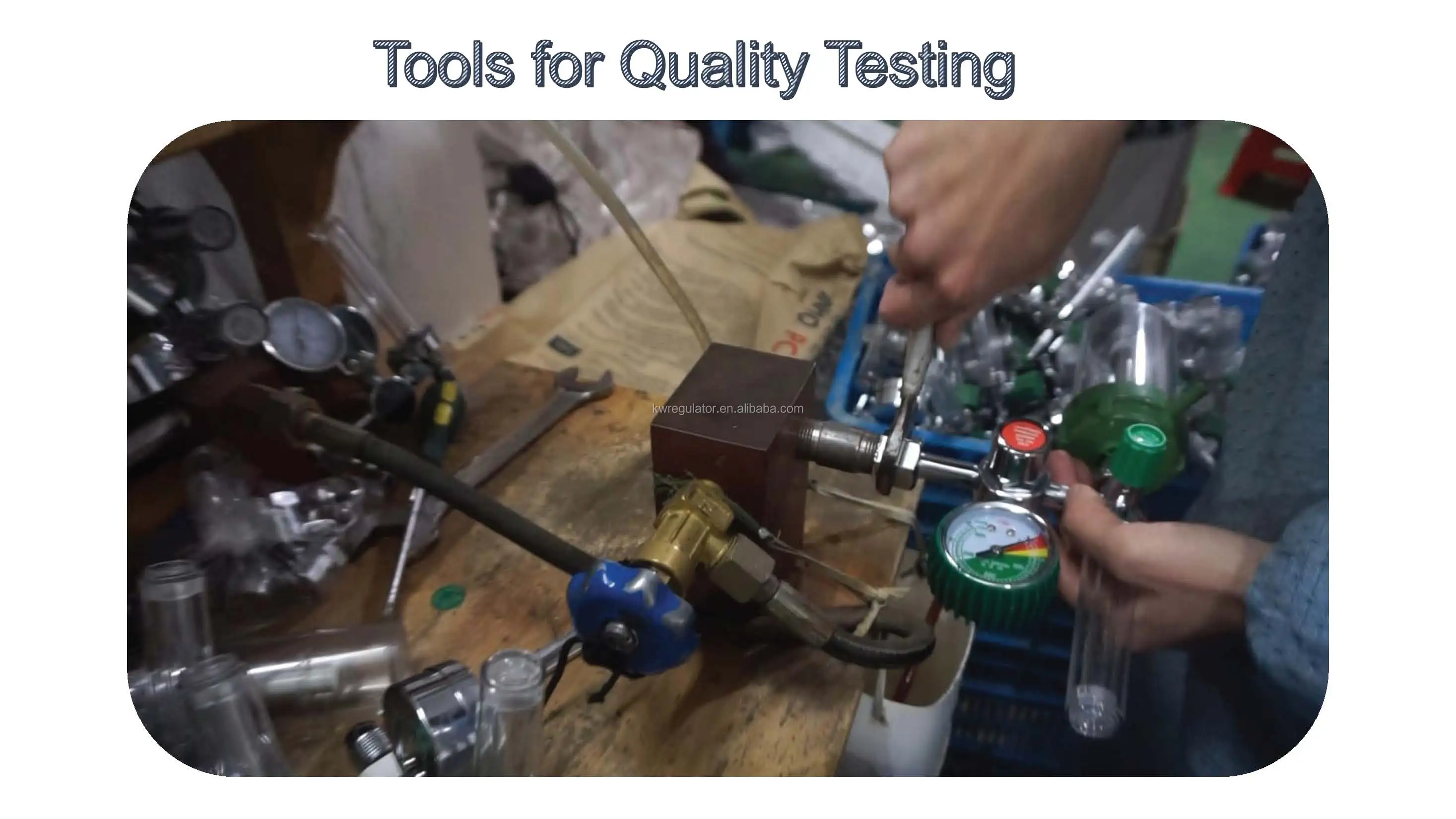

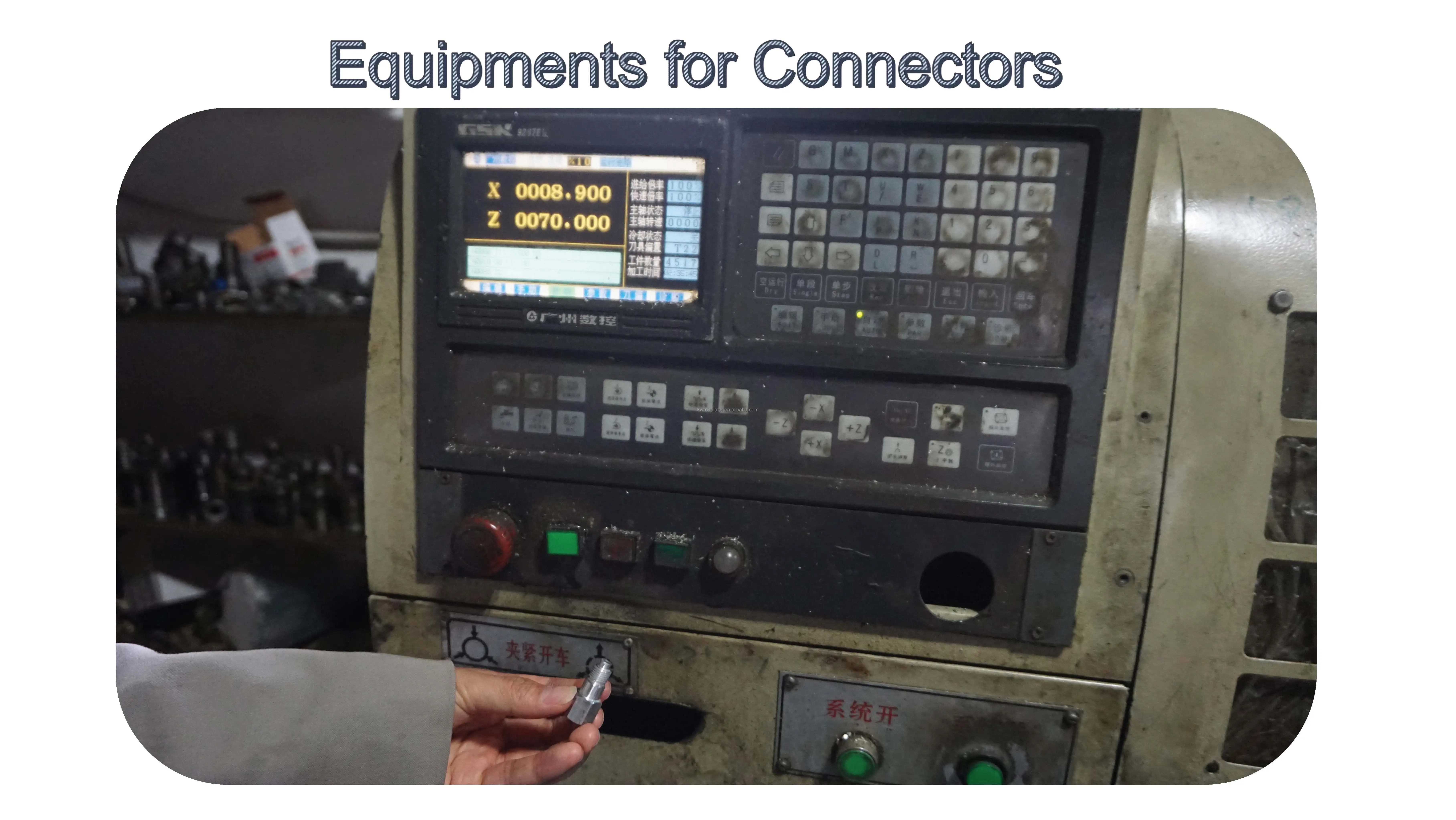

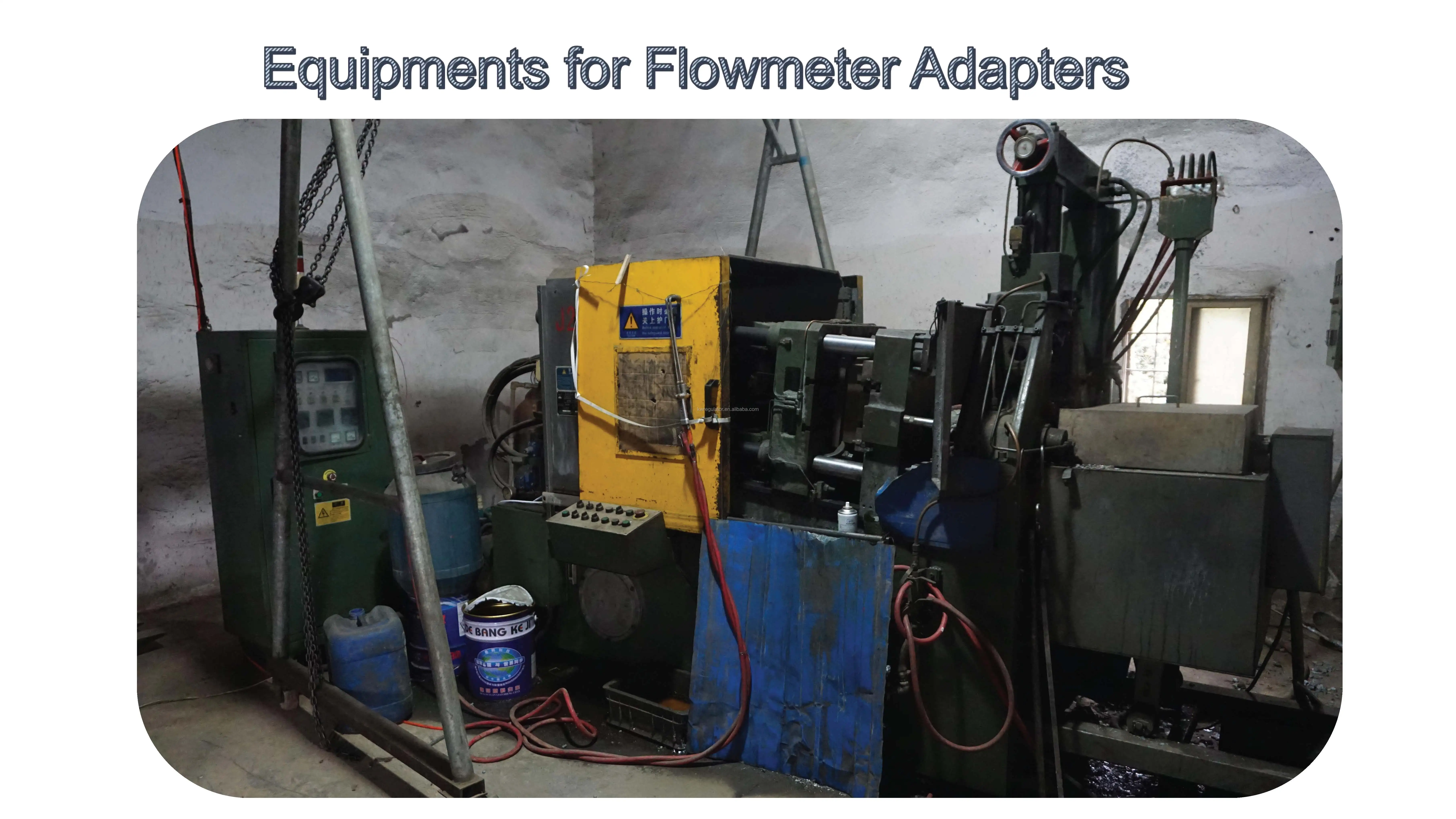

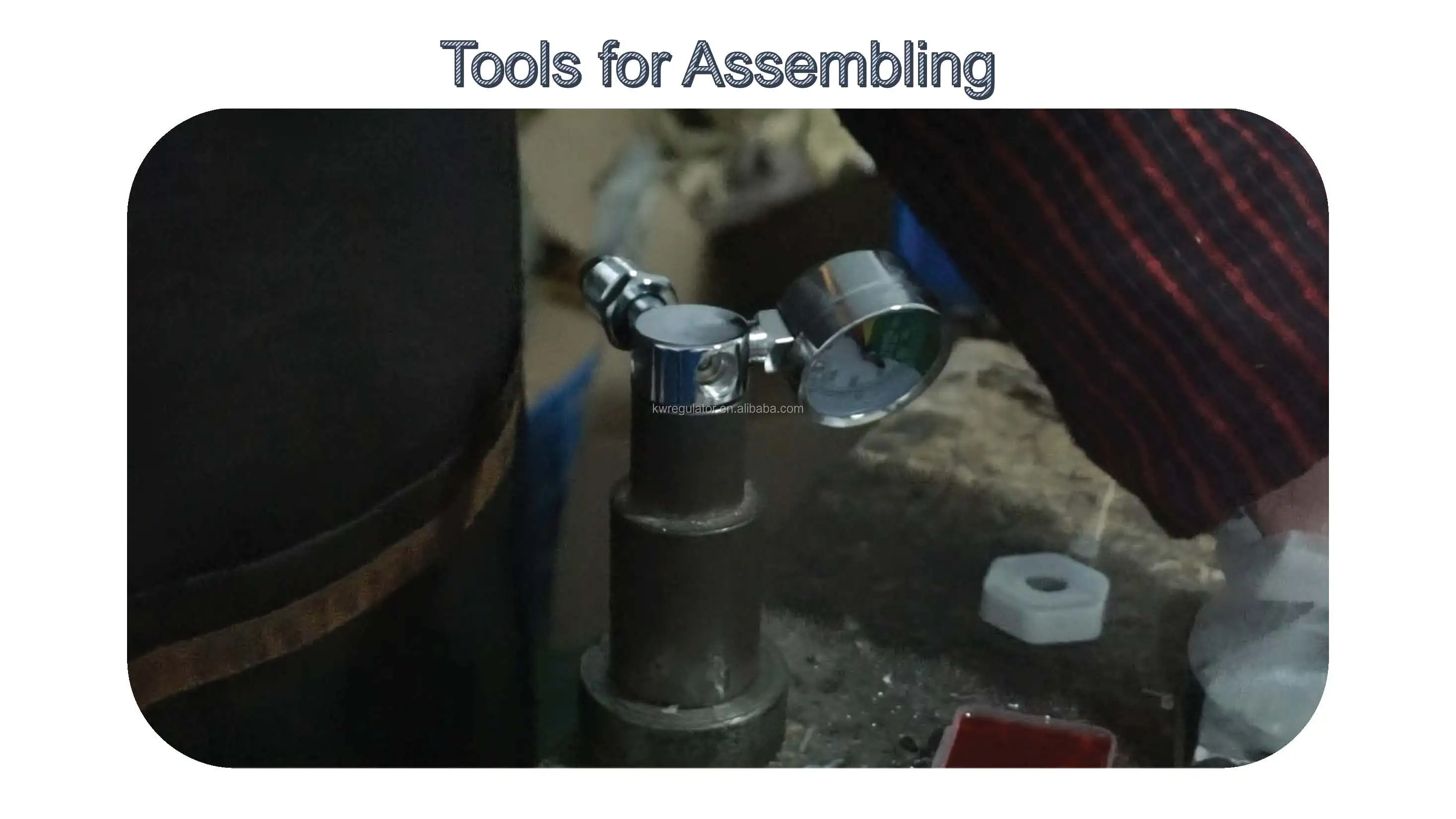

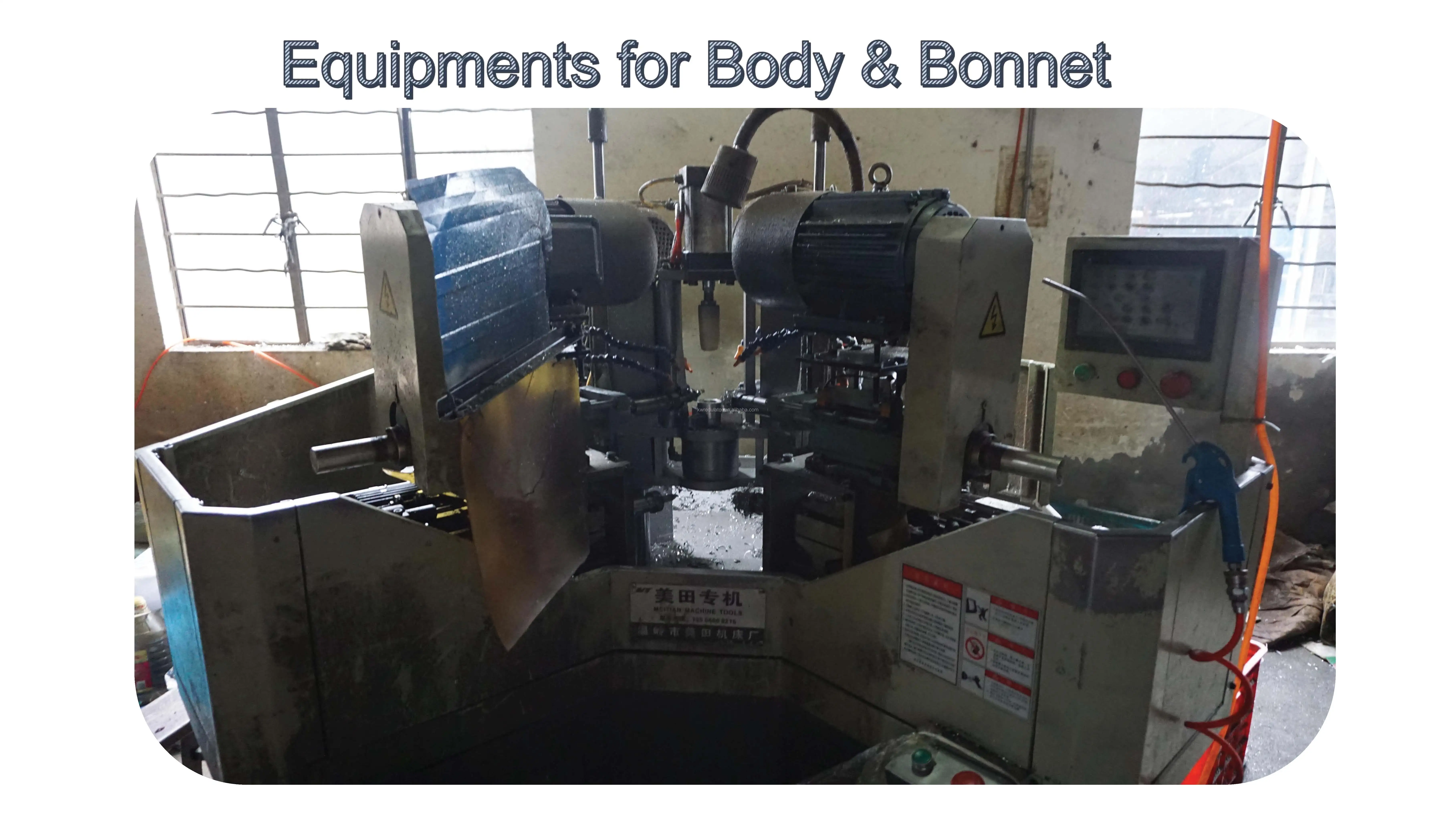

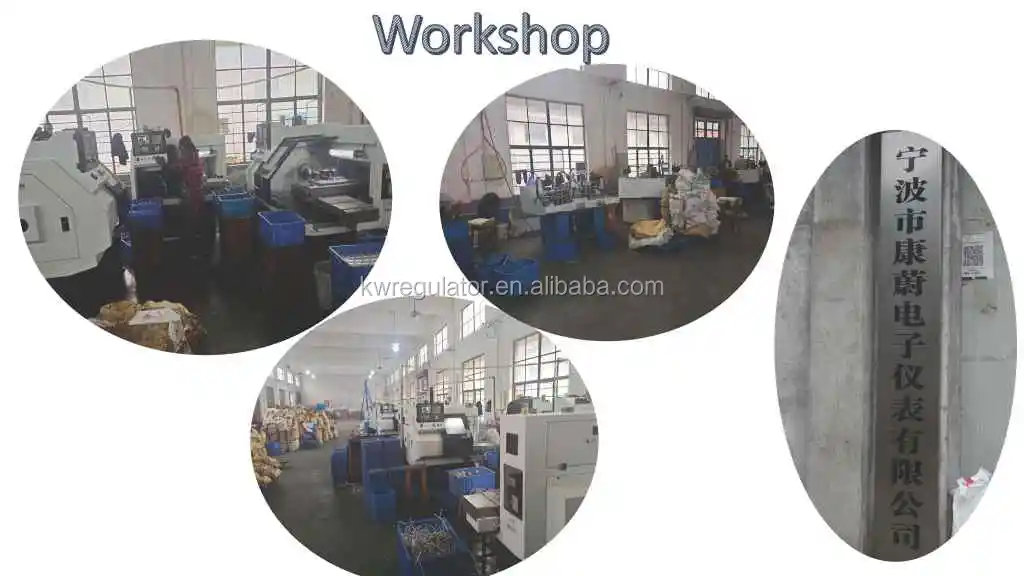

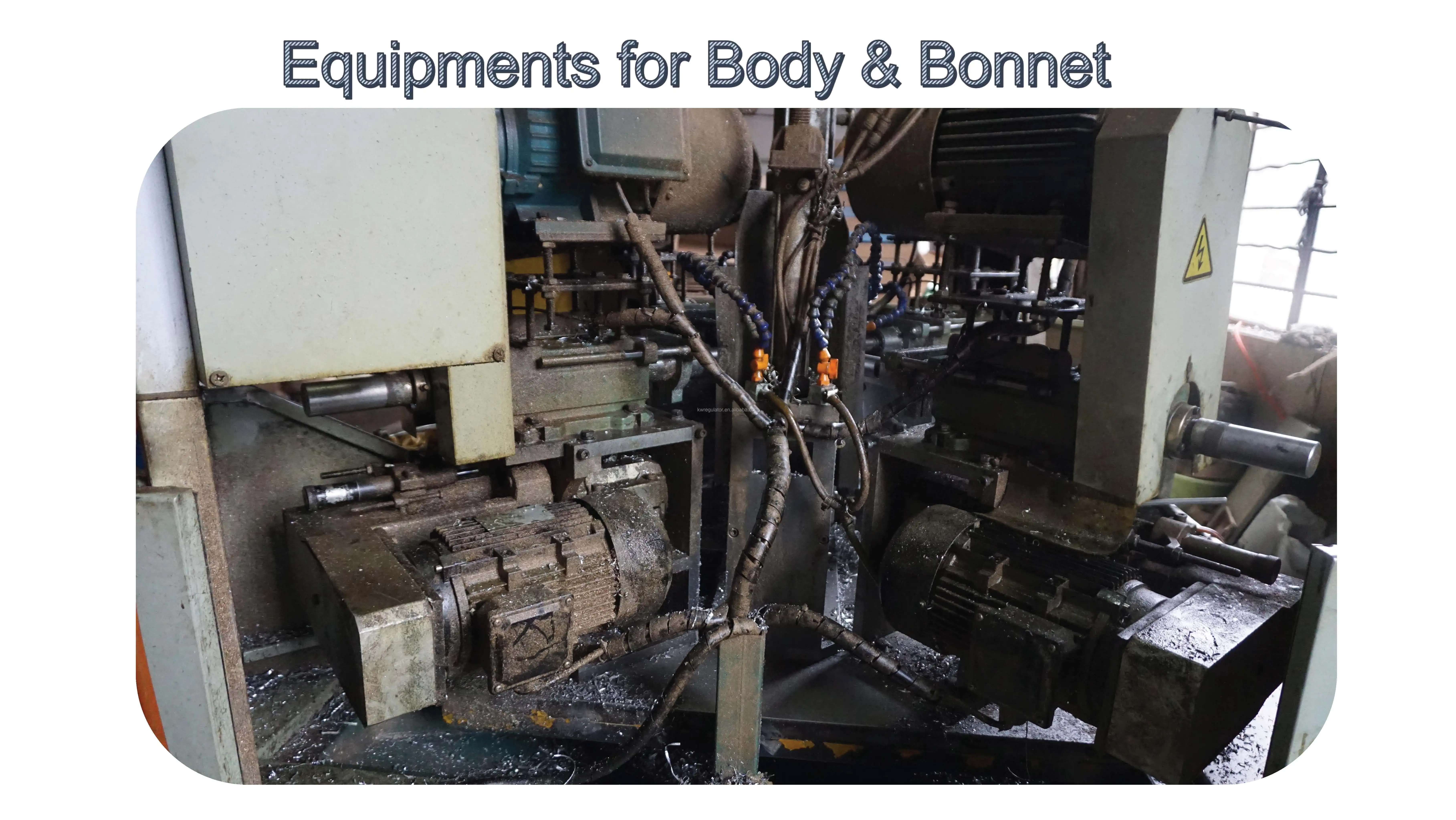

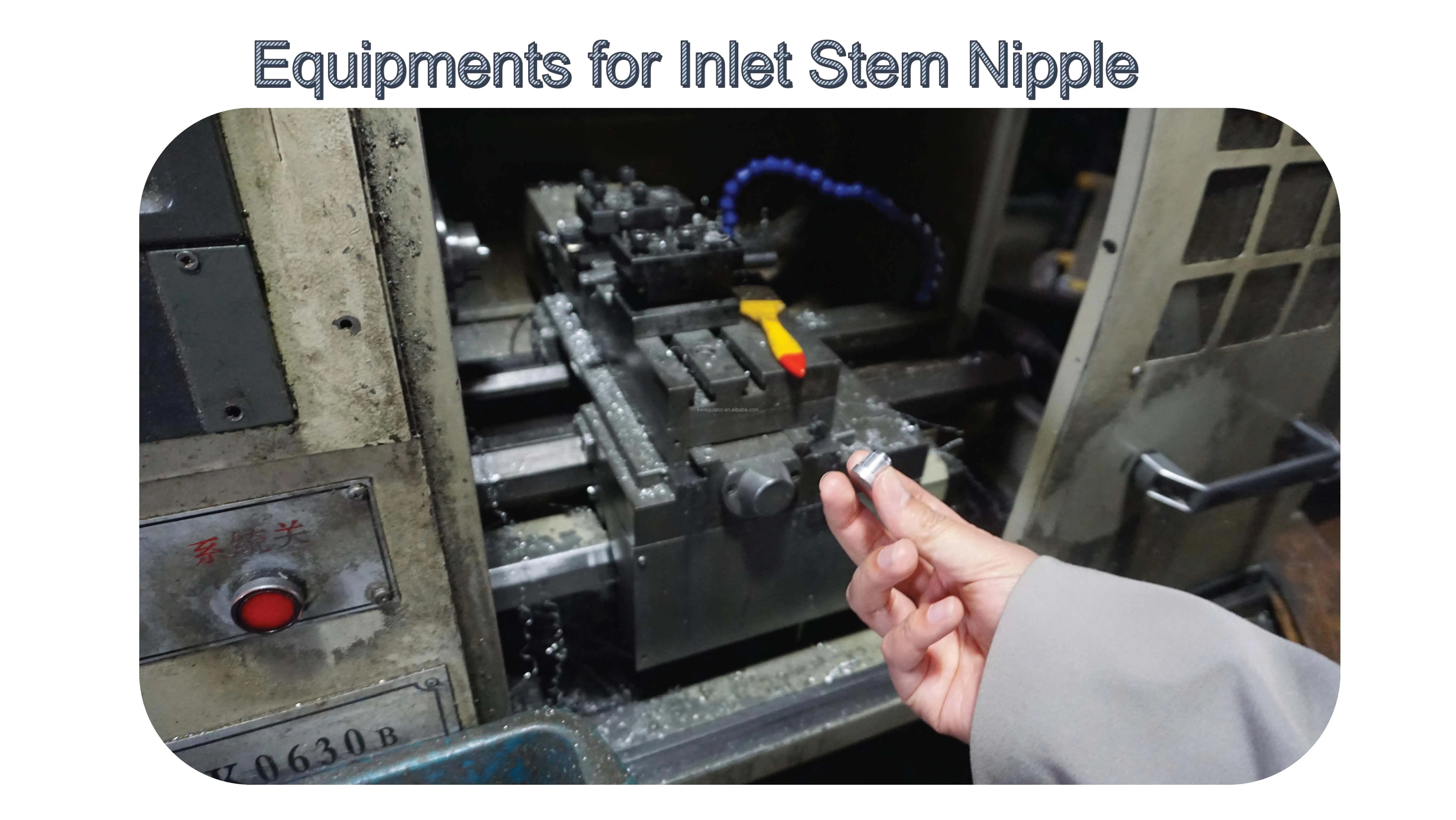

6, Equipments, Tools, Workshop

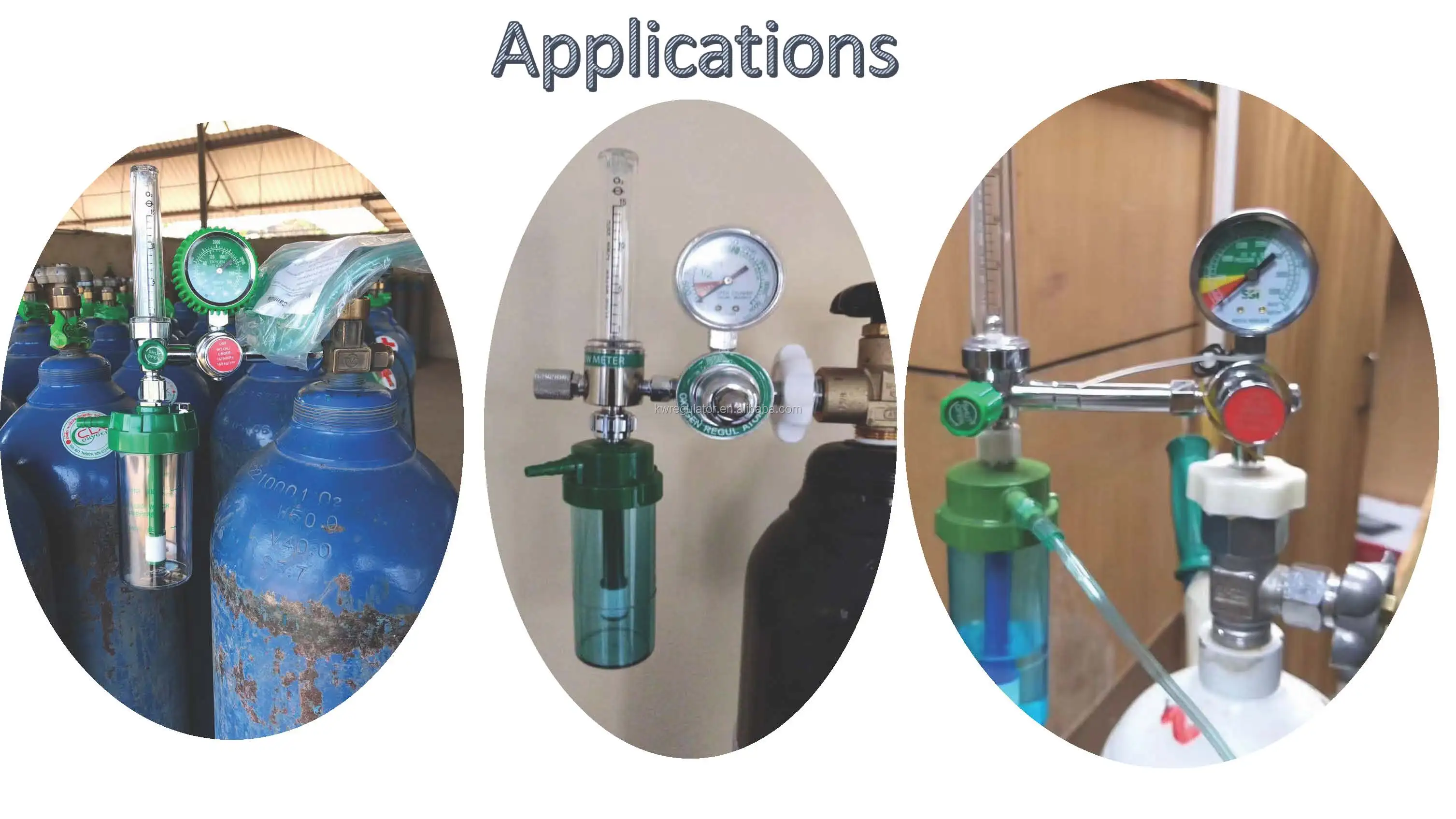

6,Applications

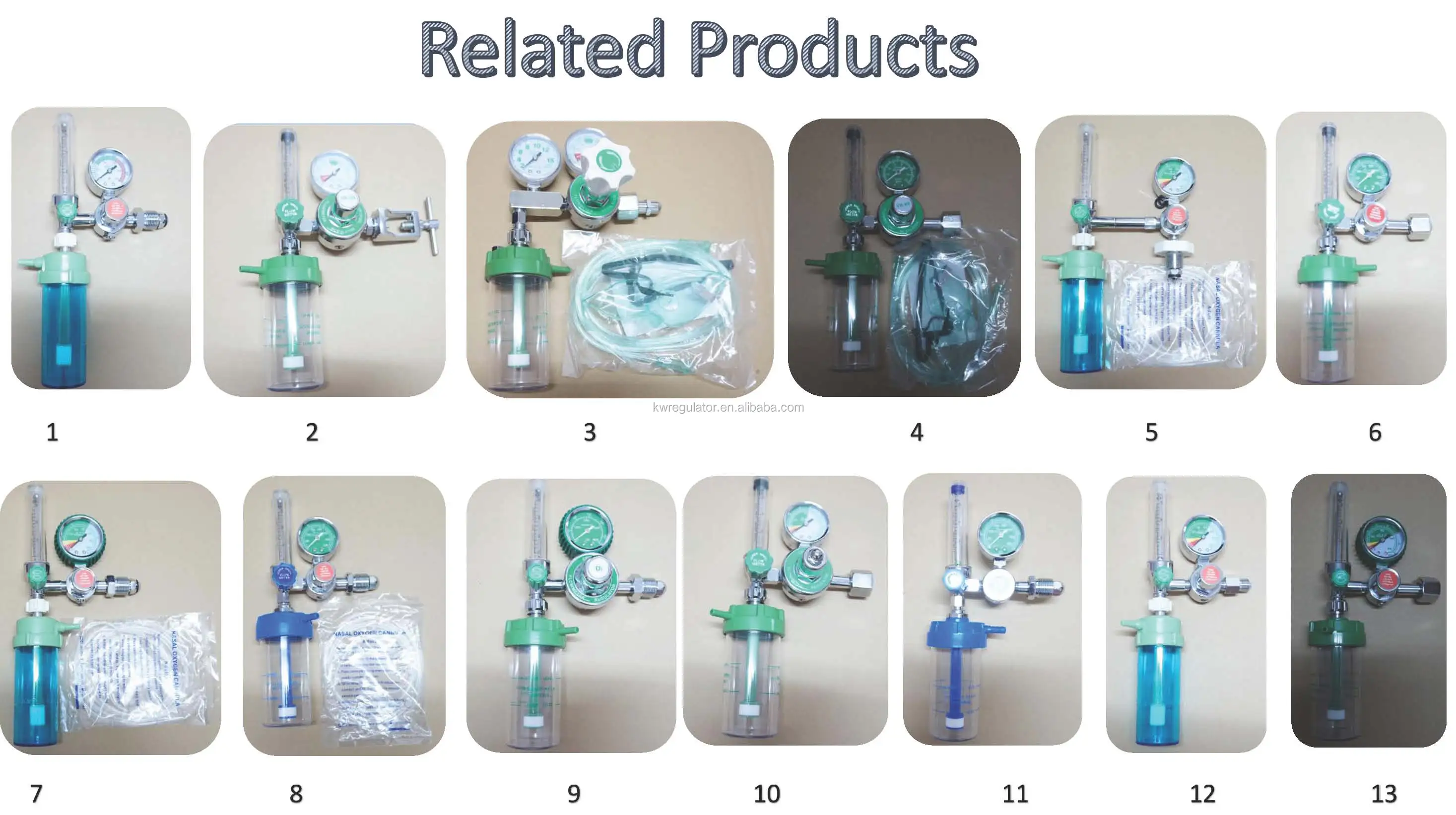

7, Related Products
8, Why Choose Us
9, Shipping Methods
10, Available Payment Methods
11, About Us
NINGBO KANGWEI ELECTONIC INSTRUMENT CO.,LTD established in 2018,which is located in Ningbo. Specializing in the production of medical oxygen regulator,industrial gas regulator and gas cylinders. Products of high quality , widely used in medical oxygen supply equipment and welding &cutting device.
KANGWEI adopts the ISO,CE standard over the production and committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
KANGWEI to always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems. Further exploration and innovation, and excellence.
Till now, we have exported our products to Middle East, South American, East and South Asia, Africa market. Like Indonesia,Iraq,Egypt,Saudi Aria,Peru,Bangladesh,India, Myanmar etc and have received encouraging feed backs from both international and domestic market.
Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!
12, Questions & Answers
1, Question:Are you manufacturer or trade company?
Answer: yes we are 100% original direct factory.
2, Question:How many regulators your factory produce everyday?
Answer: our factory produce regulators 3,000 pcs everyday.
3, Question:Could we order a small quantity to test the market at first?
Answer: yes you could
4, Question:What payment terms do you accept? Is our money safe if we do business with your company ?
Answer: Multiple safe payment options like Alibaba Trade Assurance, T/T, Western Union acceptable for you to ensure your money.
5, Question:How does your factory control quality?
Answer:We have inspector to double check product quality before shipping,The most important, most of our products passed ISO,CE,Free Sale certificate
6, Question:Can you ship goods to our warehouse or Amazon warehouse directly ?
Answer: yes we can
7, Question:What about the lead time?
Answer:Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity.
8,Question:Do you have any MOQ limit for the order?
Answer: normally our MOQ of regulators is 100 pcs.
9,Question:Can I print own logo on package?
Answer: Sure! Customized package and OEM printing are available.
