500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer

The main components of craft brewery equipment usually include grain milling unit, brewhouse unit, beer fermentation tanks, brite beer tanks, glycol chilling unit, control unit, CIP unit etc. They can support the processes from grain milling, wort preparation, wort fermentation to brewery tanks cleaning.

The specifications of the craft brewing equipment is very flexible. According to different situations of brewery site, budget, brewery running model, customers may also need conveyer system, steam supply system, Air system, carbonation system, filtration unit, water treatment system, beer filling system, packaging system and so on.

500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer is usually used in micro breweries, brewpub, bar etc. Based on different beer types and fermentation cycle, 4-20 beer fermentation tanks are commonly equipped as production.

Below is the basic information of the 500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer:

--Company certificated by ISO TUV SGS production process inspection, the tanks’ design and quality can be according to GB/CE/PED/ASME standard.

--Electrical parts CSA/UL certificated available.

--Equipment customized with 19 Years experience.

--Oversea installation, debugging and delivery of accessories service.

--5 Years warranty for core component.

--Local service in EUROPE, AUSTRALIA etc.

--Online customer service with 24 hours response time.

--0 trade risk verified by more than 1100 breweries.

  500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer

The main components of the 500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer:

1. Grain milling unit

--Two rollers at different speeds for higher malt efficiency.

--Rollers spacing adjustable for various malt particle.

--Strong magnet to remove iron pieces when milling.

--Nylon and Chrome gear box for Noise Reduction.

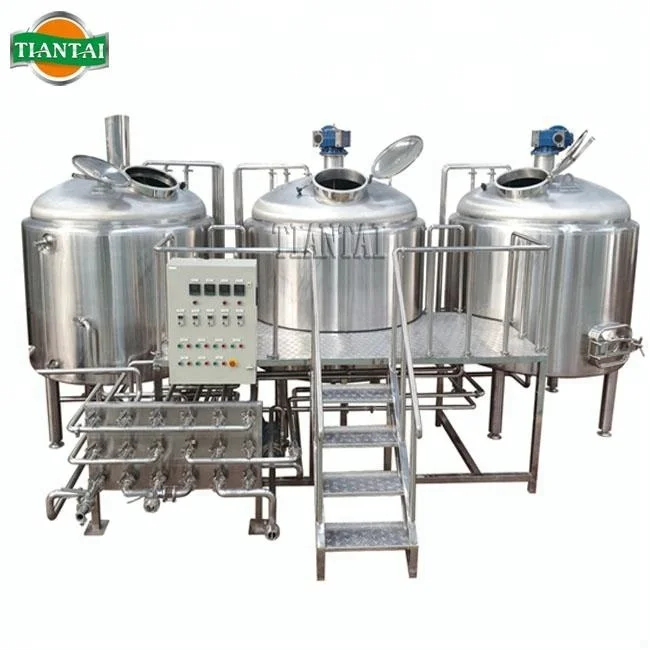

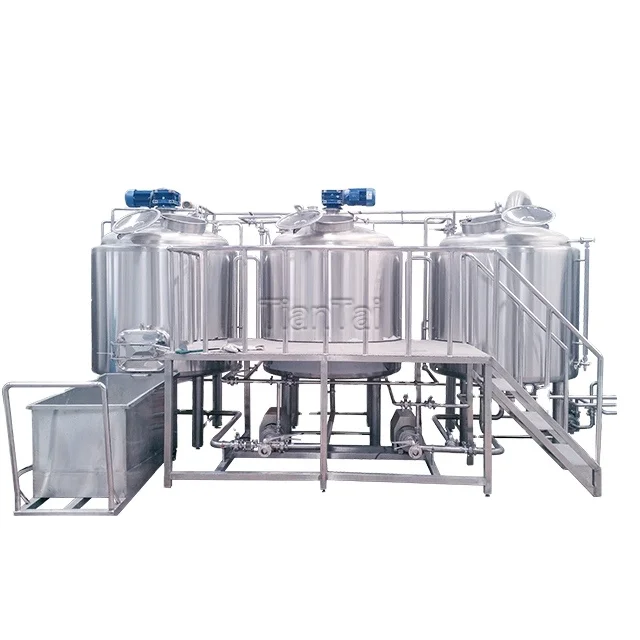

2. Three vessels electrical heated manual brewhouse [MT+LT+KWT]/HLT

--Tanks, pipeline and accessories made of Stainless steel 304, TIG welded by automatic welding machine. Surface treated according to food grade, totally avoid the sanitary issues.

--Pumps manufactured by LYSF (Alfa Lafa holding company), motors with UL/CSA/CE               certification.

--Sight glasses installed on pump outlet and lautering recirculation inlet, more convenient to         observe the wort clarity in different process.

--Wort collection ring and back flushing device with nozzles for more evenly lautering and

easier cleaning.

--Water blending station with WIKA thermometer for more accurate temperature controlling when feeding hot water.

--Glass wort grant as a buffer tank to promote lautering by gravity, protect the pump and MLT.

--Pipe angle filter installed before heat exchanger to prevent hot trub enter into.

--High efficient heat exchanger allow wort to be cooled in 30-40 minutes.

--Inline wort aeration station with sight glass and thermometer, wort can be cooled to the target temperature and clarity before fermentation.

--Yeast feeder which upgraded from beer kegs, no dead corner ensure the sanitary and easy        cleaning.

3. Fermentation tanks and brite beer tanks

--Made of Stainless steel 304, TIG welded by automatic welding machine, the tanks’ quality             according to GB/CE/PED/ASME standard.

--Interior polished to 0.2-0.4 μm to ensure no dead corner for bacteria hide in. Totally avoid the   sanitary issues.

--Triangle-Arranged holes on glycol jacket for higher cooling efficiency.

--Separated cooling zones on side wall and cone for more accurate temperature control.

--All gasket made of EPDM which have a more durable use time.

--Completely SUS304 legs with strengthening braces to prevent tank deformation.

-- Heavy duty foot pads with adjustable ability, can be applied to uneven or slope ground.

4. Glycol chilling unit

--Consist of glycol water tank, chillers, glycol water pipeline.

--Have expanding ability, can support 10-12 sets fermenters/BBTs in the future.

--Self-controlled chiller with high/low pressure, over-tem, over-load, anti-freezing, over-flow etc. protection to ensure the stable of running.

--PPR and PEX glycol pipeline which is cost-effective and easy to install/modified.

--Thickening type Rubber foam Insulation for glycol pipeline for saving more cooling energy,        reducing the load of chillers and extending the service life of chillers.

5. Controlling unit

--The electrical components are from world wide brand such as LS, Schneider, ABB, Omron, Delta and so on.Ensure the running stability and durability.

--Brewhouse pumps and motors are with VFD control, the liquid transferring and                             agitator/grainrake rotating speed can be adjusted.

--Temperature controller integrated on the control cabinet for each tank, so the tanks temperature can be automatic controlling/monitoring.

--The wires inside the control cabinet can meet different requirements of oversea market.

6. Portable CIP unit

--Two tanks can handle caustic/Acid liquid heating/mixing.

--Portable cart with wheels are movable, more flexible when cleaning tanks in different position.

--Temperature controller for automatic controlling of heating.

--Level control for caustic tank with alarm, avoid dry-burning when heating.

The general specifications of a hot selling 500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer:





More equipment are available, such as kegging machine, bottling machine, canning machine,  pasteurization equipment, water treatment etc.

Please consult customer service for more information.

  500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer

 You can find our breweries almost everywhere in the world: US, Canada, Korea, UK, Belgium, Sweden, South Africa, Mexico, Australia, New Zealand, countries in South America, Europe, Africa, Asia etc.

 500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer

 500L 5HL 4BBL SUS electrical manual Three vessel small turkey beer brew equipment brewing machine making beer

 You can often find us at different exhibitions over the world. Your questions can be solved face to face easily.
