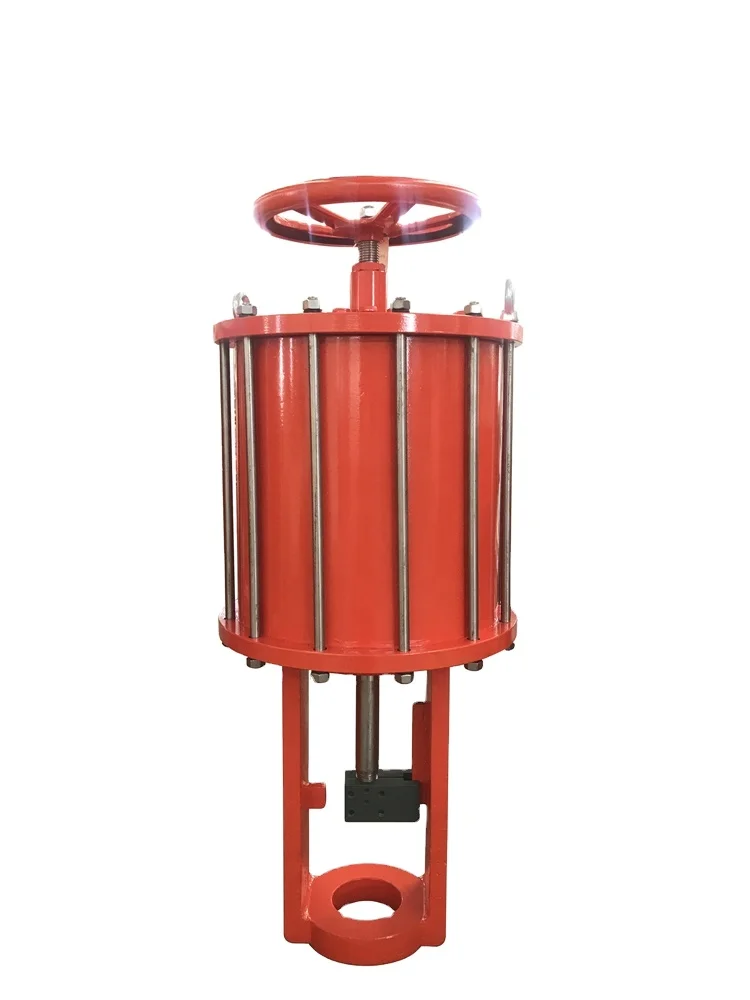

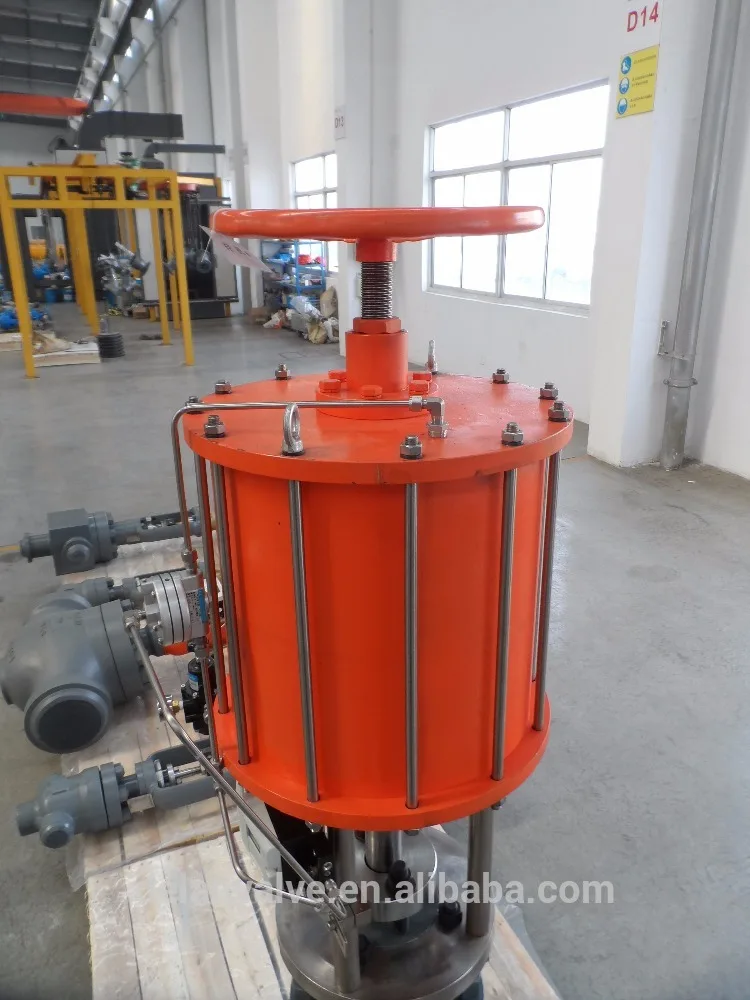

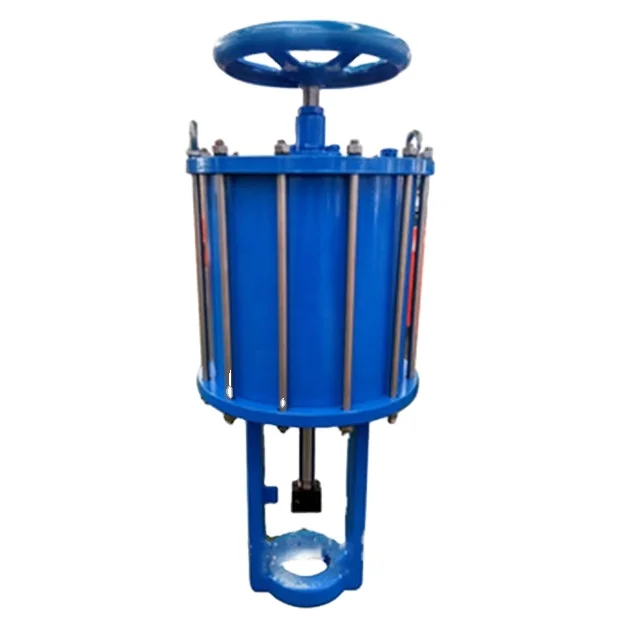

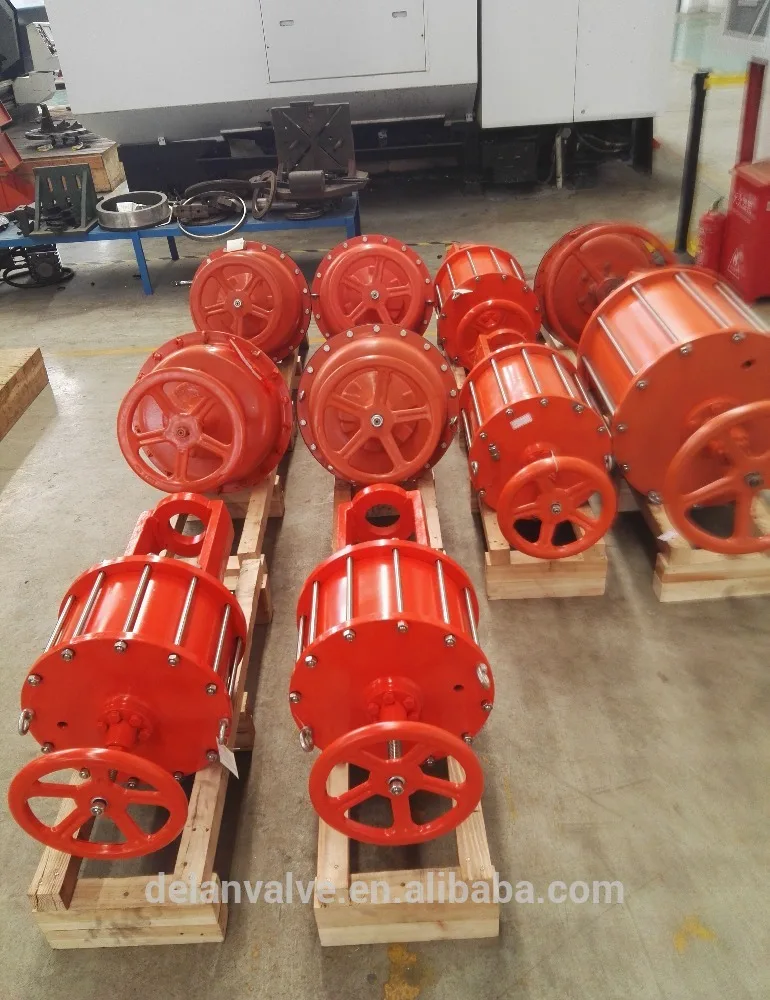

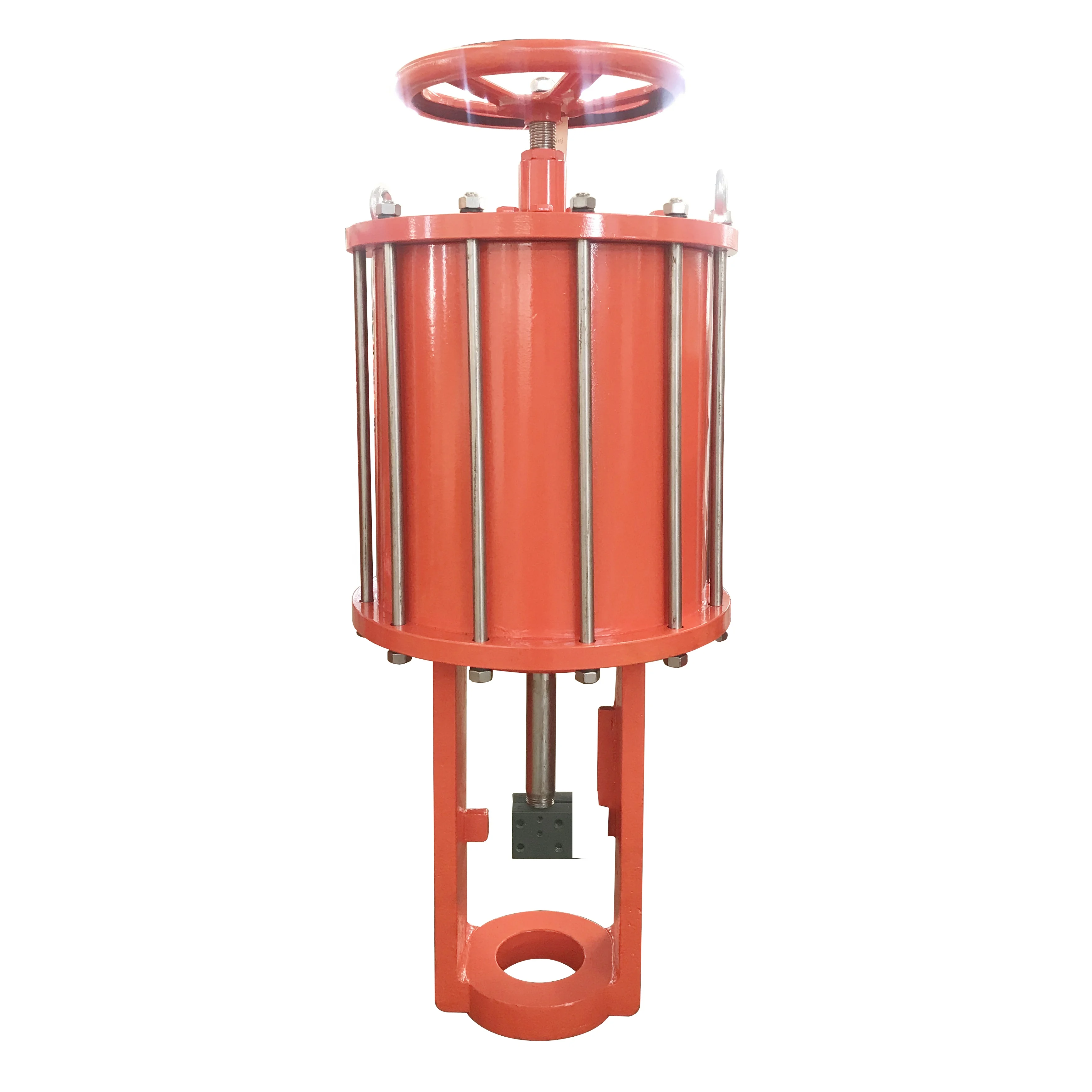

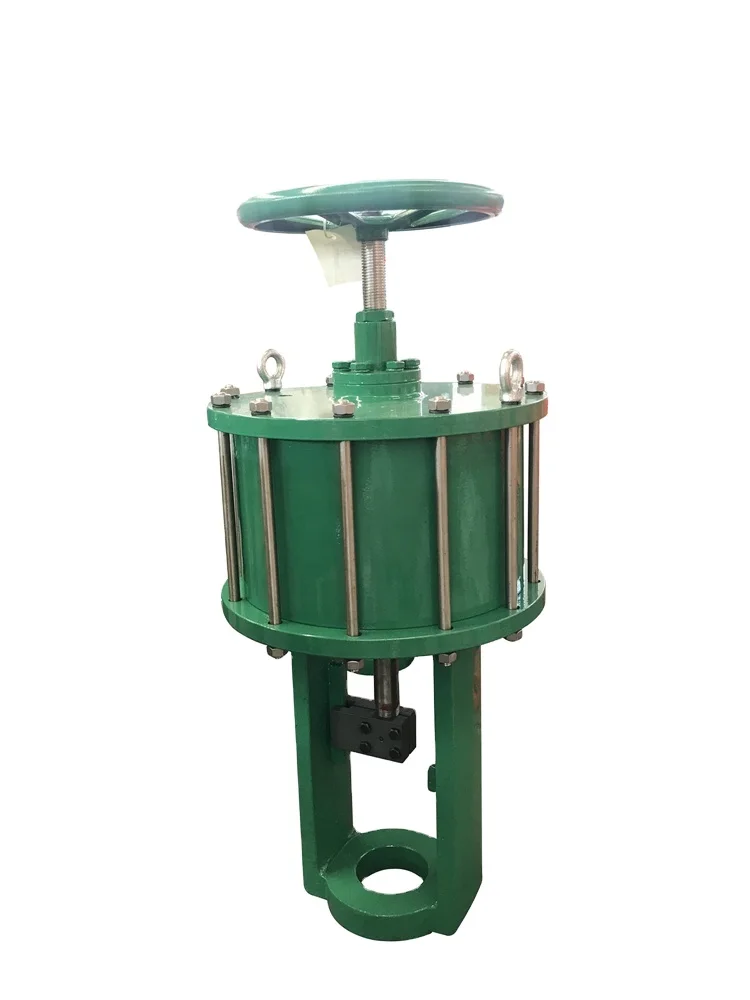

GD Series Pneumatic Actuator
This series is a kind of pneumatic piston actuator with big output power and high performance, combined with straight trip control valves, including globe valves, cage valves, gate valves, etc. The design of this actuator can make control valve switch and adjust reliably.
This series of pneumatic piston actuator is divided into two types, double-action type and single-action type. Single-action actuator is a spring loaded cylinder actuator, it is divided into two types, direct action type (GD-Z) and reverse action (GD-F). Double-action actuator (GD-D) is a cylinder-type actuator that has no spring loaded through air pressure control, and its’ mechanism locates the valve core for the changing aerodynamic loading pressure on the cylinder.
This series of pneumatic piston actuator is divided into two types, double-action type and single-action type. Single-action actuator is a spring loaded cylinder actuator, it is divided into two types, direct action type (GD-Z) and reverse action (GD-F). Double-action actuator (GD-D) is a cylinder-type actuator that has no spring loaded through air pressure control, and its’ mechanism locates the valve core for the changing aerodynamic loading pressure on the cylinder.
Product Paramenters
Series | GD | ||
Models | 20、30、31、40、41、42、43、50 | ||
Output Form | Straight Trip | ||
Action | Double-Action：GD-D Single-Action：GD-Z(direct action)、GD-F(reverse action) | ||
Maximum Thrust Output | see table 1 | ||
Stroke | see table 1 | ||
Supply Gas Pressure | 600Kpa | ||
Piping Interface | See pages 8 to 12 | ||
Environment Temperature | Standard form：-40℃～82℃ Special form(choose)：-18℃～149℃、-54℃～149℃ | ||
Spring Range | Direct action:20～100Kpa、80～200Kpa Reverse Action:140～260Kpa、200～300Kpa | ||
Major Parts Materials | Standard Form | upper and lower cover plates : steel Sealing ring: fluorine rubber O-type ring: chemigum Stroke sign: stainless steel pointer: stainless steel spring of actuator: steel guide rod of actuator: galvanized steel clamp block: galvanized steel holder: cast iron piston: steel pillar: steel cylinder: steel hand wheel: nodular cast iron | |
Special Form | Sealing ring / O-type ring: fluorine rubber (-18℃～149℃) / Silicone synthetic rubber (-54℃～149℃) upper and lower cover plates: stainless steel guide rod of actuator: stainless steel pillar: stainless steel piston: stainless steel cylinder: stainless steel | ||
Coating color | orange | ||
Accessories | Locator, Air Filter Regulator, Solenoid Valve, Limit Switch, Reversing Valve, etc | ||
Equipment Selection | manual operation mechanism, Special air piping and special air fittings, using with high temperature environment , using with low temperature environment, Salt corrosion prevention, designated coating color, etc. | ||

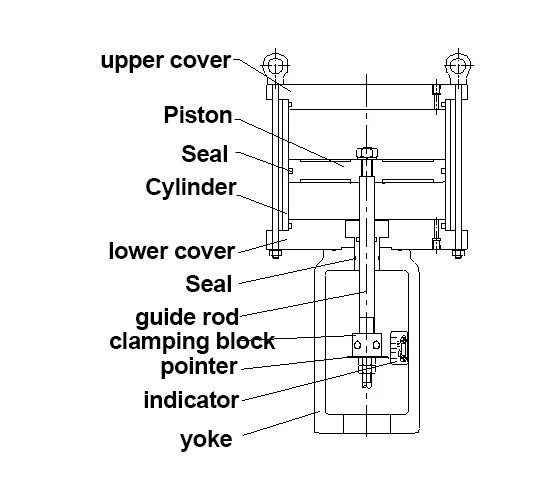

Picture 1-1 Double-Action
Double-action actuator (GD-D) is a cylinder-type actuator that has no spring loaded through air pressure control, and its’
mechanism locates the valve core for the changing aerodynamic loading pressure on the cylinder.
mechanism locates the valve core for the changing aerodynamic loading pressure on the cylinder.

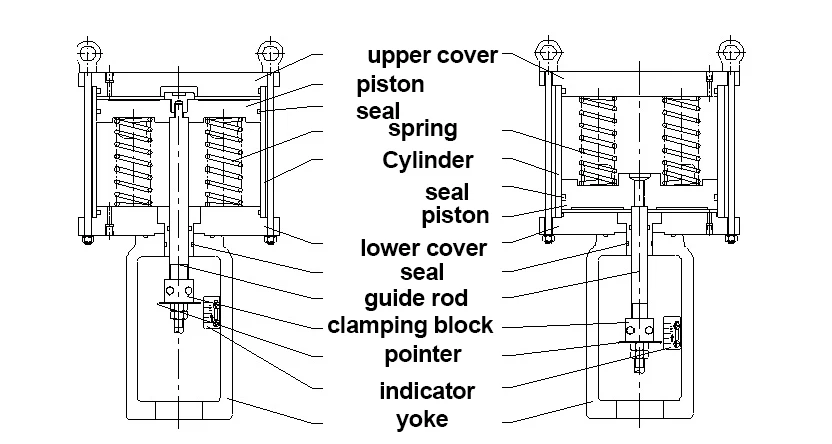

Picture 1-2 Single-Action
GD-Z (direct action- air to close) GD-F(reverse action- air to open)
