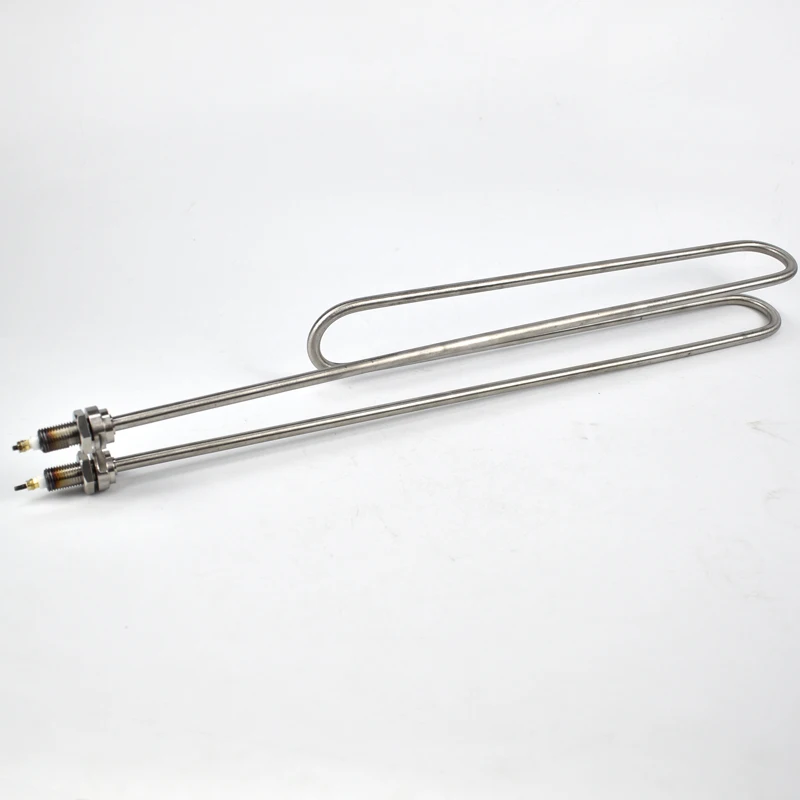

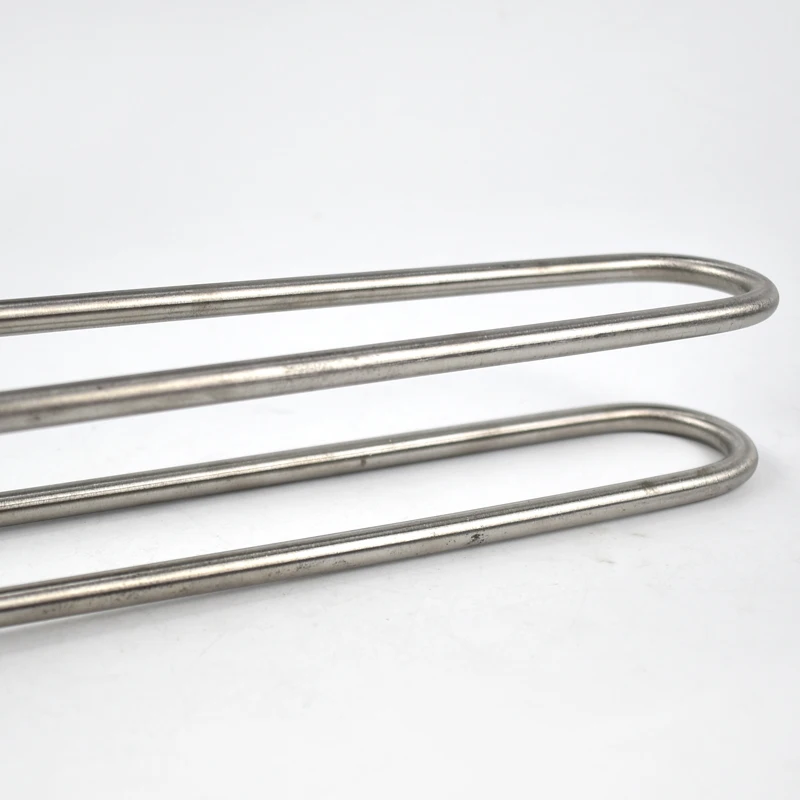

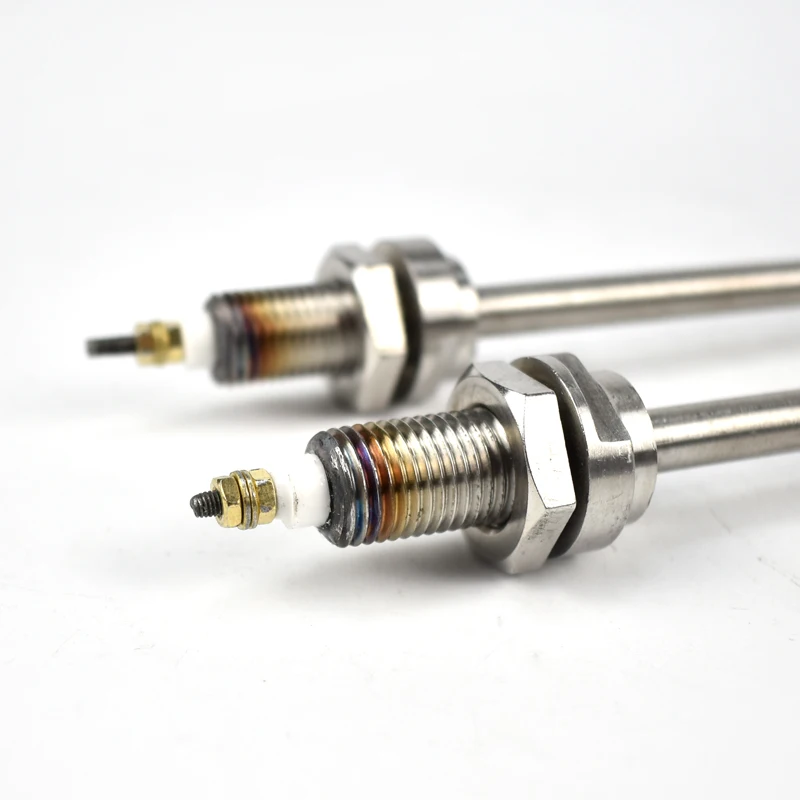

BRIGHT Double U Shape 380V 4Kw Tubular Heating Element Tubular Heaters
- Category: >>>
- Supplier: Yancheng Bright Electric Heating Appliance Manufacturing Co. Ltd.
Share on (1600176936601):
Product Overview
Description
Tubular Heaters
Tubular heater
Tube material: SUS304
Length: 500mm
Tube diameter: 8mm
Power: 4000W
Volatge: 380V
Length: 500mm
Tube diameter: 8mm
Power: 4000W
Volatge: 380V
More discount pls contact us
Products Description
Tubular Heater Technical Parameter
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Dielectric strength | 1500 V |
Sheath/Casing materials | SUS304/ SUS321/ SUS316/ SUS316L/ SUS310S/ Incoloy800/ Incoloy840/ Copper/ Titanium |

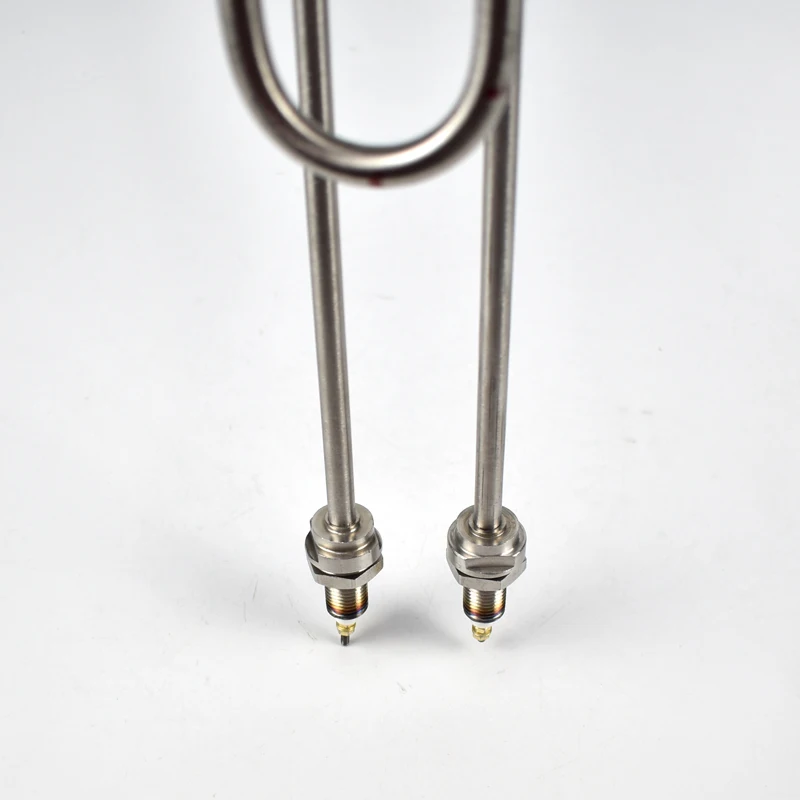

Terminal Styles | Plain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special Terminal |

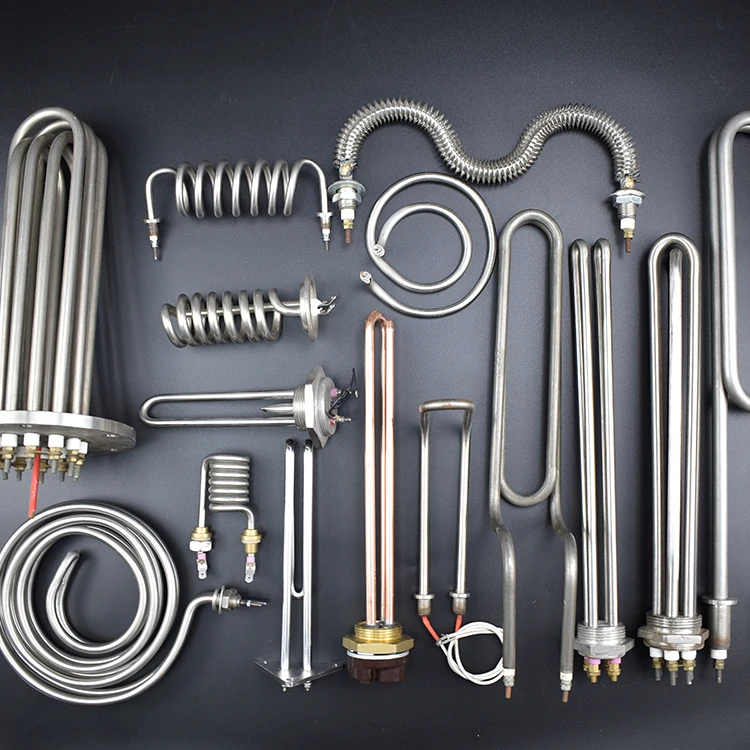

Shape | U/ Hairpin/ W/ Z/ Straight/ Spiral/ Circular(with extension)/ Double Loop/ Bent Hairpin |
End cap | Ceramic end (standard)/ Cement/ Epoxy/ RTV seal |
Swaged / High Watt Density – up to 1400°F (760°C) Not Swaged / Low Watt Density – up to 1200°F (650°C) Other |
Features:
1.Moisture resistant
2.Even heat distribution
3.High Dielectric Strength
4.Cost efficient
5.Wide range of diameters available
2.Even heat distribution
3.High Dielectric Strength
4.Cost efficient
5.Wide range of diameters available

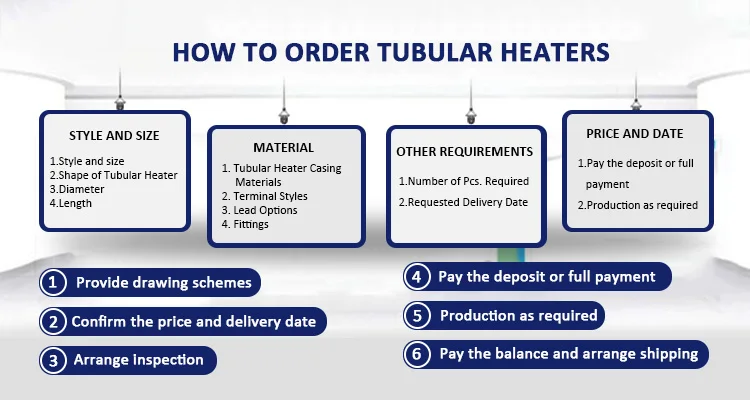

Tubular Heater Customized Specifications:
1. Voltage: 12-380v (customized)
2. Power: liquid is 10W/C㎡, air is 3-6/7W/C㎡
3. Thread specification: common M12, M14, M16, M18. (customized)
4. The center distance of the terminal is customized(corresponding to the hole distance of the installation hole).
3. Thread specification: common M12, M14, M16, M18. (customized)
4. The center distance of the terminal is customized(corresponding to the hole distance of the installation hole).
4. Shape and size: if the shape is complex, it's better to provide the size drawing to us. Tube diameter is between 6.6-20mm
5. Application: heated medium is liquid or air? Does it contain corrosion?
5. Application: heated medium is liquid or air? Does it contain corrosion?
6. Quantity
Tubular Heater Application：
1.Plastic Processing machinery.
2.Water and Oil Heating Appliances.
3.Packaging machineries
4.Vending Machines.
5.Dies and Tools.
6.Heating Chemical Solutions.
7.Ovens & Dryers
8.Kitchen equipments
9.Medical equipments
Packaging and Delivery
Packaging:
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery:
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
Why Choose Us
Company Introduction:
Yancheng Bright Electric Appliance Manufacturing Co., Ltd. was founded in 1985, Which is a research, design, manufacture, installation and consulting services for the integration of the industrial manufacturing company. We are located in the beautiful Yellow Sea - Yancheng, Jiangsu, convenient transportation.
With the advanced technology, high quality products, reasonable prices, our products sell well at home and abroad, has won the praise of many customers, and with over one hundred domestic and foreign enterprises have maintained long term friendly relations of cooperation.

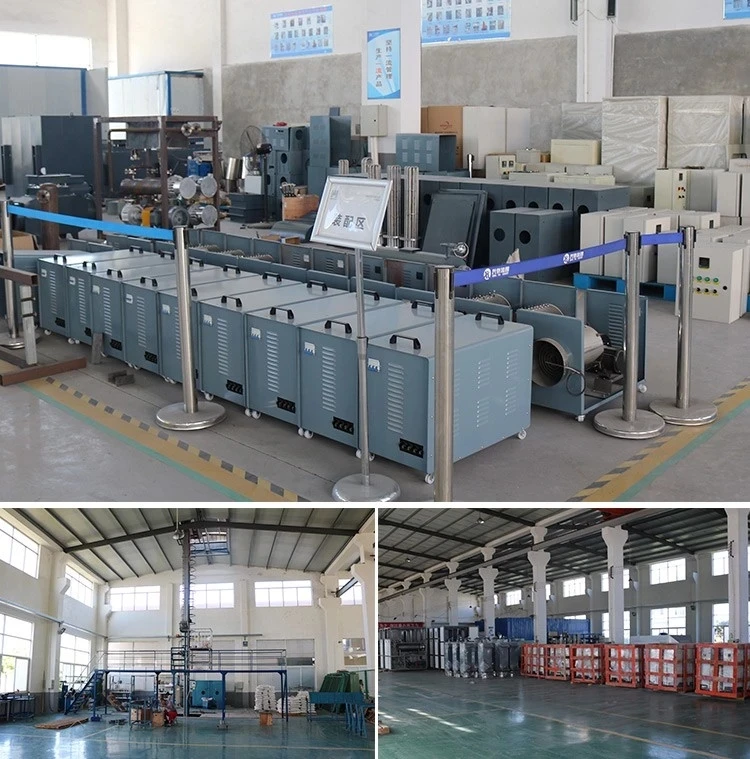

28,000 ㎡ non-dust work shop. 35 years manufacture and export experience. Near Shanghai port, this is how we keep good quality and competitive prices for global valued customers.
Wide products range:

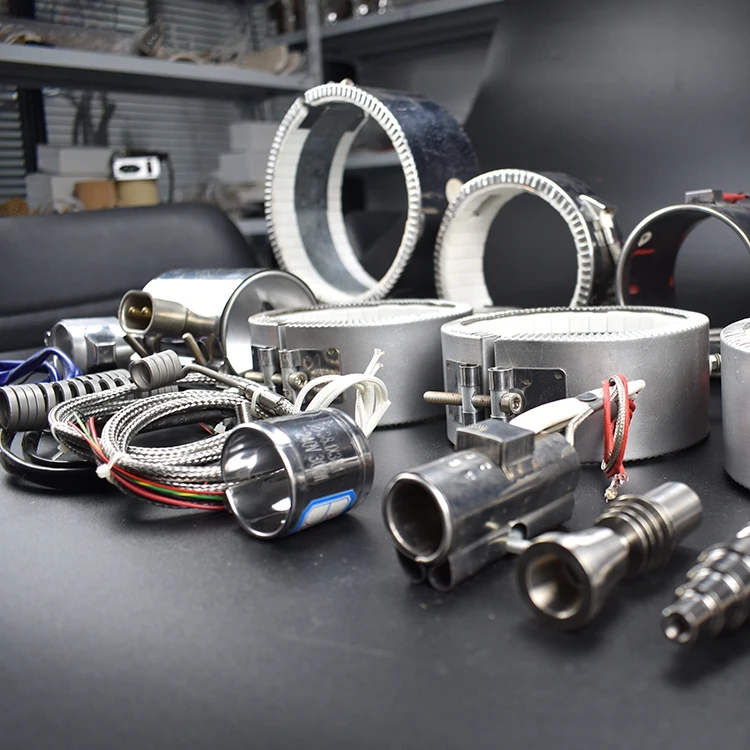

Main products are environmentally friendly air duct heater, pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices. Also we provide electric heating equipment and heating element for some large-scale research institutes at home and abroad and export companies.
Certificates:
●Certificate of Conformity
●The Authentication Certificate of Quality Management System
●Explosion-proof certificate
●Explosion-proof certificate
FAQ
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q: HOW LONG IS YOUR SHIPPING TIME?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.
Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: WHAT IS YOUR TERMS OF PAYMENT?
A: negotiation
A: We are factory.
Q: HOW LONG IS YOUR SHIPPING TIME?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.
Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: WHAT IS YOUR TERMS OF PAYMENT?
A: negotiation
Q:DO YOU PROVIDE OEM/ODM SERVICE?
A:Yes, we provide, but need detailed specifications, and the price will be changed
