Высокопроизводительные инструменты для горной дрели из легированной стали, шестигранный стержень для горной дрели, 22*108*1200 мм
- Category: Other Mining Machines >>>
- Supplier: Shenyang,Hitop,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

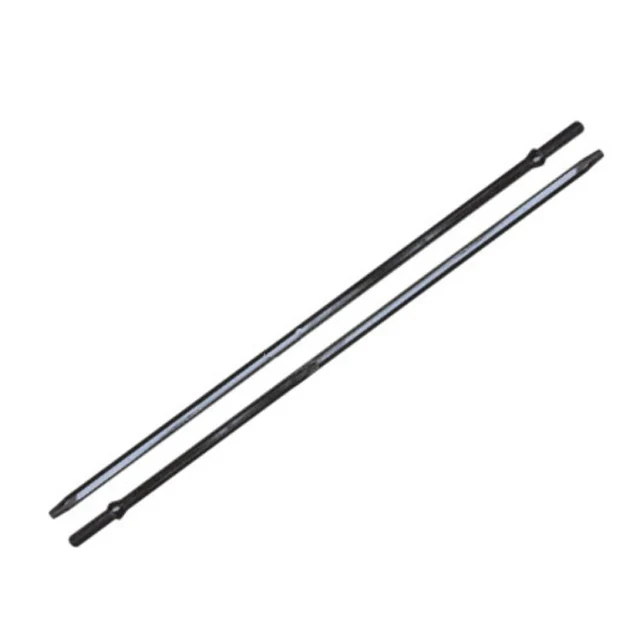

High Performance Alloy Steel Mining Drill Tools
Rock Drill Rod HEX 22*108* 1200mm
Product Description
Material | Structural Alloy Steel |
Application | Tunnel , Blasting , Mining , Quarrying, Piling, Indutrial water-well, and Infrastructure Construction |
Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting | |
Thread Type | H22, R25, R28, R32, R35, R38, T38, T45, T51 |
Rod Type | Extension rod,Drifter rod,MF rod,MF Drifter rod, Guide tube, Tapered drill rod, Integral drill steel, Plug hole integral rod |
Body Type | Hexagonal type,Round type |
Rod Length | 60mm~4500mm |
Custom Design | Thread, Diameter, Length, Color can be customized |
Here is part of our catalogue attached for your reference:
| part name | A | B | C | D | Length | Weight approx kg | |
| mm | foot | ||||||
| Drill rod | 22 | 82 | 22 | E16 | 305 | 1' | 1.20 |
| Drill rod | 22 | 82 | 22 | E17 | 455 | 1'6" | 1.67 |
| Drill rod | 22 | 82 | 22 | E18 | 610 | 2' | 2.15 |
| Drill rod | 22 | 82 | 22 | E19 | 762 | 2'6" | 2.62 |
| Drill rod | 22 | 82 | 22 | E20 | 915 | 3' | 3.10 |
| Drill rod | 22 | 82 | 22 | E21 | 1220 | 4' | 4.04 |
| Drill rod | 22 | 82 | 22 | E22 | 1525 | 5' | 4.99 |
| Drill rod | 22 | 82 | 22 | E23 | 1830 | 6' | 5.93 |
| Drill rod | 25 | 108 | 25 | D30 | 305 | 1' | 1.66 |
| Drill rod | 25 | 108 | 25 | D31 | 455 | 1'6" | 2.26 |
| Drill rod | 25 | 108 | 25 | D32 | 610 | 2' | 2.88 |
| Drill rod | 25 | 108 | 25 | D33 | 762 | 2'6" | 3.48 |
| Drill rod | 25 | 108 | 25 | D34 | 915 | 3' | 4.1 |
| Drill rod | 25 | 108 | 25 | D35 | 1220 | 4' | 5.32 |
| Drill rod | 25 | 108 | 25 | D36 | 1525 | 5' | 6.54 |
| Drill rod | 25 | 108 | 25 | D37 | 1830 | 6' | 7.76 |
| Drill rod | 22 | 82 | 22 | H25 | 305 | 1' | 1.20 |
| Drill rod | 22 | 82 | 22 | H25 | 455 | 1'6" | 1.67 |
| Drill rod | 22 | 82 | 22 | H25 | 610 | 2' | 2.15 |
| Drill rod | 22 | 82 | 22 | H25 | 762 | 2'6" | 2.62 |
| Drill rod | 22 | 82 | 22 | H25 | 915 | 3' | 3.10 |
| Drill rod | 22 | 82 | 22 | H25 | 1220 | 4' | 4.04 |
| Drill rod | 22 | 82 | 22 | H25 | 1525 | 5' | 4.99 |
| Drill rod | 22 | 82 | 22 | H25 | 1830 | 6' | 5.93 |
| Drill rod | 22 | 82 | 22 | H25 | 2440 | 8' | 7.82 |
| Drill rod | 22 | 82 | 22 | H25 | 3050 | 10' | 9.71 |
| Drill rod | 22 | 82 | 22 | H25 | 3660 | 12' | 11.60 |
| Drill rod | 22 | 82 | 22 | H25 | 4270 | 14' | 13.49 |
| Drill rod | 22 | 108 | 22 | H25 | 305 | 1' | 1.3 |
| Drill rod | 22 | 108 | 22 | H25 | 455 | 1'6" | 1.72 |
| Drill rod | 22 | 108 | 22 | H25 | 610 | 2' | 2.24 |
| Drill rod | 22 | 108 | 22 | H25 | 762 | 2'6" | 2.71 |
| Drill rod | 22 | 108 | 22 | H25 | 915 | 3' | 3.18 |
| Drill rod | 22 | 108 | 22 | H25 | 1220 | 4' | 4.12 |
| Drill rod | 22 | 108 | 22 | H25 | 1525 | 5' | 5.07 |
| Drill rod | 22 | 108 | 22 | H25 | 1830 | 6' | 6.01 |
| Drill rod | 22 | 108 | 22 | H25 | 2440 | 8' | 7.9 |
| Drill rod | 22 | 108 | 22 | H25 | 3050 | 10' | 9.79 |
| Drill rod | 22 | 108 | 22 | H25 | 3660 | 12' | 11.68 |
| Drill rod | 22 | 108 | 22 | H25 | 4270 | 14' | 13.57 |
| Drill rod | 25 | 108 | 25 | H25 | 305 | 1' | 1.66 |
| Drill rod | 25 | 108 | 25 | H26 | 455 | 1'6" | 2.26 |
| Drill rod | 25 | 108 | 25 | H27 | 610 | 2' | 2.88 |
| Drill rod | 25 | 108 | 25 | H28 | 762 | 2'6" | 3.48 |
| Drill rod | 25 | 108 | 25 | H29 | 915 | 3' | 4.10 |
| Drill rod | 25 | 108 | 25 | H30 | 1220 | 4' | 5.32 |
| Drill rod | 25 | 108 | 25 | H31 | 1525 | 5' | 6.54 |
| Drill rod | 25 | 108 | 25 | H32 | 1830 | 6' | 7.76 |
| Drill rod | 25 | 108 | 25 | H33 | 2440 | 8' | 10.20 |
| Drill rod | 25 | 108 | 25 | H34 | 3050 | 10' | 12.64 |
| Drill rod | 25 | 108 | 25 | H35 | 3660 | 12' | 15.08 |
| Drill rod | 25 | 108 | 25 | H36 | 4270 | 14' | 17.52 |
Our drilling tools are mainly produced in the following five types:
1. Conical connection drill bits: 28-60 in-line, cross, and button type rock drill bits, and matched H22, H25 type 0.6M---8m conical connection drill bits
2. Threaded drill tools: R32, R38, T38, T45 and T51 threaded drill bit, drill rod, drill sleeve and drill tail
3. Down-the-hole drilling tools: 80,90, 100 impactors, and matching 50, 60, 76, 89 type DTH drill pipes and 80, 90, 105, 115, 165 type DTH drill bits
4. Shearer tool series products: various types of pick-type coal mining picks, tunneling teeth, and matching shoes, tooth seats and other products
5. Anchor drill tools series products: various types of dry and wet rock drill bits of 27, 28, 30, 32, etc., used for bolt support, as well as internal powder-draining type bolt drill bits, bolt drill pipes, and various A kind of supporting extension rod and stirring rod
We could offer you the High Quality drill rod
Our company has a complete quality inspection system, using international standard API inspection equipment and perfect ultrasonic, magnetic inspection and other non-destructive testing methods.
So that each inspection process of the product is completed under strict quality control procedures.
Strictly select drilling tools with potential risks such as injury, thin wall, partial wear, and serious thread wear to ensure the excellent quality of the product.
Welcome to your inquiry~
