canter MYY5T pto gear box power take off gearbox for NKR71 NPR71 NQR70
US $40.00-$100.00
Refrigerator Truck body Parts
- Category: Truck Parts >>>
- Supplier: Shandong,Carryman,Auto,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
item | value |
OE NO. | Refrigerator Truck body Parts |
Type | Refrigerator Truck body Parts |
Size | 4250*2000*2000 |
Material | steel fiberglass aluminum |
Place of Origin | China |
Shandong | |
Brand Name | carryman |
Model Number | F4250 |
Truck Model | Dongfeng, Foton, Howo, JieFang, OTHER, ISUZ U, KI A |
Product name | Refrigerator Truck body Parts |
Description | non-weld |
Application | easy install |
Packing | kits |
Packing & Delivery
nude packing
Company Profile
SHANDONG CARRYMAN TRUCK BODY MANUFACTURER CO.,LTD (here in and after referred to as carryman), dated from the year of 2012,has been approved industry and information technology of China, is the backbone of producing all kinds of truck body in North China, is the refrigerator truck body, insulated truck body, van body, tank-type water vehicles body, trailer body, and other special vehicles body , development and production base.The annual output is more than 5,0000 sets. Now, Yakai auto has 5 thousands m2 of manufacturing zone,more than 30 people, of which 3 are senior engineers, Strong technical force, high efficiency research and development of productive capacity, advanced production equipment, high degree of specialization, the detection is perfectly complete.these years,our company was fouce on the high level of refrigetator and insulated van of R&D,we provide the international 2 generation productions, The characteristic of cargo body of carryman brand:1. All the body boards are designed with totally enclosed type by high polymer material and Super Pressure-high Temperature compression moulding from good performance machine.2. The surface of the fibre-glass epoxy is the orginal color,high radiance,with the cutted and Precision Bonding rigid PU foam,the reinforce bars are high polymer material inside of the board, well-distributed.3. The reinforce bar of the baseboard inside,has been designed specially ,anti-destory,anti-high pressure, Racking Resistance.4. Between two board,they are connected by high quality mucilage and bolts preinstalled ,with good performance and has 15 years working life.5. All the body is lightness ,good strength performance,insulated, corrosion resisting,no cold metal thermal
We focus on export, we design more professional packaging transportation, reduce the damage in transit, we design a simpler assembly process, achieve zero welding assembly of the truck box
We focus on export, we design more professional packaging transportation, reduce the damage in transit, we design a simpler assembly process, achieve zero welding assembly of the truck box
CBU transport
If the customer can't assemble, CBU transport is good ways

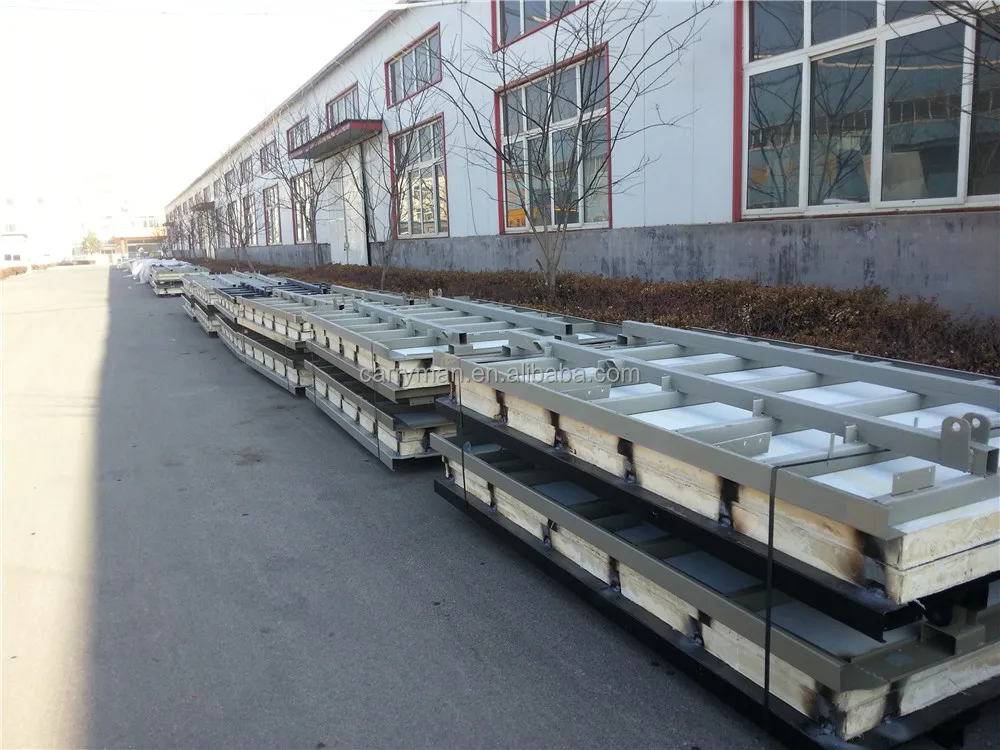

CKD transport
1.easy assemble, no weld,and easiest install drawing.
2.fit all brand truck, KI A, ISUZ U, HYUNDA I AND CHINA brand foton, jac,JMC, FAW,TKING ETC
Technical Specification -CARRYMAN refrigerated truck body | ||||
Truck Body size (LWH) | 4000*2300*2350 | |||
Inside &Outside skin | FRP | |||
Insulation foam | insulation foam | |||
Truck body Panel total Thickness(Panel thickness can be changed according to your requirments and applications) | ||||
Roof | 80mm | |||
Front Wall | 80mm | |||
Side Wall | 80mm | |||
Floor | 80mm | |||
Rear Doors | 80mm | |||
Color | white | |||
Parts | ||||
Double swing door at rear | √ | standard specification | ||
Door gasket | √ | |||
Floor: FRP surface | √ | |||
Stainless Steel door locks &hinges&handle&hanger | √ | |||
Stainless Steel rear door frame | √ | |||
aluminium profile and stainless steel angle | √ | |||
Internal lights and switch | √ | |||
Sub-frame | √ | |||
Accessories for truck body assembling:(for CKDtype | ||||
Other options parts (pay extra money) | ||||
LED right | ||||
corner light | ||||
Kick plate | ||||
Single leaf side door | ||||
Aluminum T-Channel floor | ||||
Aluminum checker plate floor | ||||
Aluminum corrugated floor | ||||
Meat hanging system(sliding rail and meat hook) | ||||
Low temperature PVC curtains | ||||
Clapboard within body | ||||
Truck refrigeration units | ||||
Rear foot steps | ||||
mudapron | ||||
crash barrier | ||||

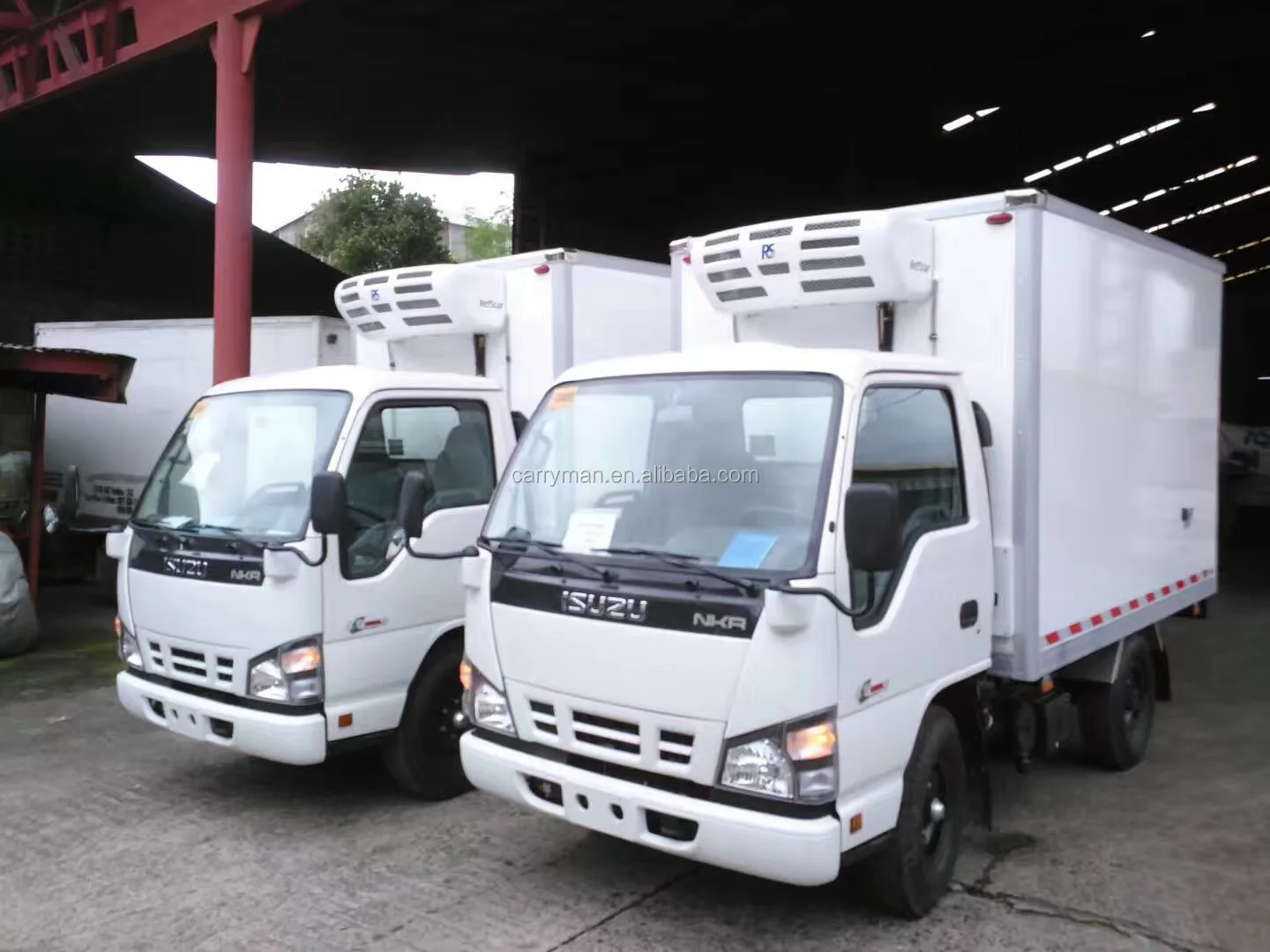

refrigerated truck body
LED light
corner light
Kick plate
Single leaf side door
Aluminum T-Channel floor
Aluminum checker plate floor
Aluminum corrugated floor
Meat hanging system
Meat hanging system
(sliding rail and meat hook)
Low temperature PVC curtains
Clapboard within body
Truck refrigeration units
Rear foot
steps,mud apron crash barrier
steps,mud apron crash barrier
Advantages of split transportation (CKD)
1.NO weld install box,
2.easiest install drawing,
3.fit difference model truck
hyundai,kia,toyota,ISUZU
NO | PART NAME | MATERIAL AND SPEC | QTY | LOCATION |
1 | Front panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
2 | Rear door | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
3 | Side panel(left and right) | 2.2mmFRP+PU+2.2mmFRP,103mm | 2 | |
4 | Floor panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
5 | Roof panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
6 | Front angle | Stainless steel | 2 | |
7 | lamp | 12/23V LED | 1 | roof |
8 | switch | stainless | 1 | Side panel |
9 | cable | some | ||
10 | Side aluminum edge | aluminum | 7 | Side wall and floor |
11 | rivet | 5*18,5*25 galvanized | many | |
12 | Resin glue | some | ||
13 | sealant | PU | some | |
14 | U bar | steel | 6 | Floor frame and chassis |
15 | Floor frame | steel | 1 | |
16 | Angle iron | steel | many | Floor frame and Longitudinal beam |
17 | Sealing strip | rubber | 3 | |
18 | Back door hing | Stainless steel | 6 | Rear door and side door |
19 | Side light | Yellow/12/24v | 6 | |
20 | lock | Stainless steel | 3 | Rear door and side door |
21 | Water barrier | Stainless steel | 1 | Rear door and side door up |
22 | Door catch | Stainless steel | 3 | Rear door and side door |
23 | Clamping screw | M8*110,M12*50, STEEL | some | |
24 | Side/rear protective barrier | Steel | 2 | |
25 | mudguard | plastic | 2 | |
26 | Door frame | Stainless steel | 1 | |
27 | marker lamp(front/rear) | plastic | 4 | |
28 | flap | rubber | 2 | |
29 | Side door | Single 900*1500mm | 1 | Left panel |
Corrugated aluminium truck body
Designed to better match Japanese trucks,
light weight, more beautiful, corrosion resistant,
suitable for use in rainy ocean climates
flat aluminum truck body
Designed to better match korea and china trucks, light weight, more beautiful, corrosion resistant,
suitable for use in rainy ocean climates
suitable for use in rainy ocean climates
More suitable for Posting pictorial
Front Panel | aluminum sheet+steel tube+Color steel/Sandwich structure* | outer panel: 0.8mm inner panel: 0.33mm | 1 | ||
Right side Panel | aluminum sheetsteel tube+Color steel/Sandwich structure* | outer panel: 0.8mm inner panel: 0.33mm | 1 | ||
Left side Panel | aluminum sheet+steel tube+Color steel/Sandwich structure* | outer panel: 0.8mm inner panel: 0.33mm | 1 | ||
Rear Door Panel | aluminum sheet+steel tube+Color steel/Sandwich structure* | outer panel: 0.8mm inner panel: 0.33mm | 1 | ||
Rear Door Frame | Steel | 2.0mm | 1 | ||
Roof Panel | color steel+steel tube+Color steel/Sandwich structure* | outer panel: 0.5mm inner panel: 0.33mm | 1 | ||
Embedded Door Lock | Galvanized polishing | ||||
Door Seal | rubber | ||||
Aluminum Alloy Side | Aluminum | ||||
Wrap Angle | Aluminum | 2 | |||
Glue | |||||
Ceiling lamp | 1 | ||||
Ceiling lamp switch | 1 | ||||
Lamp wire | |||||
Side lamp | 2 | ||||
Upper lamp | 5 | ||||
Awning (side door and rear door) | |||||
Self-plugging rivet | |||||
Carling | |||||
Beam | |||||
Options | |||||
Side Door | |||||
Remark | |||||
1. Sandwich structure* is just as right side photo shows | |||||
1. What is your terms of shipping method?
Generally,we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container
too, but the it is small quantity
2. Our truck is korea or japan brand,your truck body fit it?
Of course,Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft and 18 feet in terms of cargo box
4. Why should your buy from us not from other supplier?
In the past 10years, Our company only makes truck body. We are more professional for truck body.
5. what is your terms of payment?
T/T 30% as deposit,and 70% against BL copy
6. what is your terms of delivery?
EXW,FOB, CFR,CIF
7. How about your delivery time?
Generally, within 10days
8. can you produce according to customer’s requirement?
Yes, we can produce according to the customer’s technical drawings and specifications
Generally,we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container
too, but the it is small quantity
2. Our truck is korea or japan brand,your truck body fit it?
Of course,Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft and 18 feet in terms of cargo box
length, middle truck have 20-32ft length,
The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD ?
My company has ten years' experience in exporting truck body. We can provide the truck body ckd of easiest assemble
The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD ?
My company has ten years' experience in exporting truck body. We can provide the truck body ckd of easiest assemble
4. Why should your buy from us not from other supplier?
In the past 10years, Our company only makes truck body. We are more professional for truck body.
5. what is your terms of payment?
T/T 30% as deposit,and 70% against BL copy
6. what is your terms of delivery?
EXW,FOB, CFR,CIF
7. How about your delivery time?
Generally, within 10days
8. can you produce according to customer’s requirement?
Yes, we can produce according to the customer’s technical drawings and specifications
