Горячая Распродажа, интегрированная трубчатая машина для выпрямления и резки
- Category: Pipe Making Machinery >>>
- Supplier: Platinum,Overseas,Trade,Inc.
Share on:
Product Overview
Description
Product Description

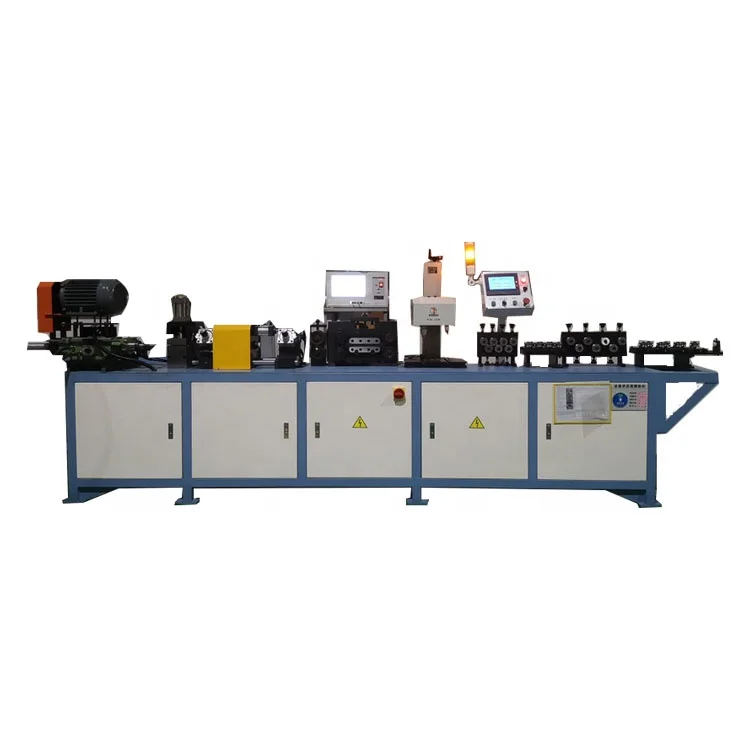

This machine passes the innerdrawing type feeding rack discharge, rounding and straightening, fixed-length feeding, chip-free cutting, pipe end processing, and breaking processes to complete fixed-length cutting and cutting except for manual coiling and manual feeding. Pipe end processing work.
NO. | Item | Unit Price |
1 | Main Frame | 11000USD |
2 | Cutting Mold | 400USD |
3 | Forming Mold | 160USD |
Validity of quotation: within 30 days from the quotation date.
Price basis: including tax, packaging and freight to the user's factory.
Price basis: including tax, packaging and freight to the user's factory.
Payment method: 30% deposit, the balance is paid before shipment.
Delivery deadline: 20 working days after receiving the deposit..
Specification
NO. | Parameter | Data |
1 | Tube Material | Copper / Aluminum tube |
2 | Tube Size | Φ 4-12mm, WT=0.5-1.0mm |
3 | Work Capacity | One tube |
4 | Feeding Stroke | <450mm |
5 | Work speed | 6 times/min L=500mm (without end forming) |
3 times/min L=500mm (with end forming) | ||
6 | Linear accuracy | 3mm/1000mm |
7 | Positioning accuracy | ≤±0.3mm when L<1000mm |
±0.40mm when L >1000mm | ||
8 | Electric System | 380V, 50Hz, 3Phae (Customized) |
9 | Air Supply | 0.65-0.80MPa |
10 | Dimension | 2200 x 700 x 1300 mm |
11 | Model | KDA-12 |
12 | Diameter | Φ4-Φ20 |
13 | Power | 2.2KW |
14 | Feeding Speed | 60m/min |
15 | operating system | Touch Screen and PLC control |
16 | Operation mode | Automatic/servo feeding |
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
