1500w ipg raycus GW hangheld FIBER laser welding machine

Product Overview

Description

affected zone is dramatically minimized, as is the need for traditional post-processing grinding or polishing for increased productivity, less scrap and lower cost-per-part.

LightWeld Laser Welding
High Speed Up to 4X Faster than traditional methods - increased productivity for lower costs-per-part
High Quality Consistent welding of thick, thin and reflective metals without distortion, undercut or burn-through - minimal heat affected zone

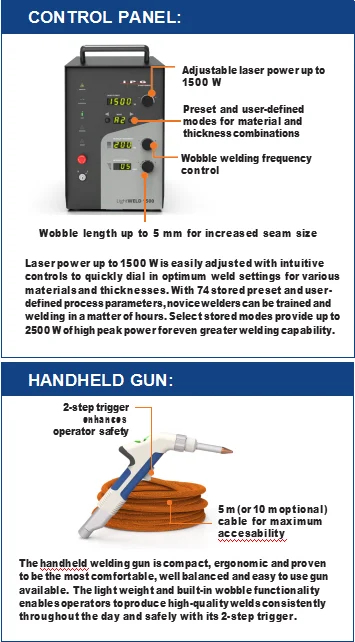

Easy to Use Simple set up, easy to learn and operate for consistent high-quality welds
Enhanced Material Capability Metals with dissimilar thicknesses, ultra-thin parts, copper welding, materials with low and high electrical conductivity
Wobble welding Up to 5 mm of additional weld width - increases capability and creates highly aesthetic seams

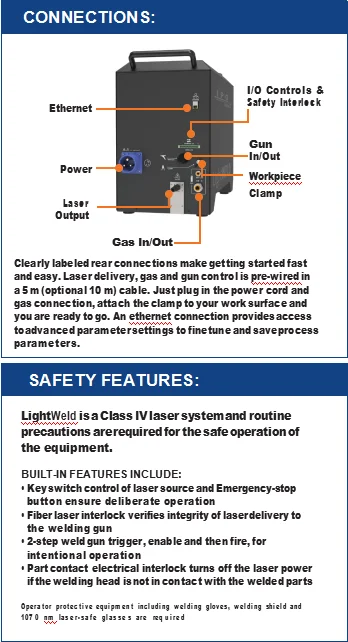

Operator safety Multi-level sensors and interlock safety features
Laser Power High Peak Power Mode Storage Capacity Wobble Length Wobble Frequency Dimensions LxWxH Weight
 Up to 1500 W  Up to 2500 W  74  Up to 5 mm  Up to 300 Hz 641 x 316 x 534 mm25.2” x 12.4” x 21” 53 kg118 lbs

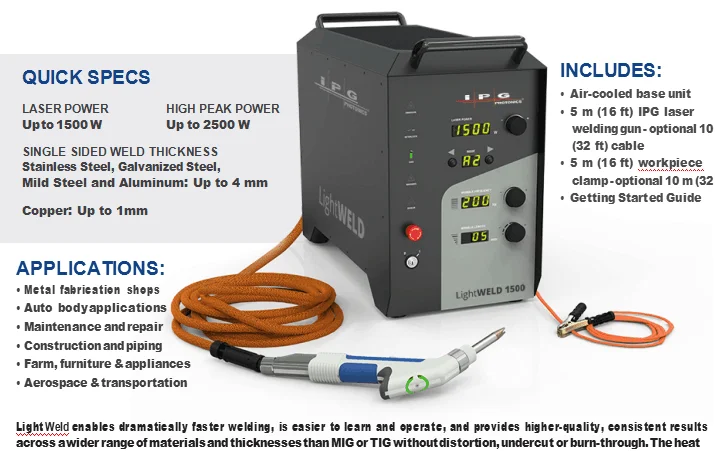

LIGHTWELD 1500
Handheld Laser Welding System
