IC Lamp Bead Program Two White+Amber White, 3 Colors in 1 Pixel 256-Gray 24-bit Addressable 5050 SMD LED Chip SK6812WWA Data Sheet
Product name: addressable SK6812 WWA5050 SMD LED.

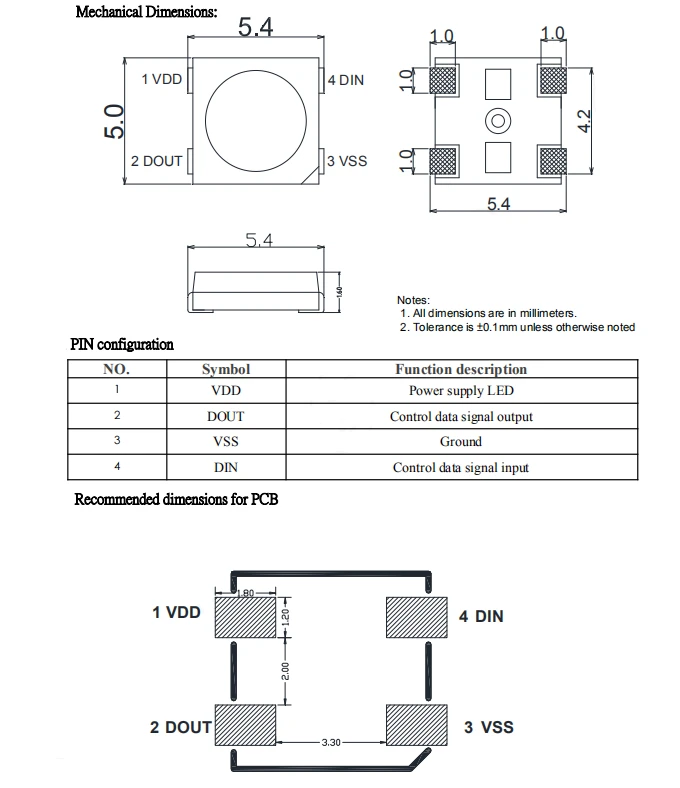

| Specifications of our high quality SK6812WWA | |
| LED package type | 5050 SMD LED |
| LED size | L 5.4*W 5.0*H 1.6 mm |
| Emitting color | Addressable magic color of WWA, BW(Blue white)+WS(Warm white)+A(Amber) |
| Brightness | BW (Blue white): 5.5-6.5lm or 1500-2200MCD, WS (Warm white): 1.0-2.0lm or 200-400MCD, A (Amber white): 5.5-6.5lm or 1500-2200 MCD,
|
| Color temperature | BW(Blue white): 6000-7000K, WS(Warm white): 2600-3200K, A(Amber white): 1800-2000K (585-595nm), |
| Working current | WWA each color 12mA |
| Forward voltage | DC 5volts |
| Power | 0.2 Watt. |
| LED surface color | white / black, two options |
| Warranty | Two years |
| Packing | 1000 pieces per reel in an anti-static foiled bag |
1. Product Overview :
SK6812WWA is a smart LED control circuit and light emitting circuit in one controlled LED source,
which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the
pixels are contained within the intelligent digital interface input. The output is driven by patented PWM
technology, which effectively guarantees high consistency of the color of the pixels. The control
circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high
precision RC oscillator.
The data protocol being used is unipolar RZ communication mode. The 24-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an
internal data latch, the remaining data is passed through the internal amplification circuit and sent out
on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic
shaping forwarding technology makes the number of cascaded pixels without signal transmission only
limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),
high brightness, scattering angle, good consistency, low power, and long life. The control circuit is
integrated in the LED above.
2. Main Application Field:
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail
tube, LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
equipment etc..
3. Description:
Top SMD internal integrated high quality external control line serial cascade constant current IC;
Control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
The built-in power on reset and reset circuit, the power does not work;
Gray level adjusting circuit (256 level gray scale adjustable);
Red drive special treatment, color balance;
Line data transmission;
Plastic forward strengthening technology, the transmission distance between two points over 10M;
Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

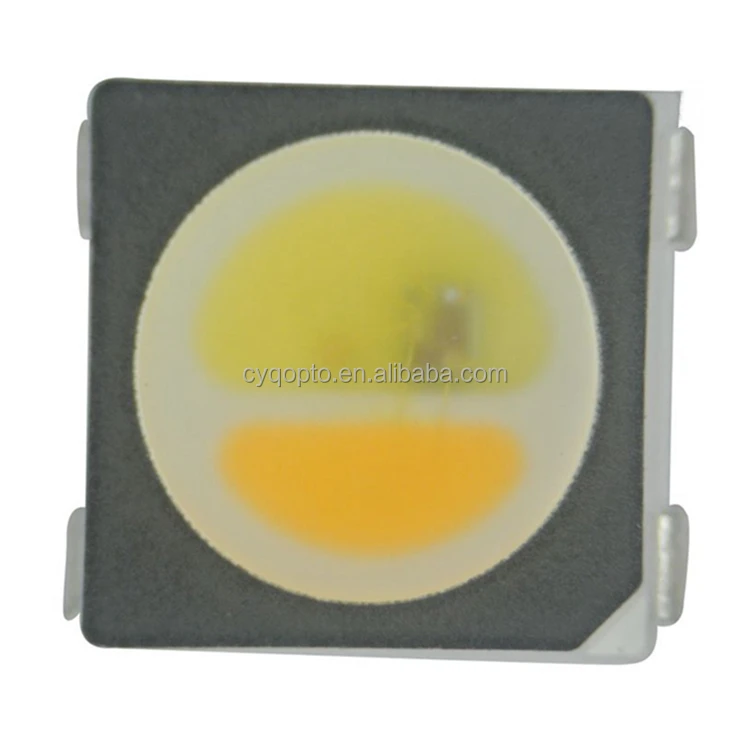

White face type picture of SK6812WWA

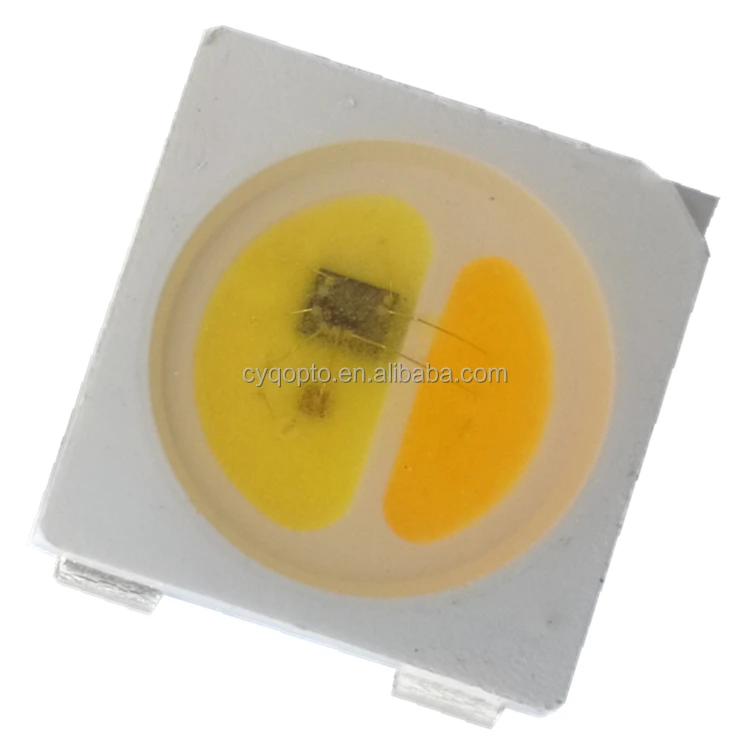

Black face type picture of SK6812WWA

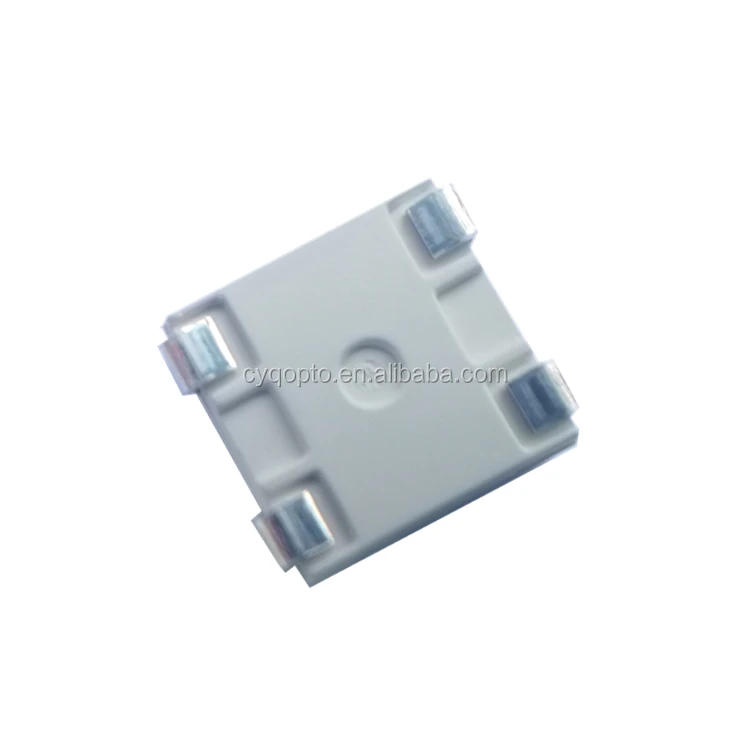

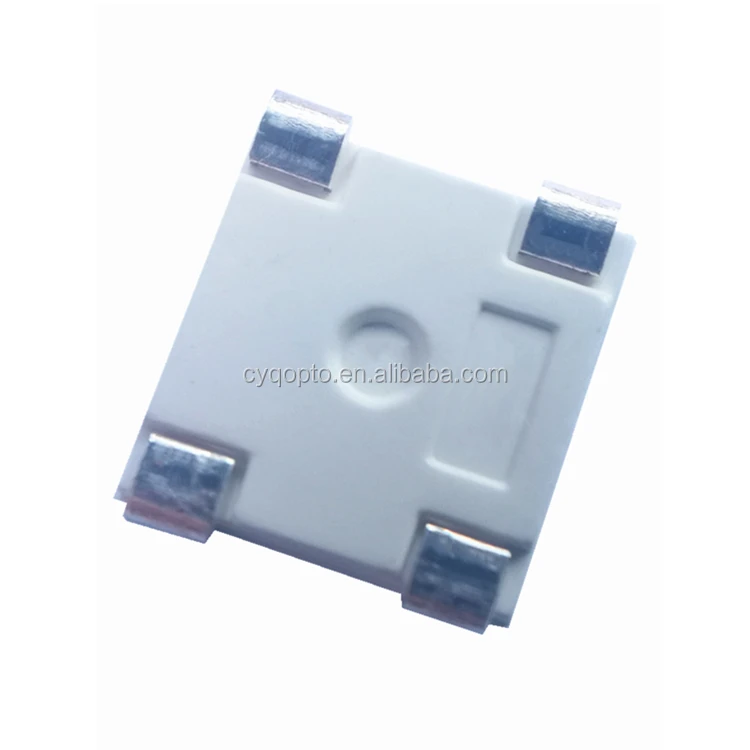

Back picture of SK6812WWA
Packing picture
