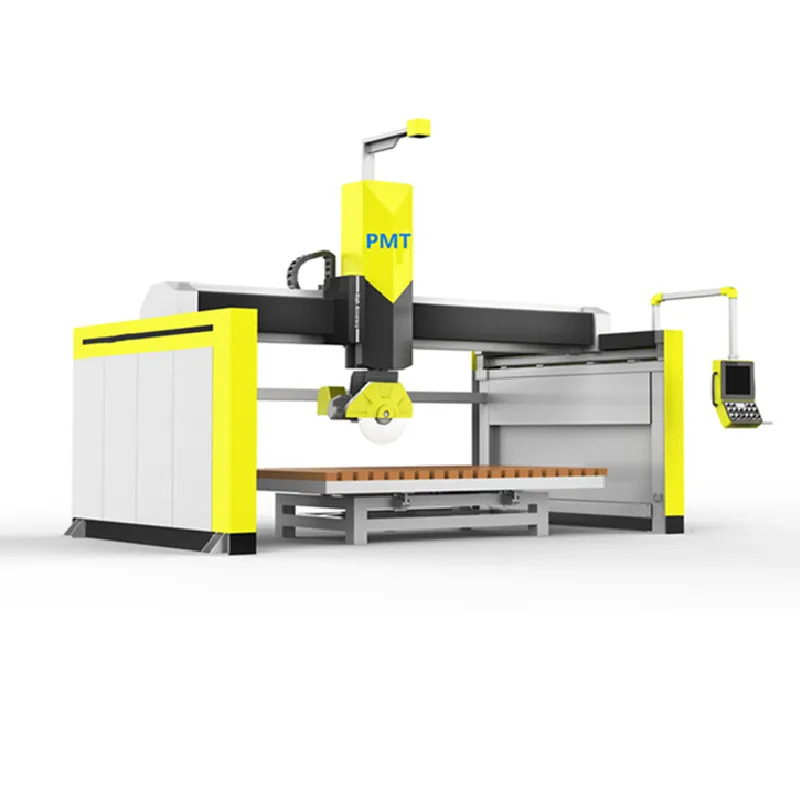

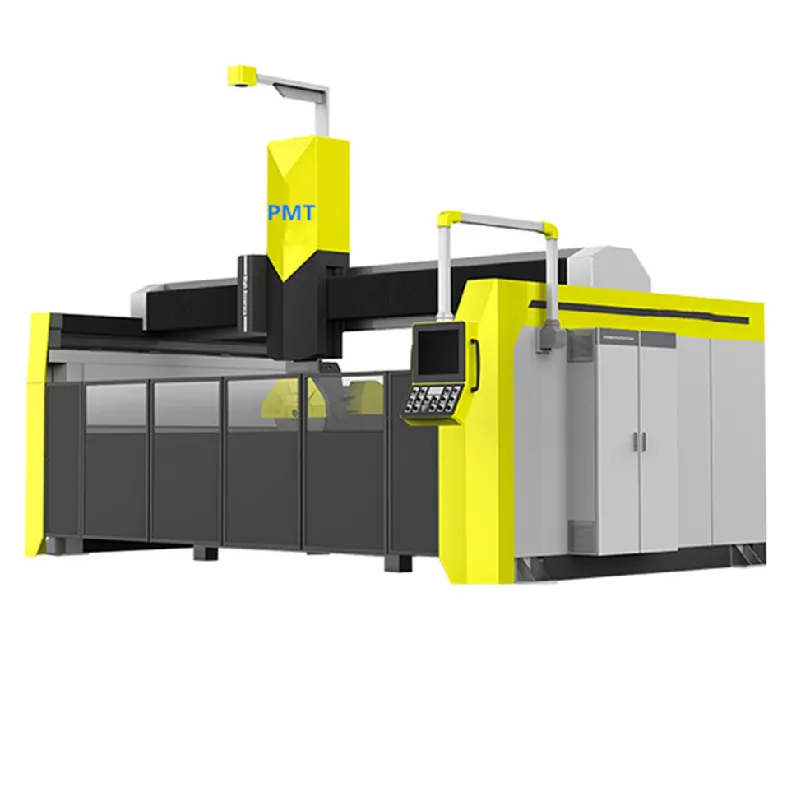

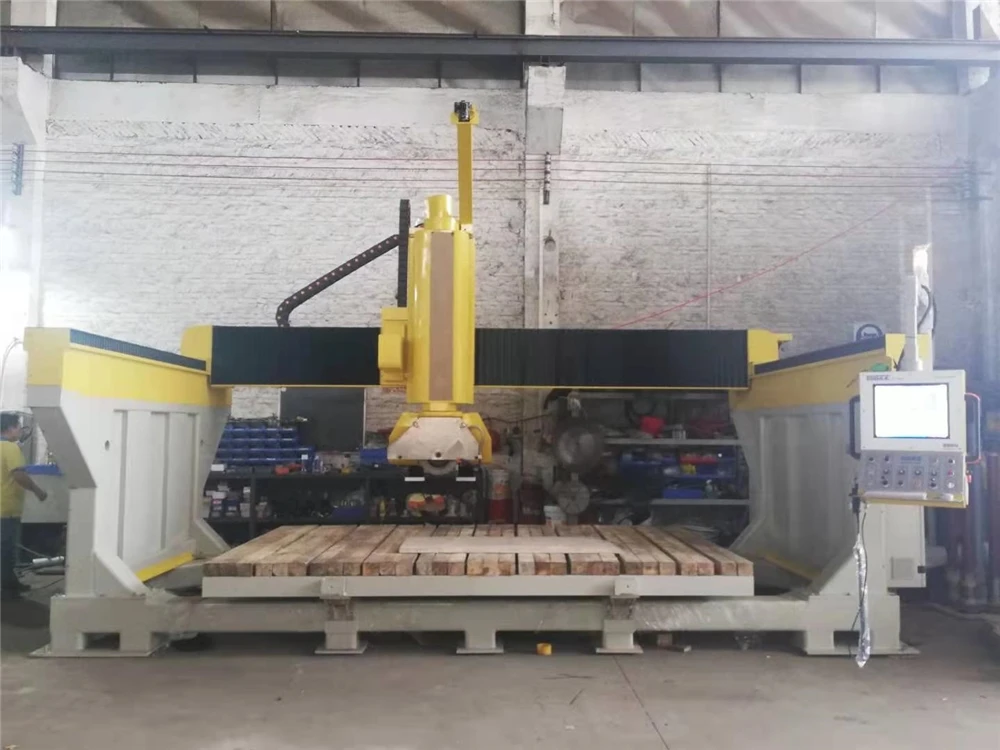

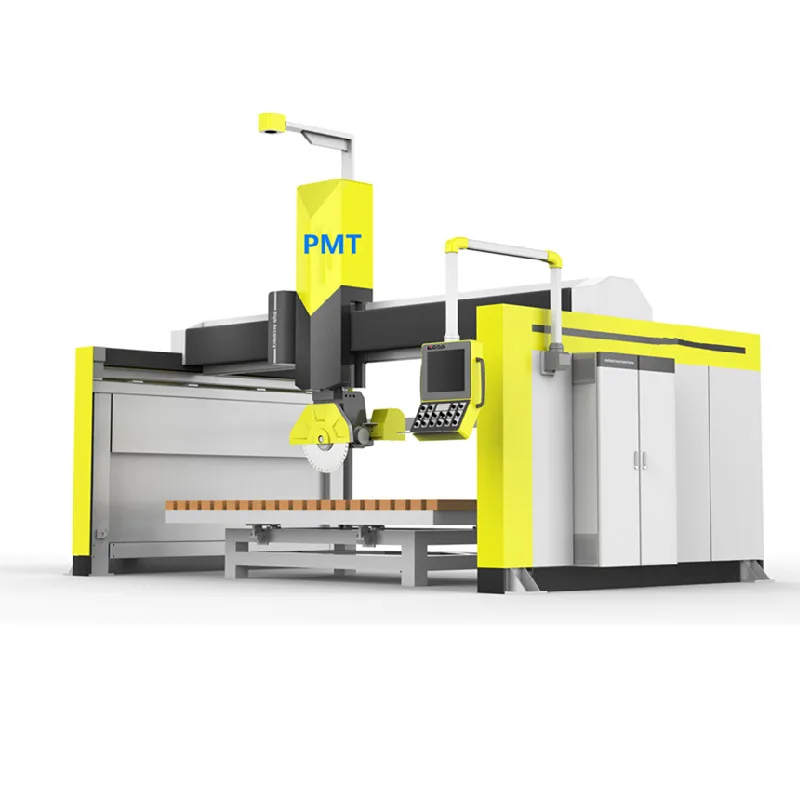

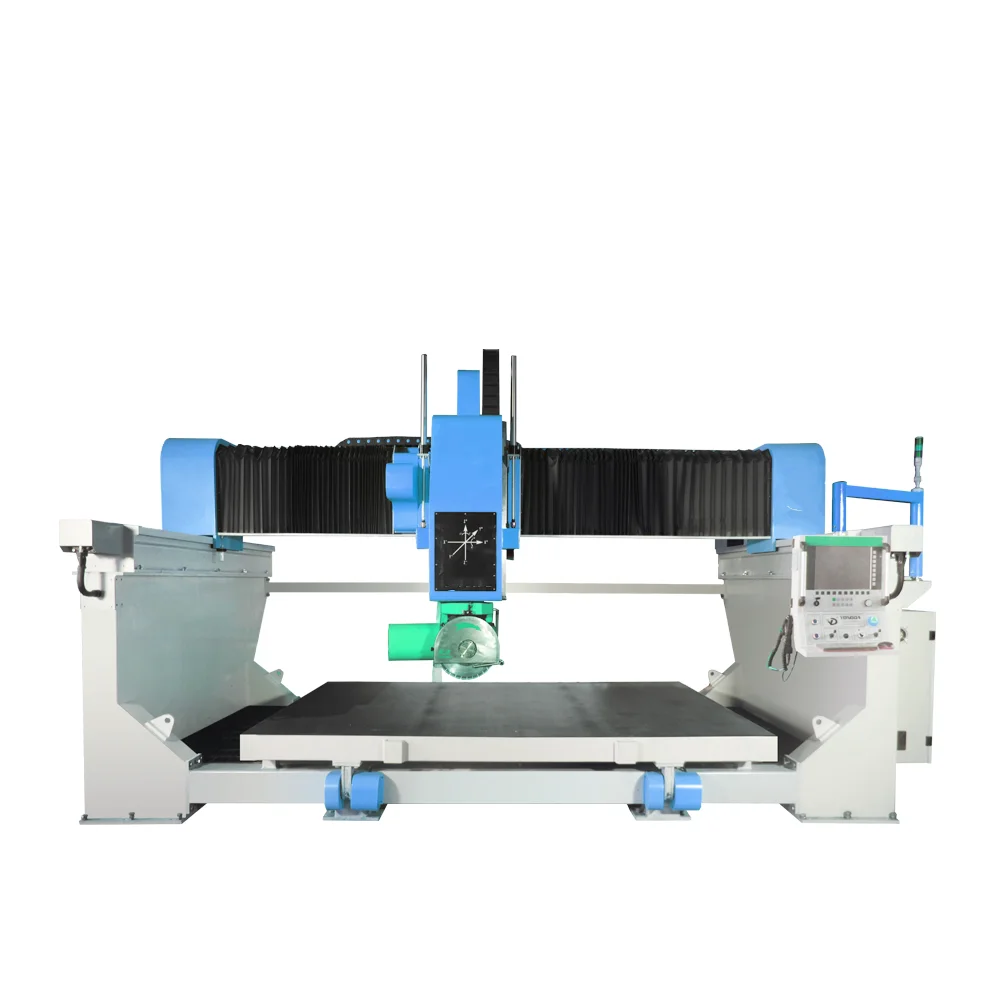

New design 5 axis bridge saw with high quality
- Category: >>>
- Supplier: Guangzhou Perfect Machinery Technology Co. Ltd.
Share on (1600178311925):
Product Overview
Description
Product Application

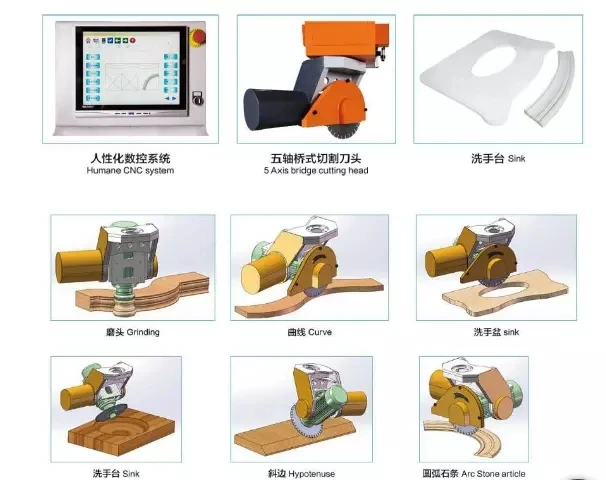

BS600-5X that is 5 AXIS BRIDGE SAW MACHINE We have absolute price advantage in North American market.In order to satisfy the market diversity requirement,GEE researched full automatical CNC processing machine--5 AXIS bridge cutting machine. It's a gospel for stone processing enterprises.Functions of 5 AXIS bridge cutting machine included: all kinds of stone lines design, arc-edge, French edge, straight edge, bevel edge, abnormity edge, antiskid slot, dry-hang, wash basin processing and so on. "Multifunction, Cover small area, Low energy consumption, Simple operation, Accurate processing, easy and fast transformation between different functions" makes 5 AXIS bridge cutting machine a sharp weapon for stone processing enterprises.
Product Description
Parameter | BS-600-5X |
Blade diameter | 450-600mm |
X axis stroke | 3200mm |
Y axis stroke | 2000mm |
Z axis stroke | 400mm |
A axis stroke | 0-90 ° |
C axis stroke | ±185° |
Rotation speed of disc | 3000/6000rpm |
Worktable tilting degree | 3000*2000mm |
Table titlting degree | 0-85° |
Main motor power | 18.5kw |
Total power | 26kw |
Water consumption | 4m³/h |
Total weight | 6500kg |
Outer dimension | 6000*5000*3500mm |

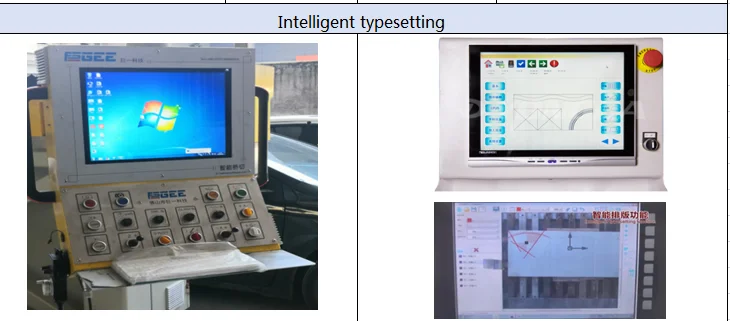

Automatic typesetting function
PMT-Gee600-5X Bridge saw cutting machine software with nesting function,good for use materials.

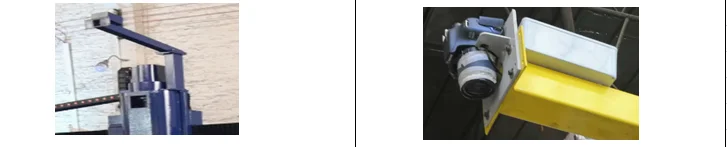

Camera function
PMT-Gee600-5X Bridge saw cutting machine software with camera,it can take high quality photos,and we can easy to change stone slab patterns.

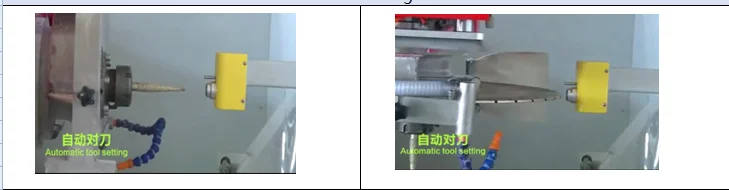

Automatic Tools setting
PMT-Gee600-5X Bridge saw cutting machine software with tools setting function,easy to find position of the tools.

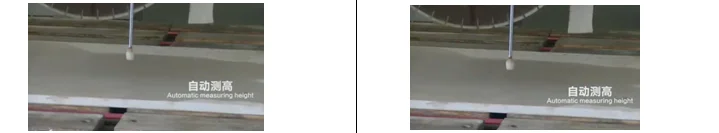

Detection Height
PMT-Gee600-5X Bridge saw waterjet cutting machine software with detection height function,easy to know material thickness.

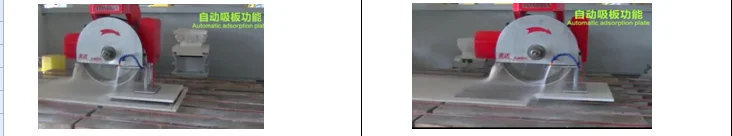

Sucking plates
the machine within 2 suckers for sucking the small piece material by air scuker

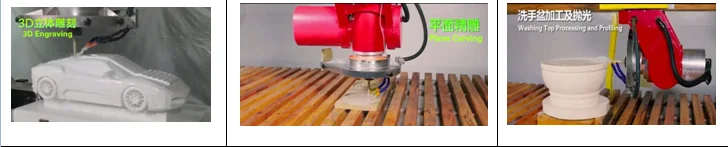

3D router Engraving
PMT-Gee600-5X 5 axis bridge saw ,A axis can tilting 90degree to do 3D engraving router .
In order to satisfy the market diversity requirement, we researched full automatic CNC processing machine.
5 Axis bridge cuttingmachine. It is a gospel to stone processing enterprises. Functions include: all kinds of stone lines designs, arc-edge, Frenchedge, straight edge, bevel edge, abnormity edge, antiskid slot, dry-hang, wash basin processing and so on. 'Multifunction, Coversmall area, Low Energy consumption, simple operation, accurate processing, easy and fast transformation between differentfunctions' makes the 5-axis bridge cutting machine a sharp weapon for stone processing enterprises.
Main Features
1) Machine with competitive price and high quality ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in electric parts .
3) Guarantee for one year.
1) Machine with competitive price and high quality ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in electric parts .
3) Guarantee for one year.

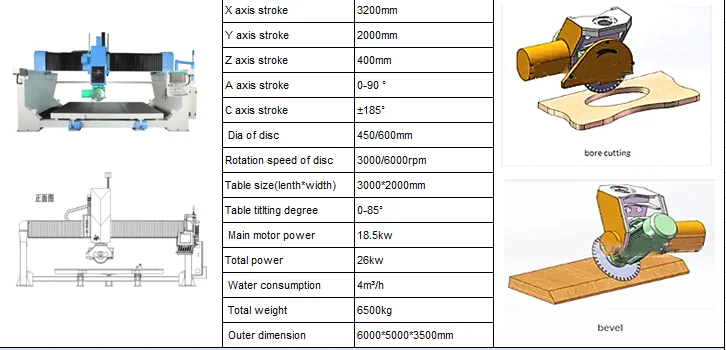

Technical specification of PMT 5 axis bridge saw BS600-5X
Related Products
Our Customer
Our Company
Guangzhou Perfect Machinery Technology Co.Ltd was established in 1997 and have been dedicated to the development and producing of a serious of column making machine,gang saw cutting machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine,waterjet cutting machine ,cnc router machine etc.With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'PMT'Brand special stone shape processing machines.
Our Service
After-Sales Service
1. Free warranty for the whole machine for one year or 2000 high-pressure/hour (except wearing parts and the replacement of wearing parts)
2. Training of two personnel for operation and maintenance of equipment and one computer operator for the user
3. On-Site installation and commissioning (the user is responsible for board and lodging)
4. Lifetime maintenance
5. To Guarantee long-term supply of spare parts
6. To enjoy upgrade of special prices when there are new products and technologies
7. Repair response time: during the quality assurance period, when the user’s equipment fails, respond within 24 hours after receipt of written notice. For a common failure, direct the user to resume production as soon as possible by way of telephone, fax or e-mail, and we shall arrive at the scene as soon as possible and help users solve the problem when the user’s operators try but fail to solve the problem.
Certifications

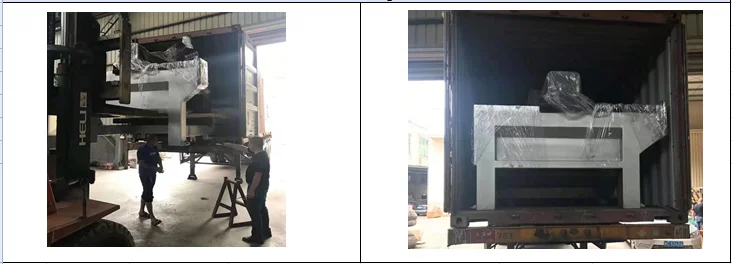

Paking & Delivery
FAQ
Q: What is the advantage of water jet cutting machine?
A :Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will
automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatioN
n.
