4 20 ma rs485 modbus butane n2 turbine flowmeter digital gas flow control lpg mass flow meter with battery
- Category: Flow Meters >>>
- Supplier: Kaifeng,Baite,Flow,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
4-20 ma rs485 modbus butane n2 turbine flowmeter digital gas flow control lpg mass flow meter with battery

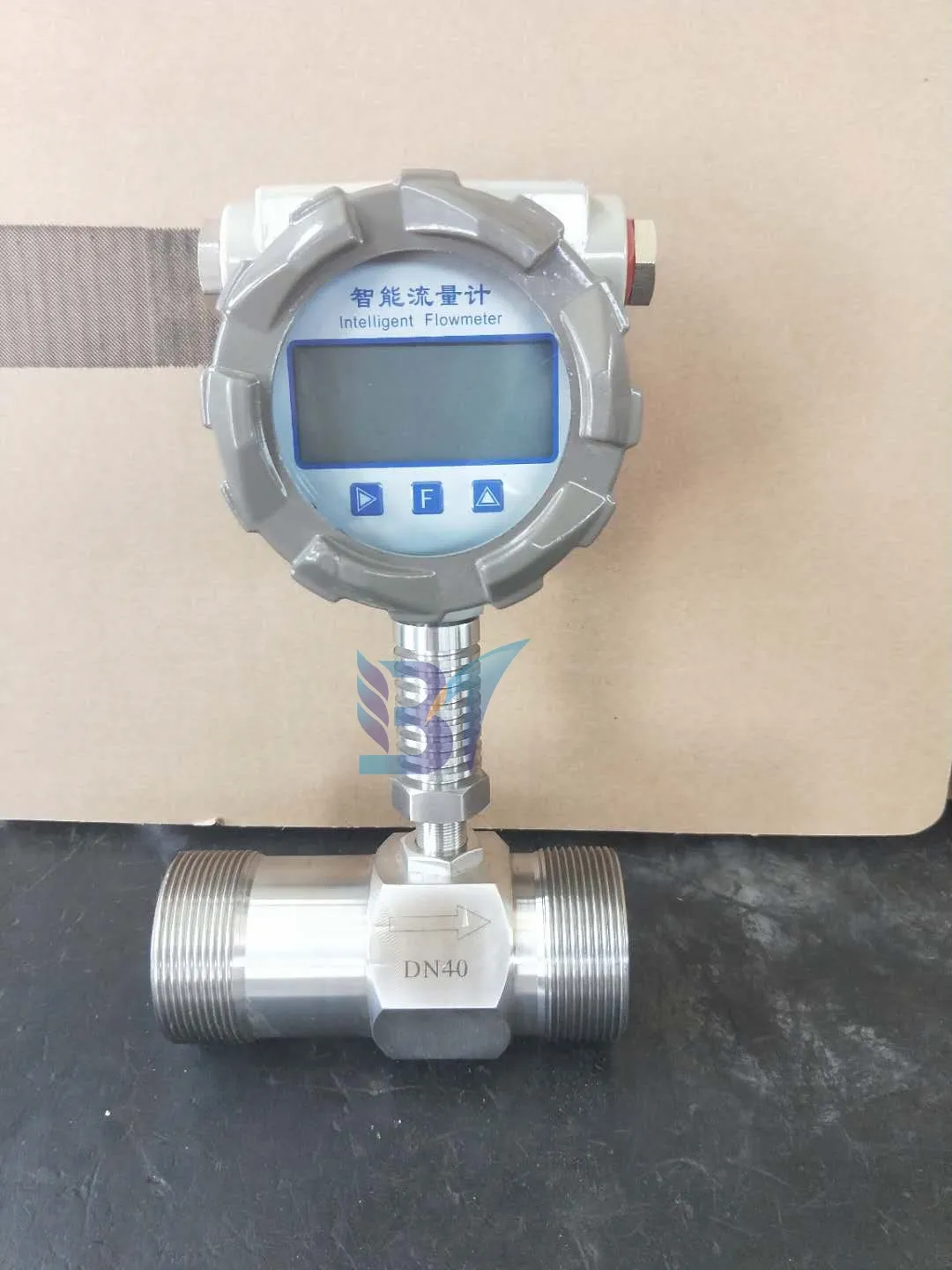

Threaded connection

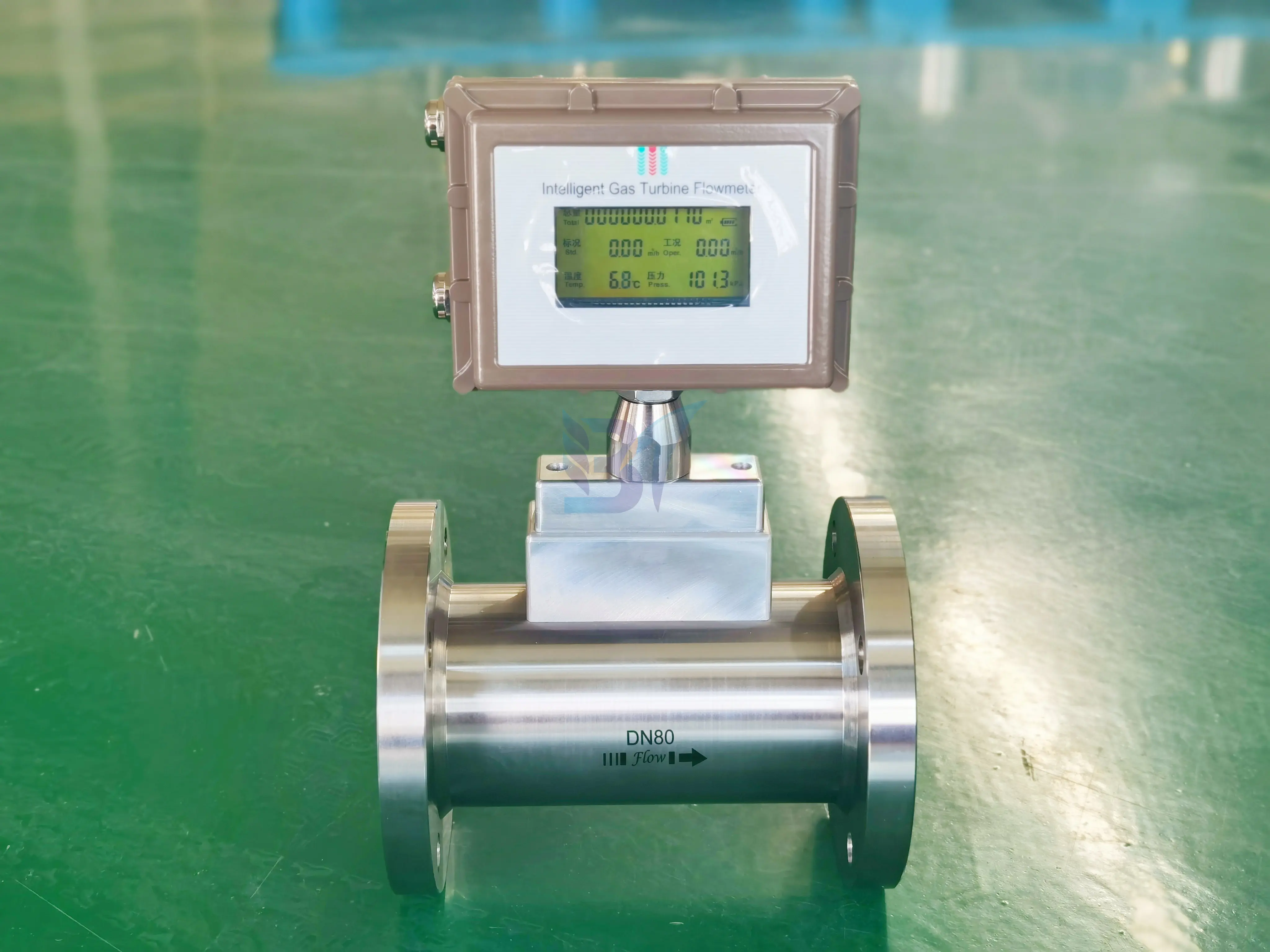

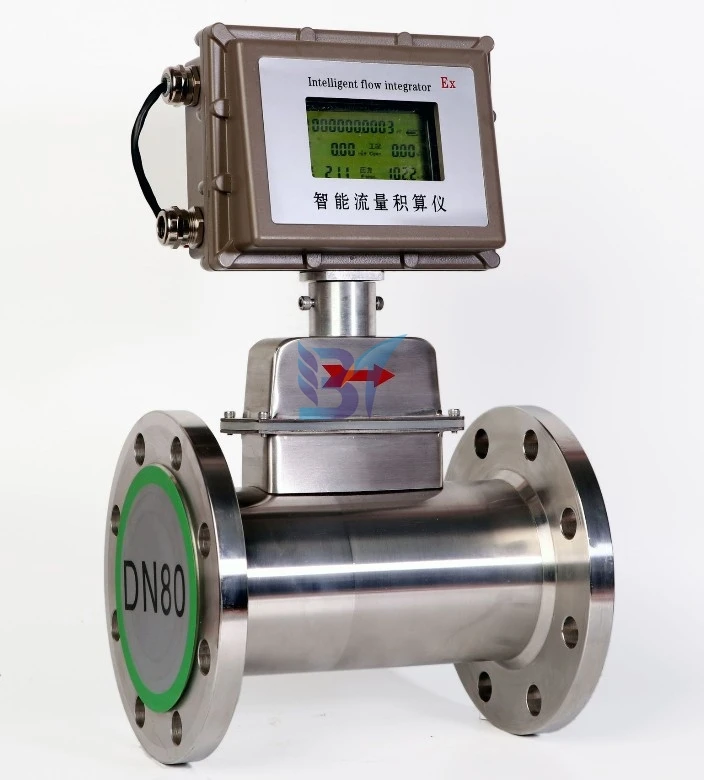

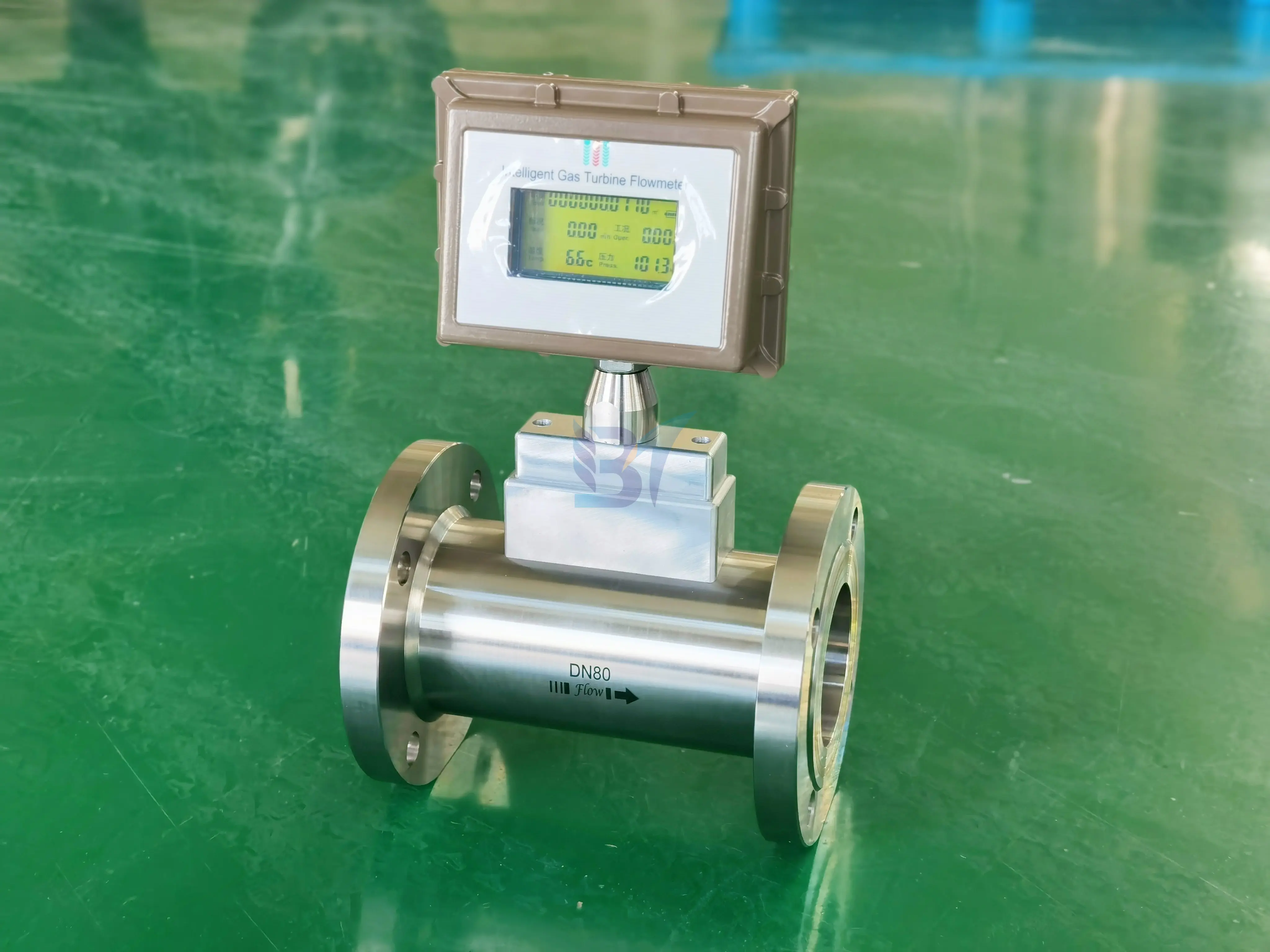

Flange connection

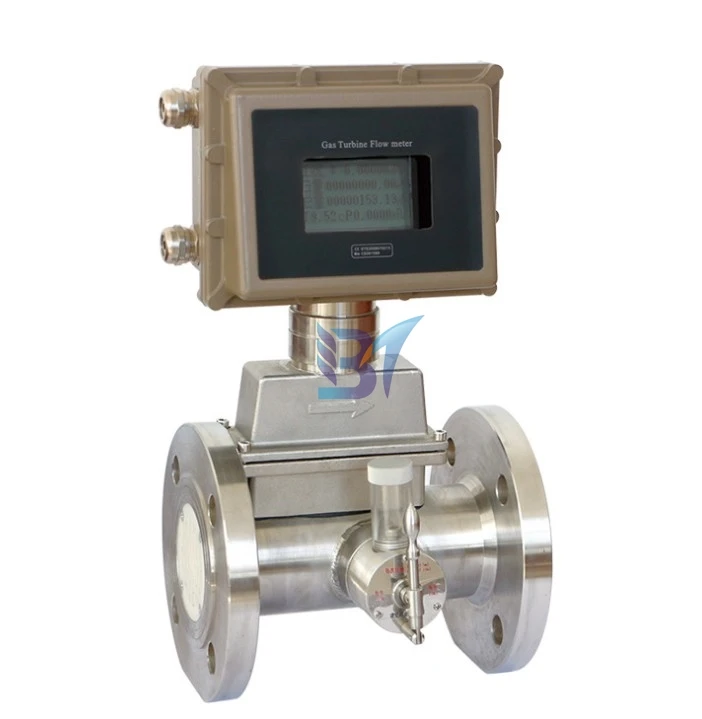

With oil pump
Lithium battery power supply
1. Brief introduction of nitrogen turbine flow meter
Nitrogen turbine flow meter is widely used in urban pipeline gas metering, industrial gas metering, gas regulating station metering, energy management and non corrosive gas metering or flow control and other occasions.

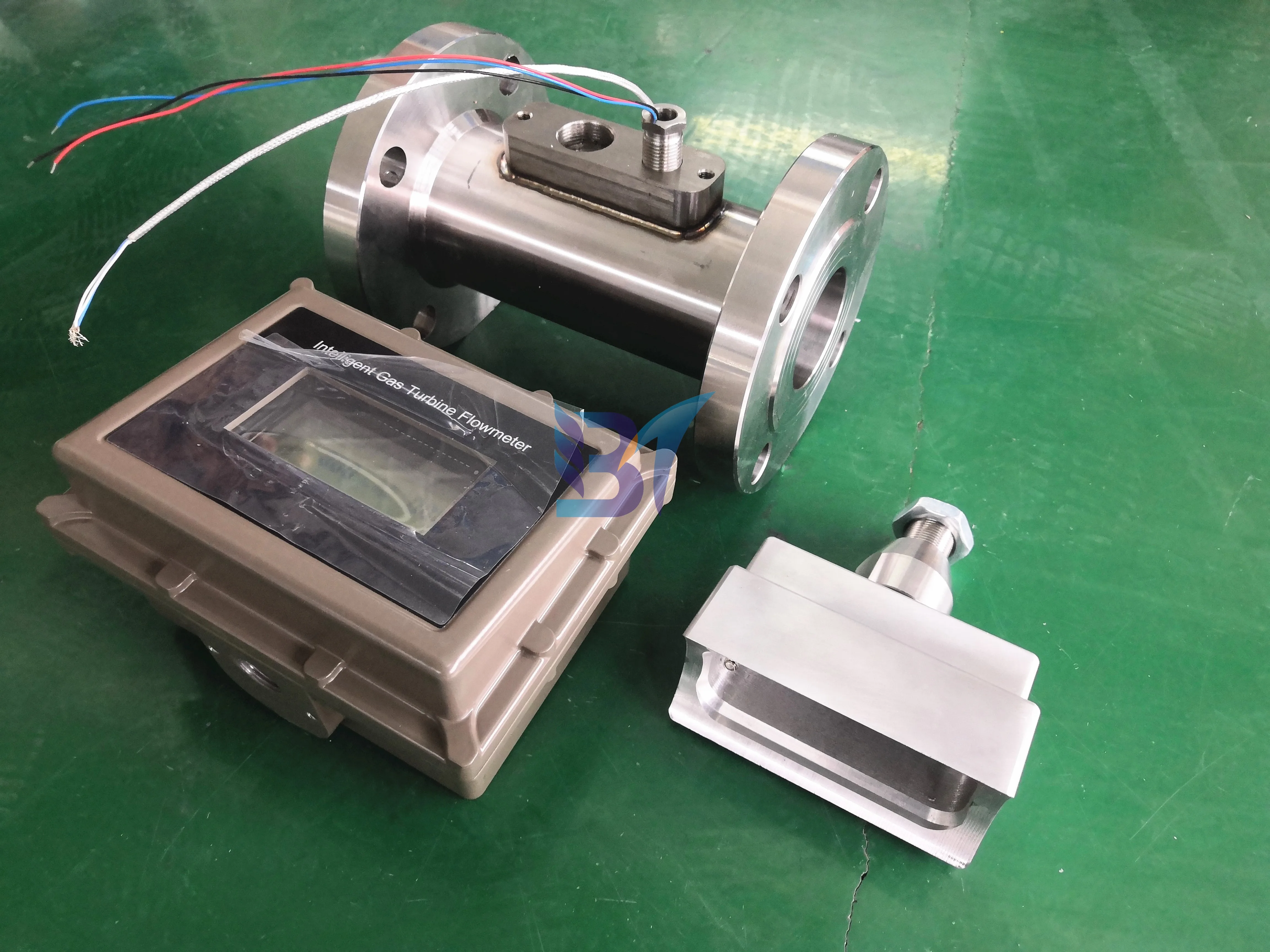

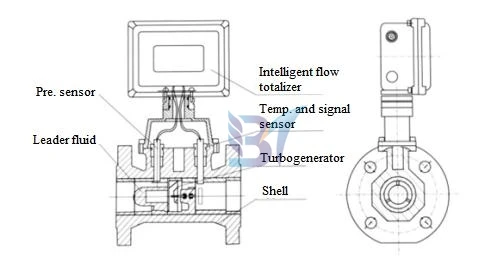

DETAILED DESIGN
2. Advantages of nitrogen turbine flow meter
2. Power supply uses external power 24v abd 3.6v lithium battery.
3. The impeller life is durable and has strong impact resistance.
4. The flange material is made of all 304 stainless steel, which has good processing performance, high temperature resistance and is not easy to rust after long-term use.

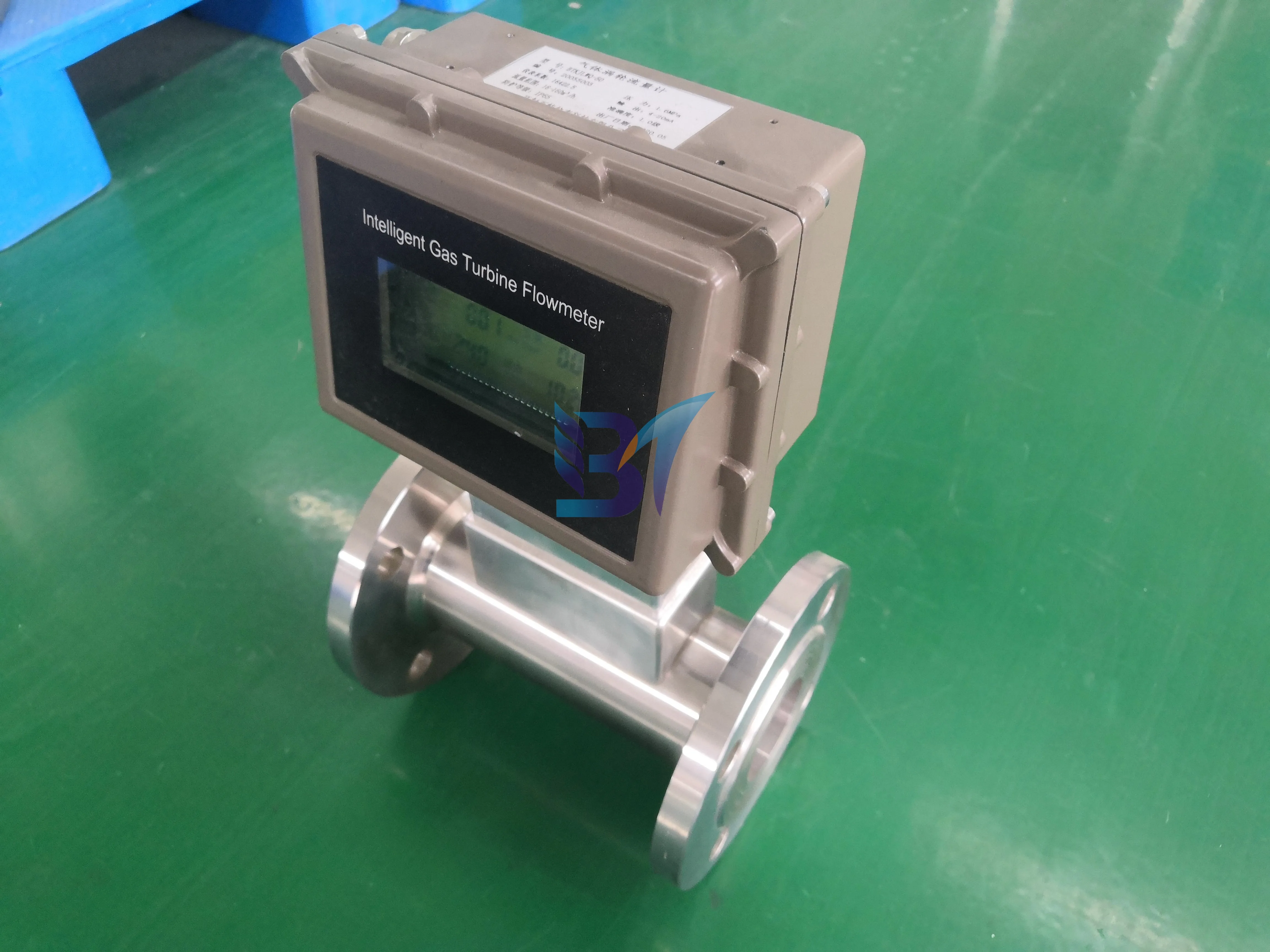

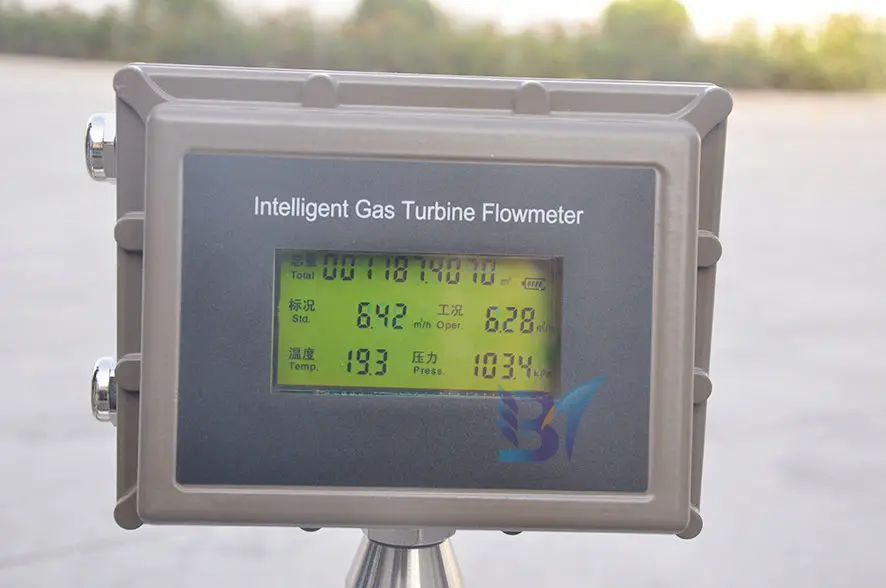

LCD display screen:
PRODUCT SPECIFICATIONS
3. Parameter list of nitrogen turbine flow meter
Medium temp.: -20℃+80℃；
Atmospheric pre.: 86KPa~106KPa；
Relative humidity: 5%～95%
Nominal diameter (mm) | Flow range (m³/h) | Power supply | Precision | Body length (mm) |
DN 25 | 3-40 | 24VDC 3.6V | ±1.5% / ±1.0% | 200 |
DN 40 | 10-100 | 24VDC 3.6V | ±1.5% / ±1.0% | 200 |
DN 50 | 10-160 | 24VDC 3.6V | ±1.5% / ±1.0% | 200 |
DN 65 | 13-250 | 24VDC 3.6V | ±1.5% / ±1.0% | 200 |
DN 80 | 20-400 | 24VDC 3.6V | ±1.5% / ±1.0% | 240 |
DN 100 | 32-650 | 24VDC 3.6V | ±1.5% / ±1.0% | 300 |
DN 125 | 40-1000 | 24VDC 3.6V | ±1.5% / ±1.0% | 350 |
DN 150 | 80-1600 | 24VDC 3.6V | ±1.5% / ±1.0% | 350 |
DN 200 | 125-2500 | 24VDC 3.6V | ±1.5% / ±1.0% | 360 |
DN 300 | 325-6500 | 24VDC 3.6V | ±1.5% / ±1.0% | 400 |
Successful Project

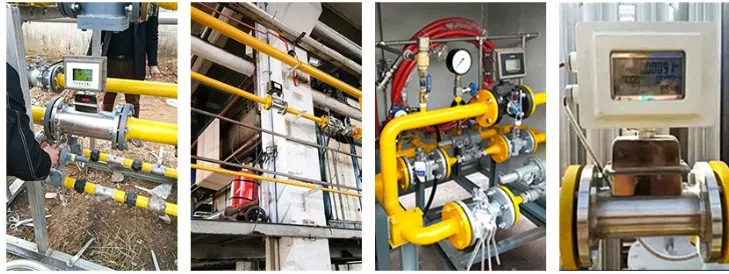

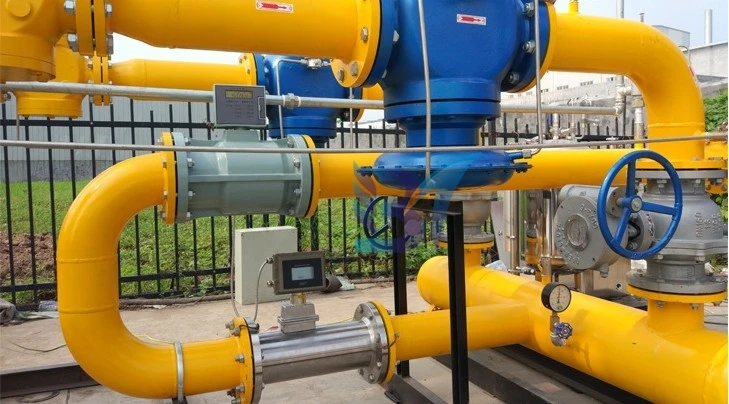

4. Customer working site of nitrogen turbine flow meter
5. Measurable medium of nitrogen turbine flow meter
The nitrogen turbine flow meter can be used to measure natural gas, air, coal gas, industrial gas, etc. Widely used in petroleum, chemical, electric power, metallurgy, boilers and other industries, it is an ideal instrument for gas measurement and city gas trade measurement.
SIMILAR PRODUCTS
Please click these pictures if you want to know more details for them.

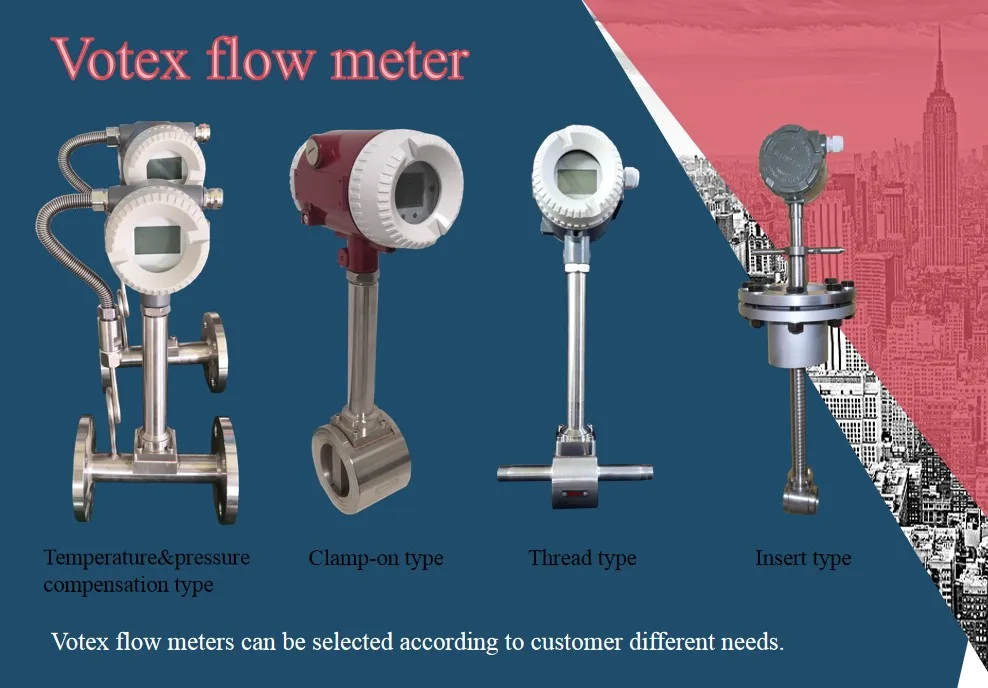

Vortex flow meter (gas/liquid)
Vortex flow meter is used to measure the volume flow of gas, steam or liquid, the volume flow of standard condition or the volume flow of mass flow. It is mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other media.

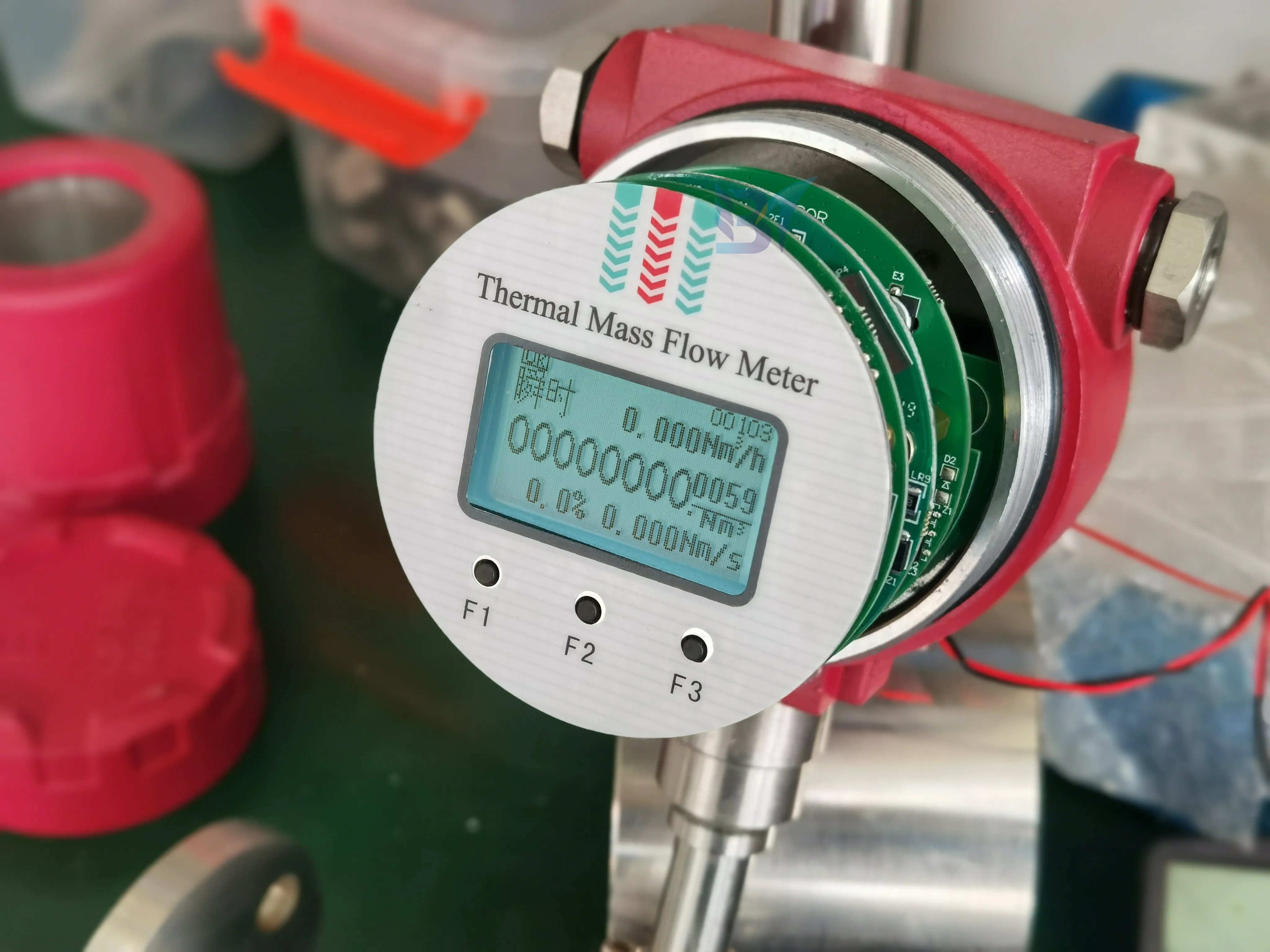

Thermal mass flow meter
♦ Suitable for: gas with small flow, pure/single gas
♦ Wide range: 1:100
♦ High precision: ±1.5%. Without temperature and pressure compensation, the mass flow rate and standard volume flow rate of the gas can be obtained.
♦ Material: 304 stainless steel Sensor and 316L Probe
♦ Standard configuration: LCD with backlight, 4-20mA, RS485, 220v +24v dual power supply.
♦ Working temperature: -40℃-220℃
♦ Pressure: 0.6-4.0Mpa
♦ Wide range: 1:100
♦ High precision: ±1.5%. Without temperature and pressure compensation, the mass flow rate and standard volume flow rate of the gas can be obtained.
♦ Material: 304 stainless steel Sensor and 316L Probe
♦ Standard configuration: LCD with backlight, 4-20mA, RS485, 220v +24v dual power supply.
♦ Working temperature: -40℃-220℃
♦ Pressure: 0.6-4.0Mpa

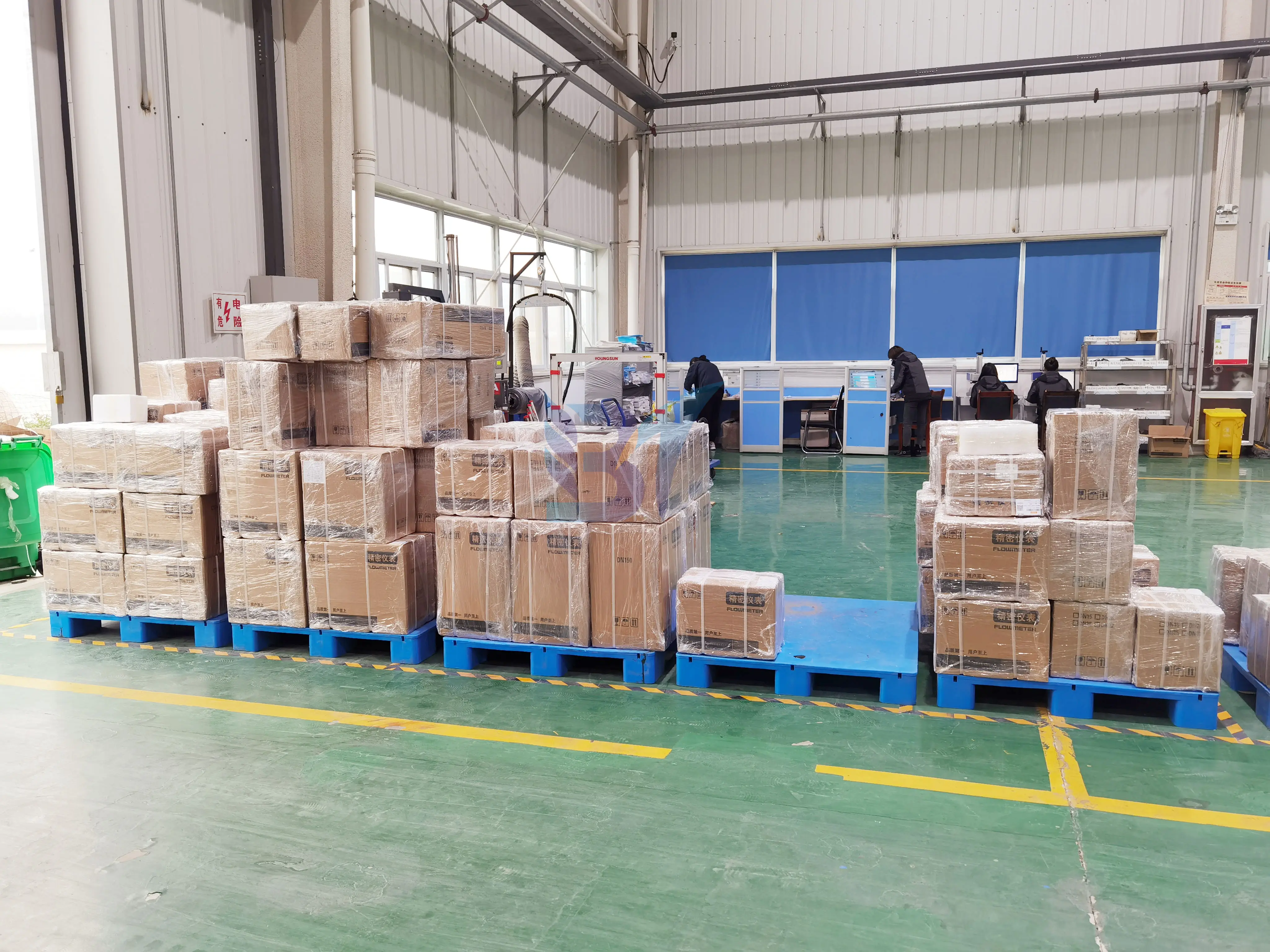

Packaging and Shipping
Packaging:
Each of our flow meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of wooden case packaging. We will ensure that each flow meter, safe to reach your hands.
Shipping:
International express (DHL UPS TNT FedEx etc.), air express or sea or others
