Product Overview
Description
Product Description
Retractable type fall arresters（EN360）is one type of personal fall protection systems（EN363). It need to be used with lanyards (EN354) and full body harnesses (EN361). There are two types of retractable fall arresters, steel wire rope fall arrester and webbing fall arrester.
Instruction
The retractor connects to the fixed sling of the person which is parallel to the hook of the crane and must be attached to an approved point which can be endured 23KN.
Fall Arrester is made of sealed aluminum jacket or plastic shell, automatically controlled by the changed speed. It is an
innovative engineering solution to arrest falls by two-disc anti-ratchet braking system.A fall arrest system is a personal fall protection system that arrests a free fall and which limits the impact force on the body of the user or goods during fall arrest.
innovative engineering solution to arrest falls by two-disc anti-ratchet braking system.A fall arrest system is a personal fall protection system that arrests a free fall and which limits the impact force on the body of the user or goods during fall arrest.
Reliable Product Safety Test
Jiangsu Xingzhou GJ series fall arrester is CE certificated. The compliance standard is GB2454-2009 << TEST METHOD FOR PERSONAL FALL PROTECTION SYSTEMS>>.
Each fall arrester will have full test in our factory. We will do several force test for the product.
Each fall arrester will have full test in our factory. We will do several force test for the product.
Detailed Images

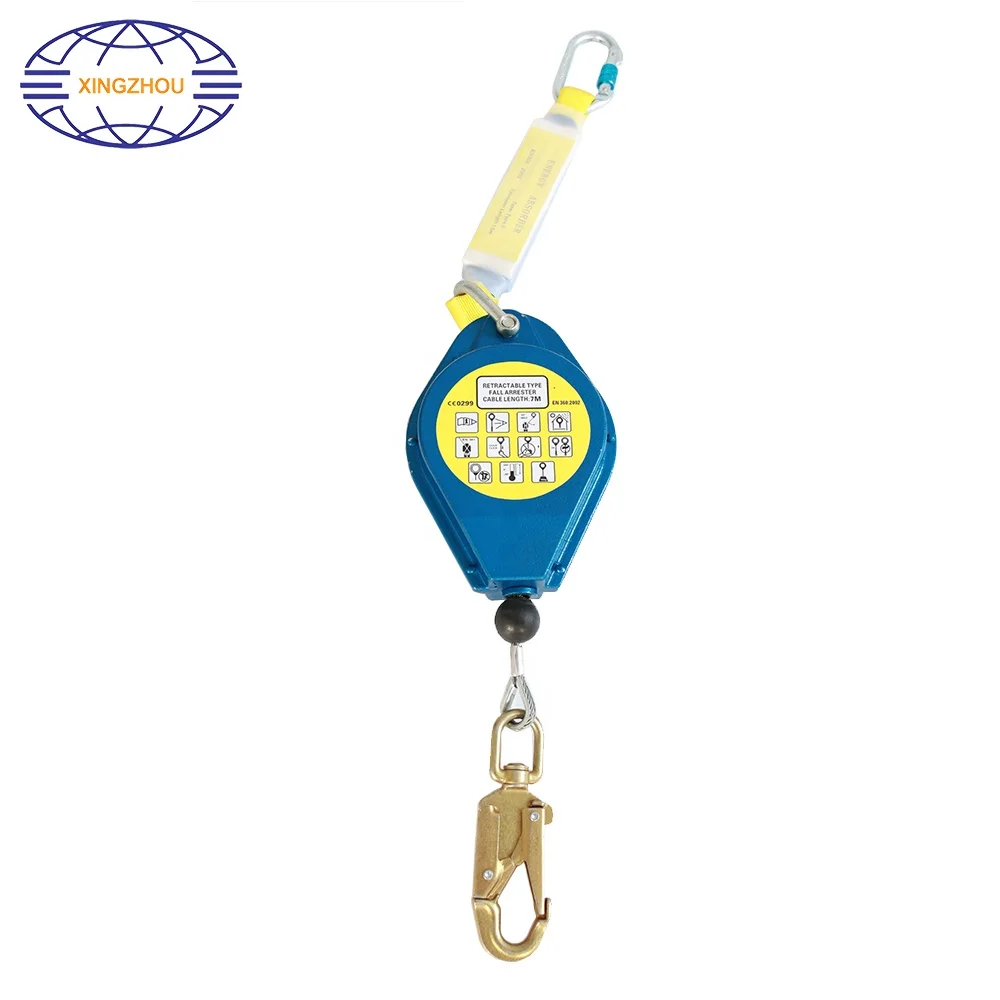

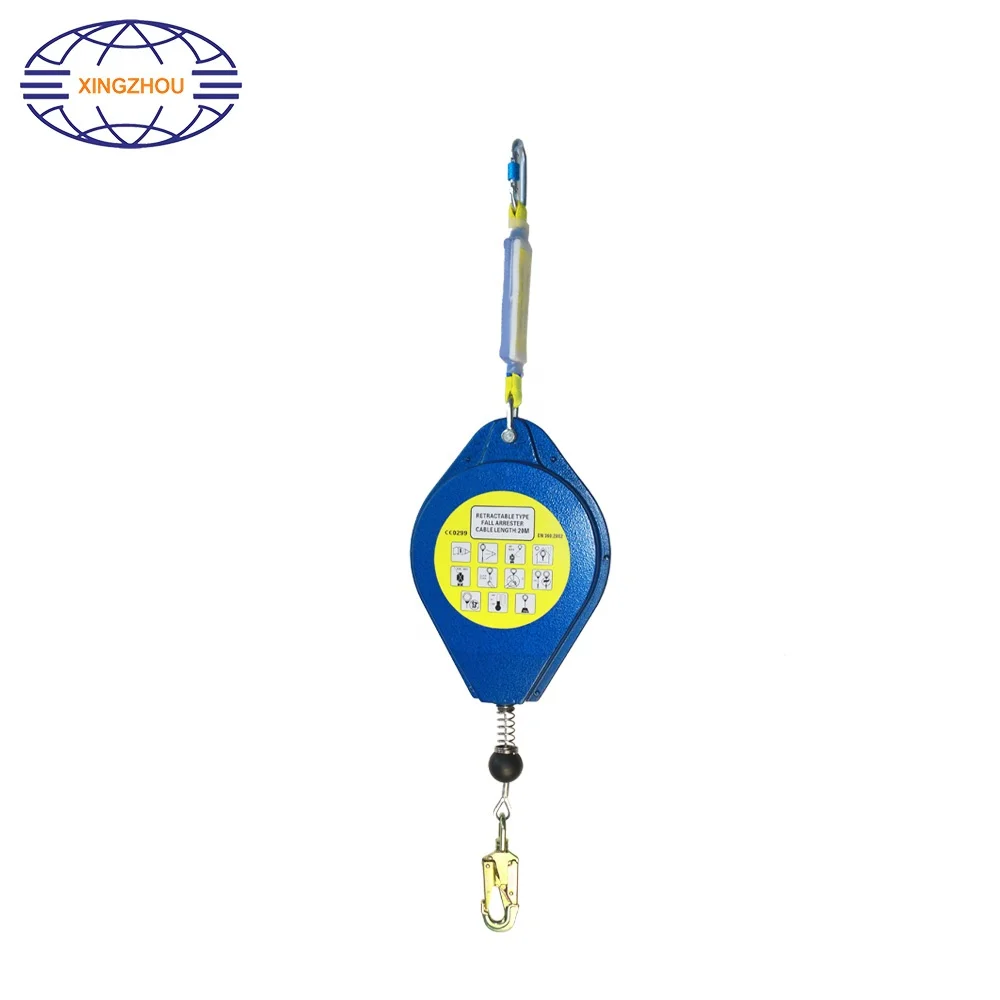

The GJ series retractable fall arrester is made of 4mm galvanized steel wire rope. The shell is made of aluminum alloy. The maxi. load of this series is 150Kg. The length of cable can be customized, usually from 3 meters to 40 meters. Each fall arrester is consists of a absorber, a karabiner, retractor and locking safety hook.
Size Information
Size Chart of GJ Series Retractable Fall Arrester
Product No. | Model | Maxi Load (Kg) | A | B | C | Cable Length (m) | Cable Diameter (mm) | Self-Weight (Kg) |
10105 | GJ5 | 150 | 230 | 170 | 70 | 5 | 4 | 4 |
10107 | GJ7 | 150 | 260 | 175 | 80 | 7 | 4 | 4.3 |
10110 | GJ10 | 150 | 290 | 210 | 75 | 10 | 4 | 6 |
10115 | GJ15 | 150 | 320 | 225 | 95 | 15 | 4 | 8 |
10120 | GJ20 | 150 | 420 | 300 | 95 | 20 | 4 | 12 |
10125 | GJ25 | 150 | 420 | 300 | 95 | 25 | 4 | 15 |
10130 | GJ30 | 150 | 520 | 370 | 115 | 30 | 4 | 25 |
10135 | GJ35 | 150 | 520 | 370 | 115 | 35 | 4 | 28 |
10140 | GJ40 | 150 | 40 | 4 | 32 |
Use Instructions
1. Attach the sling of person at the end of the cable line by using safety hook.
2. Visually confirm the connector is properly locked.
3. Never work above the level of the cable retractor (Maxi.:150KN).
4. WARNING: Do not use these devices in areas where they can get wet. Moisture on the wire rope material may cause corrosion. Any corrosion could stop the cable retractor from working properly and affect its safety factor.
2. Visually confirm the connector is properly locked.
3. Never work above the level of the cable retractor (Maxi.:150KN).
4. WARNING: Do not use these devices in areas where they can get wet. Moisture on the wire rope material may cause corrosion. Any corrosion could stop the cable retractor from working properly and affect its safety factor.
