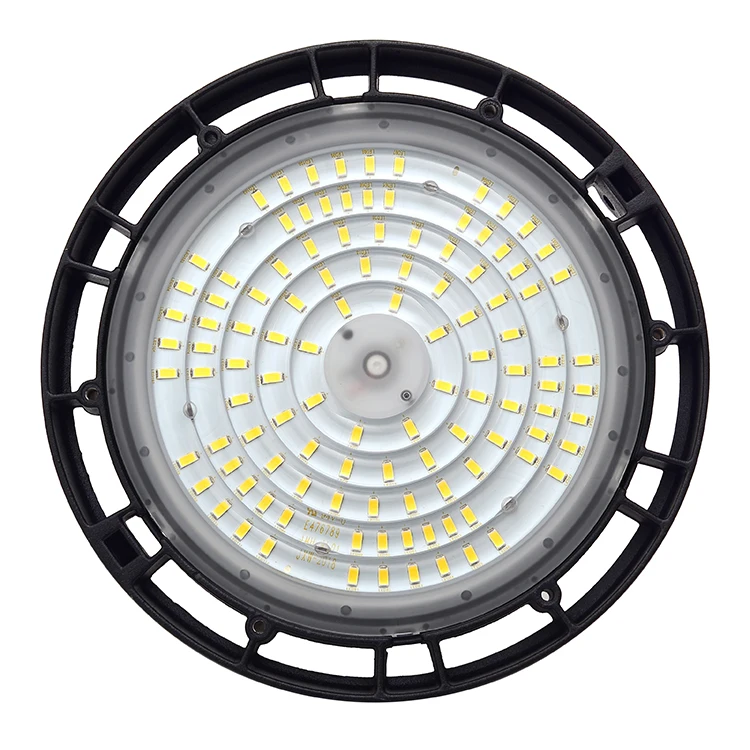

Warehouse Lighting Led Microwave Sensor 140lm/w High Bay Light 100W 150w 200W IP65 Led High Bay Light
- Category: >>>
- Supplier: Shenzhen Tubu Tech Co. ltd.
Share on (1600178702168):
Product Overview
Description
Product Description

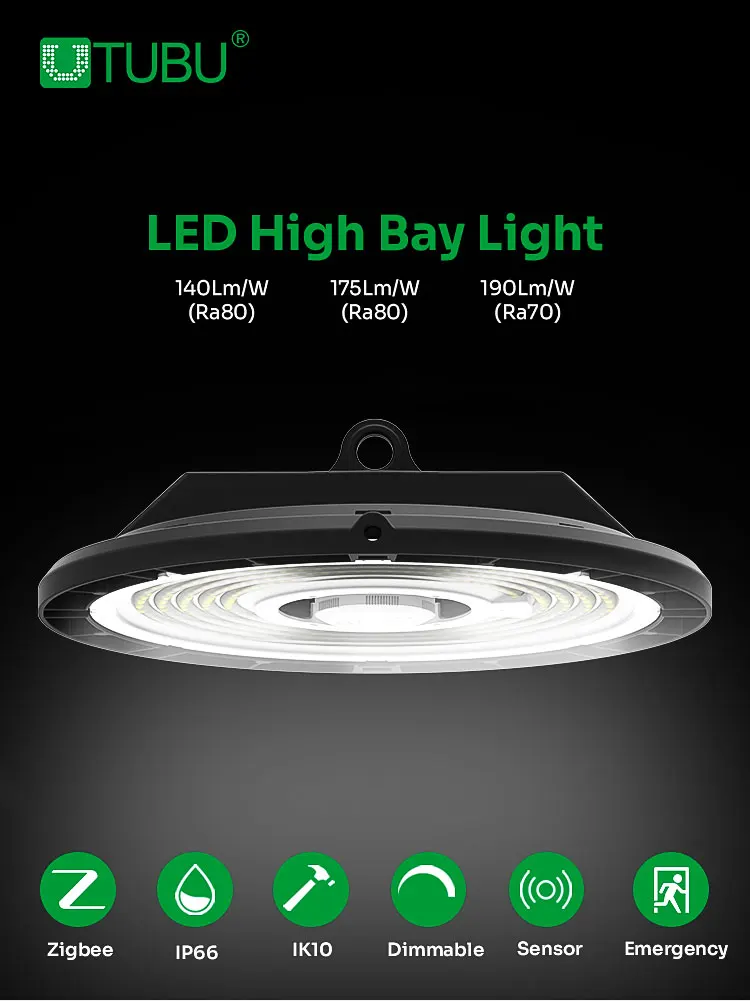

Unique advantage of LED High Bay Light
1.Up to 190lm/W with high efficiency LM80 LEDs
2.Die-cast aluminum design,the robust with perfect heat dissipation
3.Plug&play build-in sensor, minimize your stock
4.Angle with 60°/90°/120°
5.IP 66
6.Emergency version available

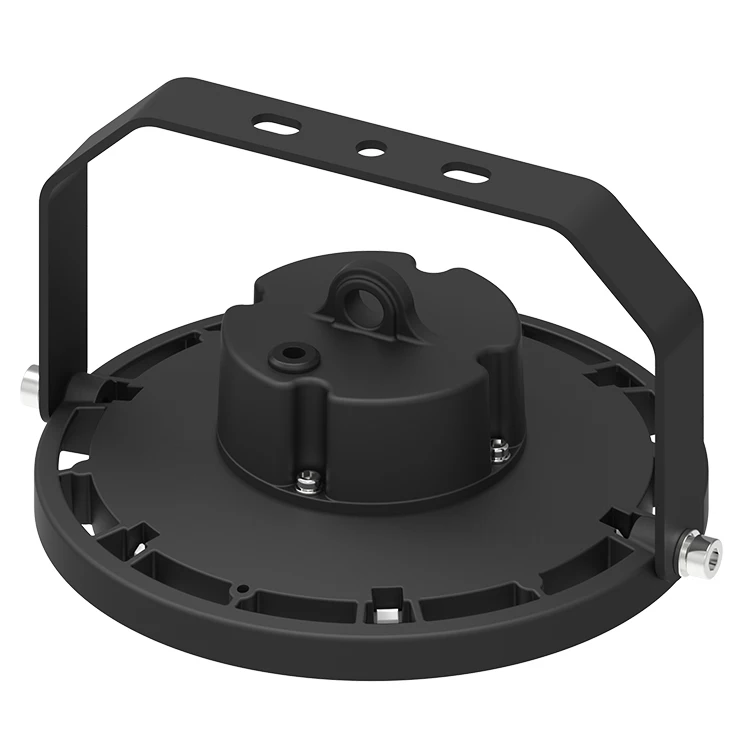

7.Hook Mount/Bracket Mount to choose

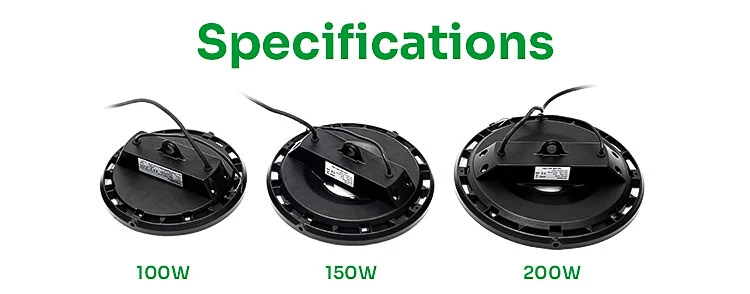

Specification
Product Code | TBF2-100W | TBF2-150W | TBF2-200W | ||||
Power | 100W | 150W | 200W | ||||
Input Voltage | 90-305VAC(50/60Hz) | ||||||
PF | ＞0.9A@220VAC | ||||||
Dimming(Optional) | 1-10V/DALI Dimming | ||||||
CCT | 3000K 4000K 5000K 6000K | ||||||
Ra＞80 5000K | Luminous Flux | 14000Lm±5% | 21000Lm±5% | 28000Lm±5% | |||
Efficiency | 140Lm/W±5% | ||||||
Ra＞80 5000K | Luminous Flux | 17000Lm±5% | 25500Lm±5% | 34000Lm±5% | |||
Efficiency | 170Lm±5% | ||||||
Ra＞70 5000K | Luminous Flux | 19000Lm±5% | 28500Lm±5% | 38000Lm±5% | |||
Efficiency | 190Lm±5% | ||||||
LED Brand | Lumileds | ||||||
Light Type | SMD3030 or SMD2835 | ||||||
Operation Temp | -40℃~+50℃ | ||||||
Storage Temp | -40℃~+85℃ | ||||||
Life Span | 50℃50000Hours | ||||||
IP Class | IP66 | ||||||
IK Class | IK10 | ||||||
Certificate | CE RoHS | ||||||
Lamp Body Color | Housing:Die-casting Aluminum Color:Black(RAL9005)Lens:PC | ||||||
Product Size(mm) | 262*104mm | 300*102mm | 336*102mm | ||||
Packing Size(mm) | 324*145*340mm | 360*145*340mm | 415*150*390mm | ||||
Quantity/Carton | 1Pcs | 1Pcs | 1Pcs | ||||
Gross Weight(kg) | 3.5kg | 4.2kg | 5.0kg | ||||
Installation Mode | Hook Mount,Bracket Mount | ||||||

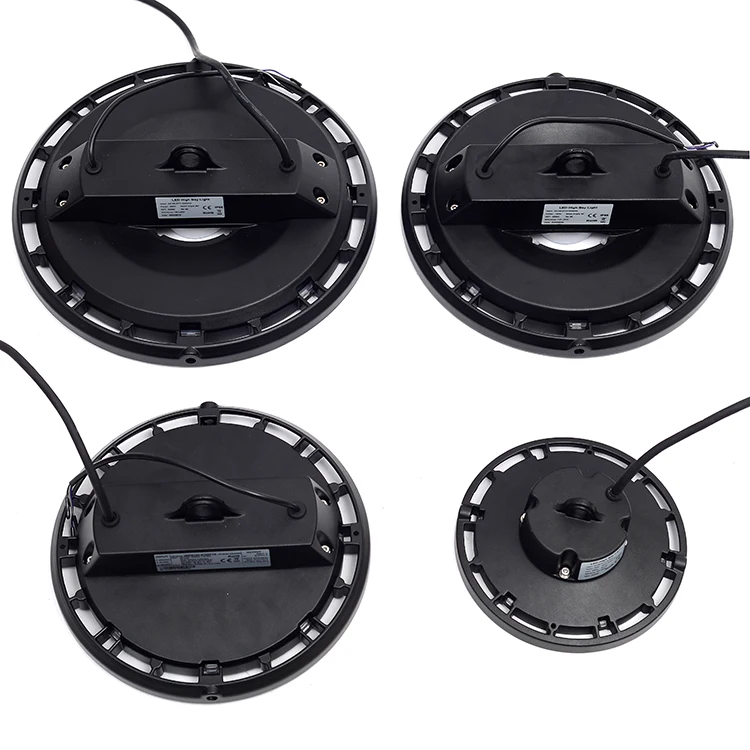

Light Details

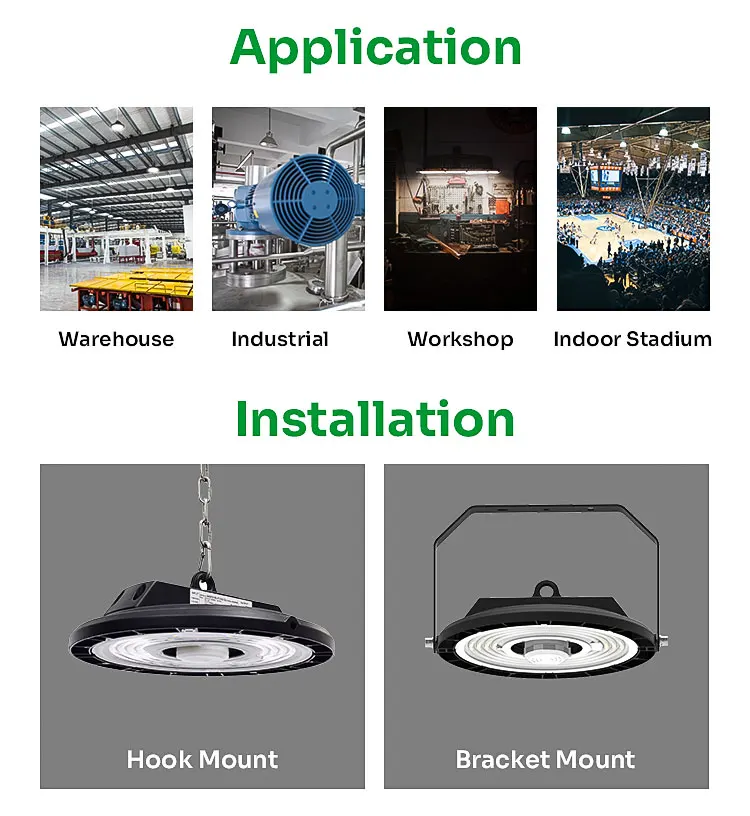

Application&Installation
TBF2 High Bay Light, widely used in Warehouse, Industrial, Workshop, Indoor Stadium, Gymnasium, Sports Stadium Lighting, Gas Station, Canopy, Underground, Building, Garege Lighting,
Storage Lighting, Station, Dock Lighting, Supermarket, Court, etc.

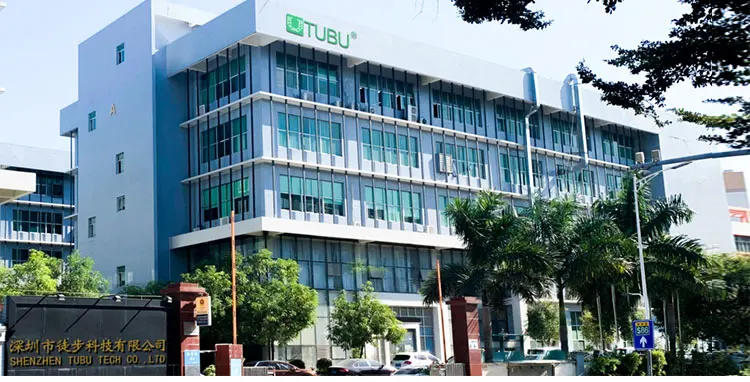

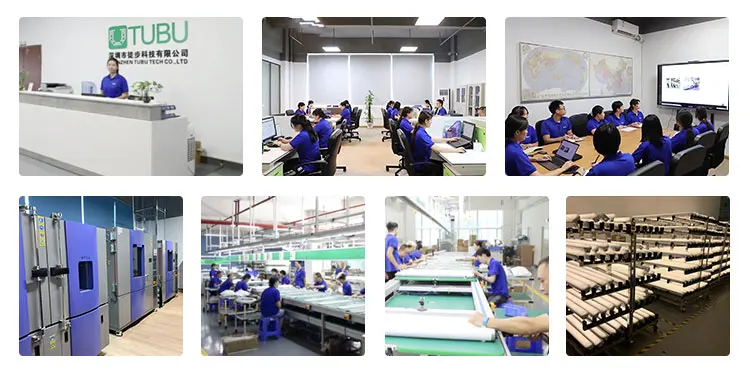

Company Information
FAQ
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. What about the lead time?
A: Quick delivery time 3-5 working days for sample order, 12-20 working days for bulk orders.
The actual delivery time depends on order quantities and production plans.
Q3: What guarantee do I have?
A: We guarantee a 5 Year Warranty for all the products.
Q4. Do you accept customized?
A: Yes, we accept customized. OEM/ODM service is available. For more solutions please contact us.
Q5. Is it OK to print my logo on the led light product?
A: Yes. Logo and labels can be customized as your requests. Please let us know when confirming the order or before production.
Q6. How to proceed with an order for led light?
Step1: Let us know your requirements or application.
Step 2: We offer quotations or solutions for you according to your requirements.
Step 3: You confirm the order and place deposit for formal order.
Step 4: We arrange the production.
Q7. What are your payment terms?
A: T/T, L/C, PayPal
A: Low MOQ, 1pc for sample checking is available.
Q2. What about the lead time?
A: Quick delivery time 3-5 working days for sample order, 12-20 working days for bulk orders.
The actual delivery time depends on order quantities and production plans.
Q3: What guarantee do I have?
A: We guarantee a 5 Year Warranty for all the products.
Q4. Do you accept customized?
A: Yes, we accept customized. OEM/ODM service is available. For more solutions please contact us.
Q5. Is it OK to print my logo on the led light product?
A: Yes. Logo and labels can be customized as your requests. Please let us know when confirming the order or before production.
Q6. How to proceed with an order for led light?
Step1: Let us know your requirements or application.
Step 2: We offer quotations or solutions for you according to your requirements.
Step 3: You confirm the order and place deposit for formal order.
Step 4: We arrange the production.
Q7. What are your payment terms?
A: T/T, L/C, PayPal
