Bevel Spur Gear For Aerator Gear Box
US $15.00
Manufacturer Low Price Crown Wheel And Pinion China Bevel Gear
- Category: Bevel Gears >>>
- Supplier: Qingzhou Jianfu Gear Co. Ltd.
Share on (1600178762885):
Product Overview
Description
Products Description
Descriptions:
1) According to the different strength and performance, we choose the steel with strong compression；
2) Using Germany professional software and our professional engineers to design products with more reasonable size and better performance；
3) We can customize our products according to the needs of our customers,Therefore, the optimal performance of the gear can be exerted under different working conditions;
4) Quality assurance in every step to ensure product quality is controllable.

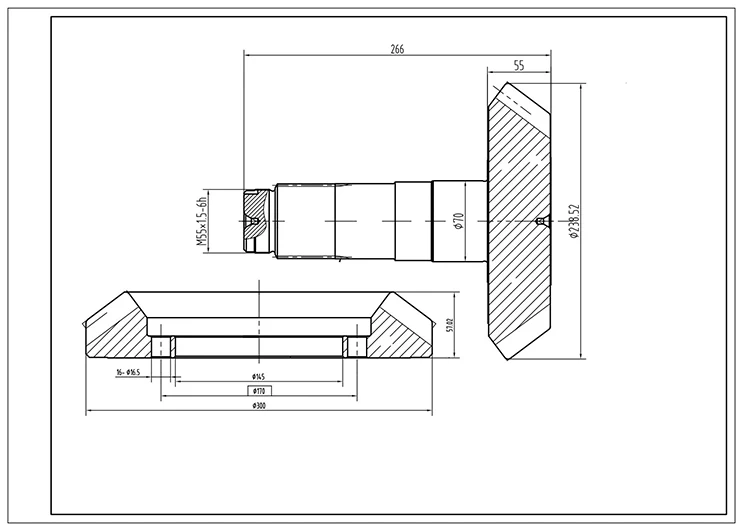

Product Paramenters
DRIVING GEAR | NUMBER OF TEETH | 21 |
MODULE | 10.713 | |
LENTH | 266 | |
OUTER DIAMETER | ⌀238.52 | |
DIRECTION OF SPIRAL | R | |
ACCURACY OF SPLINE | M50＊1.5-6h | |
NUMBER OF SPLINE | 31 |
DRIVEN GEAR | NUMBER OF TEETH | 28 |
OUTER DIAMETER | ⌀300 | |
DIAMETER OF INNER HOLE | ⌀145 | |
ACCURACY OF SCREW | 16-⌀16.5 | |
CENTER DISTANCE OF SCREW HOLE | ⌀170 | |
DIRECTION OF SPIRAL | L |
Quality Management
Adopt PDCA for problem solution, to ensure a closed loop.
Company Profile
QINGZHOU JIANFU GEAR CO.,LTD is situated in the city of QingZhou, was founded in 1996.Our city transportation is very convenient.It's one and a half hours away from Jinan airport. You can get to Qingdao International Airport in two hours.At the same time, there are two high-speed railway stations in our city.The Company possesses the capability of its own for research and development driving gears for vehicles. Currently the company is equipped with 560 sets of precise machining tools, 10 Klingelnberg Oerlikon gear production lines, 10 Gleason gear production lines, 5 forging production lines,2 Germany Aichilin and 5 FAW Jiaxin advanced automatic continuous heat treatment production lines.With advanced processing equipments and complete inspection methods,our comprehensive service capabilities combine design,manufacture and sale to produce different kinds of bevel gears.The annual output of spiral bevel gears can be reach 2 millions pieces.The company aims to produce high precision gears and for the development of the automotive industry to make their own contribution.
Certifications
Packaging & Shipping
Packaging Detail：stardard package(carton ,wooden pallet)
Shipping:Support Sea freight
