Self loading Price Of Hino Mixer Truck Cement Mixing Transiter Bigger 0.5m3 Hopper Diesel 37kw Engine Concrete Pumps Trailer
- Category: >>>
- Supplier: Changsha Reach Machinery Imp.& Exp. Co. Ltd.
Share on (1600178872661):
Product Overview
Description

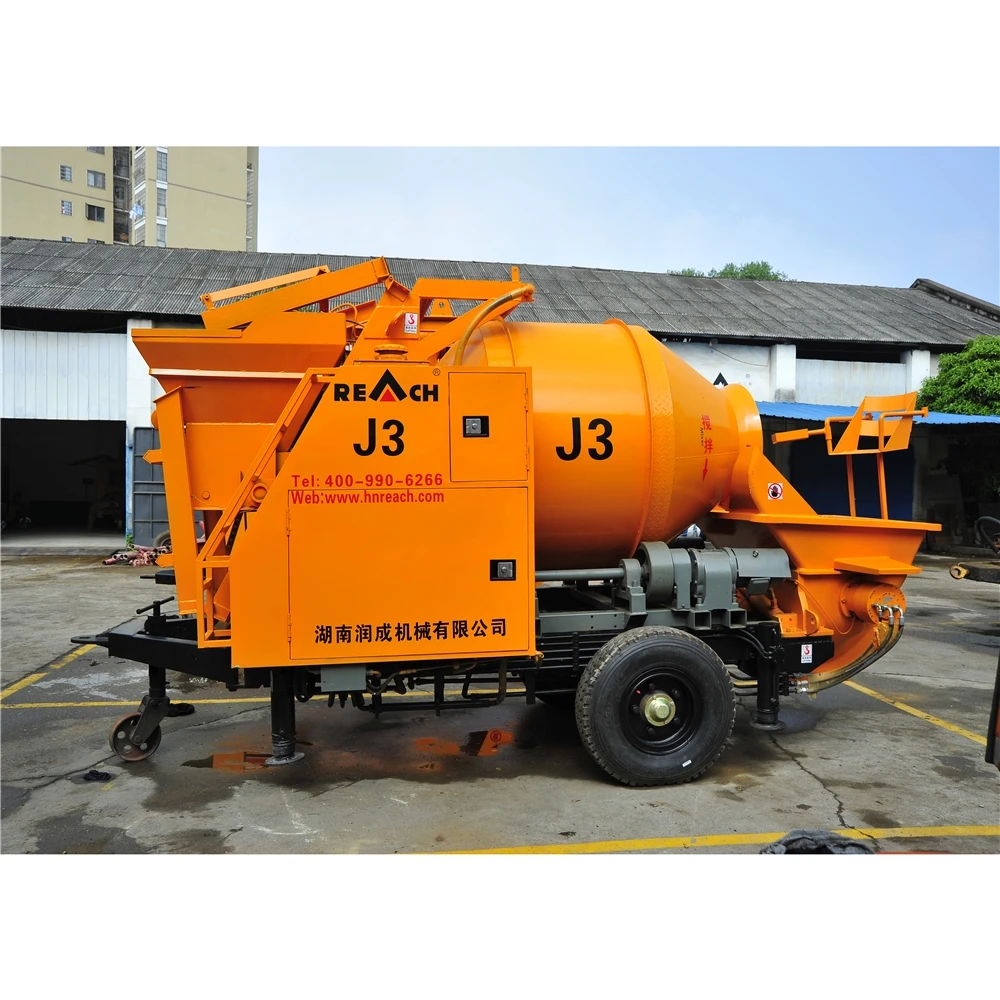

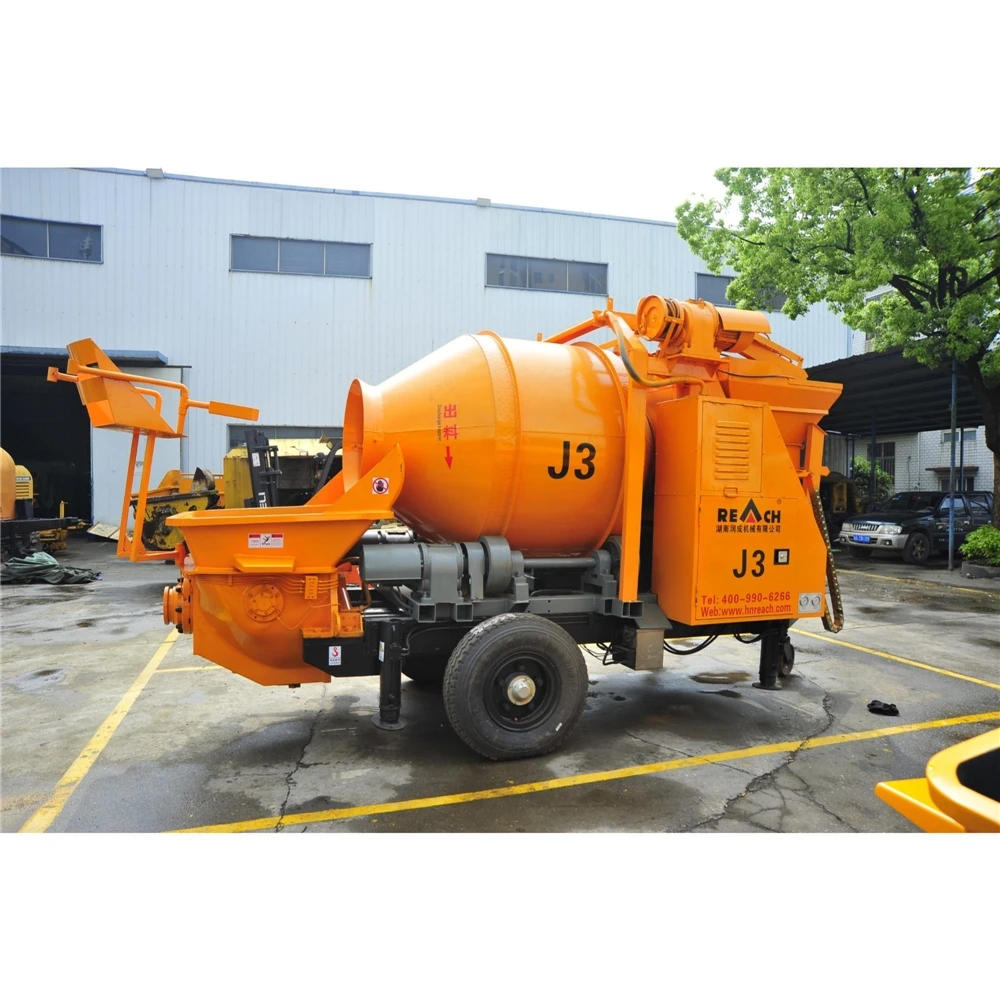

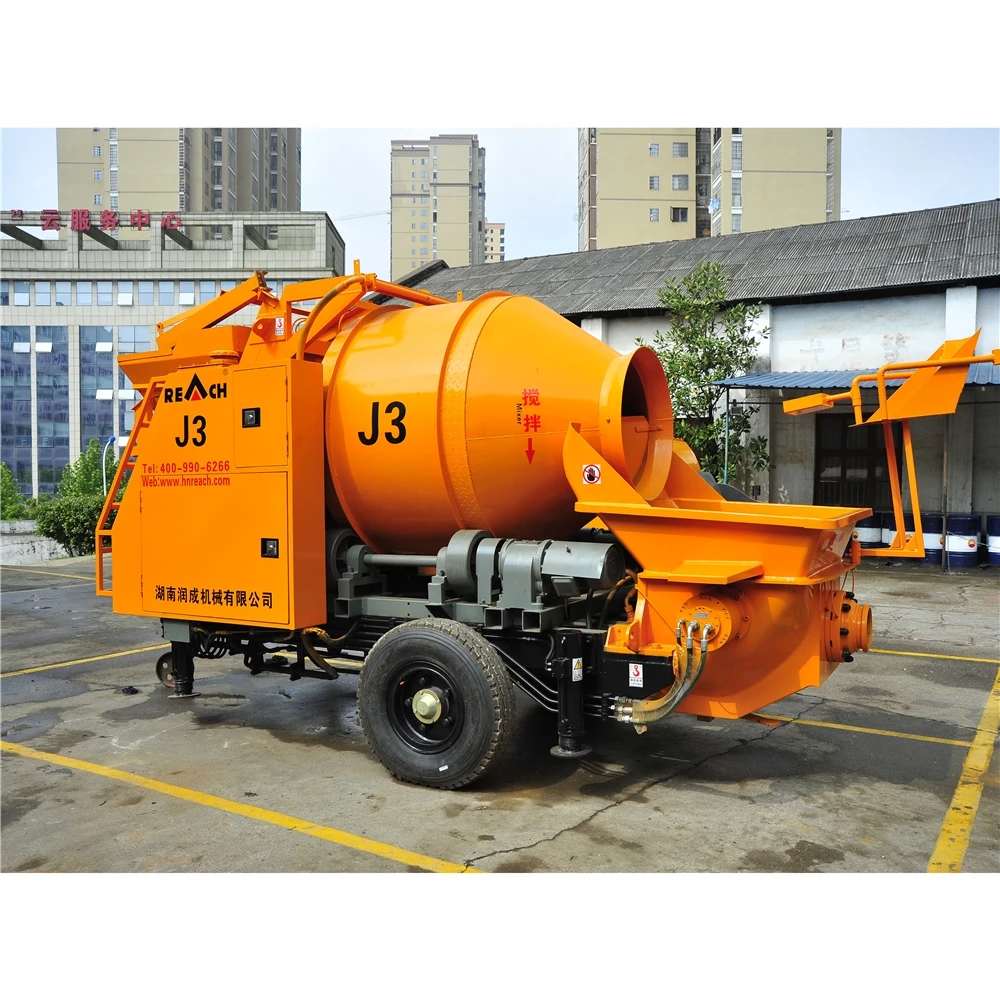

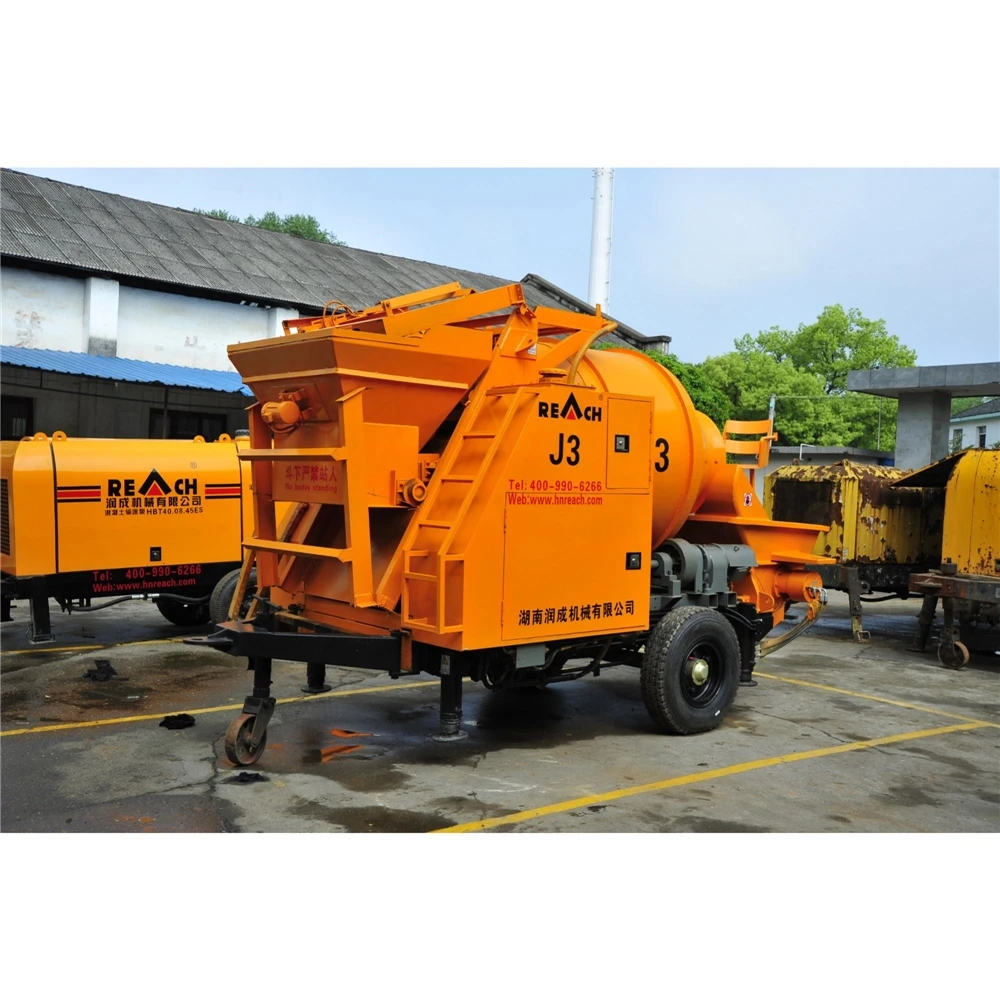

Self-loading Price Of Hino Mixer Truck Cement Mixing Transiter Bigger 0.5m3 Hopper Diesel 37kw Engine Concrete Pumps Trailer
Self-loading Price Of Hino Mixer Truck Cement Mixing Transiter Bigger 0.5m3 Hopper Diesel 37kw Engine Concrete Pumps Trailer
Overall performance | Parameter Name | Unit | JBT30.07.37S |
| Overall Dimension(L*W*H)) | mm | 4450*2100*3200 | |
| Total Weight | Kg | 3500 | |
| Max. Theor.Concrete Output | M³/h | 30 | |
| Concrete Pumping Pressure | Mpa | 07 | |
| The form of Distribution valve | -- | S pipe valve | |
| Concrete Cylinder | mm | ∅200*1000 | |
| Spec.(bore*stroke) | |||
| Hopper Capacity | L | 600 | |
| Diameter of Pump exit | mm | 180 | |
| Hopper Height | mm | 1400 | |
| Theor. Max. Delivery Distance (Vertical/ Horizontal) | 60/200 | ||
| Power system | The Model of Engine | -- | JZC350 |
| Engine Power | Kw | 37 | |
| Voltage | V/Hz | 380/50 | |
| Cooling Method | -- | By Water | |
| Hydraulic Circuit Form | -- | Opened-circuit | |
| Mixing System | Main oil pump | -- | Kawasaki in Korea |
| Hydraulic oil tank capacity | L | 170 | |
| Max. mixing capacity | m3/h | 15 | |
| Feeding capacity | L | 560 | |
| Discharge capacity | L | 450 | |
| The average lift speed of Hopper | m/s | 0.3 | |
| Drum no-load speed | rpm | 15 |
Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 330V 50Hz.
Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
Q: What is the payment terms?
A: We accept L/C, T/T. 30% by T/T in advance, 70% by T/T before dispatching from factory.
Q: Maintenance and After-sales service?
A: There are professional overseas after-sales technicians.
