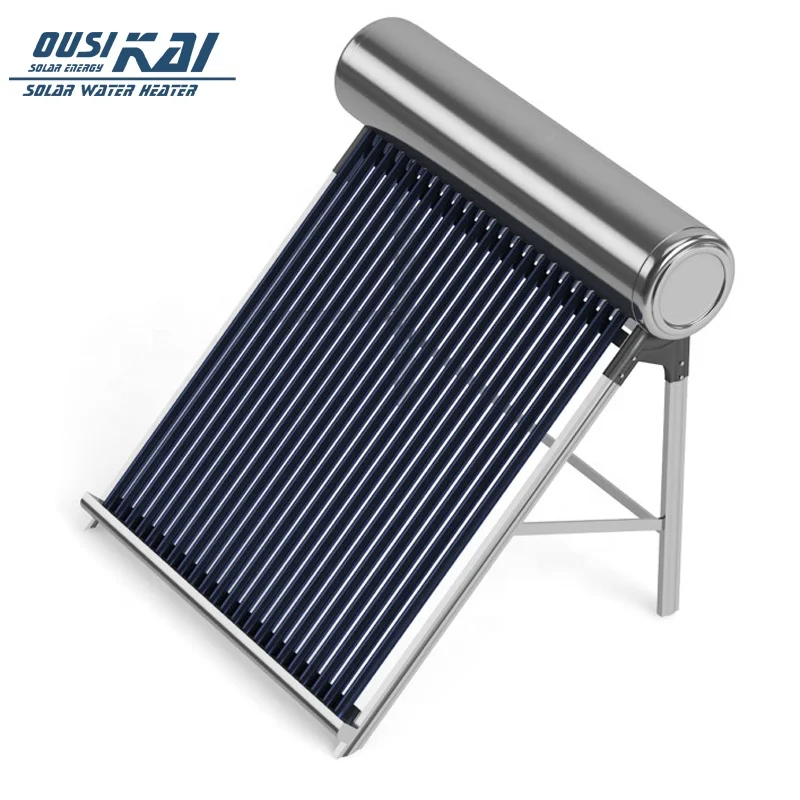

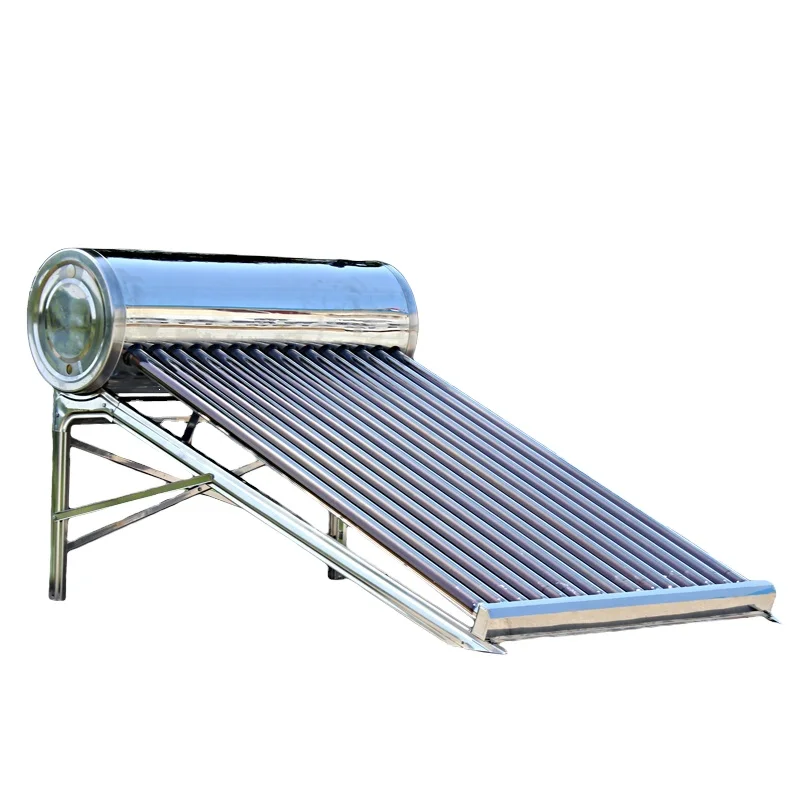

150l SOLAR WATER BOILER solar water heater tube
- Category: Solar Water Heaters >>>
- Supplier: Haining,Ousikai,Industrial,And,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Model | vacuum tubes | Absorb area | Capacity | suitable for | container | container | |||||||
pcs | size | M2 | tank(L) | tube(L) | system(L) | person | 20'GP | 40'HQ | |||||
NPS-8 | 8 | 58*1800 | 1.064 | 71 | 24 | 95 | 1-2 | 85 | 210 | ||||
NPS-10 | 10 | 58*1800 | 1.33 | 87 | 30 | 117 | 2 | 73 | 179 | ||||
NPS-12 | 12 | 58*1800 | 1.596 | 103 | 36 | 139 | 2-3 | 64 | 157 | ||||
NPS-15 | 15 | 58*1800 | 1.995 | 128 | 45 | 173 | 4 | 53 | 128 | ||||
NPS-18 | 18 | 58*1800 | 2.4 | 152 | 54 | 206 | 5 | 46 | 109 | ||||
NPS-20 | 20 | 58*1800 | 2.66 | 168 | 60 | 228 | 5-6 | 42 | 101 | ||||
NPS-24 | 24 | 58*1800 | 3.2 | 200 | 72 | 272 | 6 | 34 | 81 | ||||
NPS-30 | 30 | 58*1800 | 4.02 | 250 | 90 | 340 | 8-9 | 29 | 68 | ||||
NPS-36 | 36 | 58*1800 | 4.78 | 299 | 108 | 407 | 10-11 | 22 | 53 | ||||
1.Inner tank
Material: Food grade SUS304-2B stainless steel
Thickness:0.4mm-0.5mm
Diameter: Normally 360mm
2.Outer tank
Material: SUS201 stainless steel or painted steel
Thickness:0.31mm-0.5mm
Diameter:Normally 460mm
3. Insulation layer
Material:High density polyurethane foam
Thickness :50-65mm
Heat preservation :72 hours
4.Frame
Material: SUS201 stainless steel or painted steel or aluminium alloy
Angle:0-45 degree

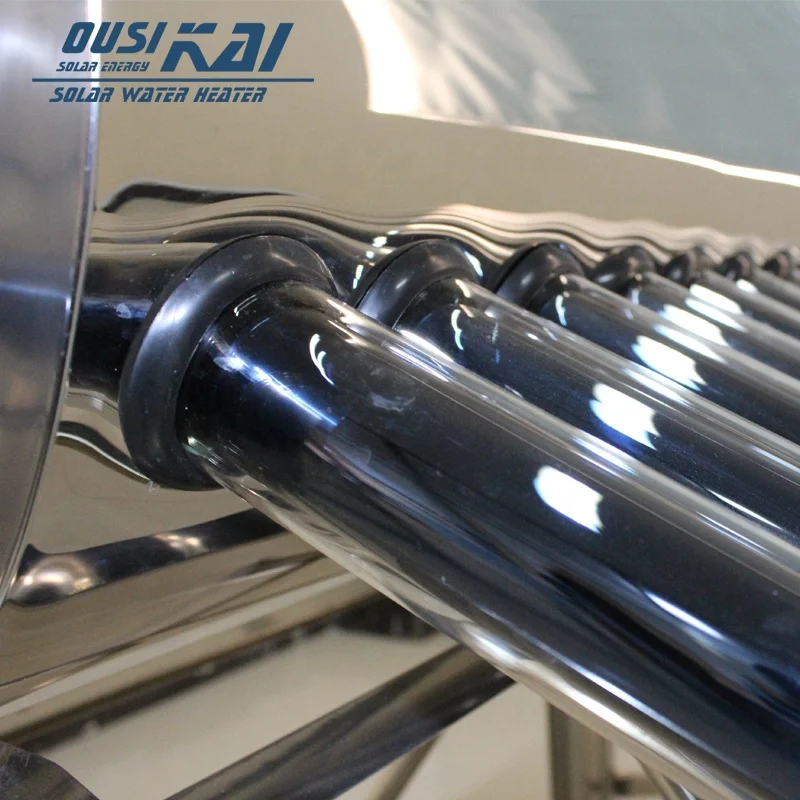

5.Vacuum tube
Material:high borocilicate 3.3 glass tube
Thickness: 1.6mmTube size:58*1800mm
6.Optional accessories
Electric heater, magnesium bar, intelligent controller
7.Warranty
Wholesystem:5 years
Material: Food grade SUS304-2B stainless steel
Thickness:0.4mm-0.5mm
Diameter: Normally 360mm
2.Outer tank
Material: SUS201 stainless steel or painted steel
Thickness:0.31mm-0.5mm
Diameter:Normally 460mm
3. Insulation layer
Material:High density polyurethane foam
Thickness :50-65mm
Heat preservation :72 hours
4.Frame
Material: SUS201 stainless steel or painted steel or aluminium alloy
Angle:0-45 degree
5.Vacuum tube
Material:high borocilicate 3.3 glass tube
Thickness: 1.6mmTube size:58*1800mm
6.Optional accessories
Electric heater, magnesium bar, intelligent controller
7.Warranty
Wholesystem:5 years
What is the difference between Non-pressurized Solar water heater and pressurized type?
1. The pressurized hot water loses less energy than the normal one.
2. The pressurized can be used in cold winter,
3. strong pressure water makes your bathe more comfortable.
Why choose Ousikai?
1. We have both vacuum tube factory and water tank factory for more than 8 years, professional.
2. We provide 10 years warranty for the whole system. Others normally with 5 years.
3. Keep the delivery time exactly.
Payment Terms:
1) 100% T/T in advance (sample)
2) L/C at sight
3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder
4) 30% Deposit in advance and balance should be paid after receiving the B/L copy.
1. The pressurized hot water loses less energy than the normal one.
2. The pressurized can be used in cold winter,
3. strong pressure water makes your bathe more comfortable.
Why choose Ousikai?
1. We have both vacuum tube factory and water tank factory for more than 8 years, professional.
2. We provide 10 years warranty for the whole system. Others normally with 5 years.
3. Keep the delivery time exactly.
Payment Terms:
1) 100% T/T in advance (sample)
2) L/C at sight
3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder
4) 30% Deposit in advance and balance should be paid after receiving the B/L copy.
