8 port 10/100/1000Mbps industrial enterprise grade Ethernet network switch 2.5G SFP uplink layer 2 managed PoE switch
- Category: >>>
- Supplier: Guangzhou Gxcom Technology Co. Ltd.
Share on (1600178888921):
Product Overview
Description
Product Description
8 port 10/100/1000Mbps industrial enterprise grade Ethernet network switch 2.5G SFP uplink layer 2 managed PoE switch
^
^
^

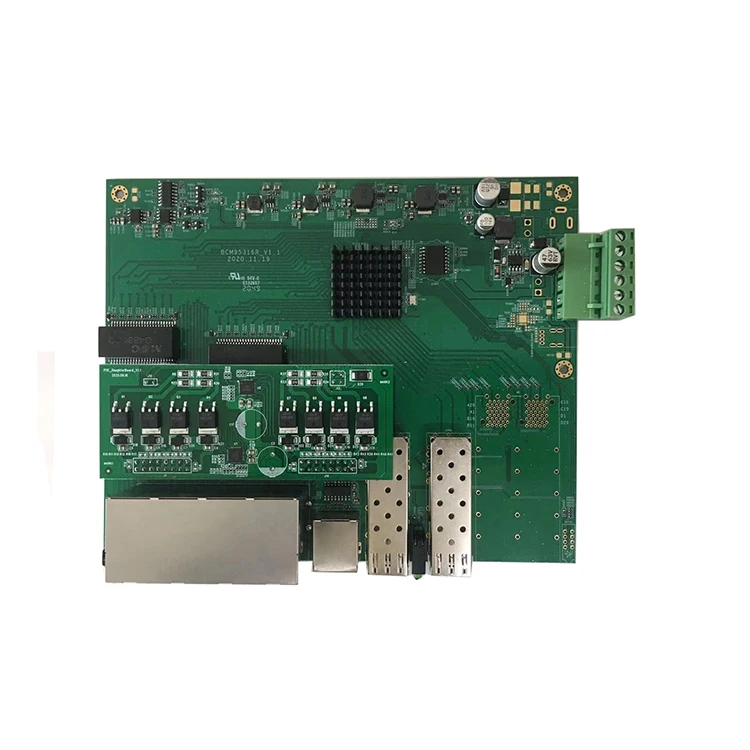

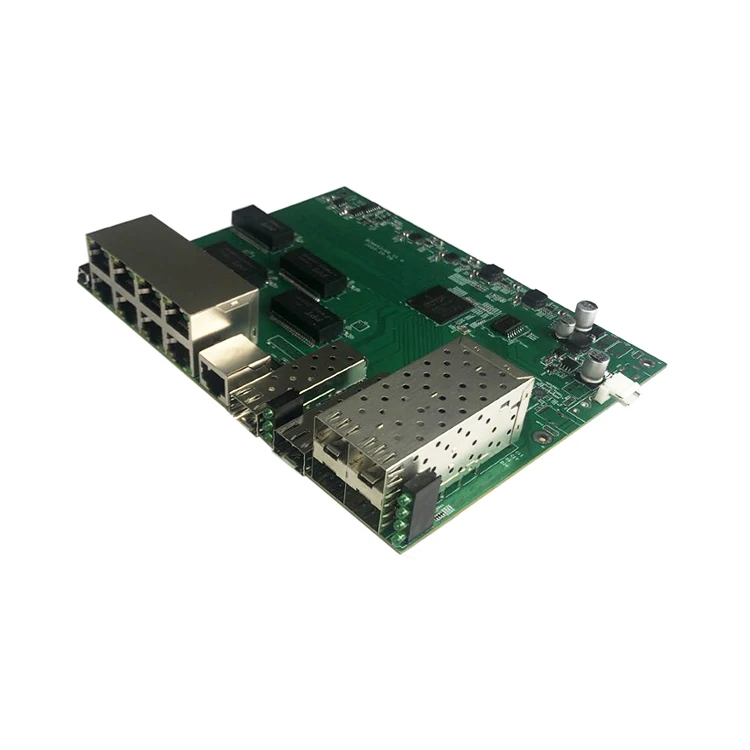

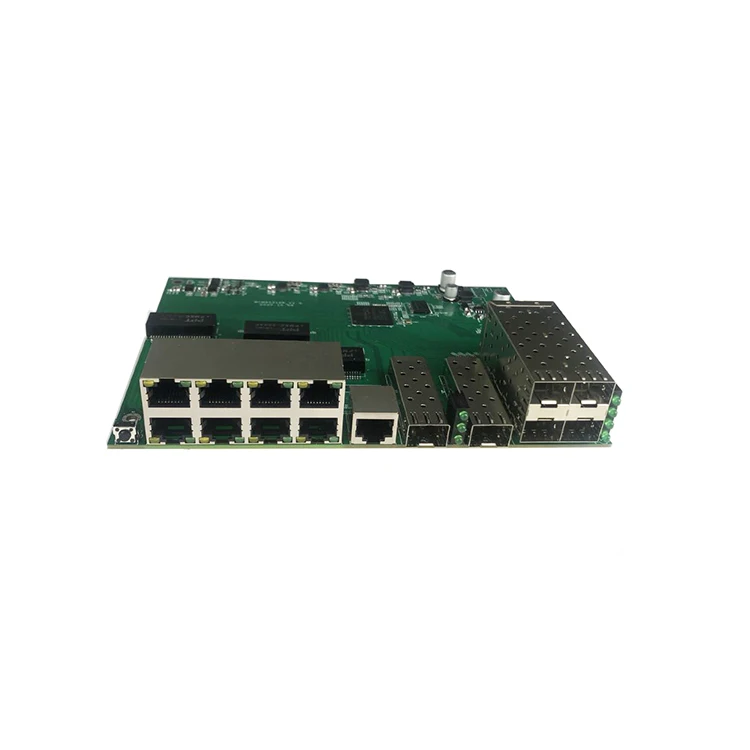

Flexible OEM ODM PCB board
Low MOQ
Support custom logo private branding
- 8*1000Mbps LAN PoE Ports
- 2*10G Fiber SFP+
- 4*2.5G Optional Fiber SFP
Introduction:
ITS2500-8GP-2SFP+ is a L2 Non-traffic switch using Broadcom chipset. It takes Modularization design to provide 8* 10/100/1000M RJ45 Ports,2* Integrated 10G SFP Fiber Ports,4*optional 2.5G SFP Ports and 1 Console Port, which make it providing enough bandwidth for core data communications and transmission. It can supply strong communication ability with high capacity and support ACL function based on L3-L4. Its comprehensive security control strategy and CPU protect policy helps to improve the fault-tolerant ability, ensure the steady operation and load balancing of Network link. Meanwhile, it supports automatic DoS attack protection, SNMP, IEEE802.1, Spanning tree, Fast spanning tree protocol and link aggregation, and can be applied to small and medium enterprises,Core layer of community and school.
ITS2500-8GP-2SFP+ is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. It’s with excellent software and hardware performance,support industrial working class,can be widely used in the industrial automation and smart city projects.
* 8*10/100/1000Mbps full gigabit LAN PoE, 2*10G fiber SFP+
* Industrial grade switch,4kV/6kV surge lightning protection
* Optional 4*2.5G SFP or RJ45 uplink
* Fully compliant with IEEE802.3af/at,Max. PoE power 30w per port
ITS2500-8GP-2SFP+ is a L2 Non-traffic switch using Broadcom chipset. It takes Modularization design to provide 8* 10/100/1000M RJ45 Ports,2* Integrated 10G SFP Fiber Ports,4*optional 2.5G SFP Ports and 1 Console Port, which make it providing enough bandwidth for core data communications and transmission. It can supply strong communication ability with high capacity and support ACL function based on L3-L4. Its comprehensive security control strategy and CPU protect policy helps to improve the fault-tolerant ability, ensure the steady operation and load balancing of Network link. Meanwhile, it supports automatic DoS attack protection, SNMP, IEEE802.1, Spanning tree, Fast spanning tree protocol and link aggregation, and can be applied to small and medium enterprises,Core layer of community and school.
ITS2500-8GP-2SFP+ is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. It’s with excellent software and hardware performance,support industrial working class,can be widely used in the industrial automation and smart city projects.
Main Features:
* Industrial grade switch,4kV/6kV surge lightning protection
* Optional 4*2.5G SFP or RJ45 uplink
* Fully compliant with IEEE802.3af/at,Max. PoE power 30w per port
* Dual power input with external DC
* Rich and intelligent layer 2 management functions
* Support management via Web and CLI both
* Quality of Service and Scheduling
* Support ipv4/ipv6 dual stack
* IEEE 802.1AS
* RESTful API
* Rich and intelligent layer 2 management functions
* Support management via Web and CLI both
* Quality of Service and Scheduling
* Support ipv4/ipv6 dual stack
* IEEE 802.1AS
* RESTful API
Specifications:
Technical Parameters | ||
Model | ITS2500-8P-2SFP+ | |
Interface | 8*10/100/1000Mbps RJ45 Port + 4x 2.5g sfp 2*10G optic fiber SFP+ | |
Management port | 1*Console | |
PoE port | 1-8 port | |
Reset KEY | 1 | |
Bandwidth | 48Gbps | |
CPU | 500MHZ | |
RAM | 128M | |
MAC | 16K | |
Buffer | 12M | |
FLASH | 32M | |
Transmission mode | Store and forward | |
Environmental | Working temperature : -40℃~85℃ Storage temperature : -40℃~90℃ Operating humidity : 5%~90% Non-coagulation Storage humidity : 5%~95% Non-coagulation | |
Dimension | 192*142*35mm (W* D* H) | |
Weight | PCBA - 0.5kg With case+power - 1.8kg | |
Power input | 48-52Vdc | |
Power consumption | ≤240W | |
Product Images
GXCOM Company
GXCOM is an innovated enterprise which was established on 2011, starting with Ethernet extender and PoE switch. Since the establishment, we’re focusing on product R&D, quality control and after-sale service, in order to provide the most reliable products to our customers. With 10 years experiences, now we’re not just a source manufacturer of the network products, but also as a global solution supplier for telecommunication, Power Over Ethernet service,CCTV and FTTH.
Our products have been exported to North America, South America, Europe, Middle East and etc. Product range covers various PoE Products, Managed/unmanaged ethernet switch, fiber optic equipment and more.
GXCOM have successfully passed the certifications of CE, FCC and RoHS. We ensure that we will meet your expectation on product quality because of strict inspection performed on each product before shipment.
GXCOM Technology is keeping growing and forward-looking all the time. Recently, we have developed new products to meet the market demands, such as Hipoe 60-90W for building lighting, 24v/48v automatic detection&adaptation PoE switch,24V passive PoE switch and etc.
With 11 years + experiences in network products,our products include but not limited to:
Managed Ethernet Switch
PoE Switch
Reverse PoE Switch
Industrial Switch
GPON EPON ONU
PoE/Ethernet Extender
PoE Injector/Midspan
Our services include:
- Low MOQ or No MOQ up to different request
- OEM - Flexible customization of your private brand/logo on device and packing
- ODM - Any idea from customer is welcomed
- Stock Ready to Ship - Available stock for fast delivery
- Independent R&D based on market demands and technology development
Exhibition
Certifications
FAQ
Q1.Can we get a sample?
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
T/T,L/C at sight,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
T/T,L/C at sight,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
