Thin Wall High Speed Disposable Plastic Products Injection Molding Moulding Injection Machine YIZUMI PAC250K 250T
- Category: >>>
- Supplier: Guangdong Yizumi Precision Injection Molding And Die Casting Technology Co. Ltd.
Share on (1600179242568):
Product Overview
Description
Product Description

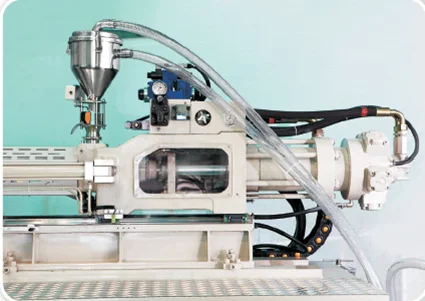

Injection unit
Single-cylinder injection unit, with low inertia, fast response and higher injection accuracy.
Precise injection guide mechanism ensures piston centering.
Back pressure is set up quickly throughout the whole plasticizing process, improving the uniformity of plasticizing.
Precise injection guide mechanism ensures piston centering.
Back pressure is set up quickly throughout the whole plasticizing process, improving the uniformity of plasticizing.
High-plasticizing barrier screw delivers fast plasticizing.
Screw tip components with high wear-resistance, reliable performance and extremely long life.
Injection speed ranging from 100 to 250mm/s is available depending on different power units and applications. The injection speed could reach 500mm/s if adding accumulator.
Screw tip components with high wear-resistance, reliable performance and extremely long life.
Injection speed ranging from 100 to 250mm/s is available depending on different power units and applications. The injection speed could reach 500mm/s if adding accumulator.
Title goes here.

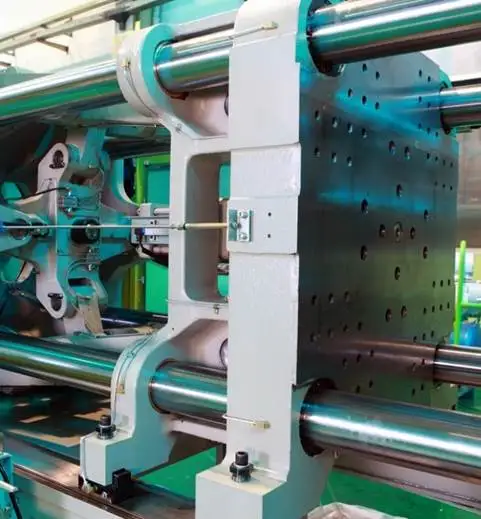

High-rigidity clamping unit ensures fast and smooth movements of the machine. Clamping force is more effectively applied to the
middle of platens which are designed based on mechanics principles, with minimum deformation of platens and more uniform force distribution on the mold.
middle of platens which are designed based on mechanics principles, with minimum deformation of platens and more uniform force distribution on the mold.

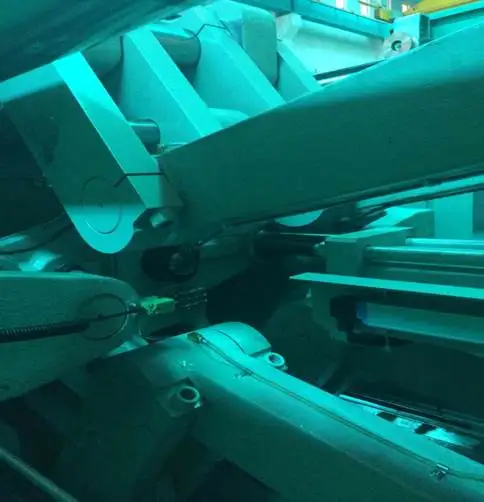

Optimized toggle movements which are smoother and more flexible.
Enclosed structure of toggle lubrication and lubricating oil collection lines ensure the machine is clean and the oil is recyclable.
Enclosed structure of toggle lubrication and lubricating oil collection lines ensure the machine is clean and the oil is recyclable.

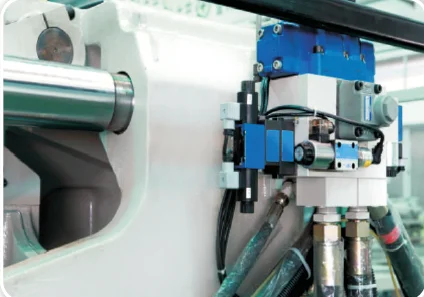

Hydraulic System
Fast-responsed hydraulic system.
Imported hydraulic system.
Imported hydraulic system.

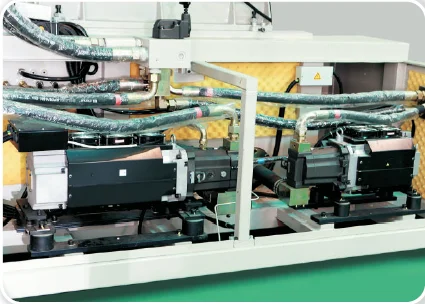

Power Unit
Servo system with gear pump;
High reaction speed for oil pressure (Max. 0.046s); 30% faster than Pac for injection speed.
High reaction speed for oil pressure (Max. 0.046s); 30% faster than Pac for injection speed.

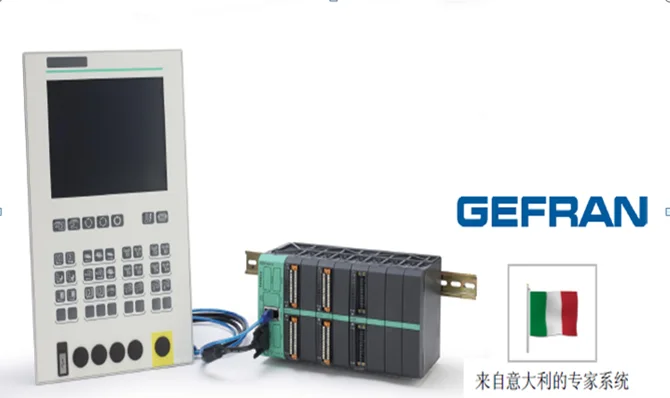

Control System
Italy GEFRAN controller;
10.4 TFT Touch Screen and 4GB SD Card for Mass Memory.
10.4 TFT Touch Screen and 4GB SD Card for Mass Memory.
Specification
INJECTION UNIT | ||||
International specification | 440/2500 | |||
Shot volume | cm^3 | 221 | ||
Shot weight (PS) | g | 203 | ||
oz | 7.2 | |||
Screw diameter | mm | 40 | ||
Injection pressure | MPa | 199 | ||
Screw L:D ratio | 22:1 | |||
Max. injection speed | mm/s | 195/290 | ||
Screw stroke | mm | 176 | ||
Screw speed(stepless) | r/min | 0-300 | ||
CLAMPING UNIT | ||||
Clamping force | kN | 2500 | ||
Opening stroke | mm | 560 | ||
Space between bars | mm×mm | 580x580 | ||
Max. Daylight | mm | 1160 | ||
mold thickness(Min.Max) | mm | 220-600 | ||
Hydraulic ejection storke | mm | 180 | ||
Ejector number | 5 | |||
Hydraulic ejection force | kN | 137 | ||
POWER UNIT | ||||
Hydraulic system pressure | MPa | 17.5 | ||
Pump motor | kW | 55 | ||
Heating capacity | kW | 11 | ||
Number of temp control zones | 5 | |||
GENERAL UNIT | ||||
Dry cycle time | s | 2.2 | ||
Oil tank capacity | L | 650 | ||
Machine dimensions(LxWxH) | LxWxH | 6.4*1.91*2.1 | ||
Machine weight | Ton | 10.75 | ||
NOTE: The listed machine price is for standard machine only, any extra requirement (e.g. CE/UL/KCS safety standard and so on) will be subject to extra charge.
