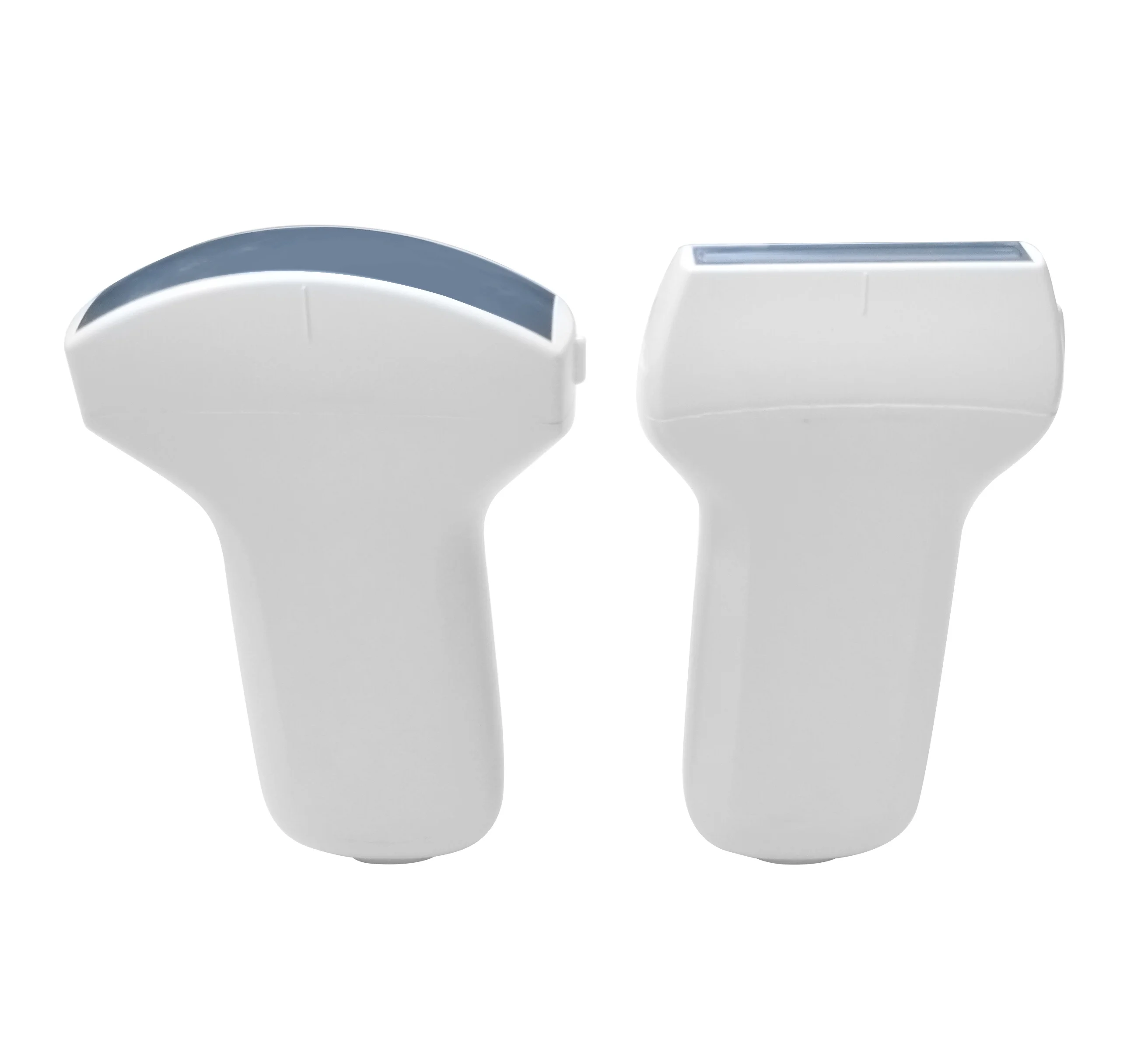

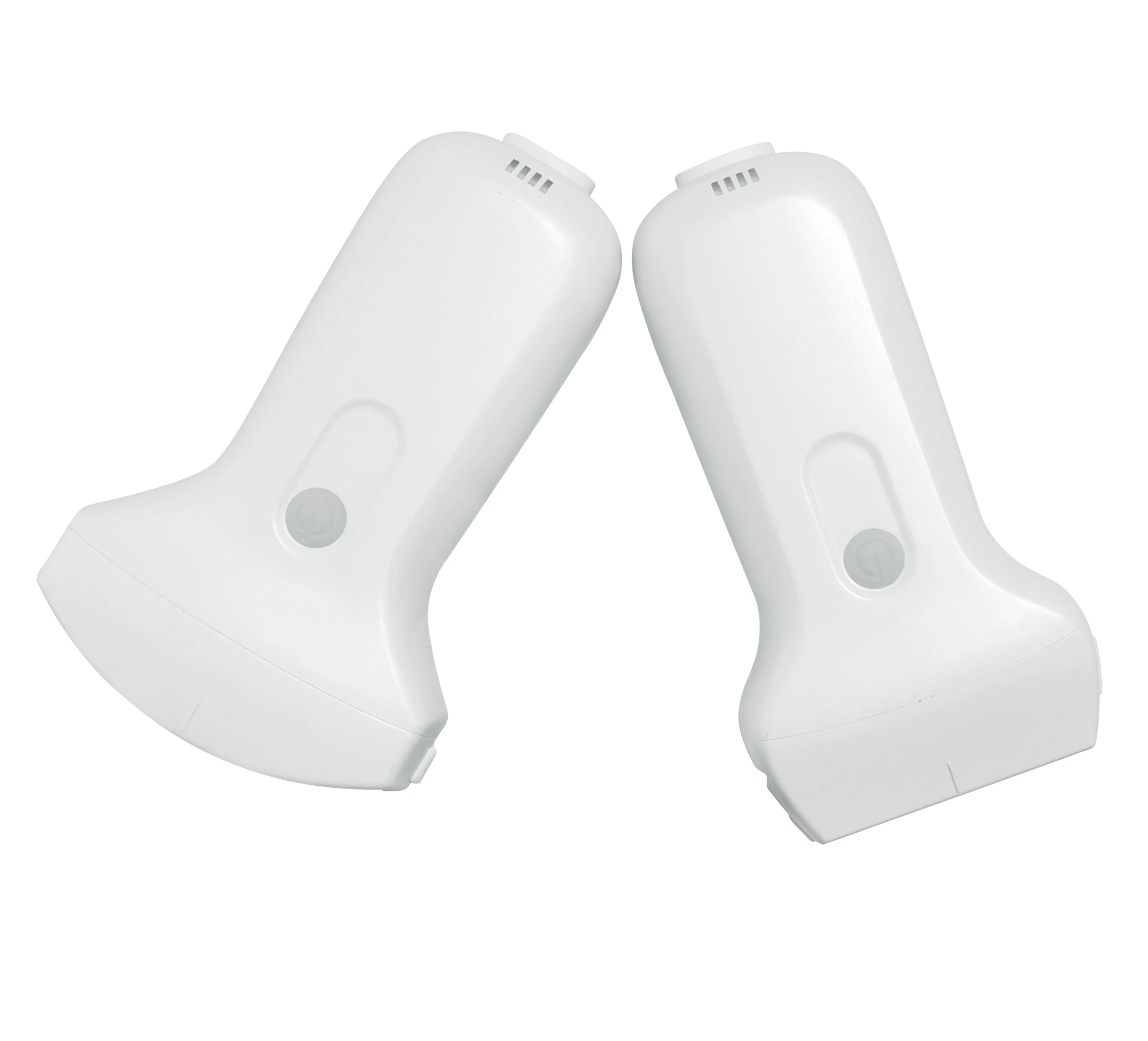

Portable 128 Element Convex Probe Wireless USG Ultrasound Linear Ultrasound Probe

Model

MSLPU79C

MSLPU79L

Probe Type

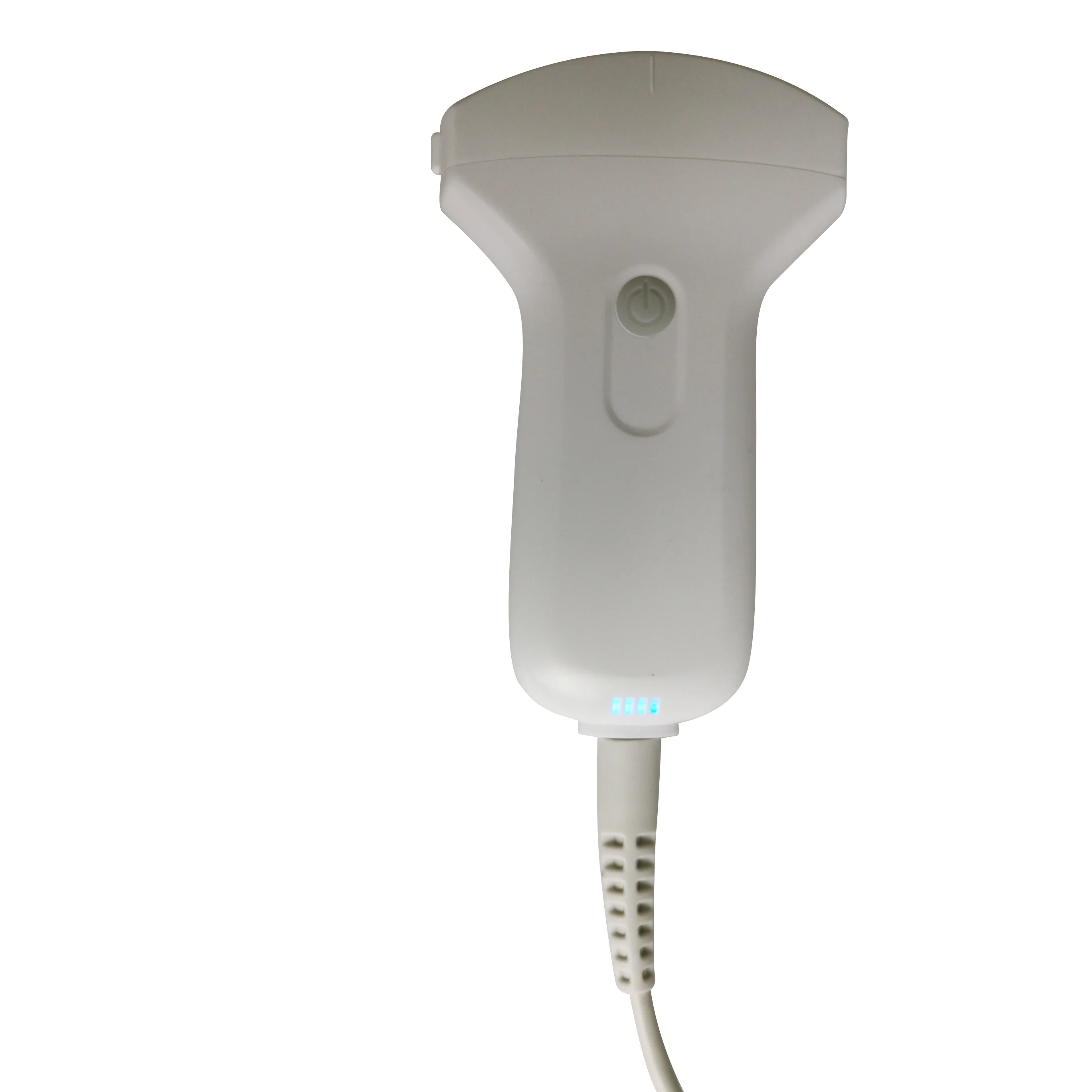

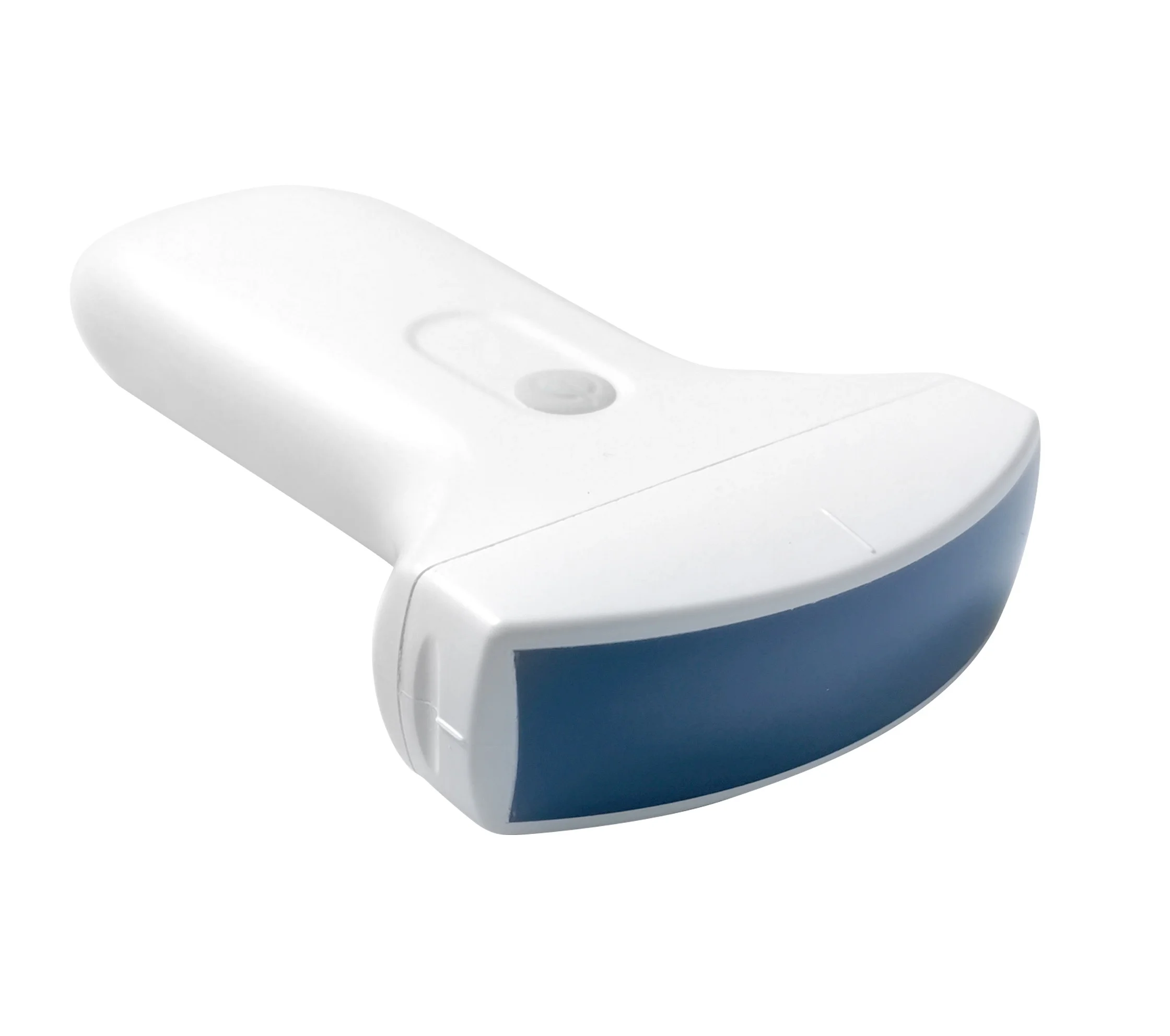

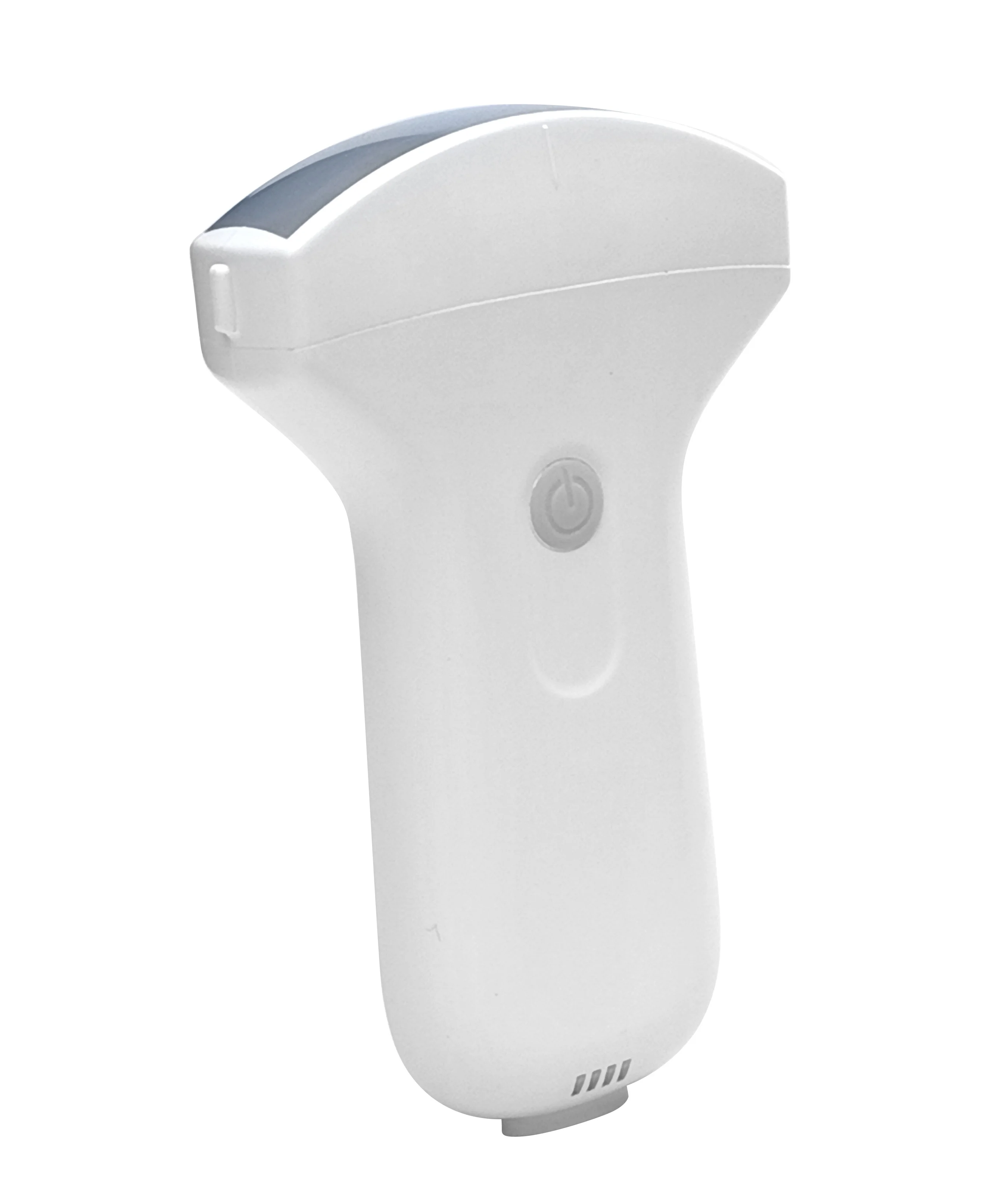

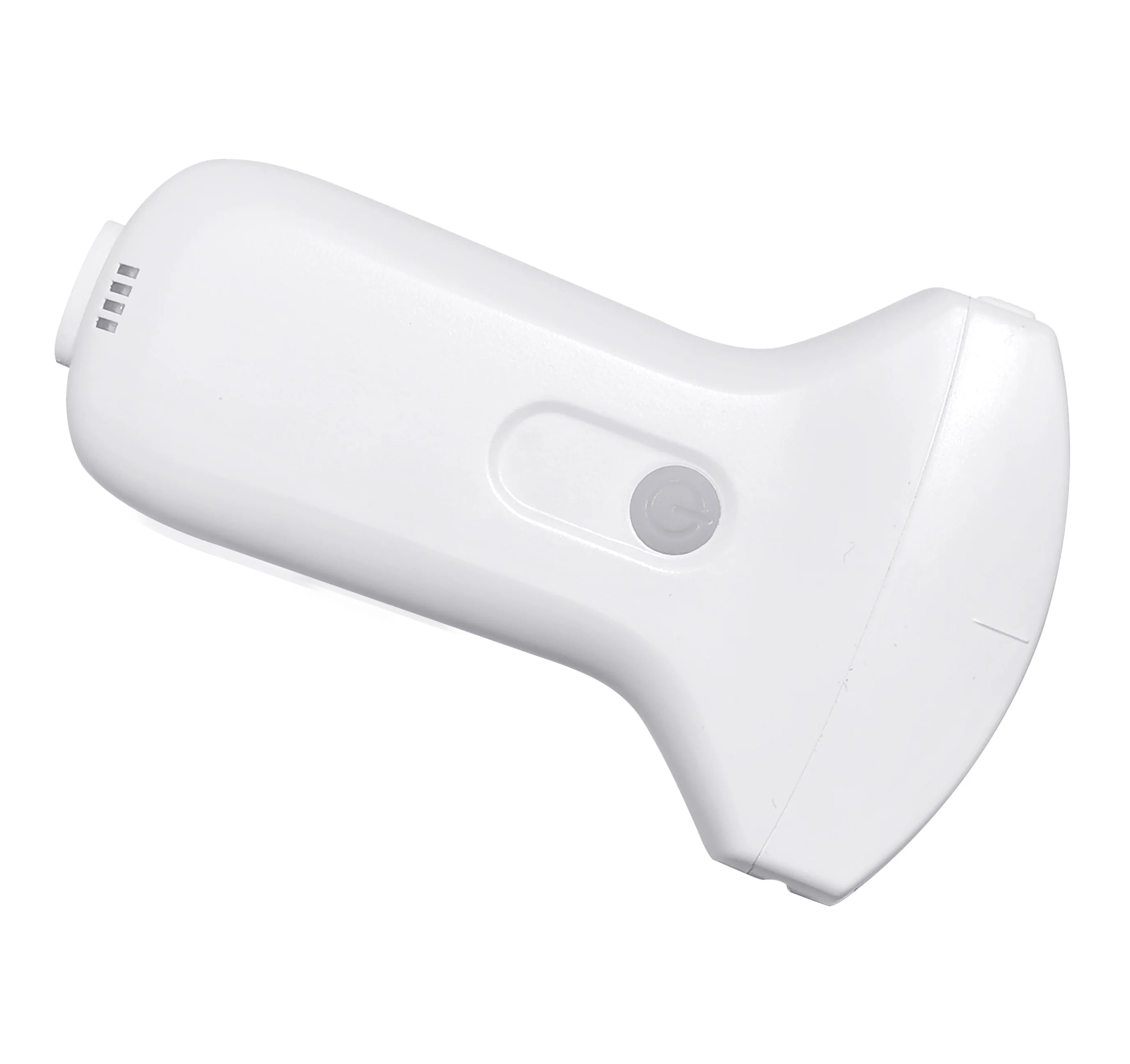

Convex array probe

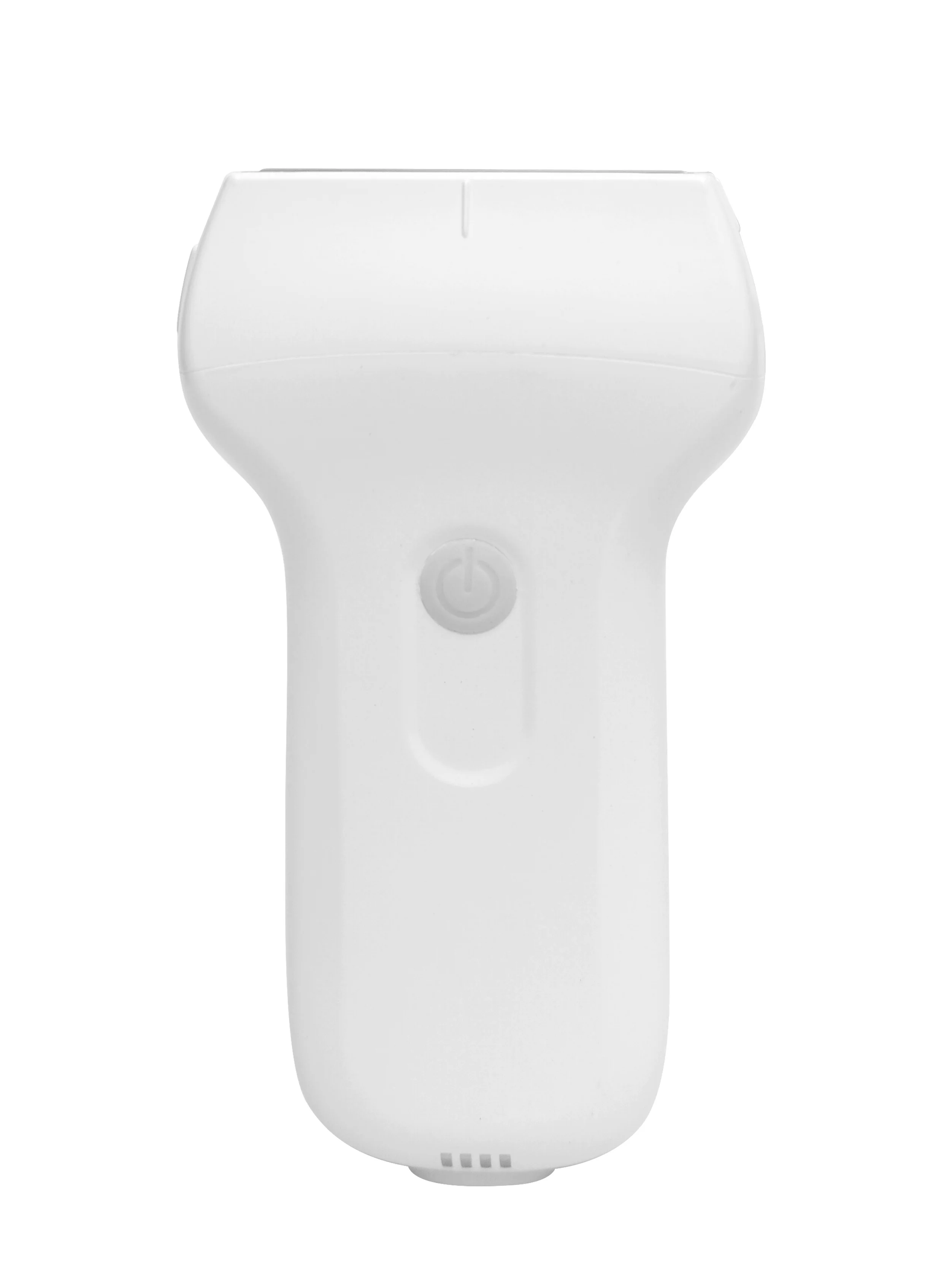

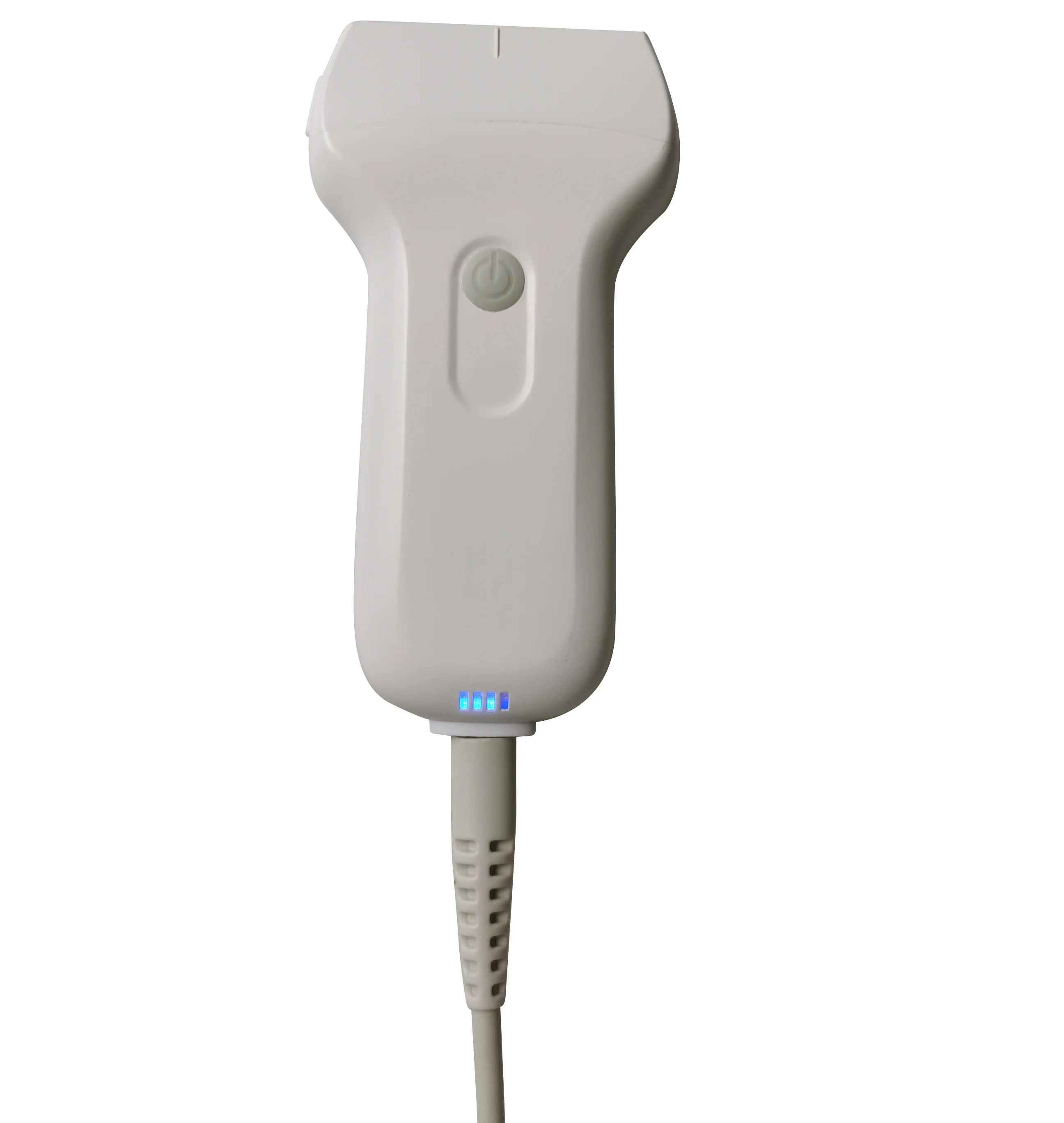

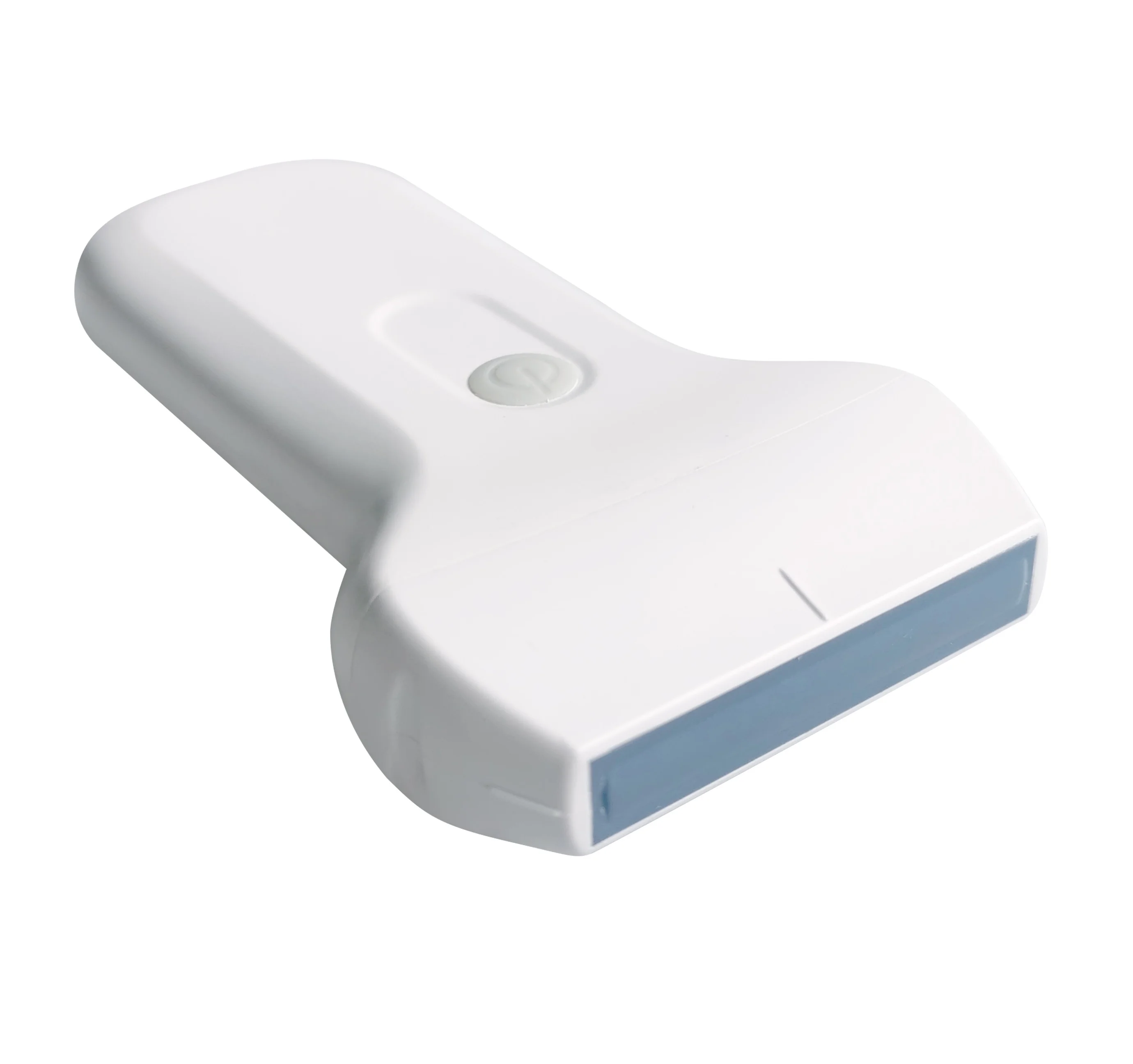

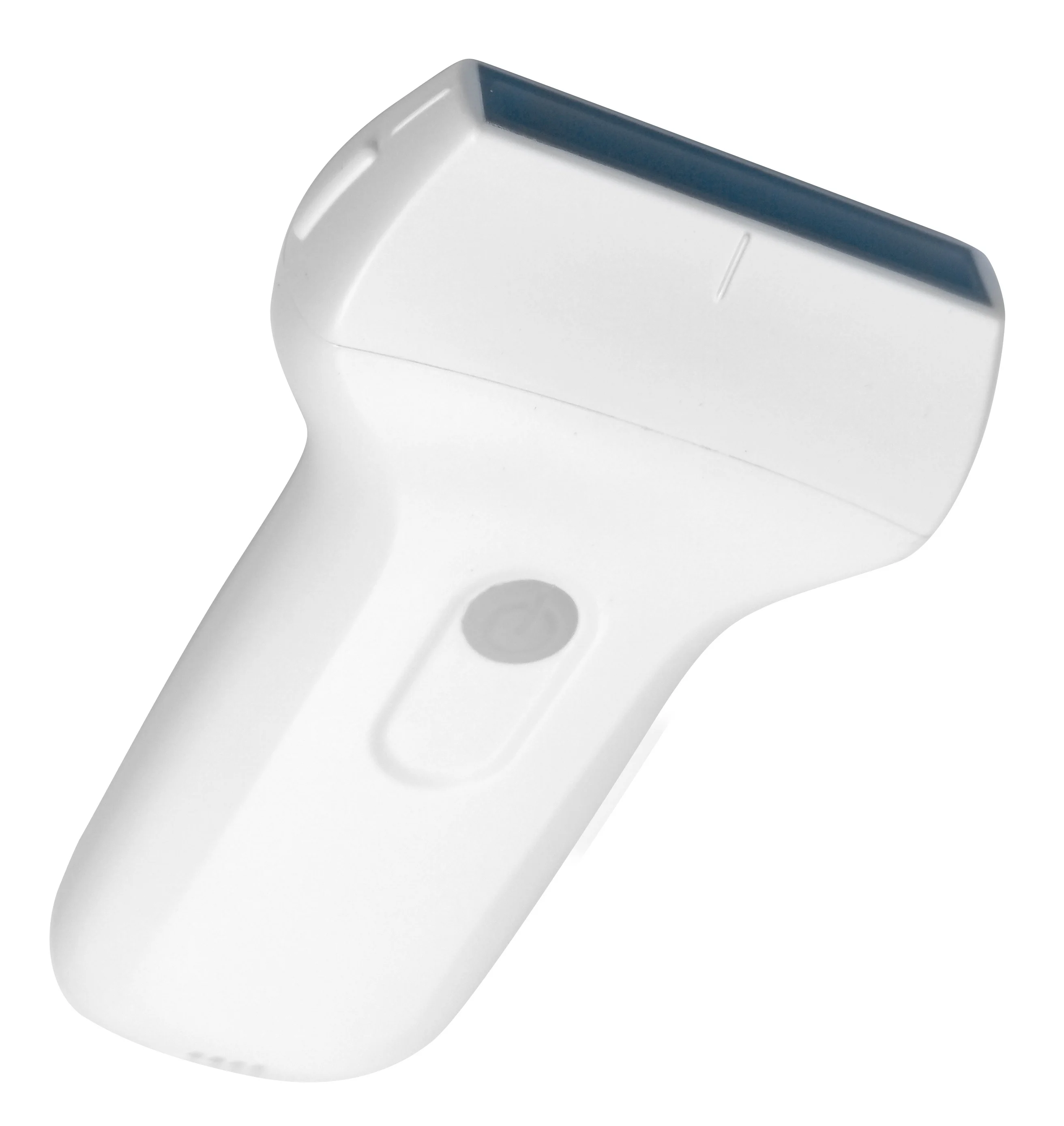

Linear array probe

Display Mode

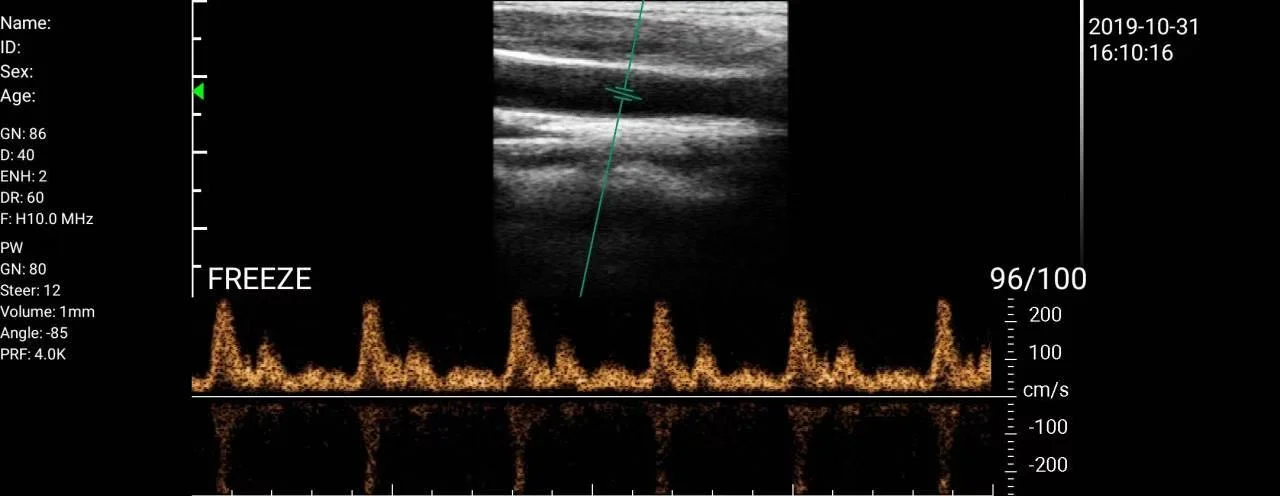

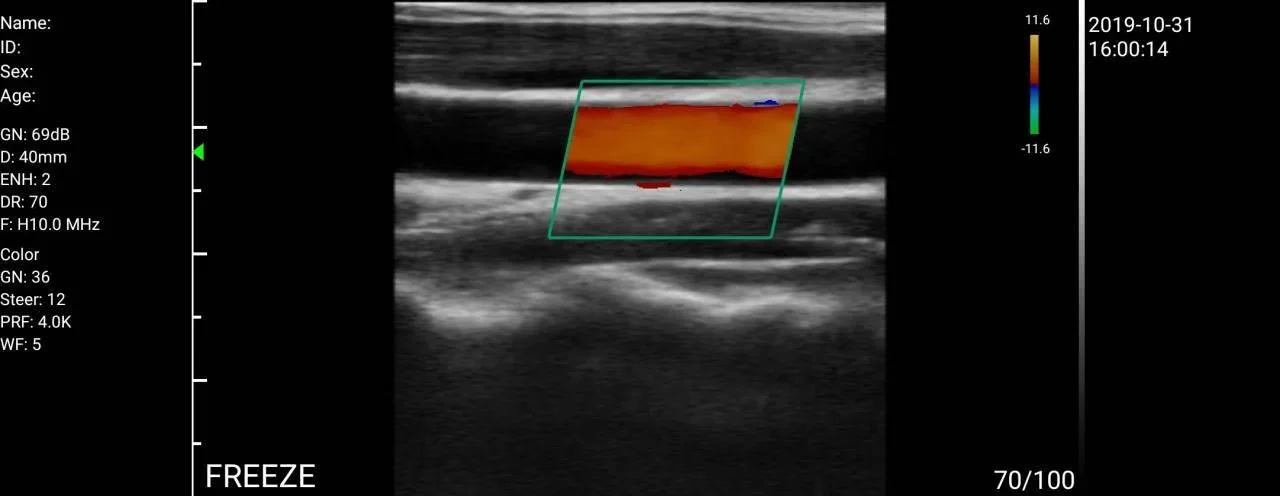

B, B/M, B+Color, B+PW

B, B/M, B+Color, B+PW

Frequency

3.5/5.0MHz

7.5/10MHz

Display Depth

90~305mm

20~100mm

Probe Radius

60mm

/

Probe Length

/

40mm

WiFi type

802.11n/2.4G/5G

802.11n/2.4G/5G

USB type

Type C

Type C

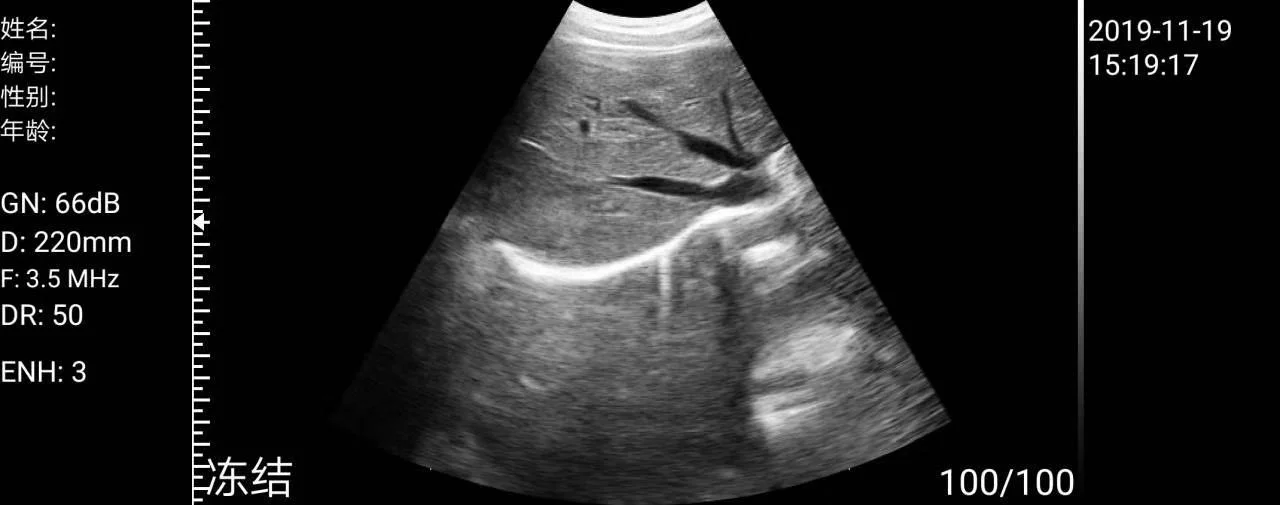

Image Adjust

B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange);

Color/PW: GN,PRF,WF,Steer,Box;

B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange);

Color/PW: GN,PRF,WF,Steer,Box;

Measure

B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC);

B+M: Heart Rate, Time, Distance;

B+PW: Velocity, Heart Rate(2), S/D

B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC);

B+M: Heart Rate, Time, Distance;

B+PW: Velocity, Heart Rate(2), S/D

Cinplay

Auto and manual, frames can set as 100/200/500/1000

Auto and manual, frames can set as 100/200/500/1000

Puncture assist function

in-plane puncture guide line,

out-of-plane puncture guide line

in-plane puncture guide line,

out-of-plane puncture guide line

Image/video Storage

Store on mobile phones,Tablet PC

Store on mobile phones,Tablet PC

Power

Built-in lithium battery, Replaceable

Built-in lithium battery, Replaceable

Battery working time

1.5~4h according to scan mode

1.5~4h according to scan mode

Charging mode

USB charging

USB charging

Bootup

Platform dependent, generally <5 seconds

Platform dependent, generally <5 seconds

Working system

Android / iOS  Download for free

Android / iOS  Download for free

Standard Configuration

Host:1pcs,

USB cable:1pcs

Host:1pcs,

USB cable:1pcs

Dimensions

115(w)x70(d)x20(h)mm

115(w)x60(d)x20(h) mm

Package size

185(w)x105(d)x55(h) mm

185(w)x105(d)x55(h) mm

Net weight

125g

102g

Gross weight

600g

600g
