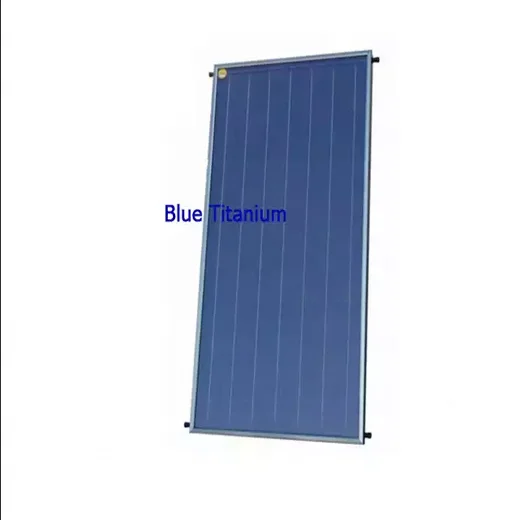

Flat Plate Panel Solar Thermal Collector Blue Titanium

Flat Plate Panel Solar Thermal Collector Blue Titanium

Category: Solar Collectors >>>
Supplier: Zhejiang,Jiajiare,New,Energy,Co.,Ltd.

Price:$120.00 - $158.00

Price in USD:Details

Quantity:

Product Overview

Description

Products Description

Flat plate solar collector is a device for absorbing solar radiation and transfer heat to the medium, which is a kind of special heat exchanger, the medium in the collector heat exchanges with the sun.

Flat plate solar collector is composed of absorbing plate core, shell, transparent cover plate, insulation materials and other related parts. Then heating circulation pipe and water tank, become a absorbing solar radiation equipment to heat the cold water.

Specification

Model			FP-T2.15	FP-T2.05	FP-T2.0
Overall data	Dimension LxWxH(mm)	2050105095	2015101576	2000100080
		Gross Area(㎡)	2.15	2.05	2.00
		Absorber Area(㎡)	1.96	1.82	1.82
Cover	Material	Low iron tempered textured glass
		Thickness	4.0mm	3.2mm	3.2mm
		Transmisssion	>91.7%
Absorber	Material	Aluminum board
		Surface Treatmen	Imported blue titanium selective coating
		Header tuber	Copper TP2, Φ22mm or Φ25mm*0.6mm
		Riser tube size	Copper TP2, Φ10mm or Φ8mm*0.6mm
		Work Pressure	0.75Mpa
		Welding	Laser welding
Thermal Insulation	Material	Fiber glass 50mm	Fiber glass 30mm	Fiber glass 30mm
Thermal Insulation		Thickness	Polyurethane 20mm	Polyurethane 15mm	Polyurethane 15mm
Casing	Frame	Alumunum alloy	Galvanzied steel	Alumunum alloy
		Back Plate	Alumunum plate	Galvanized steel	Galvanized plate
		Seating Gasket	EPDM

Product Display

Component Description

Flat Plate Panel Solar Collector is one of the most wide-used solar collector with high efficiency, the selective coated absorber sheet absorbs up to 95% of available sunlight converting into usable heat, the heat is normally absorbed by water in the loop, or a freeze-resistant water mixture which is used to supplement hot water heating or house air heating.

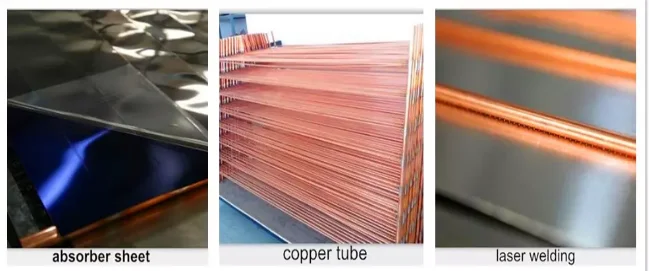

Cover Glass	Toughened low-iron glass protects the absorber from the outside environment while allowing through more than 91% of sunlight.
Absorber	A thin sheet of aluminum is coated with a highly selective black chrome coating that is extremely efficient at absorbing sunlight and converting it into usable heat. The aluminum sheet is ultrasonically laser welded to the copper riser pipes.
Insulation	The insulation helps reduce heat loss from the sides and back of the collector. High-density polyurethane and glass wool to greatly reduce weight and heat lost of the collector.
Riser & Header Pipe	Conforms to international standards, the header and riser pipes are brazed together to form a harp shaped heat exchanger that the solar system water or fluid circulates through. The absorber sheet is ultrasonically laser welded to the riser pipes, thus transfers heat to the water or heat transfer fluid.

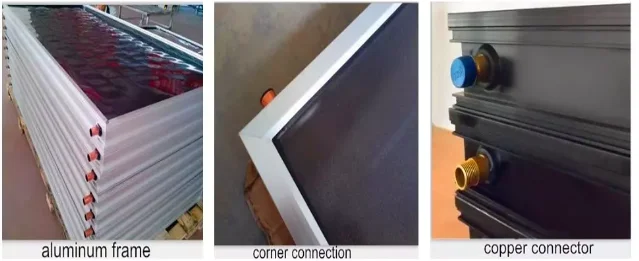

Casing	The aluminum alloy sheet seals the back and frame of the panel and adds to the rigidity of the collector. The rails in the frame are designed for easy mounting attachment.

Our Company

Zhejiang Jiajiare New Energy Co., Ltd. found in 1995, and focus on solar water heater fro more than 18 years, with our own brand "JIAJIARE" in China market

Developing with the researching, production, and industrialization enterprise distribution;

Consider "Quality and Innovation Maker" as purpose, we have passed ISO9001-2008, CE, CCC, Solar keymark, Rohs, SRCC, EN12975, EN12976 etc. to expand our international market.

It is our trade policy to trade with merchants of vavious countries on the basis of eauality, mutual benefit and exchange of
needed goods. we hope to promote, through mutual efforts, both trade and friendship.

FAQ

1. Can you provide FREE SAMPLES?
As solar water heater system is a large product, including the product value and shipping cost, it is really a high investment, so we can not provide it free, hope for your understand.
2. Can you accept OED/ODM?
Yes, of course.we are professional solar water heater manufacturer with our own brand, also providing OEM service for many famous brand, you can send us your requirements and logo designing.
3. What is your GUARANTEE TIME?
It differs with different configuration. For our standard, 10 years for vacuum tubes, 6 years for heat pipes, 3 years for brackets and water tank,1 year for other parts.
4. What is your PAYMENT TERM?
For container: T/T 30% in advance, 70% or 100% credit before shipment , Western Union.
For sample: Usually 100% T/T in advance, also can be negotiable.
5. Do you have other ADDITIONAL SERVICE?
YES. We provide free spares according to your order,such as vacuum tubes,tube holders,dust rings, seal rings,screws etc. Also, we can provide logo design free if you have an order at least 20 feet container.
