Беспроводной TA3220SUA F разрешение IoT с низким энергопотреблением модуль Wi Fi для умного дома
- Category: Ethernet Modules & POE >>>
- Supplier: Beijing Jiaan Electronics Technology Co. Ltd.
Share on (1600179565618):
Product Overview
Description
Product Description
Mode | Parameter | Conditions | Typ | Unit | |
MCU Active | TX Current | 1DSSS | 286 | mA | |
6OFDM | 255 | ||||
54OFDM | 232 | ||||
RX Current | 1DSSS | 74 | |||
54OFDM | 74 | ||||
MCU Sleep | TX Current | 1DSSS | 282 | ||
6OFDM | 251 | ||||
54OFDM | 228 | ||||
RX Current | 1DSSS | 70 | |||
54OFDM | 70 | ||||
MCU LPDS | TX Current | 1DSSS | 266 | ||
6OFDM | 242 | ||||
54OFDM | 217 | ||||
RX Current | 1DSSS | 53 | |||
54OFDM | 53 | ||||
Peak Calibration Current | VBAT=3.3V | 450 | |||
VBAT=2.3V | 670 | ||||
TA3220S Module is designed on TI's CC3220S which is part of the SimpleLink micro-controller (MCU) platform, consists of WiFi, Bluetooth low energy, Sub-1 GHz and host MCUs, which all share a common, easy-to use development environment with a single core software development kit (SDK) and rich tool set. A one-time intergration of the SimpleLink platform enables you to add any combination of the portfolio's devices into your design, allowing 100 percent code reuse when your design requirements change.

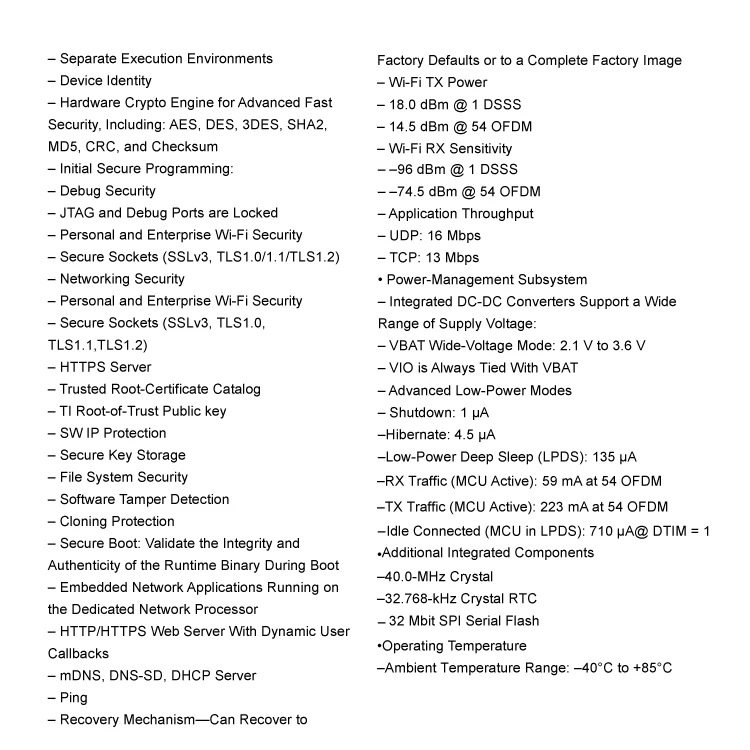

Feature
