3 Core 4 Core 5 Core 16mm 25mm 35mm 95mm Aluminum/Copper Core Steel Wire PVC/XLPE Underground Power Armoured Cable
- Category: Power Cables >>>
- Supplier: Zhengzhou,Huadong,Cable,Co.,Ltd.
Share on:
Product Overview
Description

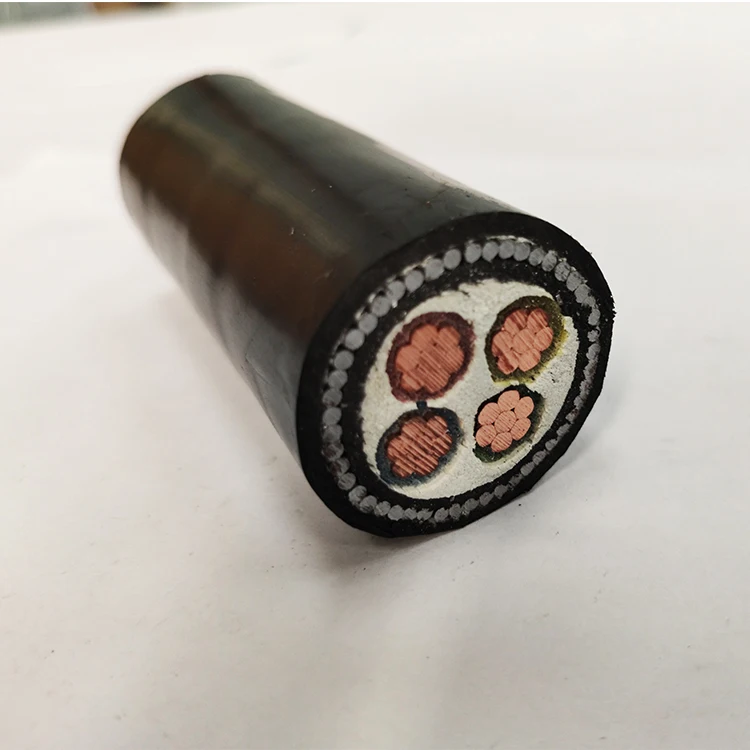

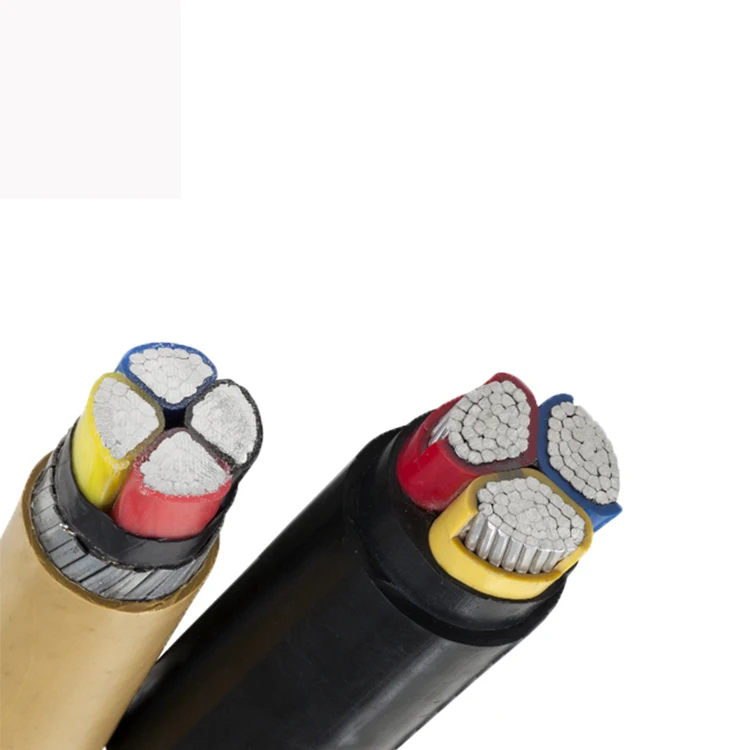

3 Core 4 Core 5 Core 16mm 25mm 35mm 95mm Aluminum/Copper Core Steel Wire PVC/XLPE Underground Power Armoured Cable
Product Description
Conductor: Aluminum or Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement
Power Cable Parameter:
| Part Number | Cross Section | Stranding | Approx Weight | Approx Overall Diameter | Gland Size | Single Cleat | Nom. Max. DC-resist conductor 20\u0081° C | Current rating laid direct |
| (mm²) | (mm) | KG/KM | (mm) | (mm) | (Ohm/km) | (Amp) | ||
| SWAPVC4X1.5 | 4 x 1.5 | 7/0.53 | 351 | 12.88 | 20s | 0.5 | 12.1 | 32 |
| SWAPVC4X2.5 | 4 x 2.5 | 7/0.67 | 429 | 14.43 | 20s | 0.6 | 7.41 | 42 |
| SWAPVC4X4.0 | 4 x 4.0 | 7/0.85 | 538 | 16.87 | 20 | 0.6 | 4.61 | 55 |
| SWAPVC4X6.0 | 4 x 6.0 | 7/1.04 | 670 | 17.87 | 20 | 0.7 | 3.08 | 69 |
| SWAPVC4X10 | 4 x 10 | 7/1.35 | 998 | 20.1 | 25 | 0.8 | 1.83 | 92 |
| SWAPVC4X16 | 4 x 16 | 7/1.70 | 1,272 | 22.4 | 25 | 0.9 | 1.15 | 119 |
| SWAPVC4X25 | 4 x 25 | 7/2.14 | 1,940 | 27 | 32 | 1 | 0.727 | 152 |
| SWAPVC4X35 | 4 x 35 | 7/2.52 | 2,390 | 30.1 | 32 | 1.2 | 0.524 | 182 |
| SWAPVC4X50 | 4 x 50 | 19/1.78 | 2,925 | 31.5 | 32 | 1.4 | 0.387 | 217 |
| SWAPVC4X70 | 4 x 70 | 19/2.14 | 4,200 | 37.4 | 40 | 1.6 | 0.268 | 266 |
| SWAPVC4X95 | 4 x 95 | 19/2.52 | 5,355 | 40.9 | 50s | 1.8 | 0.193 | 319 |
| SWAPVC4X120 | 4 x 120 | 37/2.03 | 6,925 | 46.6 | 50 | 2 | 0.153 | 363 |
| SWAPVC4X150 | 4 x 150 | 37/2.25 | 8,200 | 50.2 | 50s | 2 | 0.124 | 406 |
| SWAPVC4X185 | 4 x 185 | 37/2.52 | 9,975 | 55.8 | 63s | TC9 | 0.0991 | 458 |
| SWAPVC4X240 | 4 x 240 | 61/2.52 | 12,700 | 62.5 | 63 | TC10 | 0.0754 | 529 |
| SWAPVC4X300 | 4 x 300 | 61/2.85 | 15,275 | 67.4 | 75s | TC11 | 0.0601 | 592 |
| SWAPVC4X400 | 4 x 400 | 61/3.20 | 19,875 | 77 | 75 | TC12 | 0.047 | 667 |
Certifications
Production Flow
Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.
3 Core 4 Core 5 Core 16mm 25mm 35mm 95mm Aluminum/Copper Core Steel Wire PVC/XLPE Underground Power Armoured Cable Testing:
In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified.
Packaging & Shipping
3 Core 4 Core 5 Core 16mm 25mm 35mm 95mm Aluminum/Copper Core Steel Wire PVC/XLPE Underground Power Armoured Cable Package:
When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for you, now, you can send us your wanted package and colors.
3 Core 4 Core 5 Core 16mm 25mm 35mm 95mm Aluminum/Copper Core Steel Wire PVC/XLPE Underground Power Armoured Cable Delivery:
First of all, we will delivery on time. Especially in the busy season, we will word overtime to make sure delivery on time.
Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.
Thirdly, we have cooperated with profesional shipping agent and shipping company to keep you receive the intact on time.
Now you can send us the inquiry.
Buyer Feedback
We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.
FAQ
1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
3.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
......
If you have any other question, you can send us inquiry, we will reply to you as soon as possible
