3G 4G wireless Modem Industrial Car WiFi Router / Indoor module with GPS antenna for vehicle use
HDRM100 L2 industrial router and modem integrated machine,is designed for global market,because of the industrial quality and multiple RF band combination.
HDRM100 L2 support 2G/3G/4G LTE ,GPS,WIFI feature, It provides stable and reliable data connection for user device such as RTU,Kiosk, Power Ammeter and other remote device management application. In order to achieve permanent online, some key feature such as watchdog function, wide temperature/voltage range and multiple RF bank/mode are supported by HDRM100 L2,making it can be used in any environment of worldwide.
Product Feature
• 3G/4G LTE data transmission;
• Built-in watchdog, system crashes self-recovery;
dropped from self-recovery

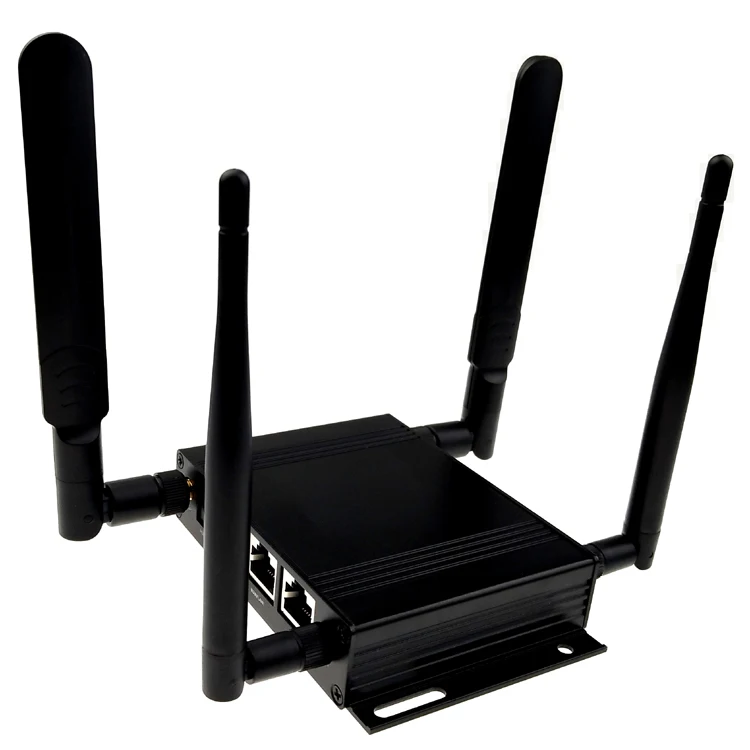

• 2*2 4G/WIFI MIMO antenna;

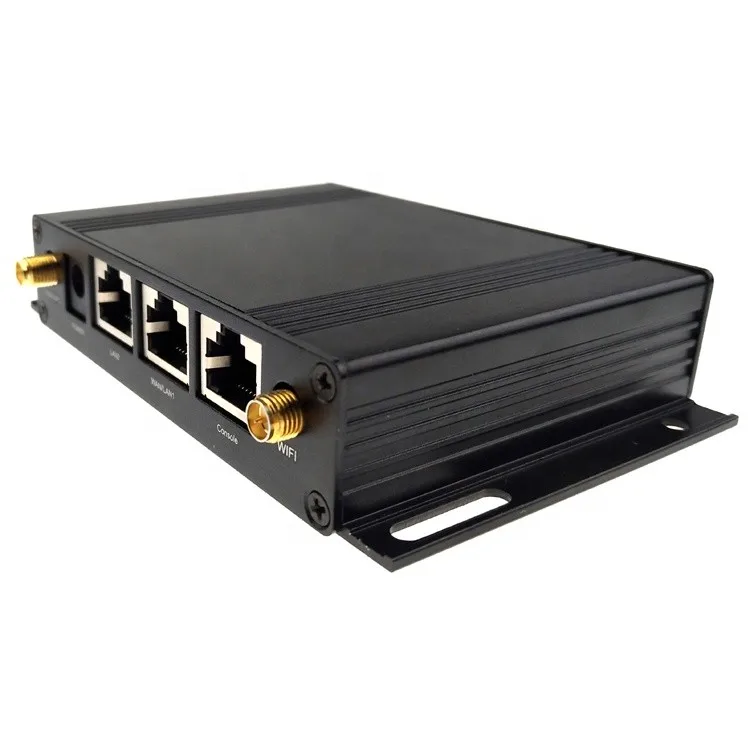

• 1 WAN/1 LAN or 2 LAN ports, One console port;
• Firmware version: Linux , Openwrt (Optional);
• Small size dimension:115mm*73mm*20mm

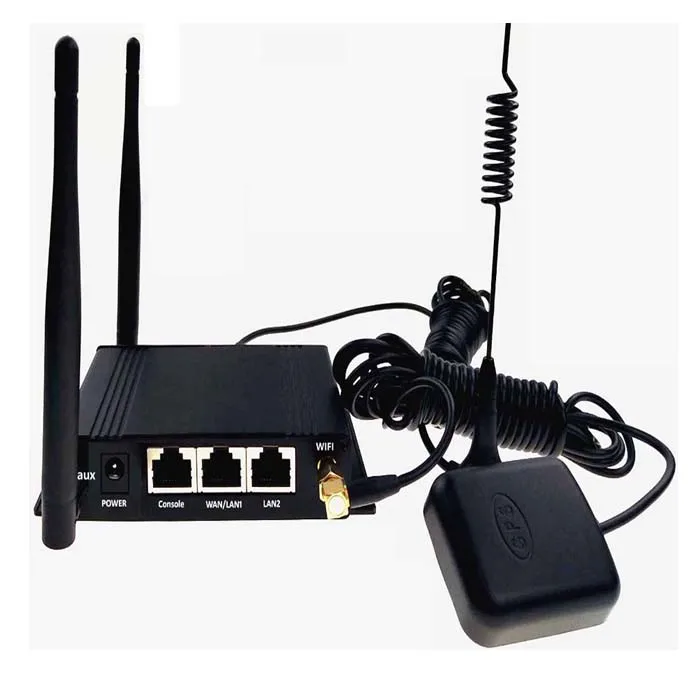

• Supports GPS funtion;(Optional)
Item | Specification |
CPU | MTK7628 |
MEMORY | FLASH 16MByte, DDR2 64MByte |
Embedded system | Linux or Openwrt |
Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
WIFI | WIFI 802.11 b/g/n, 300Mbps |
Data rate | 4G: CAT 3, DL 100bps , UL 50Mbps . Or CAT 4 DL 150Mbps , UL 50Mbps . WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps |
WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) |
WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
2G/3G/4G Transmitting Power | GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W) |
GPS (Optional) | GPS/GLONASS,Protocol: NMEA |
WIFI Frequency | 2.4G |
Version CE LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz Version E. LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 Version AF. LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version J LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 Version AU. LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 Version EU. LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 | |
Hardware interface | 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices) |
RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
Security Encryption | Support WEP,WPA,WPA2 encryption ways |
Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP |
LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI |
SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
Standard Power | DC 12V/1A |
Power Supply | DC 5~48V |
Working current | 2A (Max Current) |
Temperature | Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC |
Environment humidty | 95% |
Case | Aluminum Alloy Shell |
Application
Use for bus monitoring and WIFI
Use on smart house
Use on ATM POS
Our Company
Head Weblink Corporation founded in 2008.We are expert of wireless M2M products and total solutions supplier in China.
Since our foundation, we focused on M2M data transmission field. In addition, we are the professional industrial 3G/4G LTE router,3G/4G CPE,2G/3G/4G LTE modem manufacturer and 2G/3G/4G LTE wireless module distributor. Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industrial applications. Up to now, we have exported our products more than 70 countries and regions world widely.
Related Products
HDRM100 L1 Industrial 4G wifi Router support 10 users
HDRM200 industrial wireless Router support 25 users
HDR100 L1 outdoor long distance wifi router
FAQ
1.Do you provide customer's Logo and package design?
Yes, we can provide customized logo and design if order quantity reach 1000pcs.
2.Do you accept PCBA orders only?
Of course, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
4.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
