Factory Direct Prices Multi language fusion splicer Eloik ALK 88a Fusion Splicer
- Category: >>>
- Supplier: Beijing Herui Photoelectric Technology Co. Ltd.
Share on (1600179869109):
Product Overview
Description
Features
1 Based on the principle of PAS(Lateral Projection System), adopt advanced image detection algorithm;
2 Double core align structure, higher success rate of fusion and lower loss;
3 Adopt 4.3 inches 16:9 TFT colorized LCD screen;
4 Typical fusion time: 9sec; fast time: 7sec
5 Typical heating time: Automatic v-shaped heat shrinkable 19 seconds, cover and automatic heating ;
6 Reliability design, strengthen shockproof, dustproof and other functions;
7 Low power consumption design makes it possible to work long time with many functions operate at the
same time;
8 Multi-functional, small-sized, portable, can greatly improve working efficiency;
9 Can detect the air pressure, temperature and humidity and other environmental factors and automatically
calibrate arc.
10 Removable plug the battery, convenient and quick charge;
11 Cornering, the straps can be used for aerial work.

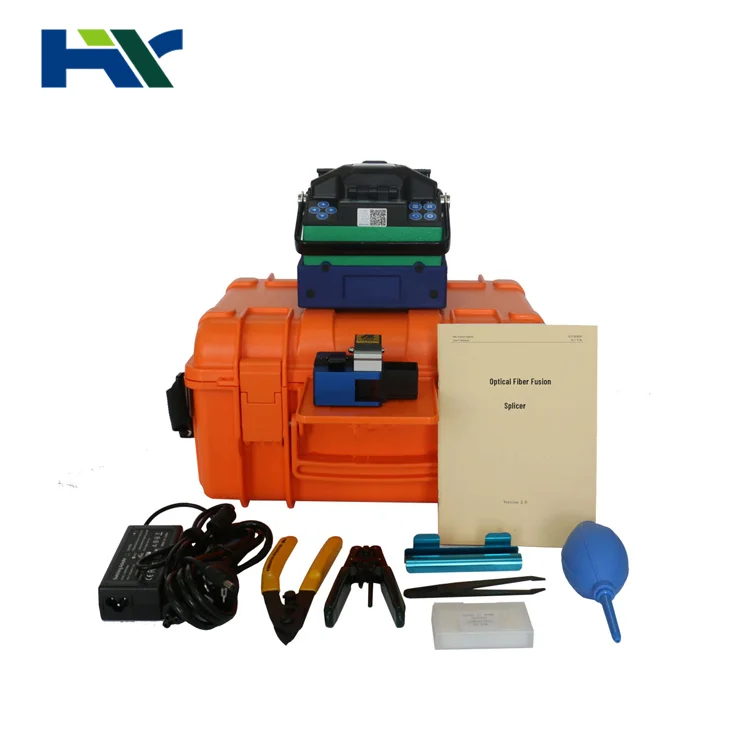

Standard Package
1.ALK-88A Fusion Splicer
2.Eloik Fiber Cleaver
3.Carrying Bag
4.Fiber Optic Miller Stripper
5.Power Adapter
6.AC Power Cable
7.Drop Cable Stripper
8.Plastic tweezers
9.Alcohol Bottle
10.Dust Blowing Ball with Brush
11.Instruction Manual
12.Fusion Splicer Fiber Holder
13.Backup Electrodes
14.Cooling Tray
15.Battery

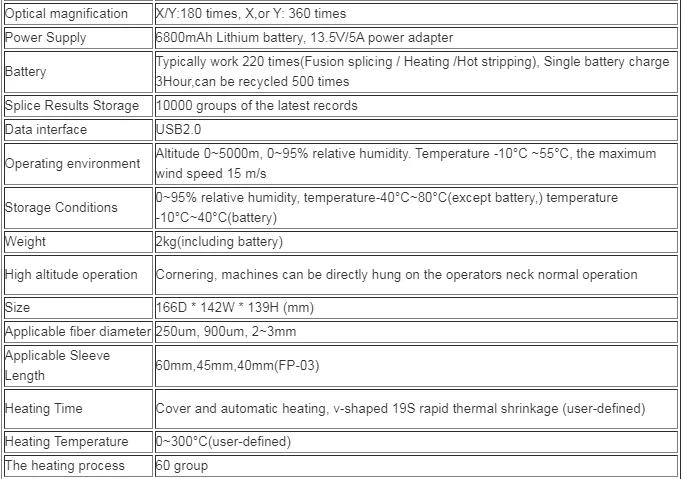

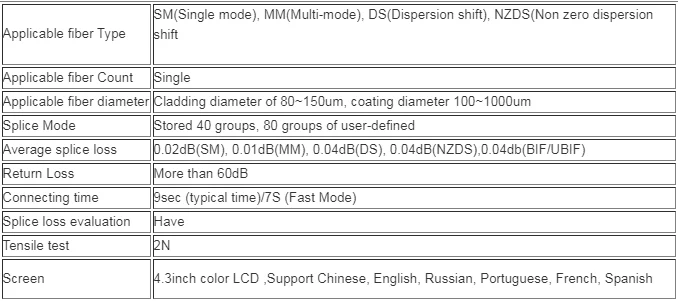

Specification

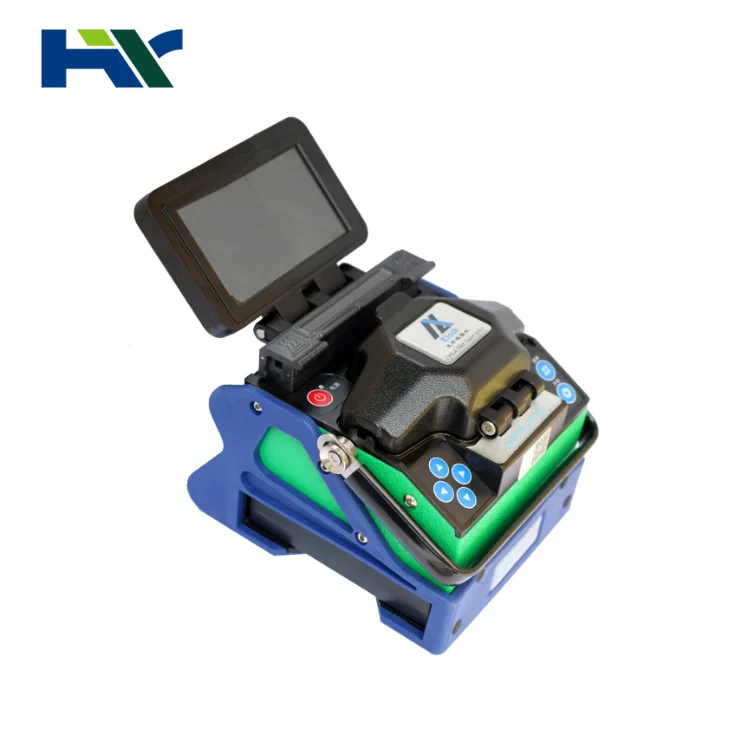

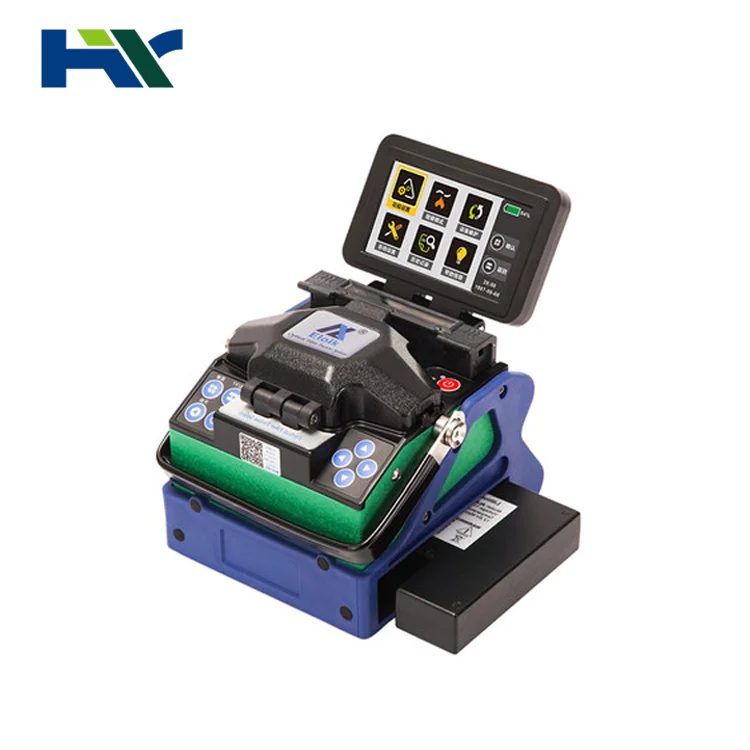

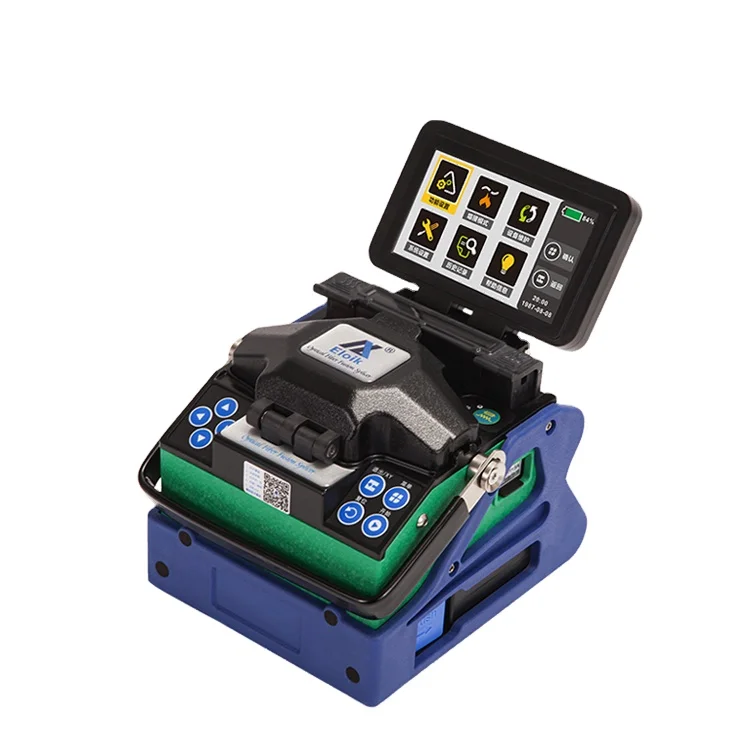

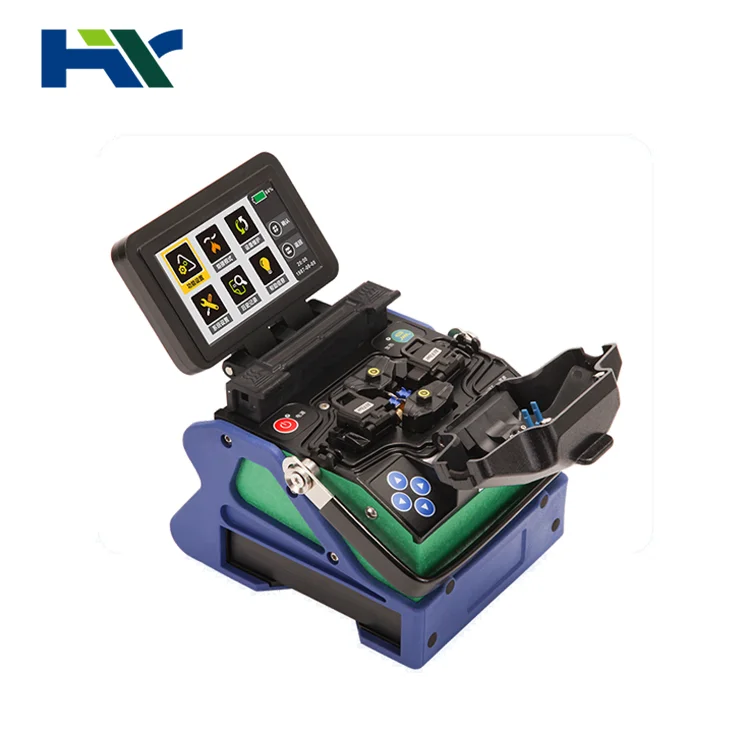

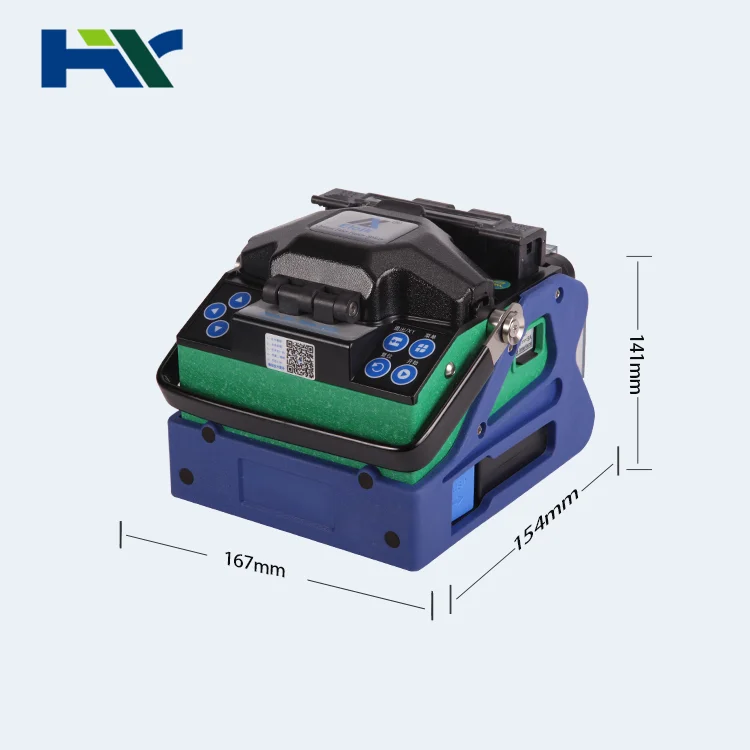

Product Show
Description
Eloik ALK-88A Fusion Splicer Fiber Optic Equipment is a New Fusion splicing machine and have our
own intellectual property right of fiber adjustment technology. It adopts advanced PAS Fiber adustment
technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project,
but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,
the most fast splicing speed
Company Information
Company Name
| Beijing Herui Photoelectric Technology Co., Ltd. |
Established Year
| 2007 |
Enterprise Culture | Quality ,Integrity ,Professional |
Brand
| HR.EXFO .YOKOGAWA . SHINEWAY .JOINTWIT .DVP .SINGNAL FIRE |
FAQ
1 About the quality?
After price confirmation, you can require for samples to check our quality.
2 Can you accept small order?
Yes, small order is available.
We support new project of our customers, as we know business is always from small order.
3 Can you accept the OEM service?
Yes. we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
