Product Overview
Description
Product Description
Standard Features:
• Dual zone dimple cooling jackets (3 or more on larger tanks)
• Interior shell: 304 stainless steel, thickness 3mm /11 gauge
• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
• 80mm Polyurethane insulation
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish

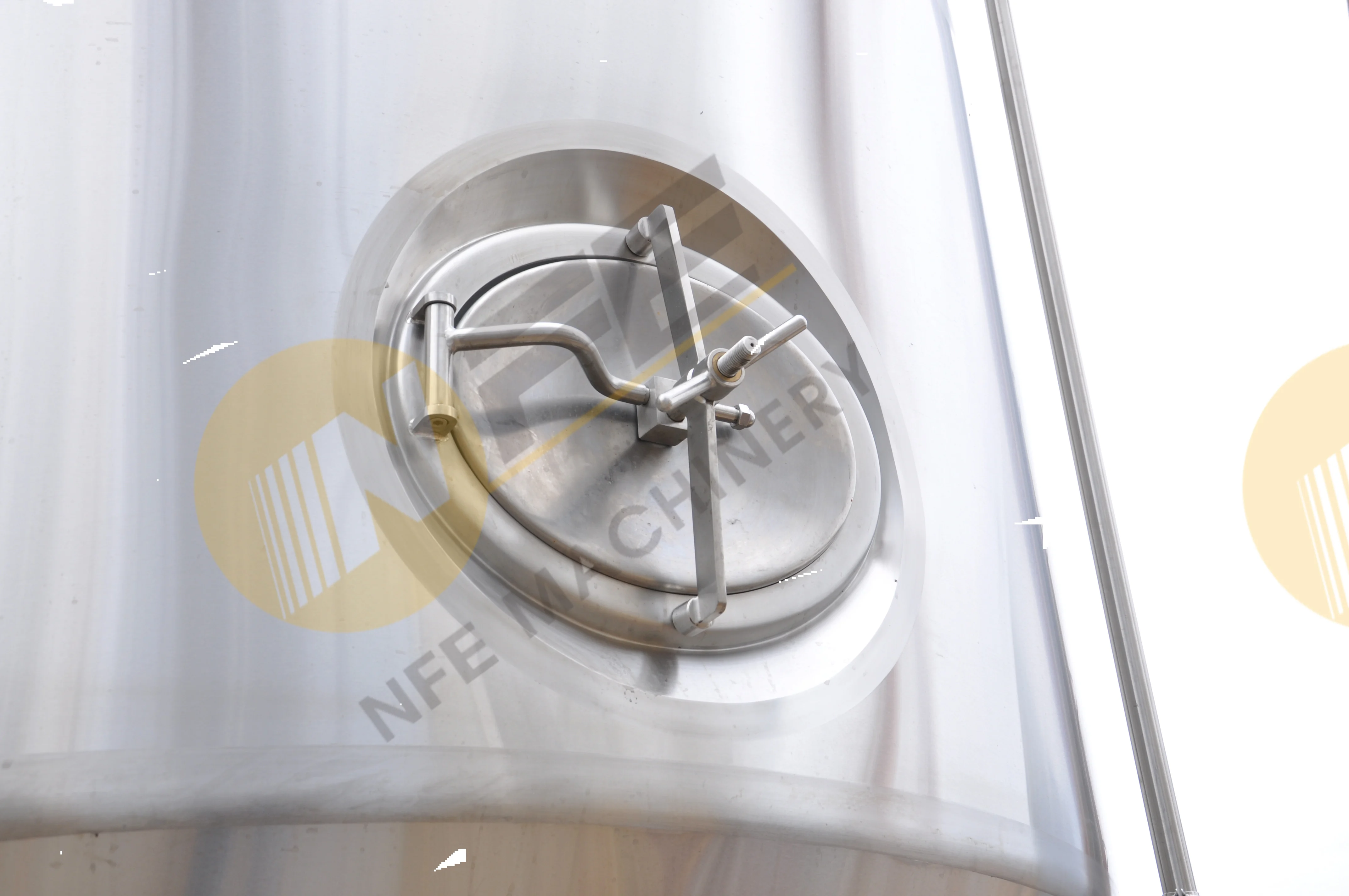

• 580x480mm Side manway, shadowless
• Dry hop inlet at top;
• Accessories:
Sample Valve x1;
Pressure relief/vacuum valve x1;

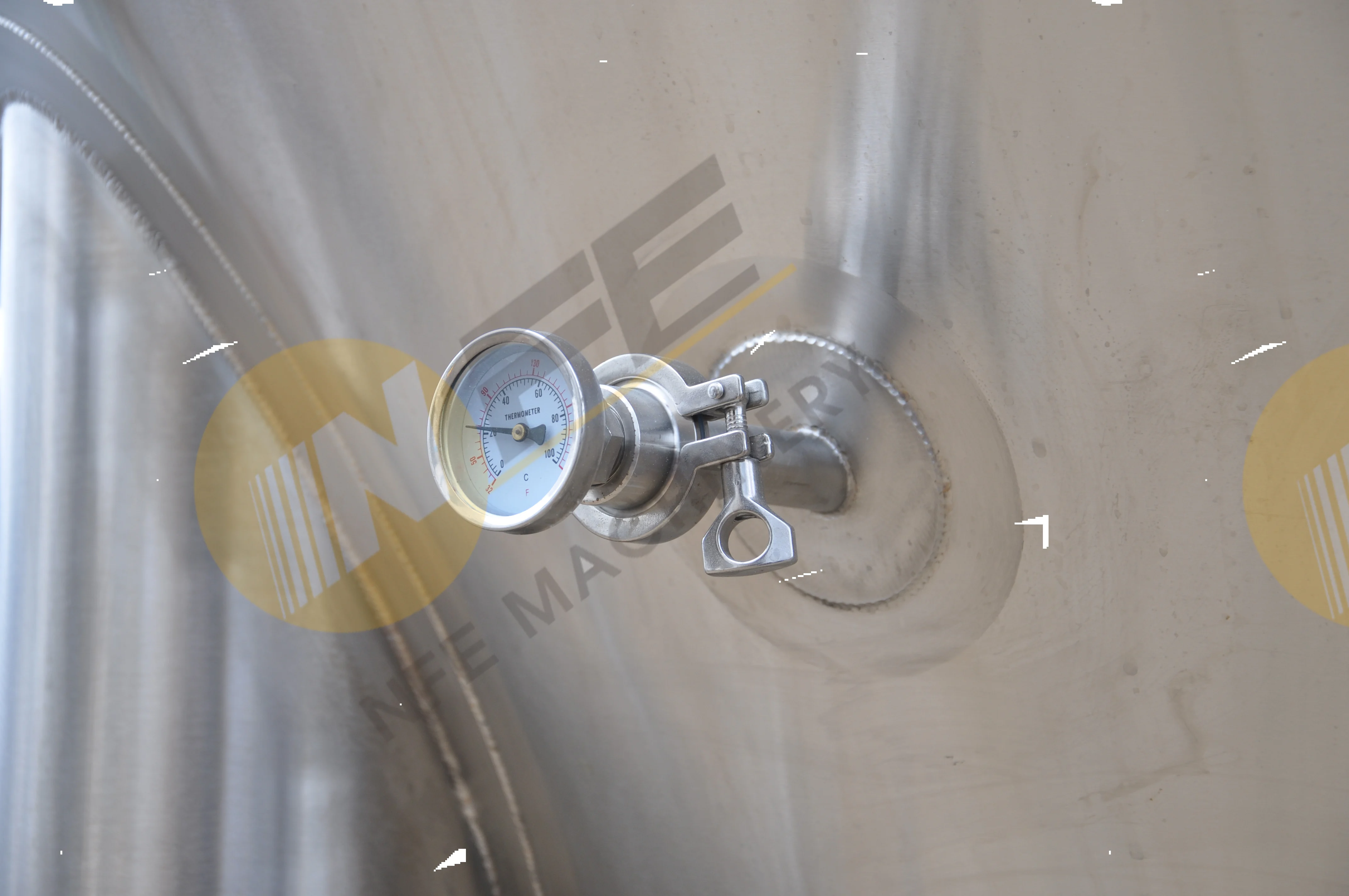

Temp. sensor / thermometer x1;

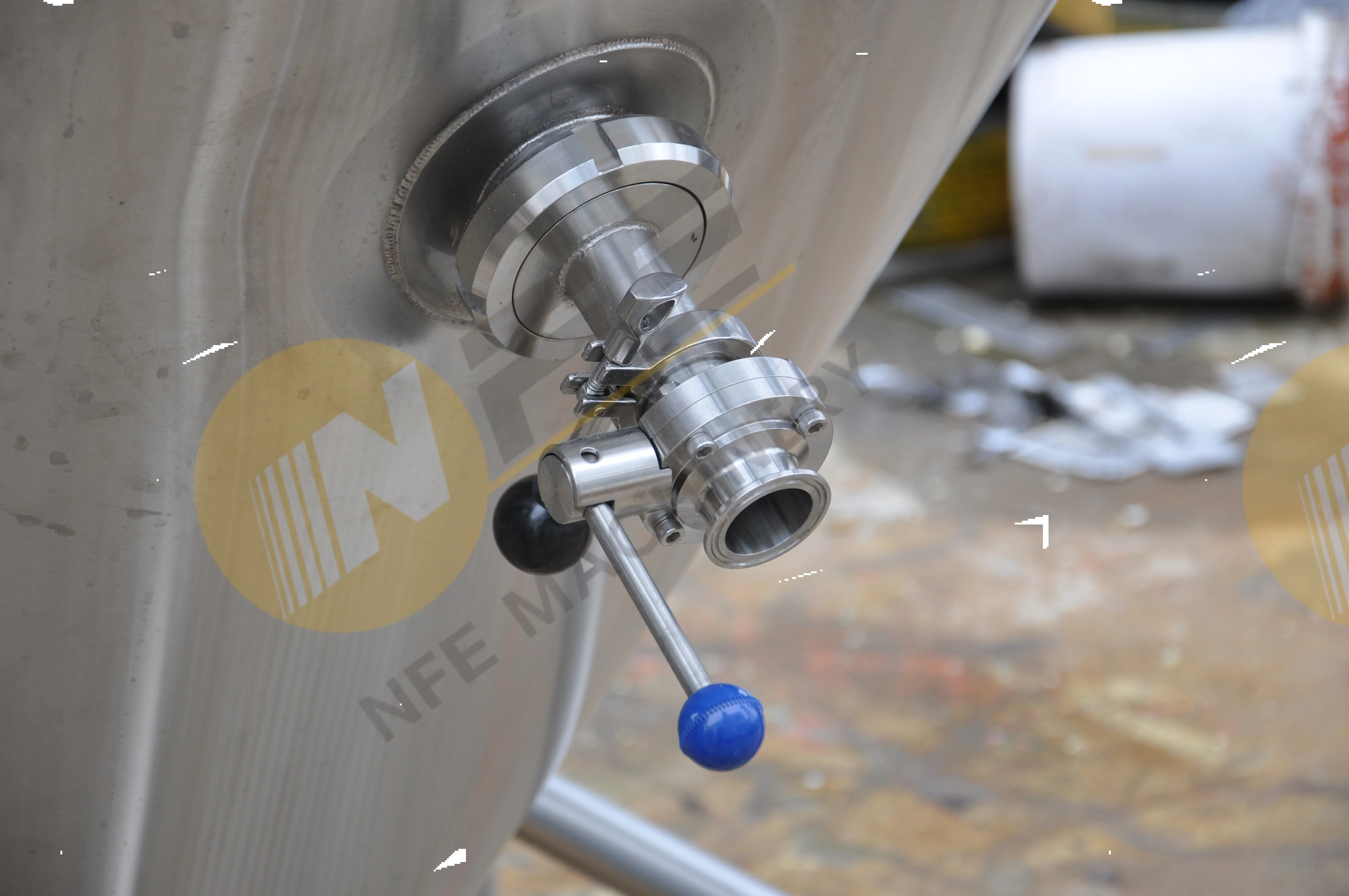

Rotating racking arm with butterfly valve x1;

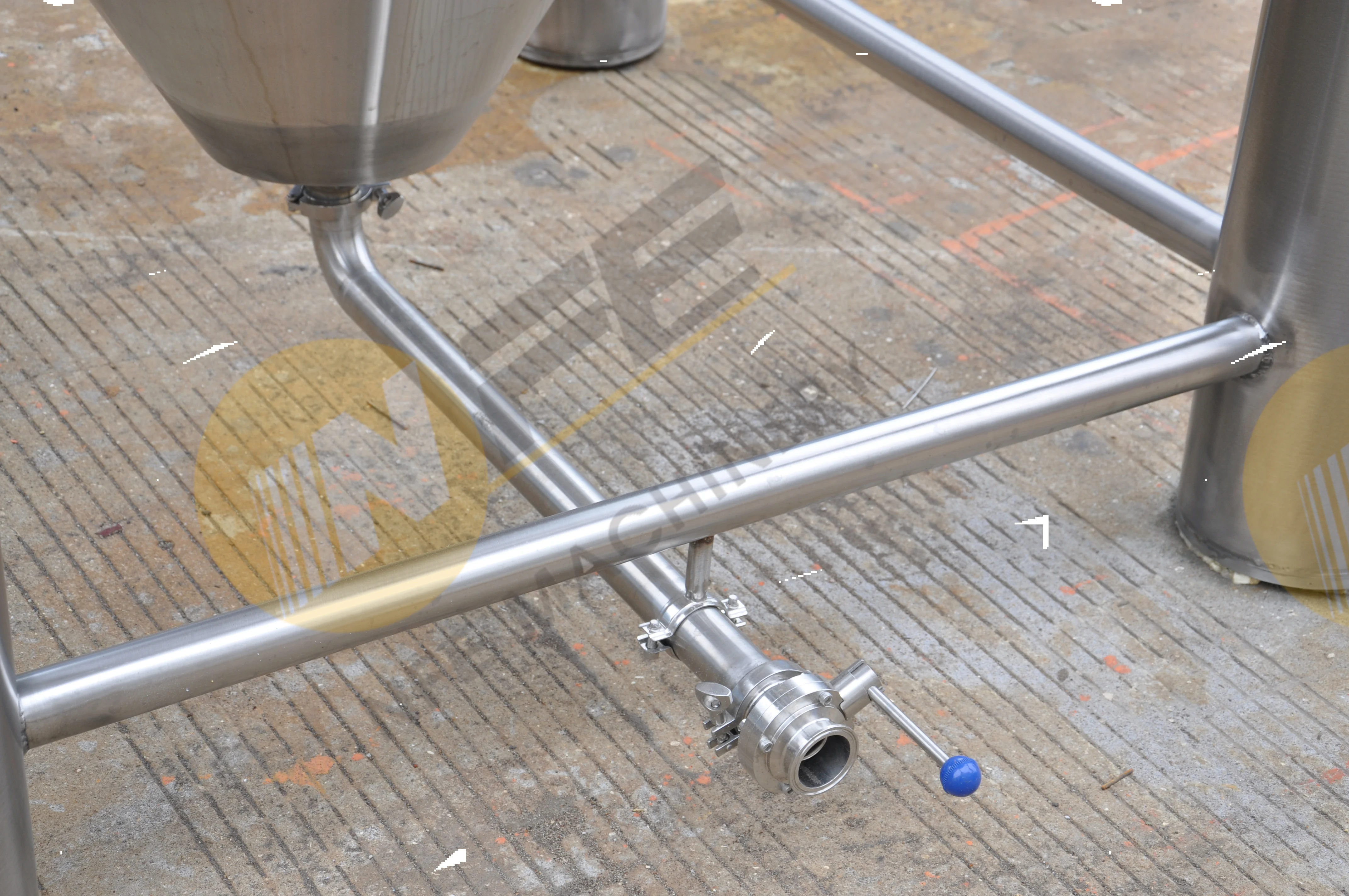

Bottom outlet with butterfly valve x1;

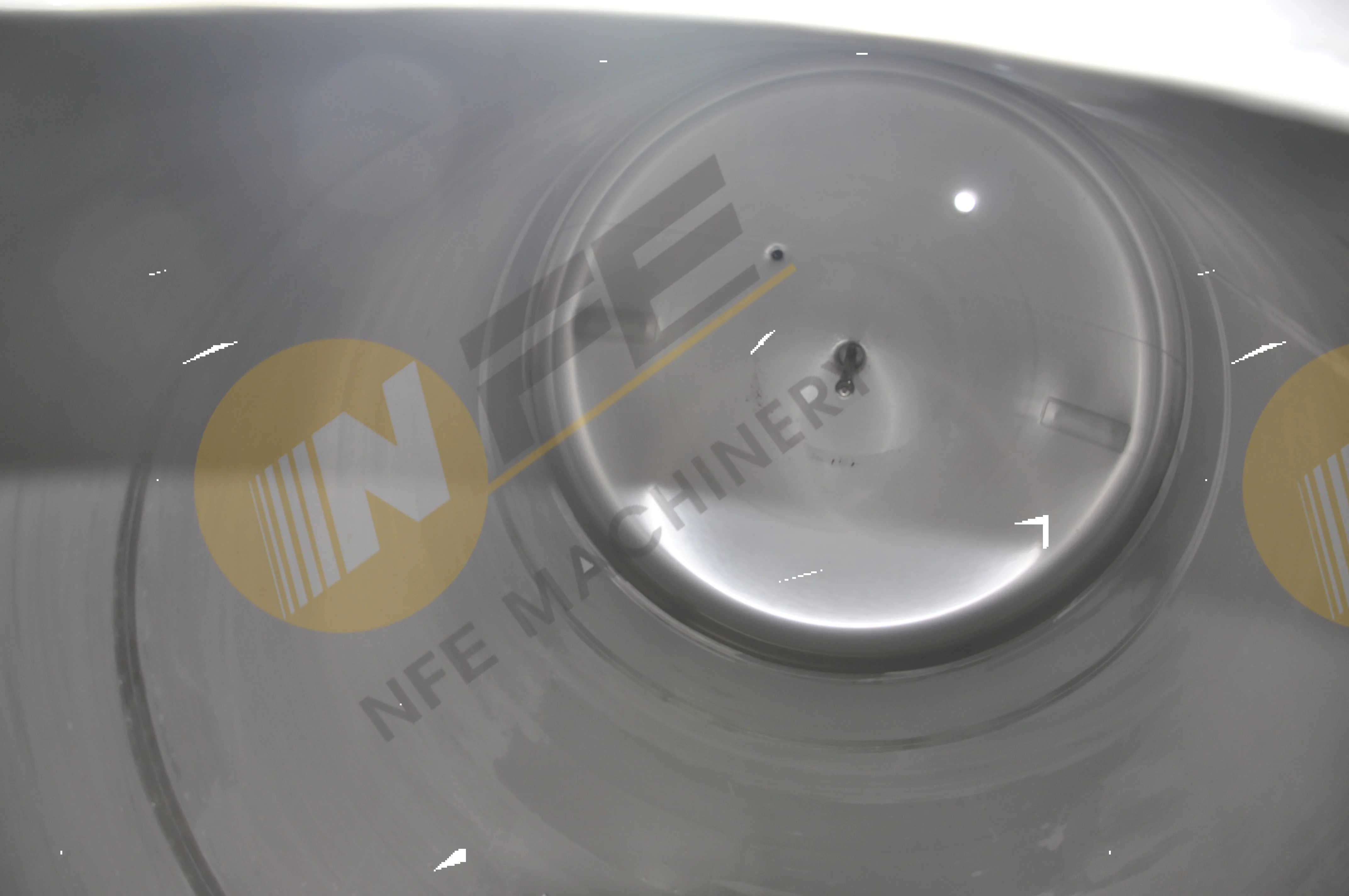

Spraying Ball with down tube x1;
Stainless pipe legs with adjustable footpads x4;
Capacity | Cylinder(OD×H) | Total Height | Inner Thickness |
3BBL | 960×750mm | 1880mm | 3mm |
5BBL | 1060×850mm | 2250mm | 3mm |
7BBL | 1160×900mm | 2450mm | 3mm |
10BBL | 1260 x 1150mm | 2800mm | 3mm |
15BBL | 1500 x 1220mm | 3100mm | 3mm |
20BBL | 1600 x 1400mm | 3500mm | 3mm |
30BBL | 1800 x 1650mm | 3760mm | 3mm |
40BBL | 1900 x 1850mm | 4210mm | 3mm |
50BBL | 1900 x 2050mm | 4750mm | 3mm |
60BBL | 2200 x 2150mm | 4830mm | 3mm |
80BBL | 2200 x 2900mm | 5780mm | 3mm |
100BBL | 2200 x 3600mm | 6450mm | 3mm |
Detailed Information
Part One
Name: Malt milling system
Brand: NFE
Original: China
Malt System: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER
Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h
Flex Auger: PPR material pipe, stainless steel auger, motor
Grist Hopper, Grain bin
Part Two

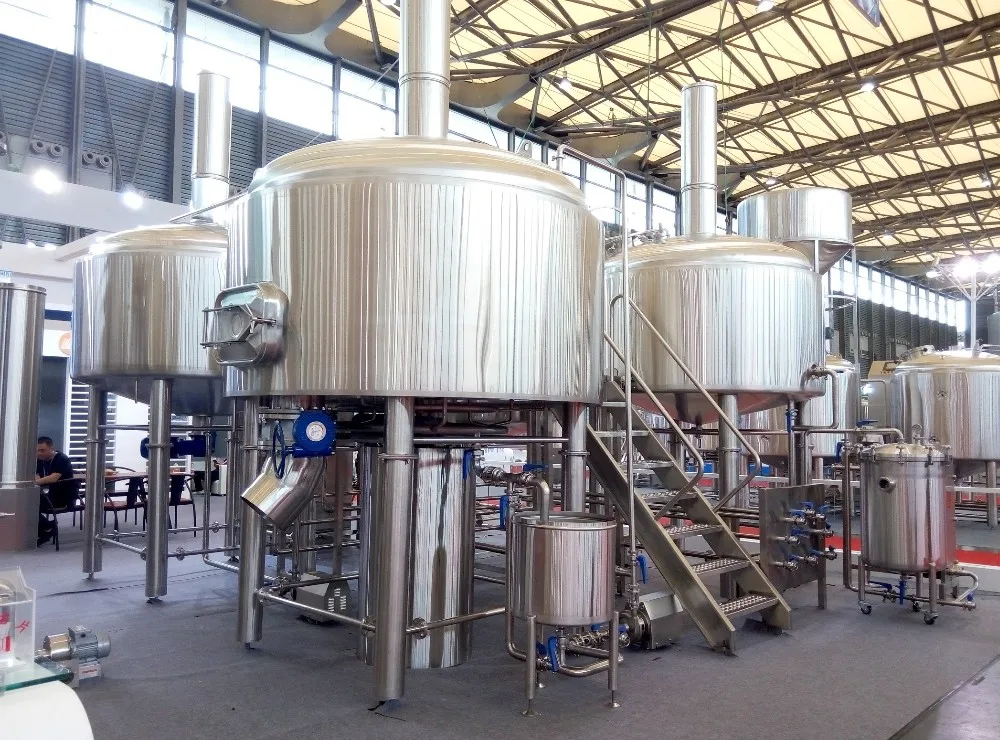

Name: Brewhouse
Brand: NFE
Original: China
Brewhouse Equipment: Mash tank, lauter tun, brew kettle, whirlpool tun.
1. Brewhouse: two vessels, three vessels, four vessels brewhouse
2. Heating medium: steam heating
3. Insulation material: rock wool. Insulation thickness: 100mm
4. Mash tank; hydrator, mixer, steam heating jacket
5. Lauter tun: rake, agitator, false bottom, hydrator
6. Brewkettle, steam heating jacket, inner steam heating deivce
7. Whirlpool tun: whirlpool entry
Part Three

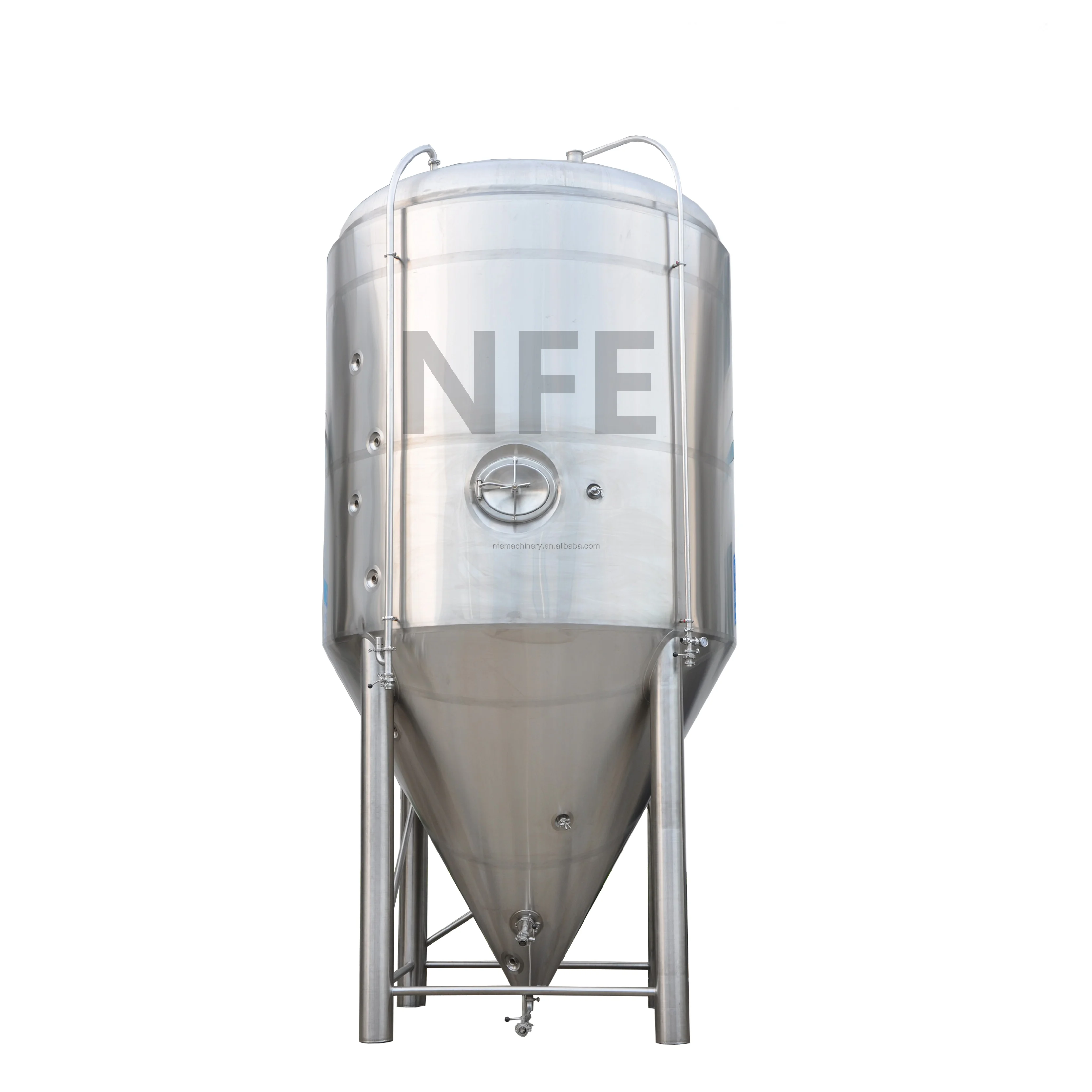

Name: Fermentation tank
Brand: NFE
Original: China
Fermentation tank : 100L-200HL
Main specification:
1. Stainless steel 304, side man way or top manway;
2. PU insulation, insulation thickness: 80-100mm;
3. Inside wall thickness: 3mm, outer shell thickness: 2mm;
4. CIP Rotary Spray Ball;
5. Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves;
6. PT100 temperature sensor, with temperature controller;
7. 2 sections dimple plate cooling jacket( 1 on wall and 1 on cone);
8. Complete with associated valves and fittings;
Part Four
Name: Bright beer tank
Brand: NFE
Original: China
Bright beer tank : 100L-200HL
Main specification:
1.\tSanitary Stainless steel 304, dome top head and dome bottom;
2.\tSurface brushed, welding line polish sanding light belt;
3.\tPolyurethane insulation, thickness: 80-100mm; Dimple plate cooling jacket
4. Inner body thickness 3mm, cladding thickness 2mm;
5.\tWith rotary CIP spray balls and arm;
6.\tPT100temperature sensor;
7.\tSample valve in the cylinder;
8.\tCarbonation stone;
9. Complete with associated valves and fittings.
Part Five
Name: Hot/Cold water tank, Glycol tank
Brand: NFE
Original: China
1. Stainless steel 304,
2. steam jacket heating or electric heating or direct gas fired heating,
5. rock wool insulation, and the thickness of insulation is 80-100mm;
6. The thickness of inner body is 3mm,
7. With glass level tube.
Part Six
Name: CIP system
Brand: NFE
Original: China
1. Sterilization tank;
2. Alkali liquor tank;
3. Sterilize vehicle;
4. CIP pump;
5. Pipes and valves;
6. Control box.
Part Seven
Name: Control system
Brand: NFE
Original: China
Control system: manual button control or PLC control;
According to customer's requirement.
Packing & Delivery
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
Company Information
*Our Design*

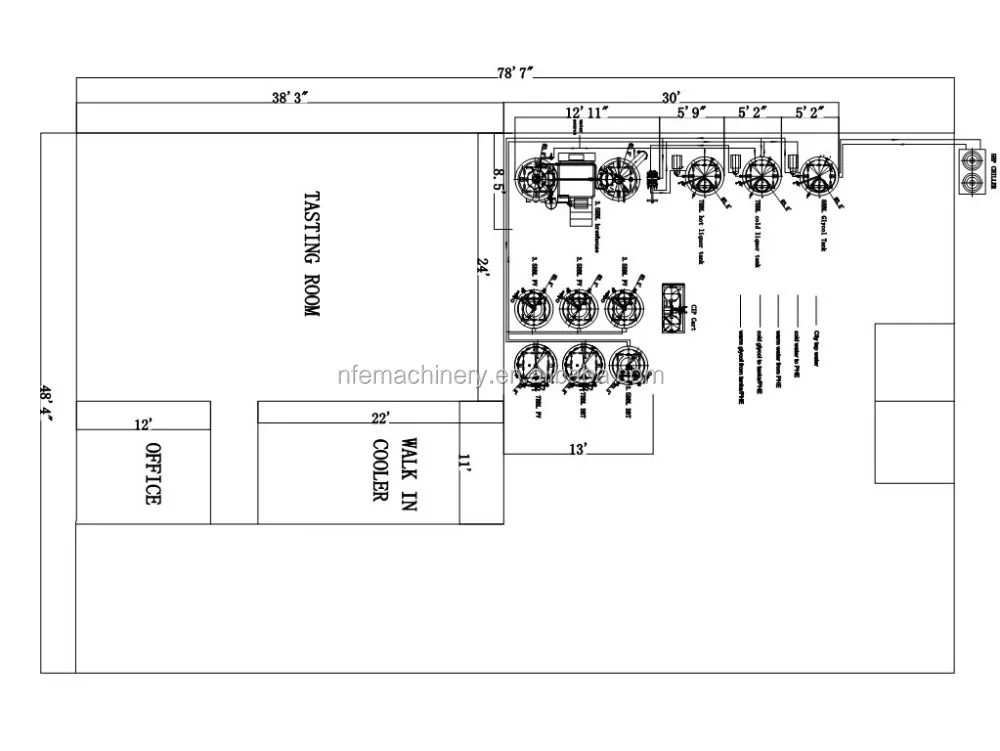

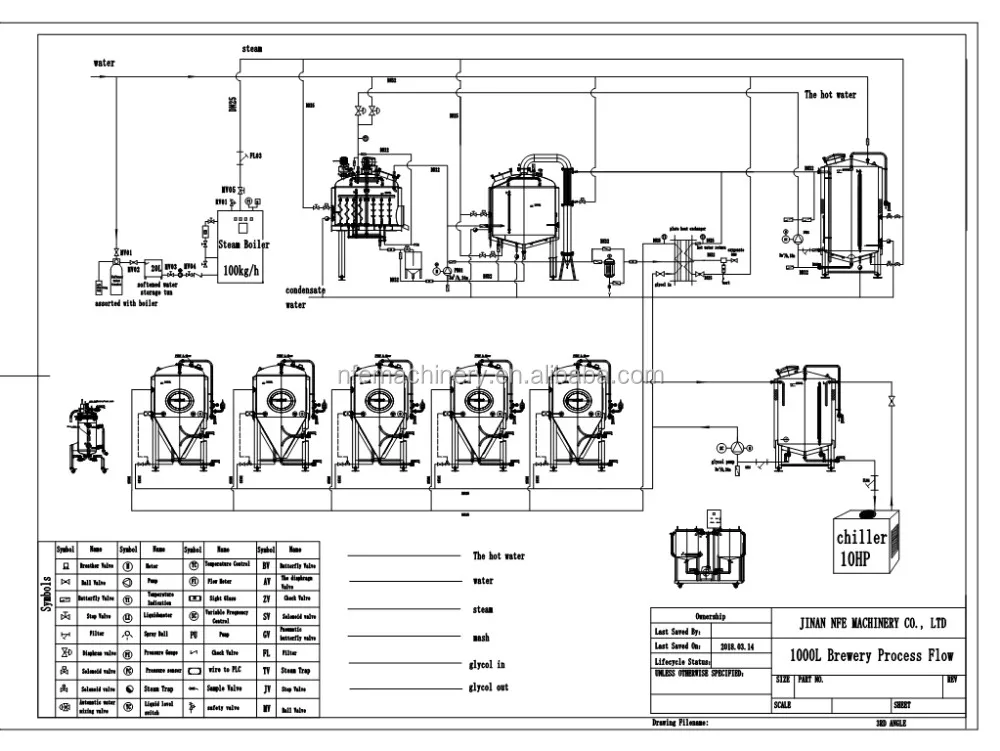

NFE own a rich-experienced technical design team, we can design the technical drawings and solutions completely as per demands of different customers. Based on the production capacity, workplace dimension, beer brewing technique, cost budget of different customers, we make the most reasonable technology process flow drawings, tank drawings, workplace layout drawings, pipeline connection drawings, electric control drawings etc, which can make the project clearly and easily for each customers.
*Our Service*
We provide turnkey system, onsite installation service for brewery projects.
We are preparing to supply technology service at any time, will offer equipment handbook, electrical appliance drawing and machinery drawing to customers with the equipment.
*Customers visiting*
Welcome every customer interested in our products to visit our factory and discuss the related product details. Our bar has already prepared beer for you.
*Our Exhibition*
2016.10-- -2016 CBC Shanghai
2017.04----2017 CBC BrewExpo in Washtington DC, USA
2017.09----2017 Drinktec in Munich, German
*Workshop*
100% Pressure & leak testing of all tanks, jackets, and hardpiping.
All eletronics and brewhouses pre-assembled and tested before shipping.
