Falco Manufacture KGS1632SD Автоматическая шлифовальная машина
- Category: Other Grinding Machines >>>
- Supplier: SJR,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

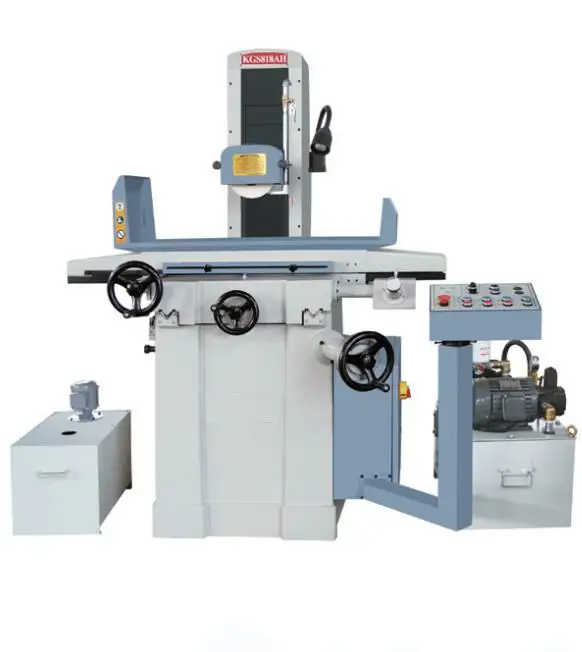

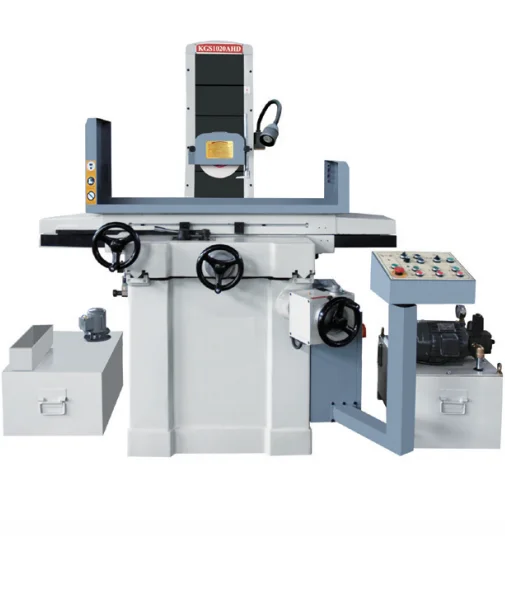

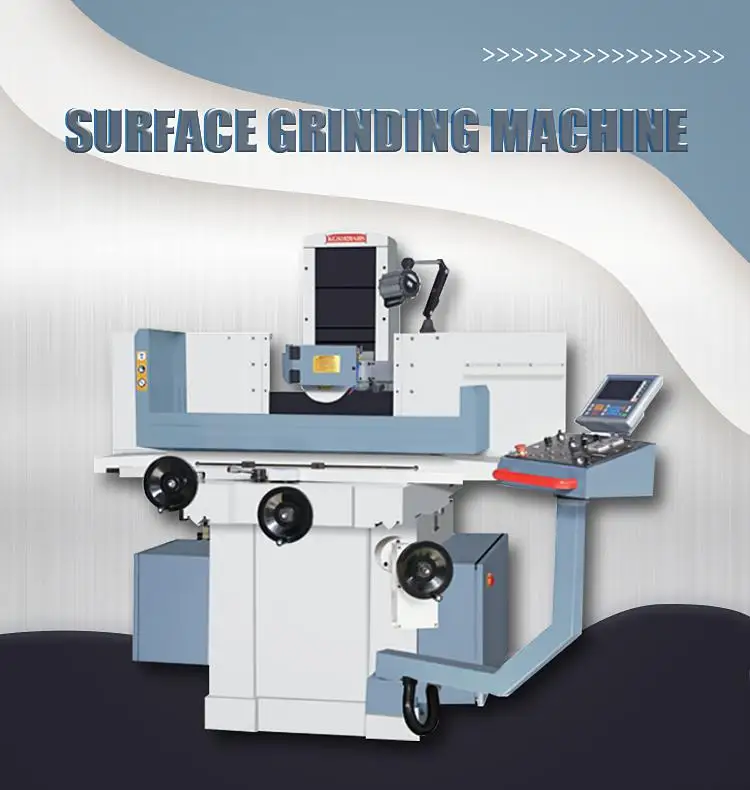

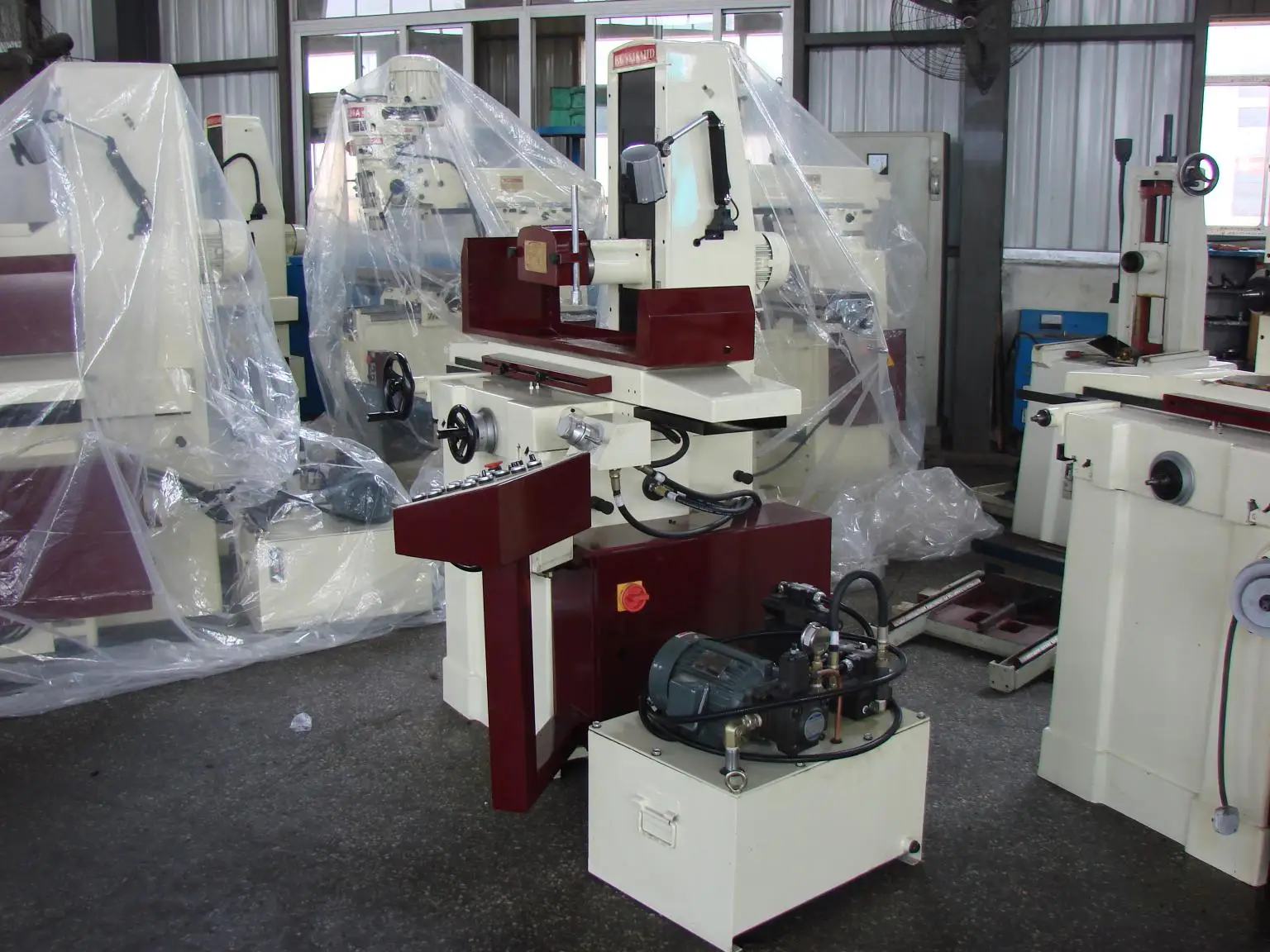

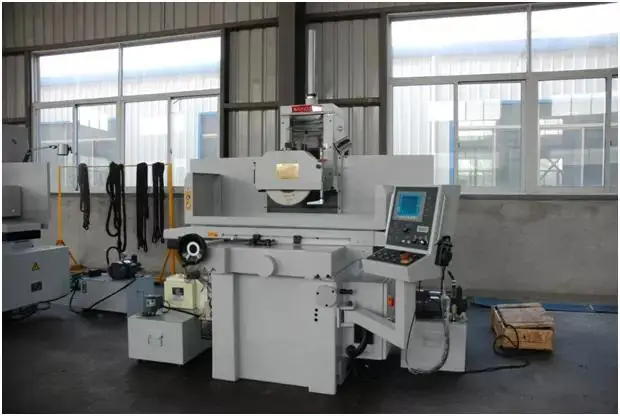

NC surface grinder machine
1.advanced control system: all the electric accessories are of good function and quality
2.much more stable structure: considering the actual production, we take the most suitable structure to ensure the machine work
more quiet and smooth
3.wider range for using: this machine can be widely used in many aspects
2.much more stable structure: considering the actual production, we take the most suitable structure to ensure the machine work
more quiet and smooth
3.wider range for using: this machine can be widely used in many aspects
Product parameter
Main Specifications:
Parameters | Unit | 52548 KGS1224SD | 52549 KGS1632SD | 52550 KGS510SD | 52551 KGS1224AH/AHD/SD | 52552 KGS1632AH/AHR/AHD/SD | 52553 KGS1640AH/AHR/AHD/SD | ||||
Working Surface of Table | mm | 300x600 | 400x800 | 500x1000 | 300x600(12"x24") | 400x800(16"x32") | 400x1000(16"x40") | ||||
Max.Table Travel | mm | 660 | 920 | 1140 | 660 | 920 | 1120 | ||||
Max.Cross Travel | mm | 370 | 450 | 540 | 370 | 450 | 450 | ||||
Distance Between Table Surface and Spindle Center | mm | 540 | 580 | 590 | 540 | 580 | 580 | ||||
Max.Table Load | kgs | 420 | 700 | 700 | 420 | 700 | 700 | ||||
Tee Slot(NumberXWidth) | mm | 1x14 | 3x14 | 3x16 | 1x14 | 3x14 | 3x14 | ||||
Table Speed | m/min | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | ||||
Crossfeed Hand- wheel | 1grad | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | |||
1rev | 5 | 5 | 5 | 5 | 5 | 5 | |||||
Automatic Crossfeed | mm | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 | ||||
Power Cross Feed | 50Hz | mm | 790 | 790 | 1250 | 790 | 790 | 790 | |||
60Hz | 950 | 950 | 1500 | 950 | 950 | 950 | |||||
Grinding Wheel | mm | 355x40x127 | 355x40x127 | 355x40x127 | 355x40x127 | 355x40x127 | 355x40x127 | ||||
Spindle Speed | 50Hz | rpm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | |||
60Hz | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 | |||||
MPG Handwheel Feed Rate | x1,x10,x100 | x1,x10,x100 | x1,x10,x100 | ||||||||
Vertical Hand wheel | 1grad | mm | 0.01/0.01/0.001 | 0.01/0.01/0.001 | 0.01/0.01/0.001 | ||||||
1rev | mm | 2/2/0.5 | 2/2/0.5 | 2/2/0.5 | |||||||
Min.Down Feed Rate | mm | 0.001 | 0.001 | 0.001 | -/-/0.005~0.025 | -/-/0.005~0.025 | -/-/0.005~0.025 | ||||
Power Head Increment | mm/min | 210 | 210 | 210 | -/380/230 | -/380/230 | -/380/230 | ||||
Spindle Motor | kw | 4.0 | 5.5 | 5.5 | 4 | 5.5 | 5.5 | ||||
Vertical Motor | nm | 3.57 | 3.57 | 2.6 | -/90/90 | -/90/90 | -/90/90 | ||||
Hydraulic Motor | kw | 1.5 | 2.2 | 2.2 | 1.5 | 2.2 | 2.2 | ||||
Dust Collection Motor | w | 550 | 550 | 550 | 550 | 550 | 550 | ||||
Coolant Motor | w | 90 | 90 | 90 | 90 | 90 | 90 | ||||
Crossfeed Motor | kw | 90 | 90 | 370 | 90 | 90 | 90 | ||||
Floor Space Dimensions | mm | 2600x2500 | 3600x2600 | 4445x2200 | 2600x2500 | 3600x2600 | 3600x2600 | ||||
Packing Dimensions | mm | 2090x1940x2210 | 2275x2255x2210 | 3400x2260x2250 | 2090x1940x2210 | 2775x2255x2210 | 2990x2225x2210 | ||||
Net Weight | kgs | 1900 | 2800 | 5000 | 1800/1810/1910 | 2800x2810x2850 | 2900/2910/2950 | ||||
Gross Weight | kgs | 2200 | 3100 | 6000 | 2100/2100/2210 | 3100x3110x3150 | 3200/3210/3250 | ||||
Recommend Products

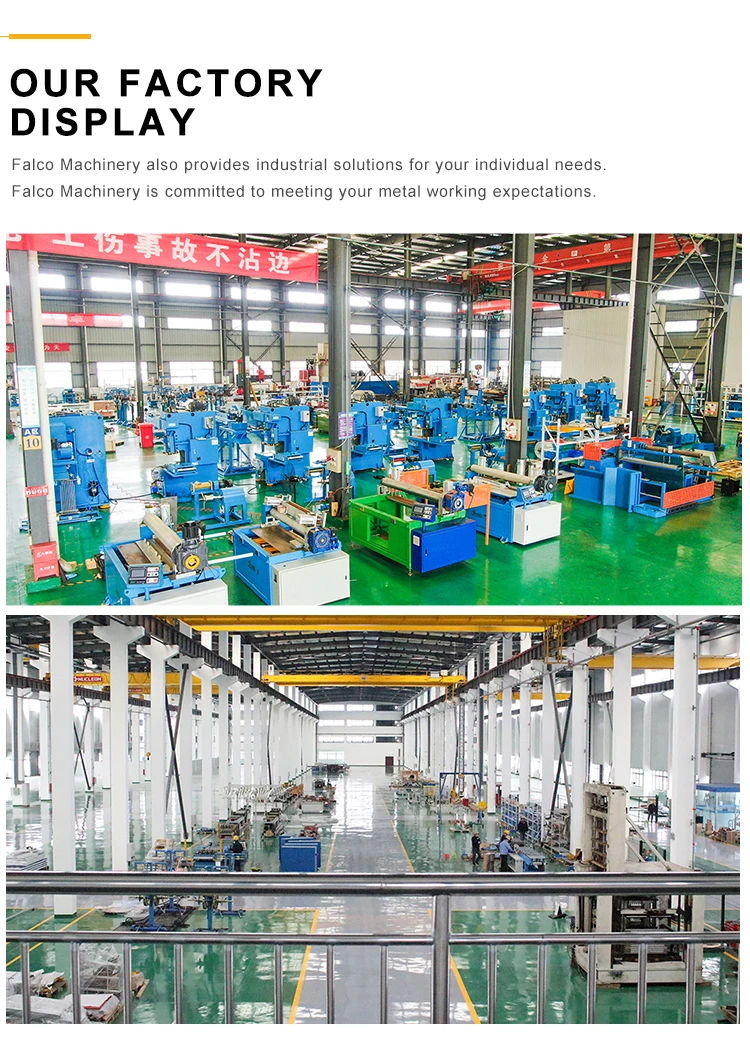

Company Profile
