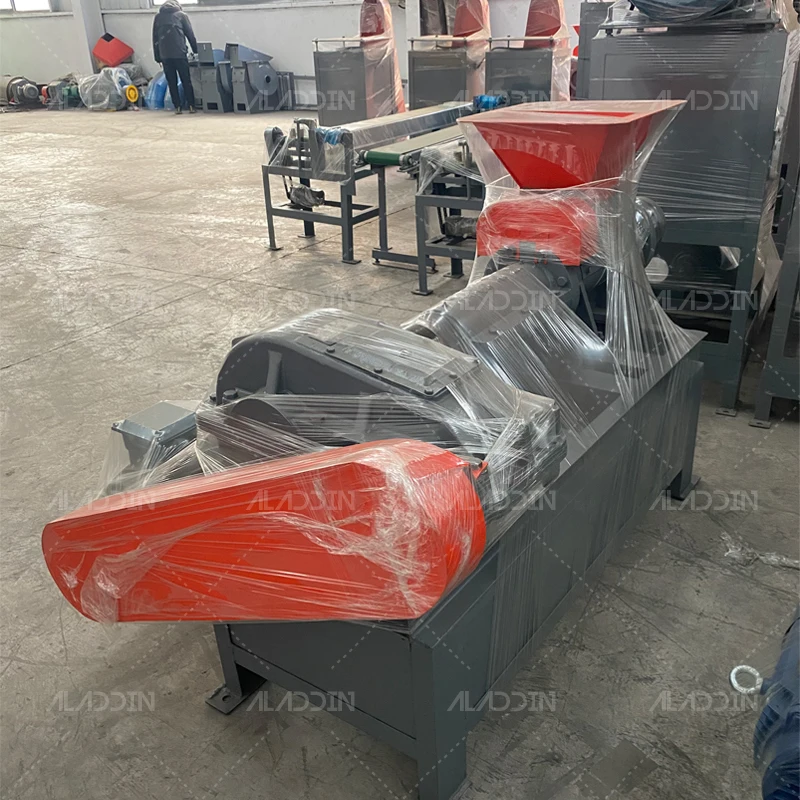

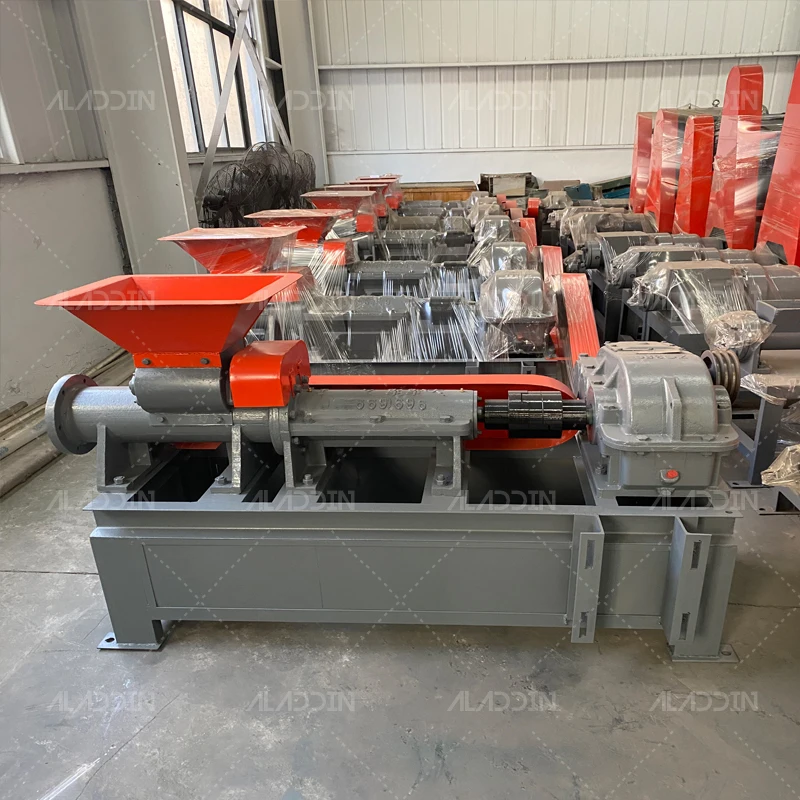

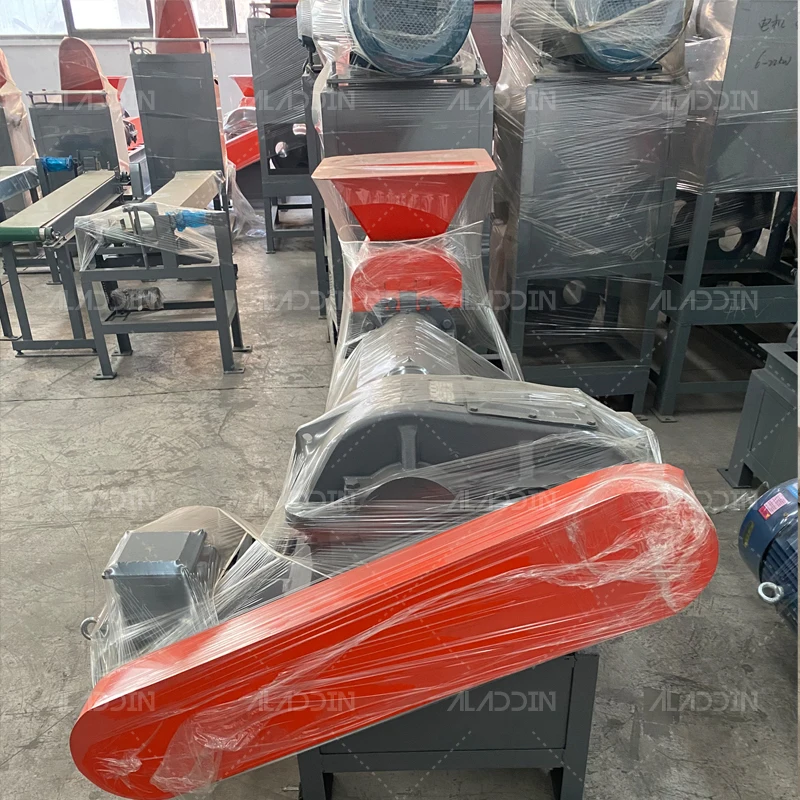

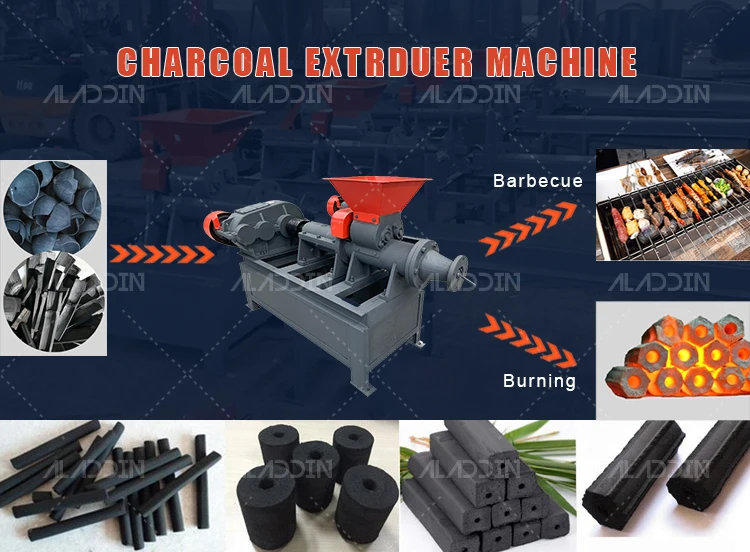

Machine introduction of the wood briquettes charcoal making machine ♦1. Coal bar machine is made of powdered coal strip fast machines of different shapes. ♦2. Its working principle is: V-belt to power the motor to pass through transmission, the transmission output shaft coupling the power to pass through the floating propeller shaft, propeller shaft drive to promote coal material introduced by the molding die, while production of the ideal high-pressure coal.

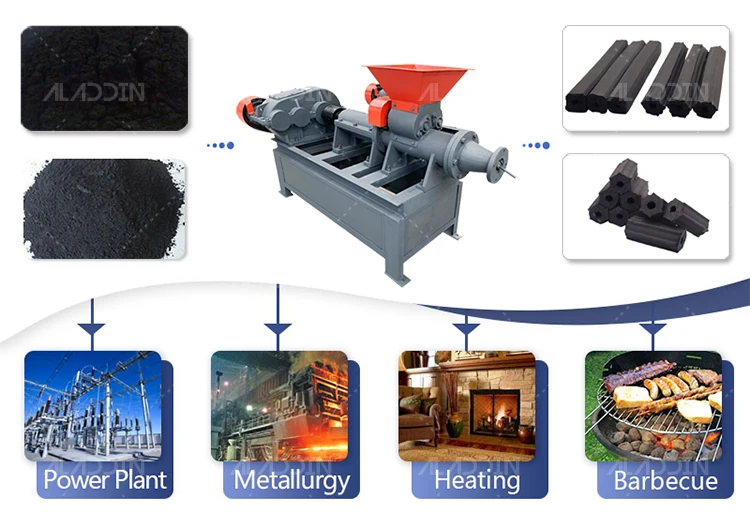

Charcoal Extruder Briquette Machine is a kind of waste renewable energy fuel, smokeless, odorless, non-toxic, clean, widely used in home heating, barbecue food, market demand. It adopts a good ratio of pulverized coal or toner, and is compression-molded by the principle of spiral extrusion.
The molded product has the shape of a circle, a hexagon, a plum shape and the like. The coal rod machine is the main equipment of the fuel forming section. It can convert coal powder or carbon powder into coal rod of a certain strength, so as to make full use of fuel and reduce fuel cost.
Composition of charcoal briquettes
The charcoal briquette is mainly composed of two parts, the charcoal which is used to provide heat and the minor ingredients. Charcoal is the product of incomplete combustion of wood or wood raw materials or pyrolysis under the condition of air isolation.
Its main component is carbon, so it can be used as fuel. The minor ingredients include accelerants, white ash and briquette binder.
This Charcoal Extruder Briquette Machine can press coal/charcoal powder into stick shapes,with hole or without hole. It can press the powders into different shapes by changing different molds. It is used to crush biomass charcoal into powder. The powder is less than 3mm

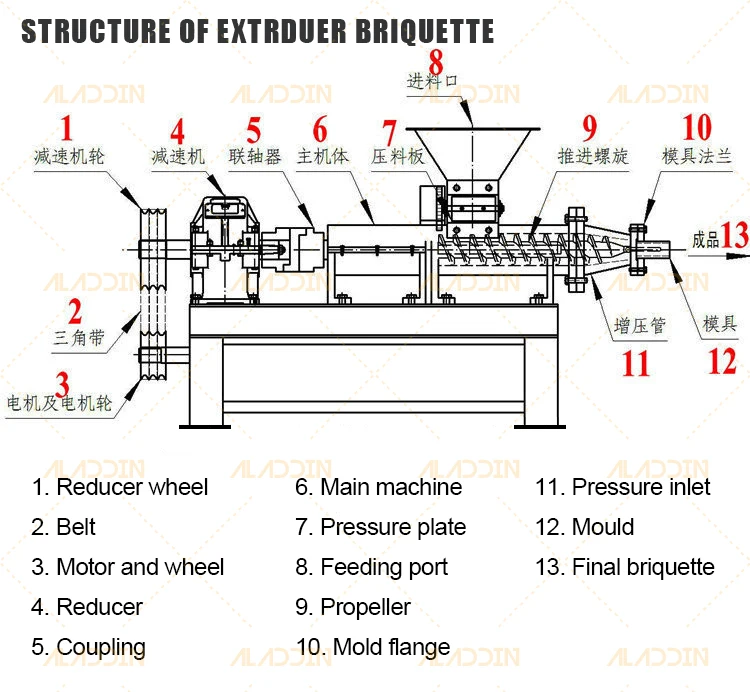

Working Principle

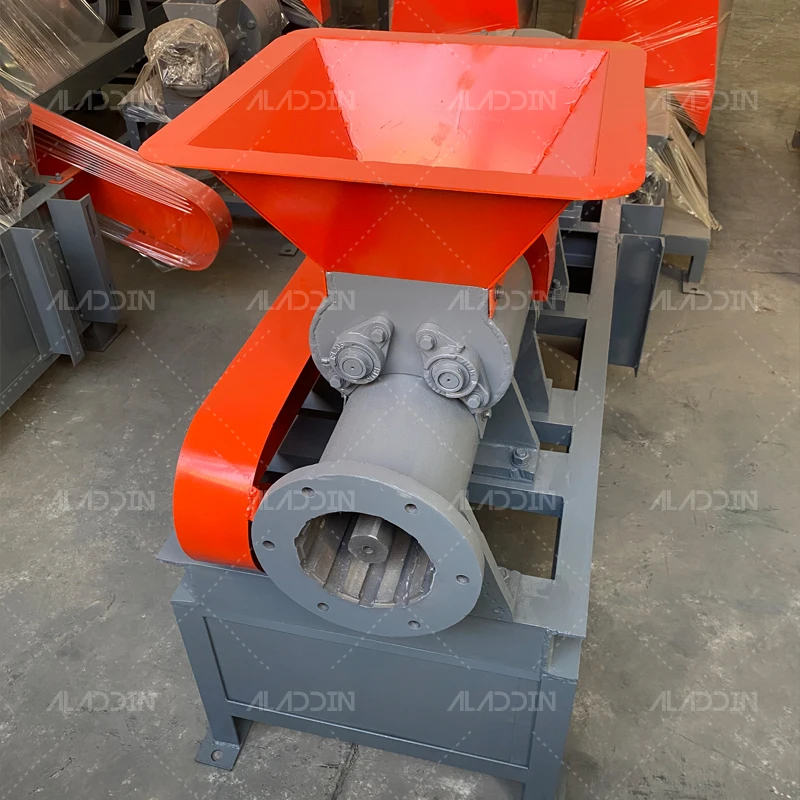

The screw sandwiches the raw materials from the feeding port and propells the materials The charcoal/coal powder is gradually compressed and the particles are close together, resulting in greater agitation and mixing.
At this time, the charcoal/coal powder particles and blades produce strong friction and shear, generate heat and increase temperature of the raw charcoal/coal, the moisture and binder are more uniform, and the plasticity of the coal is greatly increased. In addition, its decelerate machine has a small size and strong carrying capacity. The interior of the impeller is designed with thickened blades. The impeller and the inner liner of the barrel are made of wear-resistant casting materials whose service life is 4-5 times longer than that of ordinary materials. The machine head can be replaced with wear-resistant alloy steel for easy replacement.

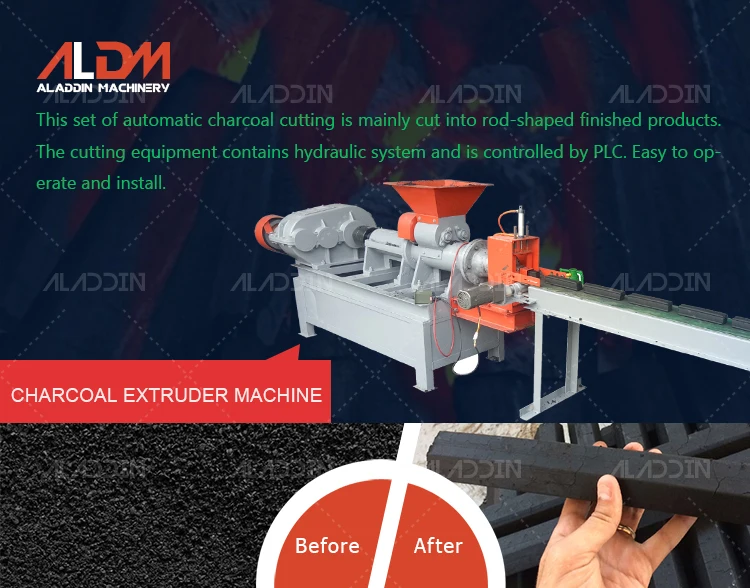

After extruding the charcoal/coal, it is cutted by the automatic cutter into the length desired by the customer, and fina
Technical Data
Model
CM160
CM180
Capacity
200-300kg/h (for charcoal powder)
300-500kg/h (for charcoal powder)
Power
11kw
22kw
Feeding size
3-5mm
3-5mm
Moisture content
25%-35%
25%-35%
Briquette diameter
20-60mm
20-60mm
Size
2000*1300*1160mm
2252*1430*1600mm
Weight
860kg
1100kg
Product Details

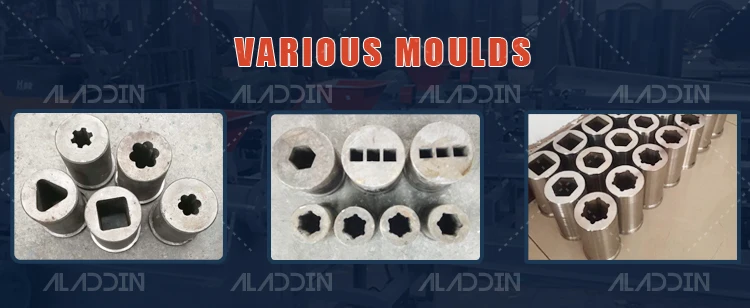

Various moulds of charcoal extruder machine It is recommended that customers purchas machines that can be equipped with different shapes of moulds . The normal moulds size iscylindrical, square, hexagonal, round andother shapes you are interested in.
