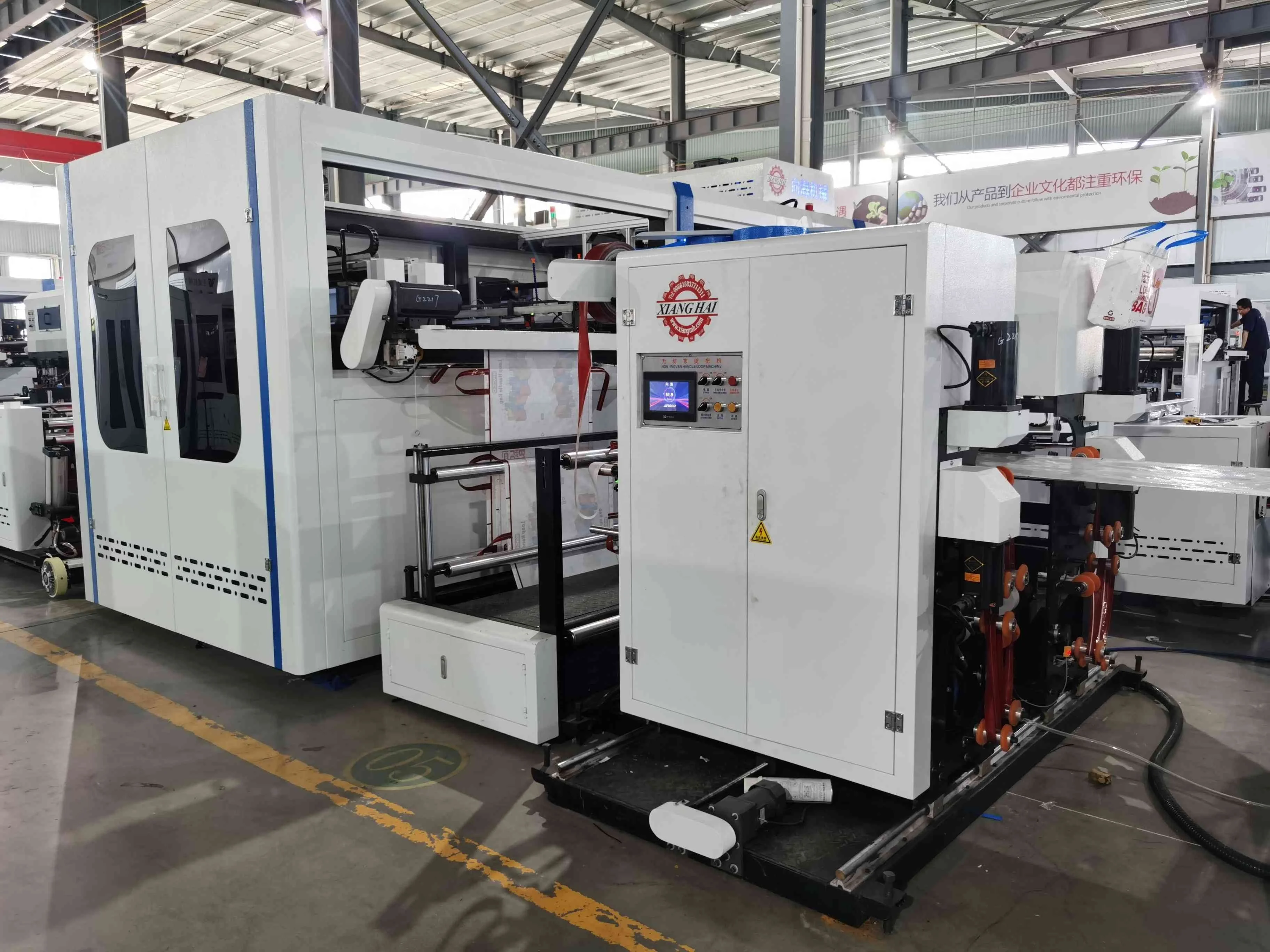

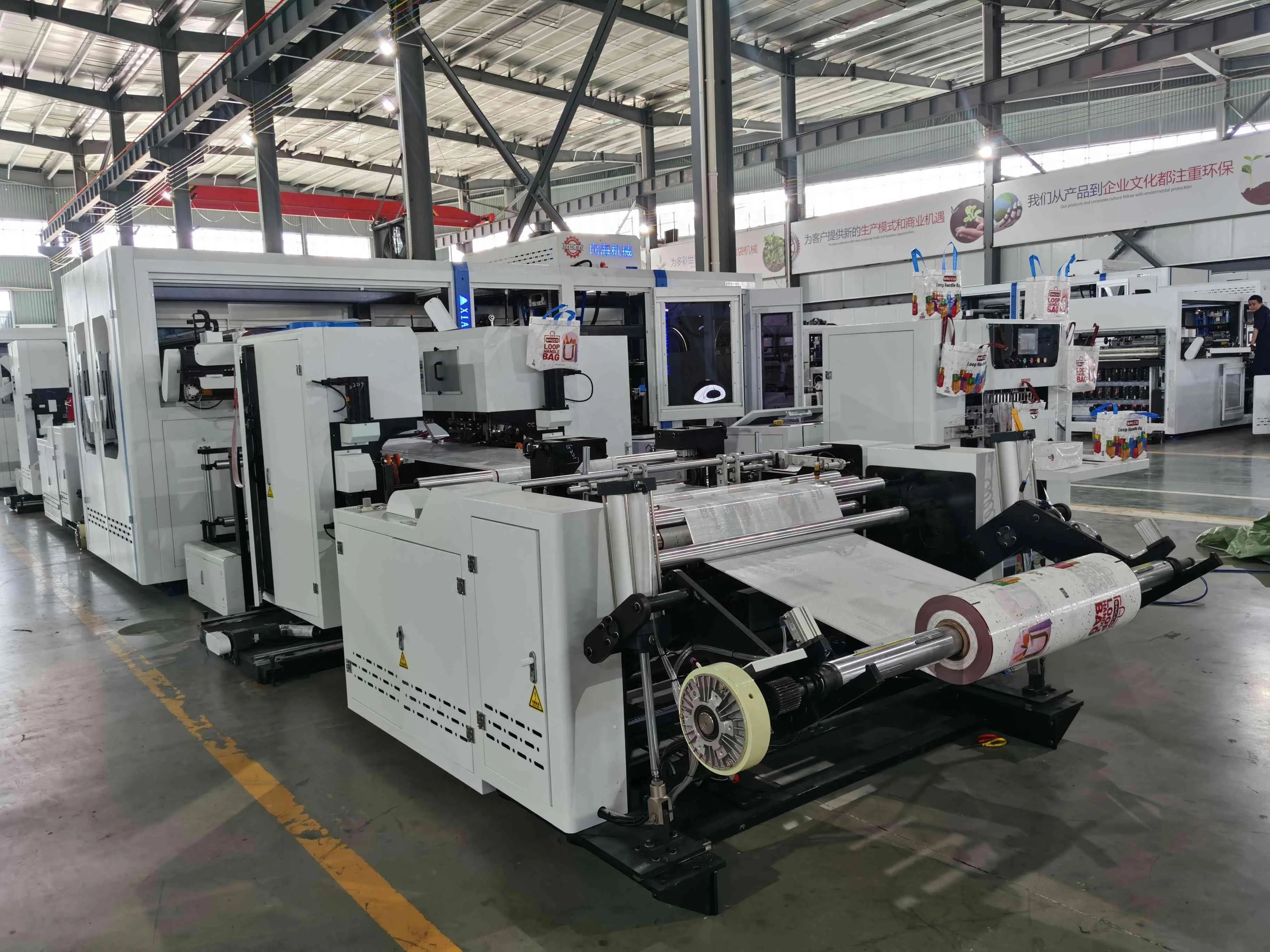

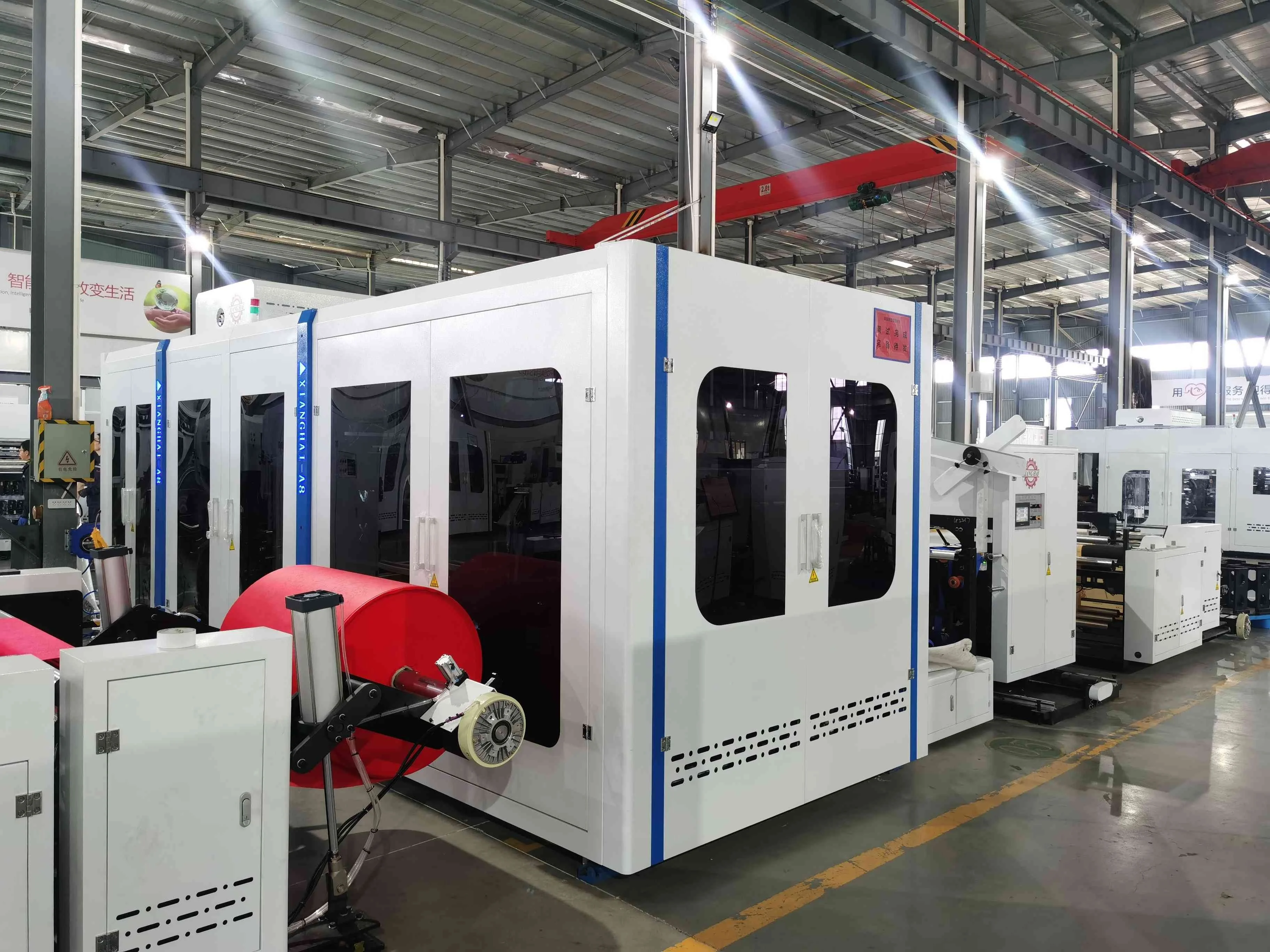

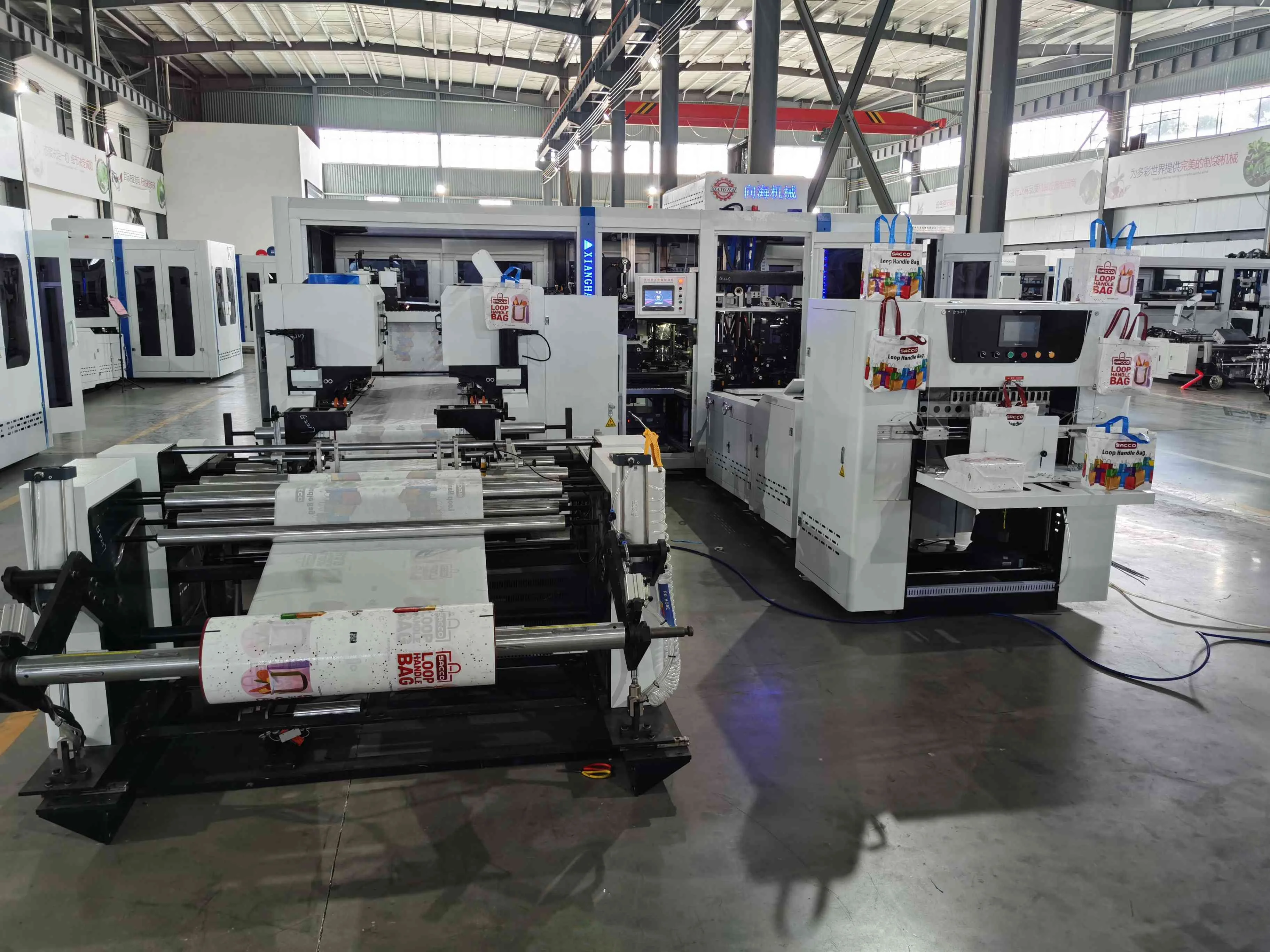

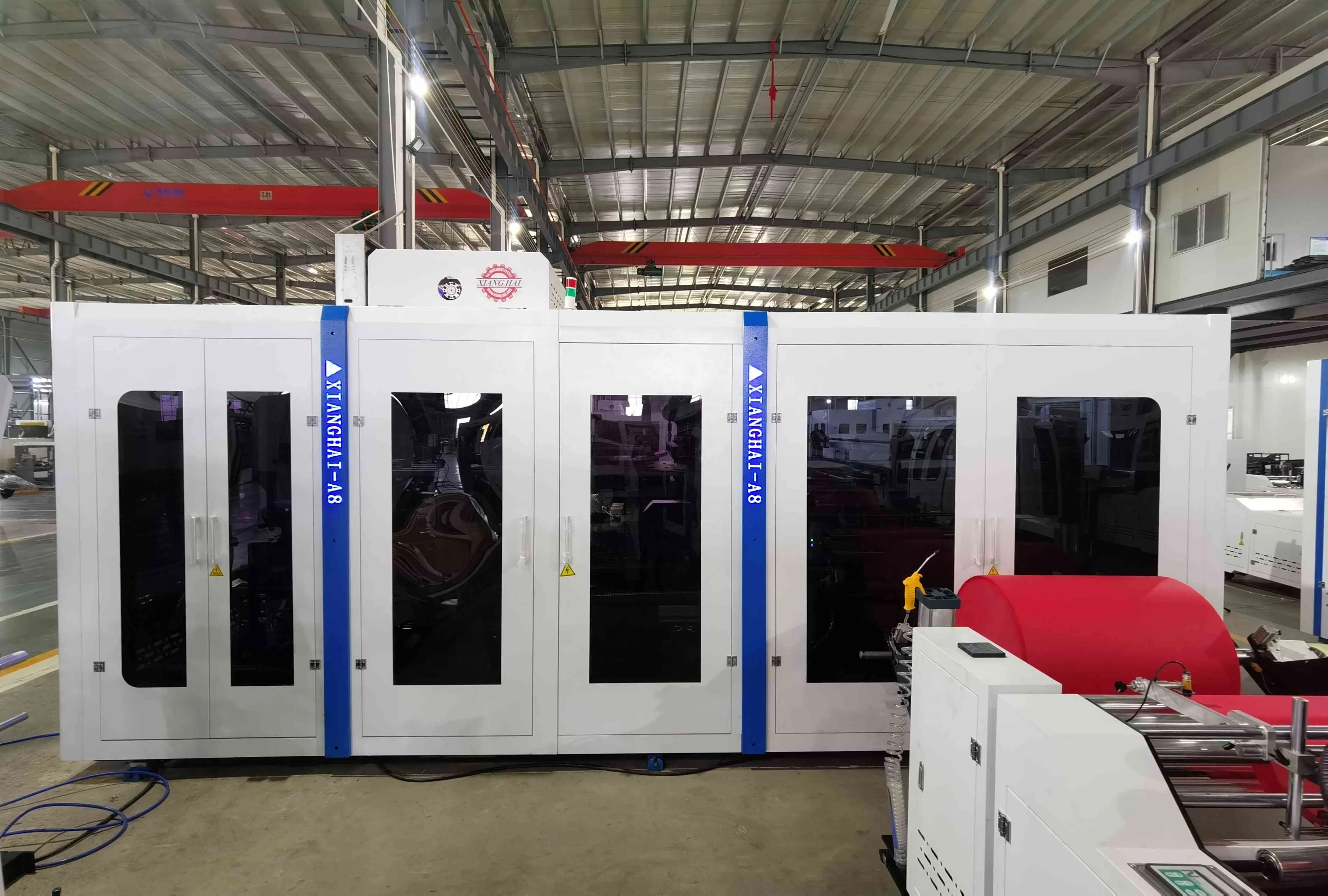

Non Woven 3D Stereoscopic Bag Ultrasonic Box Type Bag Making Machine
- Category: >>>
- Supplier: Wenzhou Xianghai Machinery Co. Ltd.
Share on (1600180936730):
Product Overview
Description
Product Parameters
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Constant innovation and beyond just to create higher value for you！
Product Description:
This machine adopts mechanical, optical, electrical and pneumatic integration technology, suitable for feeding the roll material of non-woven fabric and laminated non-woven fabric. It's specialized equipment for making the primary shaping non-woven(laminated) three-dimensional bag.
This equipment features stable production, strong and decent sealing of bags, good looking, top grade,fancy and reusable, mainly applied in the field of non-woven wine packing, beverage packing, gift bags, and hotel promotional bags, etc.
Main Features:
1.This machine adopts Taiwan PLC touch screen, which can be edited.
2.Auto counting and stopping when setting numbers freely;
3.High voltage static processor and auto constant temperature heating controller;
4. Equipped with the main machine servo motor , stepping motor(computer fixed length), manual unwinding magnetic powder tension controller and auto rectifying deviation, photoelectric tracking, printing color mark track orientation, auto counting and alarming, auto punching, etc., which make it accurate and stable.
5. All aspect of the bags adopts thermal bonding by ultrasonic weldings, such as bag edge folding, side sealing, etc. which makes the machine fast and easy to operate, the products firm sealing, beautiful and decent.
1.This machine adopts Taiwan PLC touch screen, which can be edited.
2.Auto counting and stopping when setting numbers freely;
3.High voltage static processor and auto constant temperature heating controller;
4. Equipped with the main machine servo motor , stepping motor(computer fixed length), manual unwinding magnetic powder tension controller and auto rectifying deviation, photoelectric tracking, printing color mark track orientation, auto counting and alarming, auto punching, etc., which make it accurate and stable.
5. All aspect of the bags adopts thermal bonding by ultrasonic weldings, such as bag edge folding, side sealing, etc. which makes the machine fast and easy to operate, the products firm sealing, beautiful and decent.
Main technical parameters
Production speed | 20-100pcs/min |
Bag-making width | 100-800mm |
Bag-making length | 200-550mm |
Bag-making thickness | 40-120g |
Power supply | 380v/220v |
Total power | 13kw |
Overall dimensions(L*W*H) | 12000*1500*1800mm |
Product Display

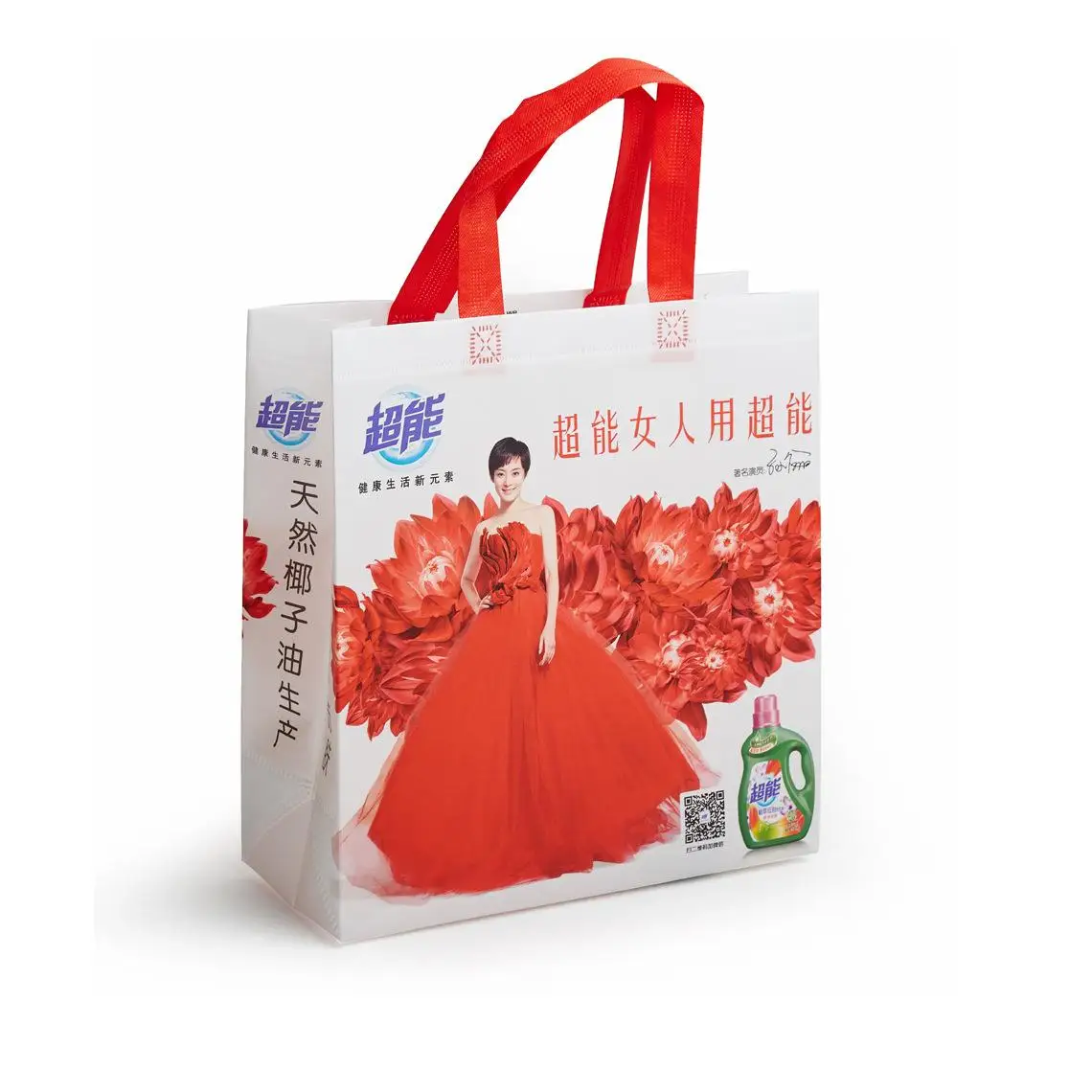

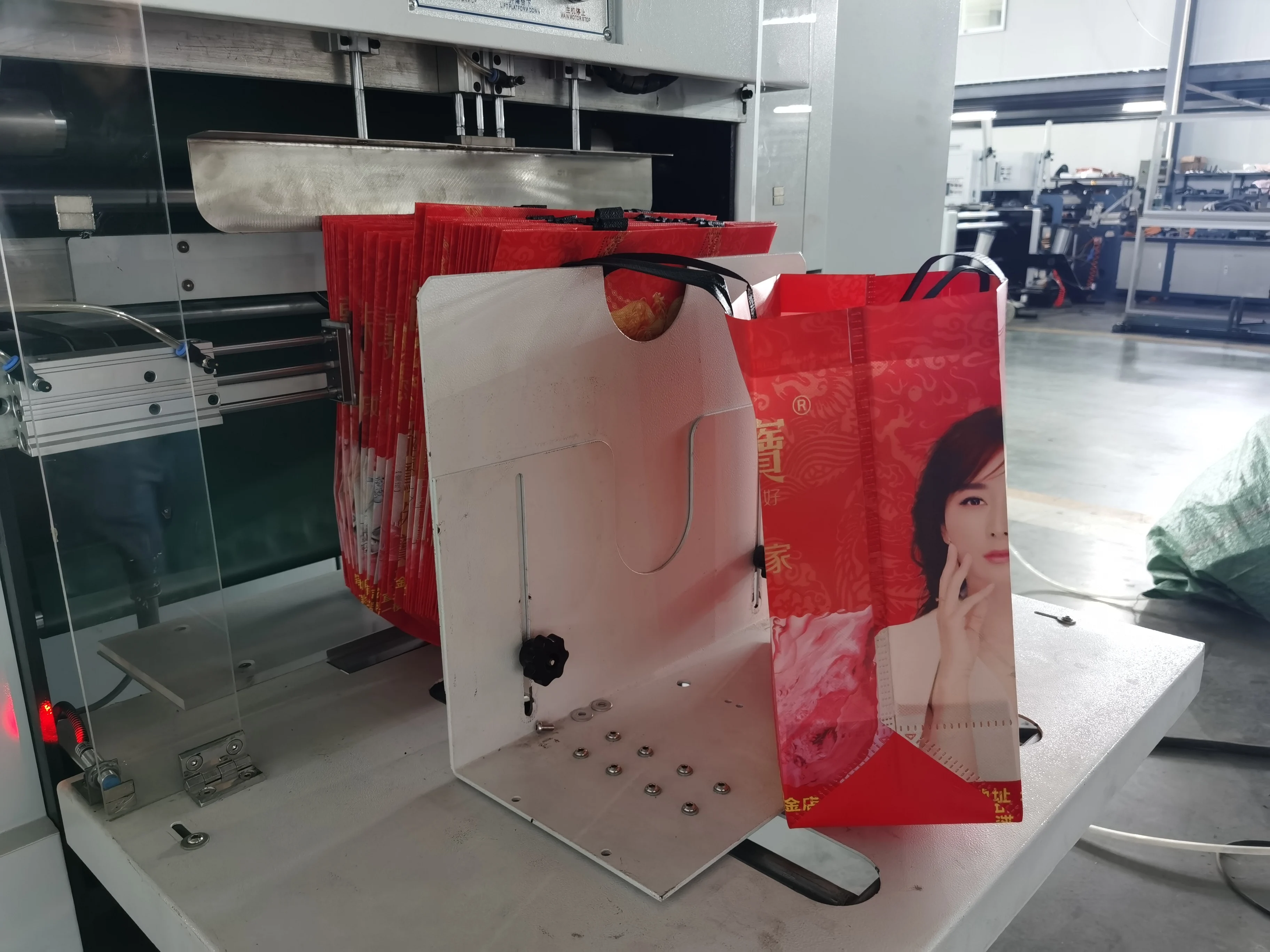

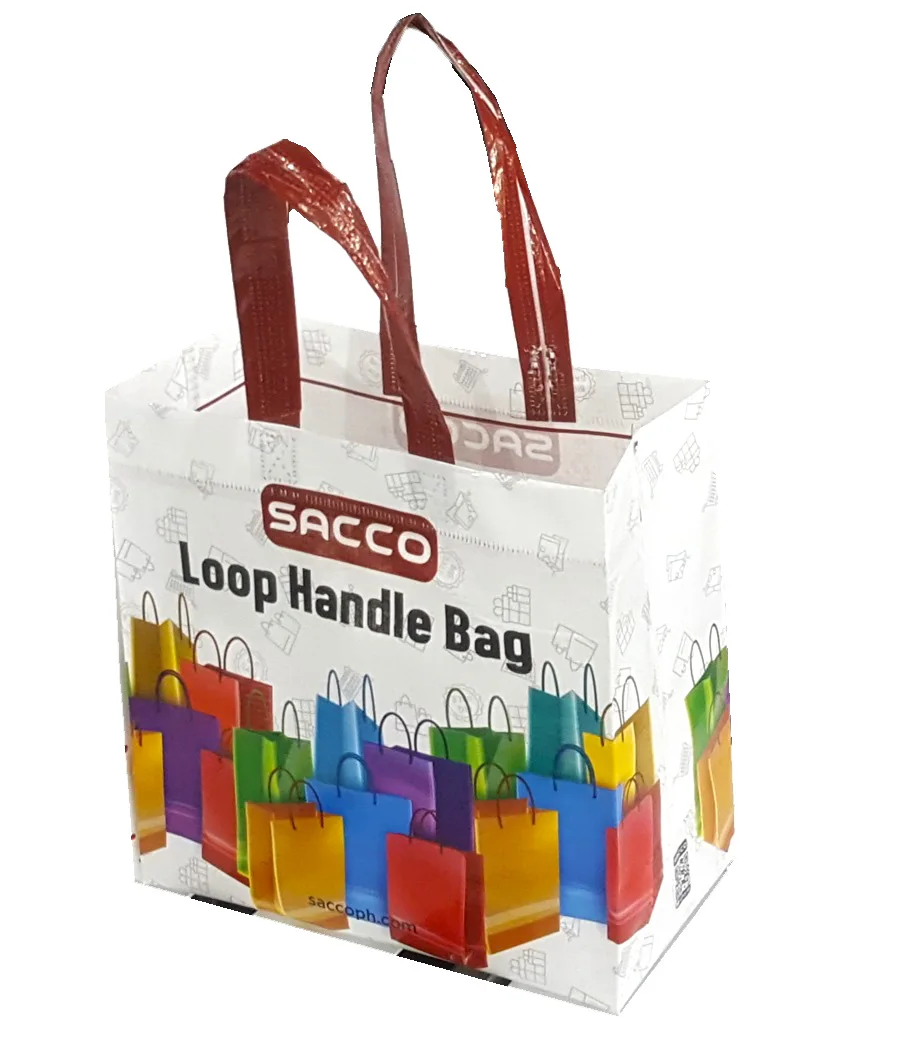

This machine can making

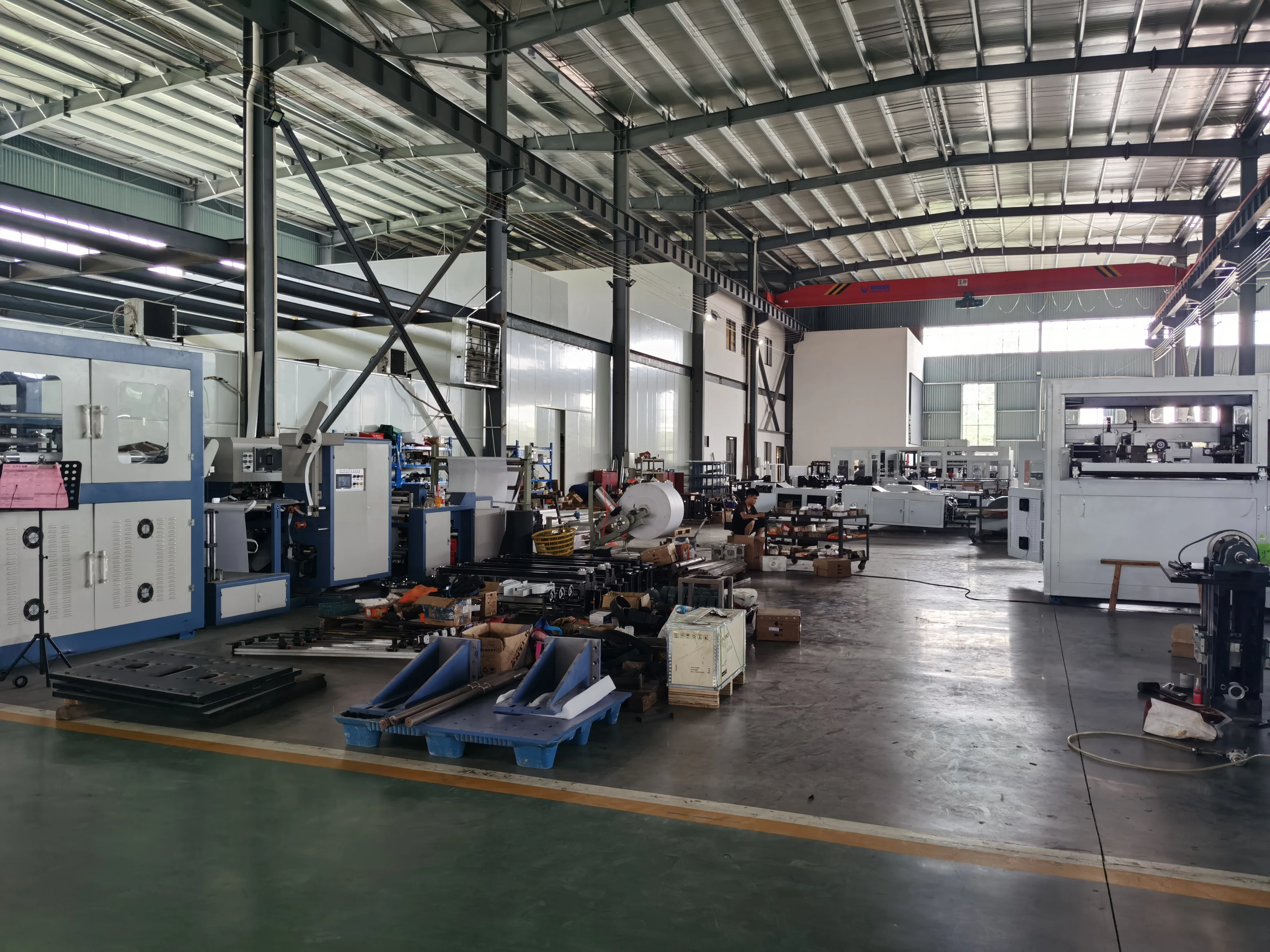

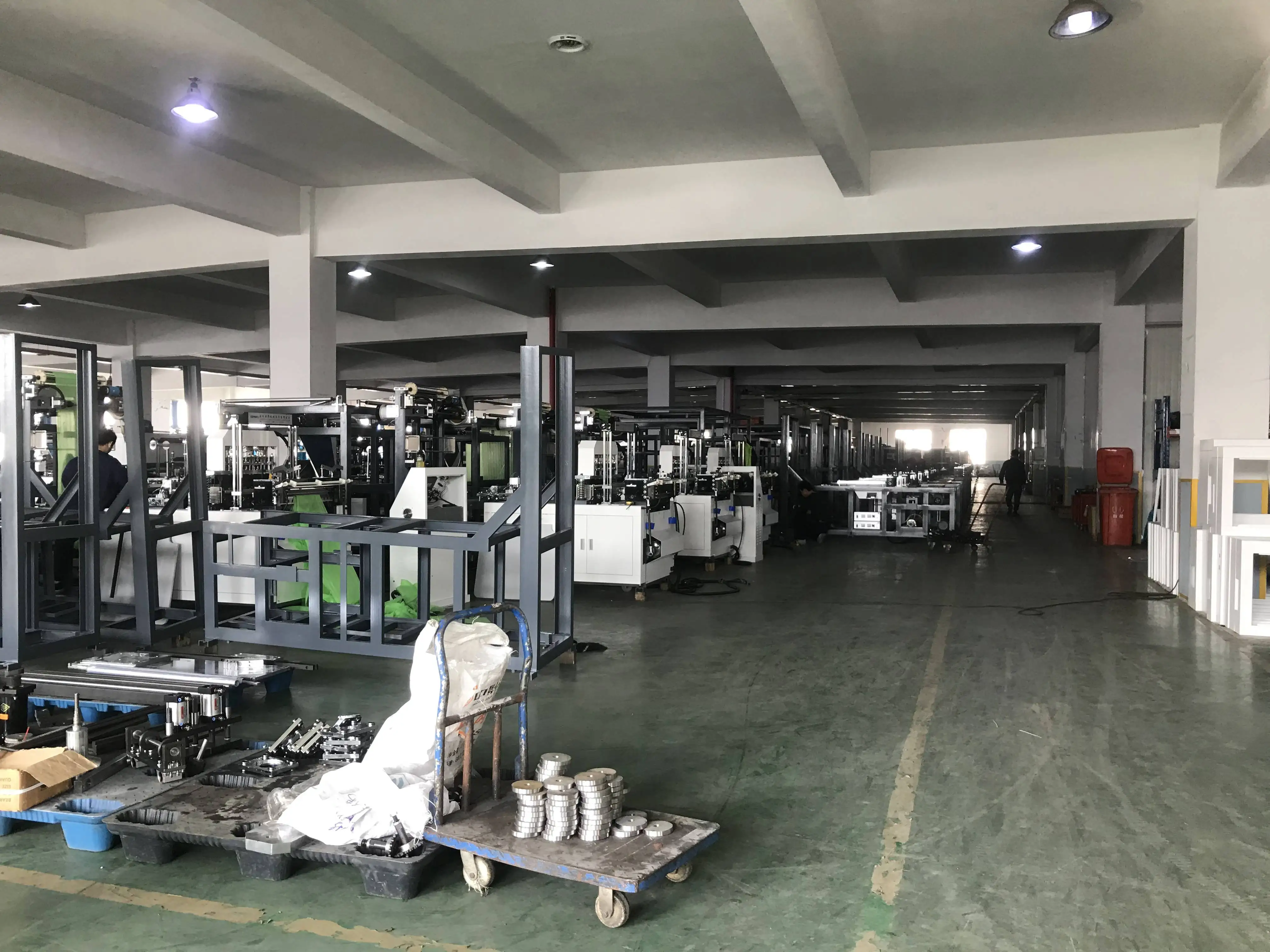

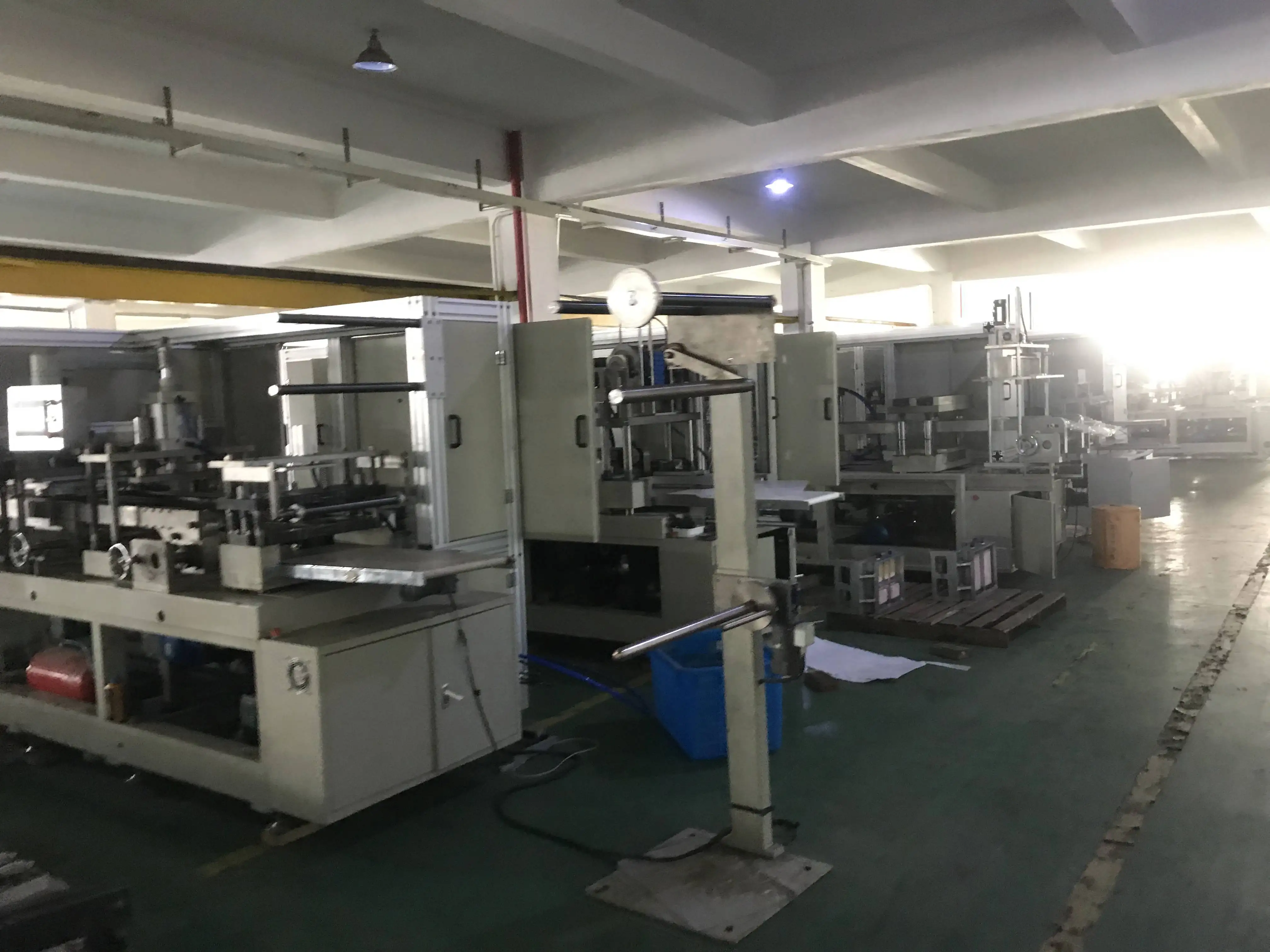

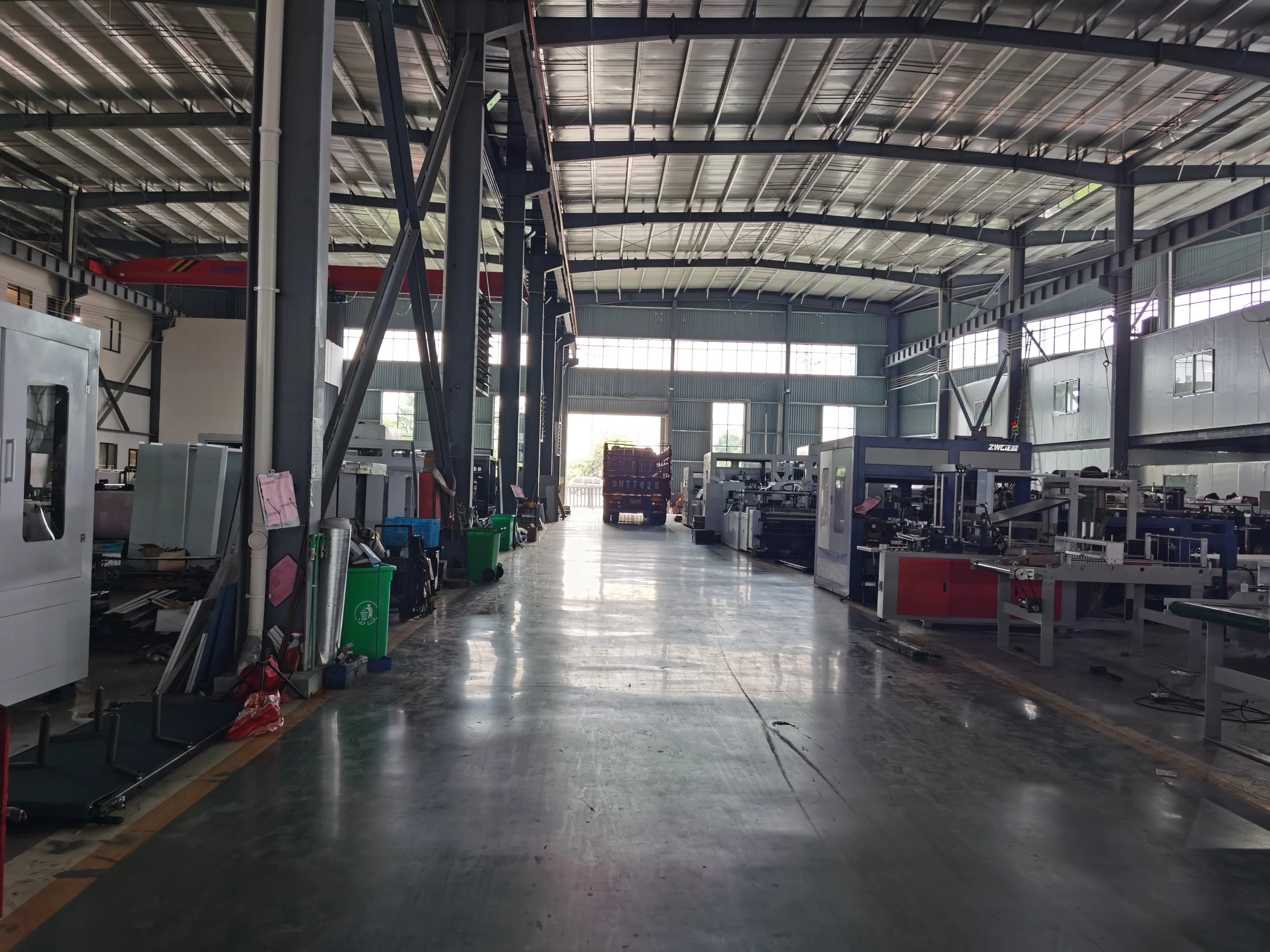

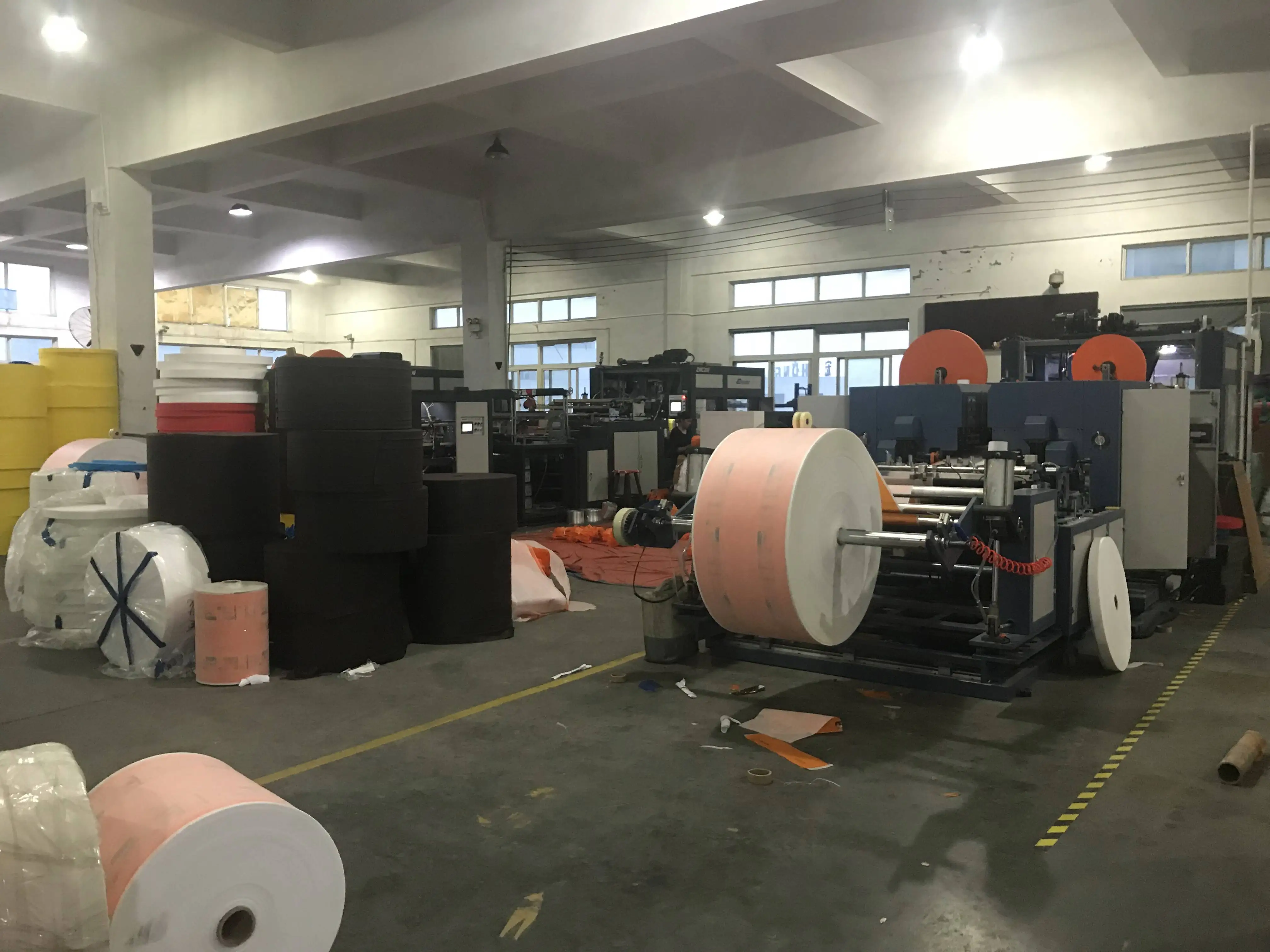

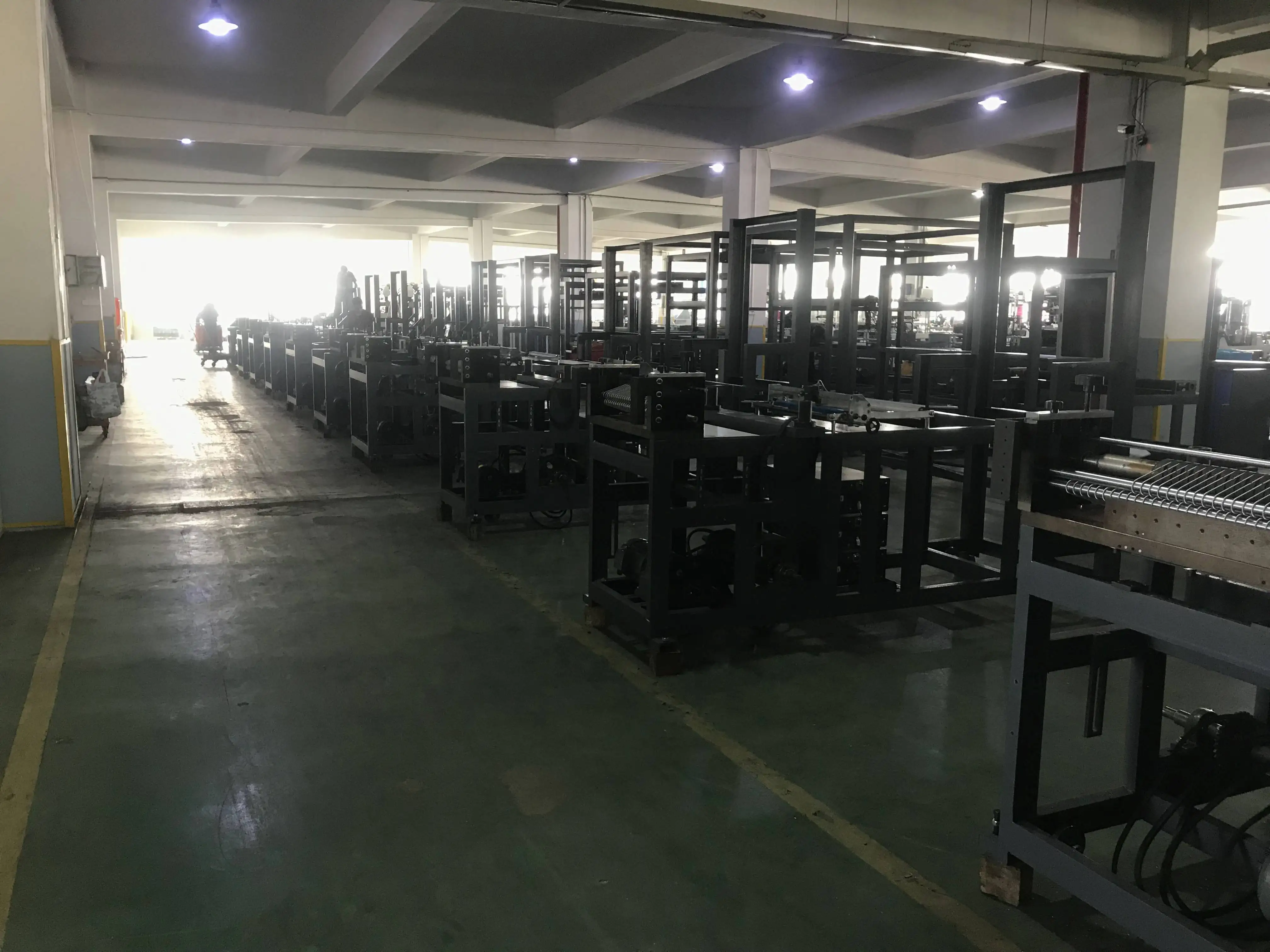

Workshop Pictures

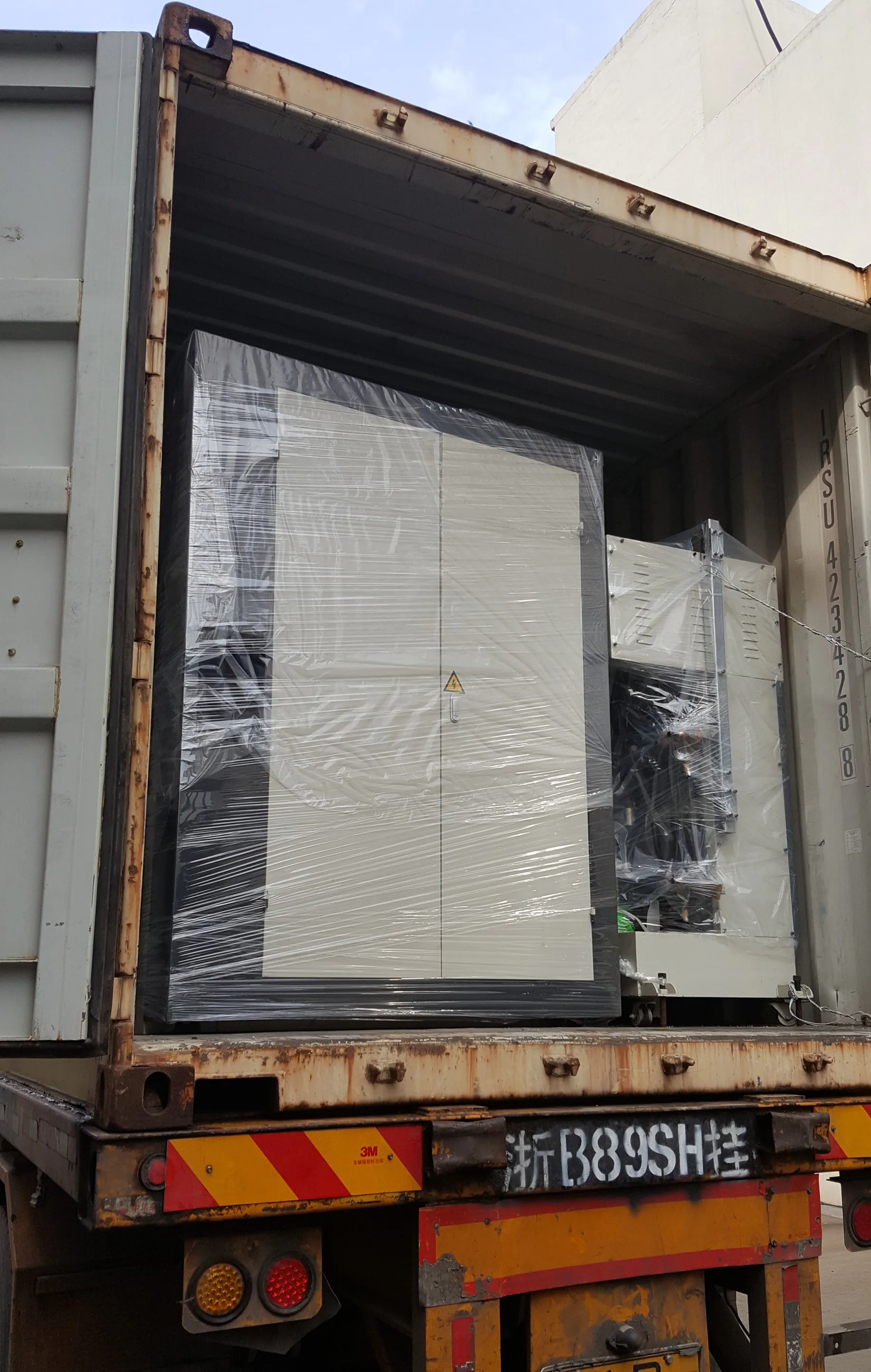

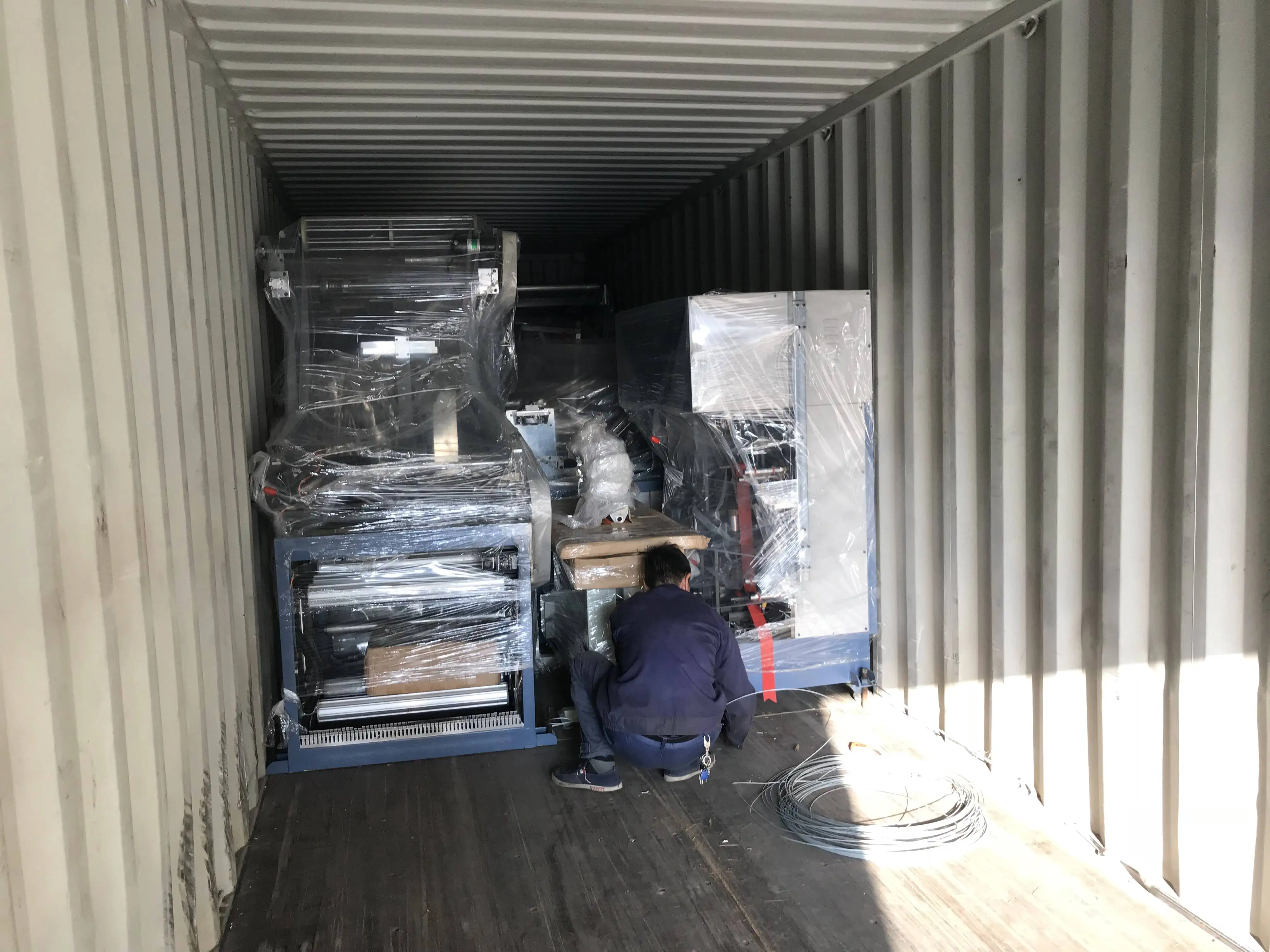

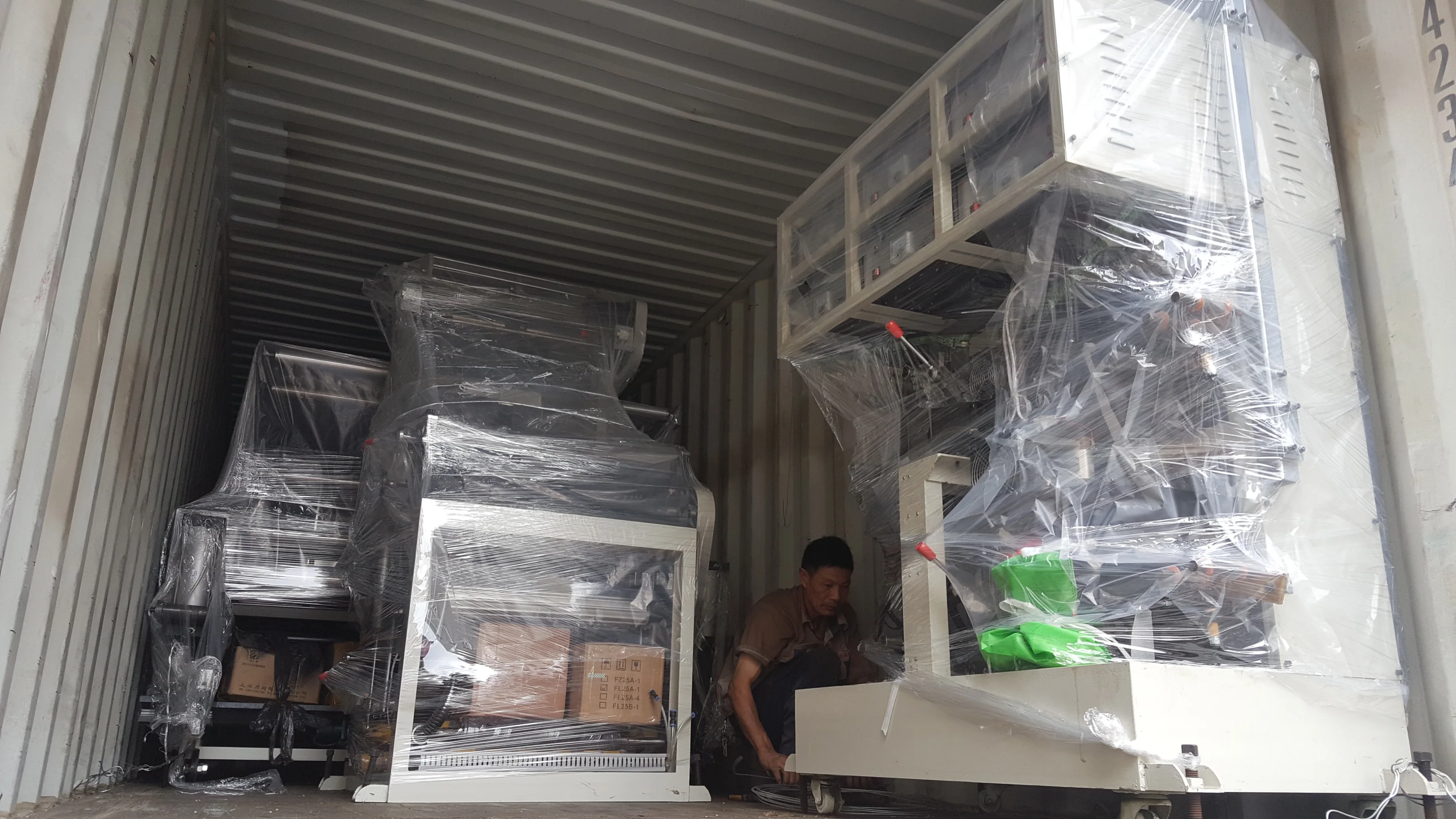

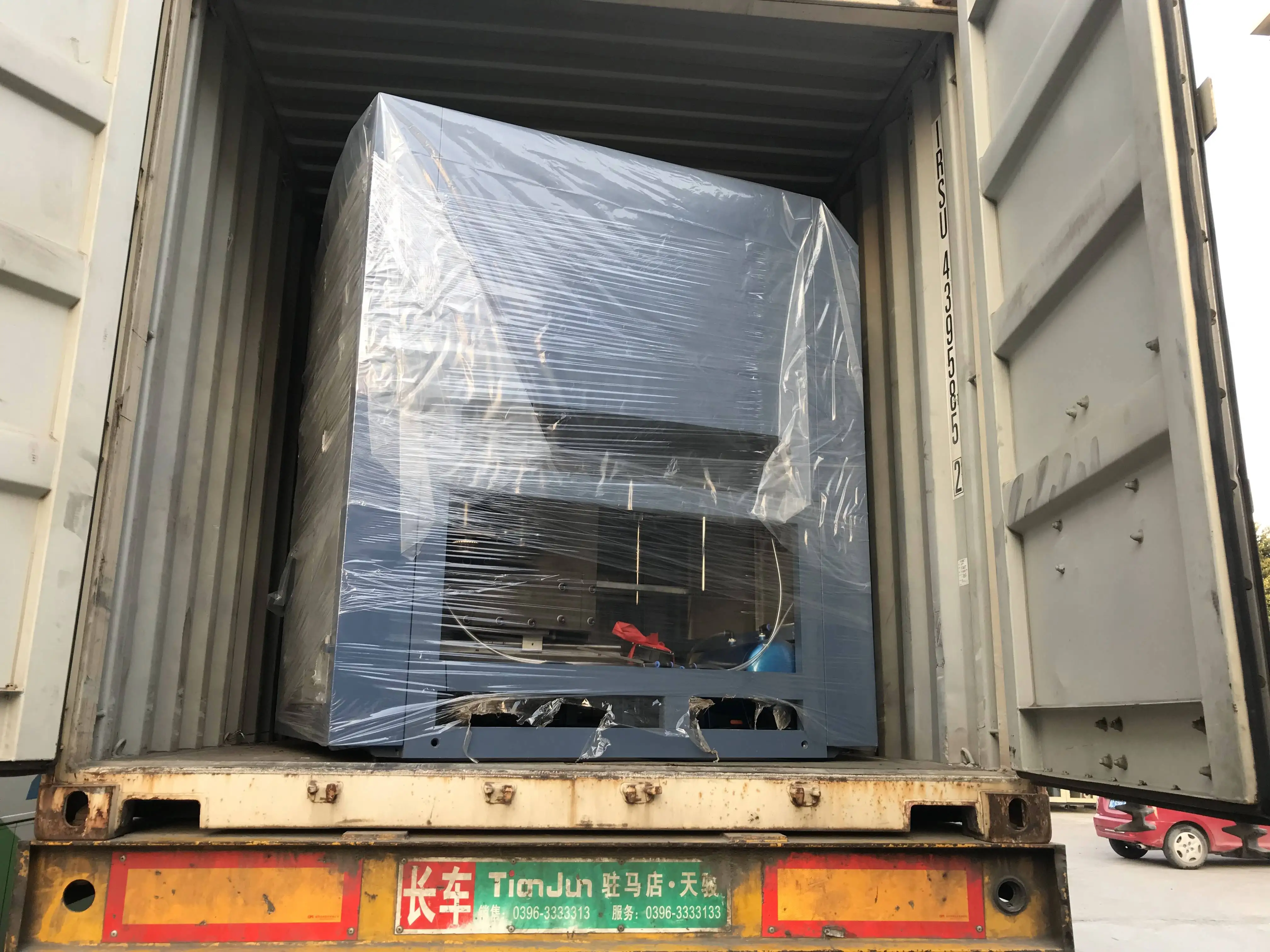

Loading

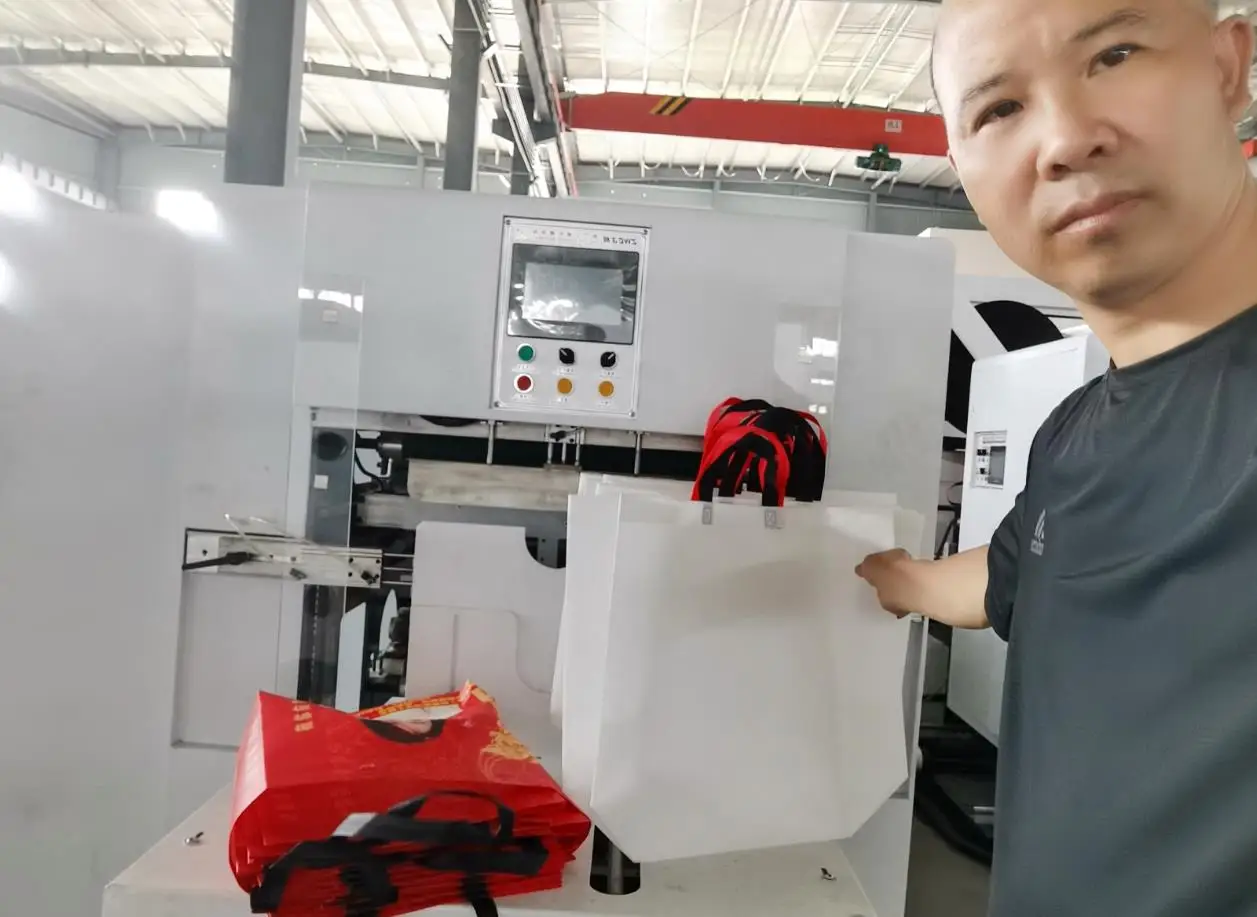

After-Sales Service

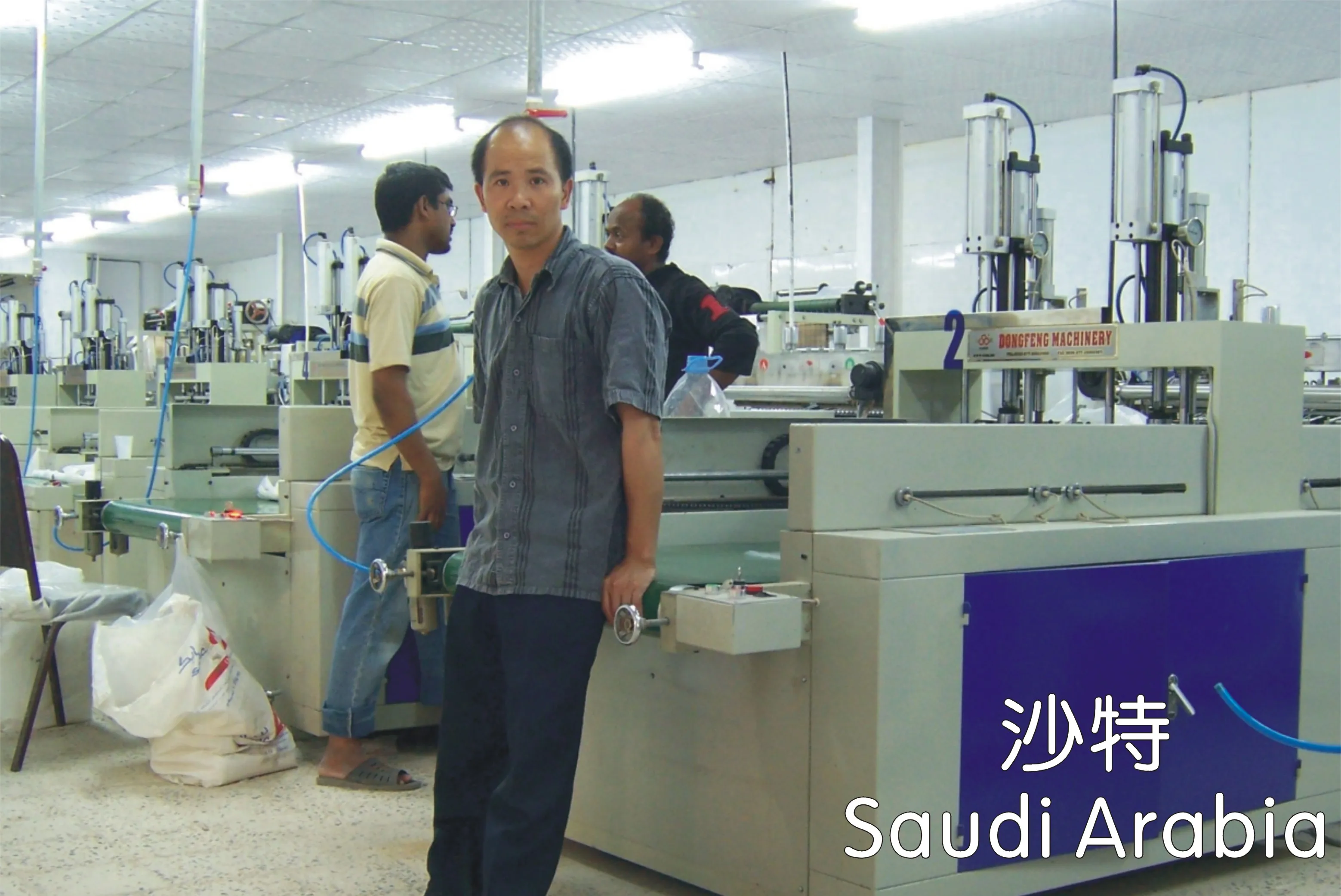

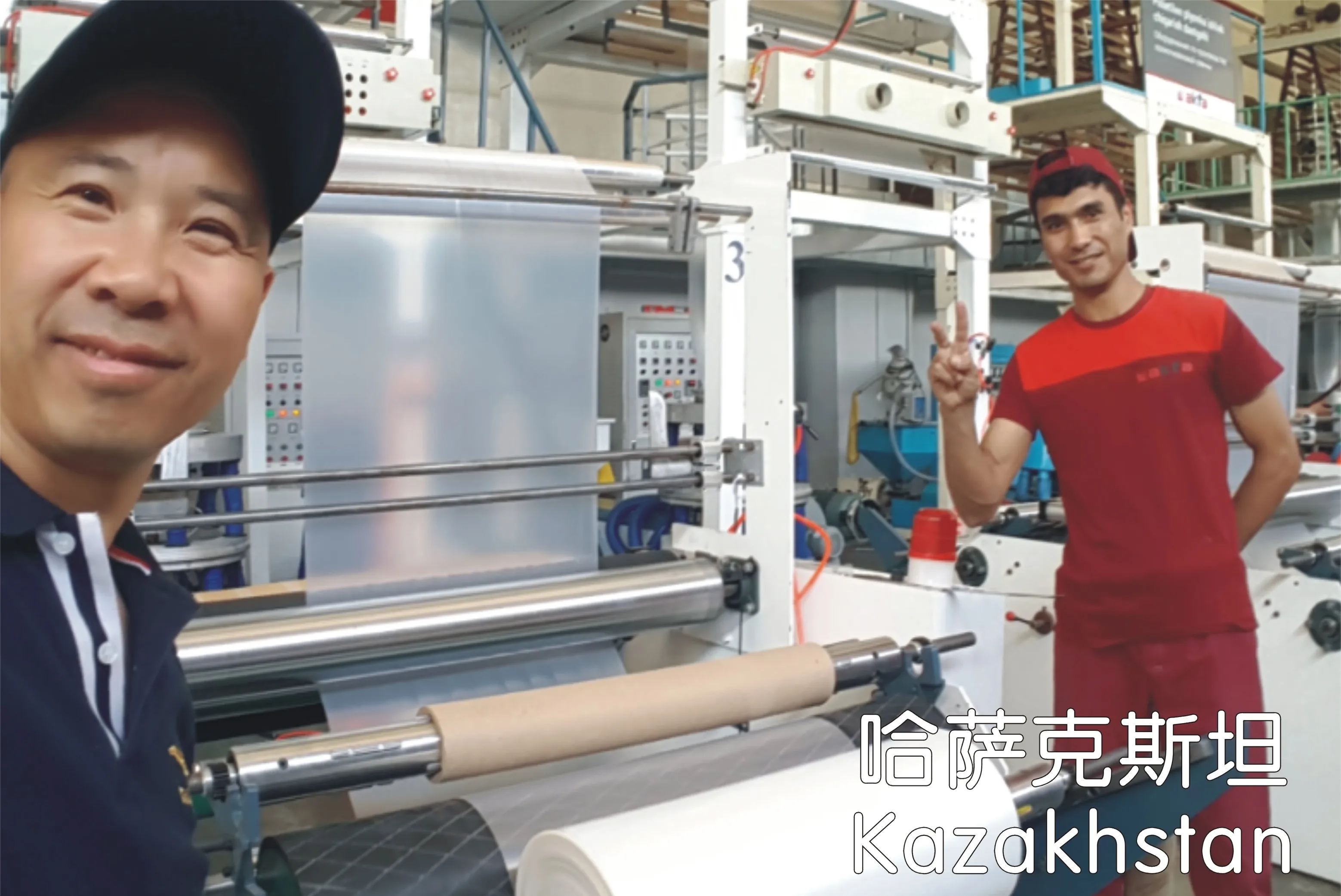

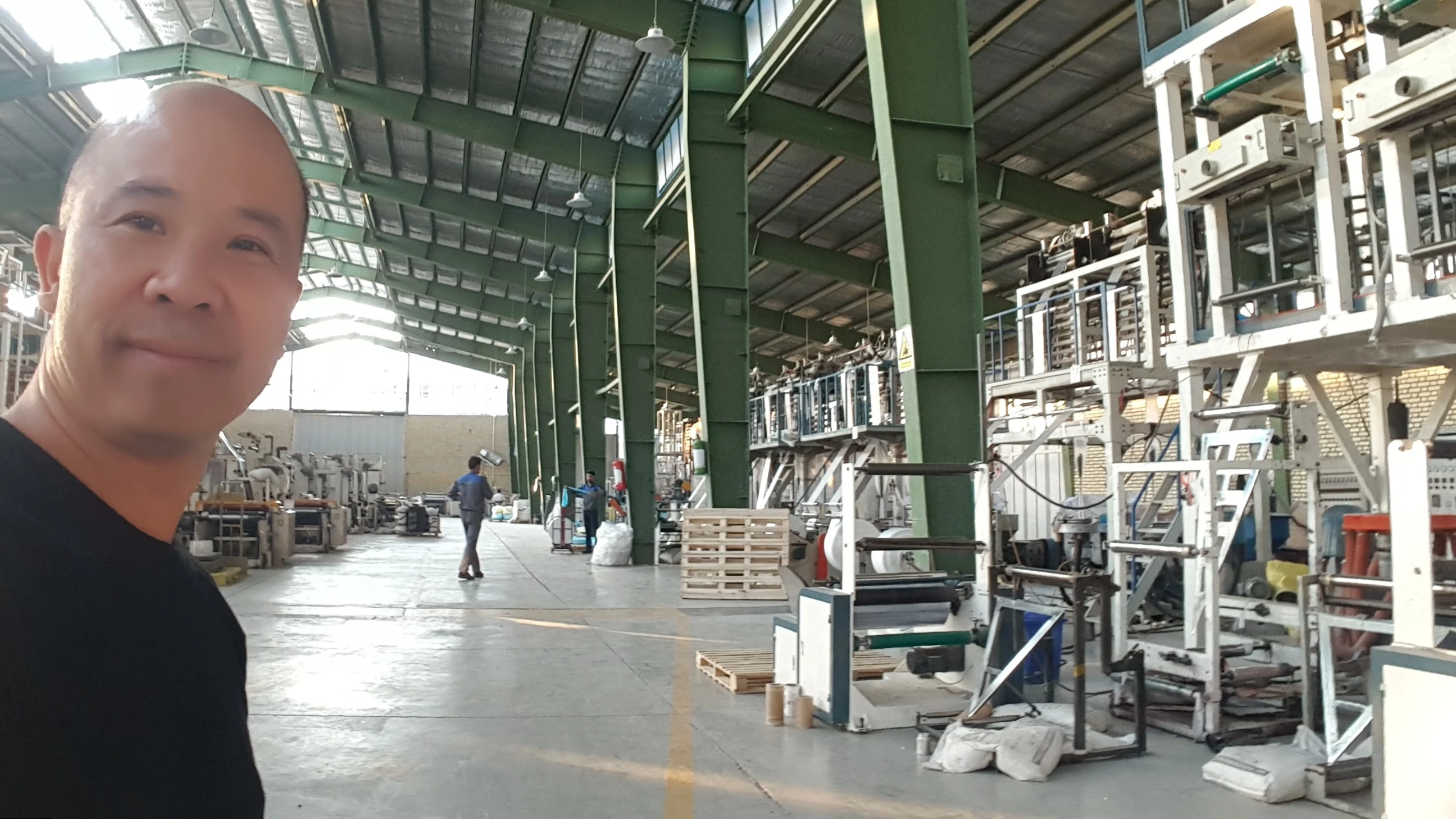

User Factory
Exhibition
Related Products
Our Advantages
1,WENZHOU XIANGHAI MACHINERY CO., LTD. company manager from 1995year start in plastic packaging production, plastic machinery operation technology and related machinery making, The manager of the company is a plastic packaging mechanical engineer，we can very easy understand you，and you can very easy understand our ！ we with rich experience can give very good machinery for you ！
2,If you buy our equipment, we will treat your equipment as our, from factory production, to equipment delivery checking，to equipment loading, and after-sales service. We will Tracking and supervision all, will let you have a perfect purchase and Comfortable use !
Company Information
WENZHOU XIANGHAI MACHINERY CO., LTD. focuses on the production of plastic machinery and sales, specializing in film blowing machine, printing machine, bag making machine, plastic recycling machine and other related plastic packaging equipment. We From 1995year to now, In the industry of plastic packaging equipment for more than 25 years. Our products have been sold to more than 30 countries in the world, we have professional production team and perfect after-sales service. Our company according "service first, reputation first".for our customer.
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
Q4.your company have our need the machine ?
A4.Our company has a lot of plastic packaging machines that you need, if some machine we don't have we also can help find the good machines for you by favorable price
