Hook type shot blasting machine for blasting and painting cylinder China supplier
- Category: >>>
- Supplier: Qingdao Antai Heavy Industry Machinery Co. Ltd.
Share on (1600180959148):
Product Overview
Description
Products Description

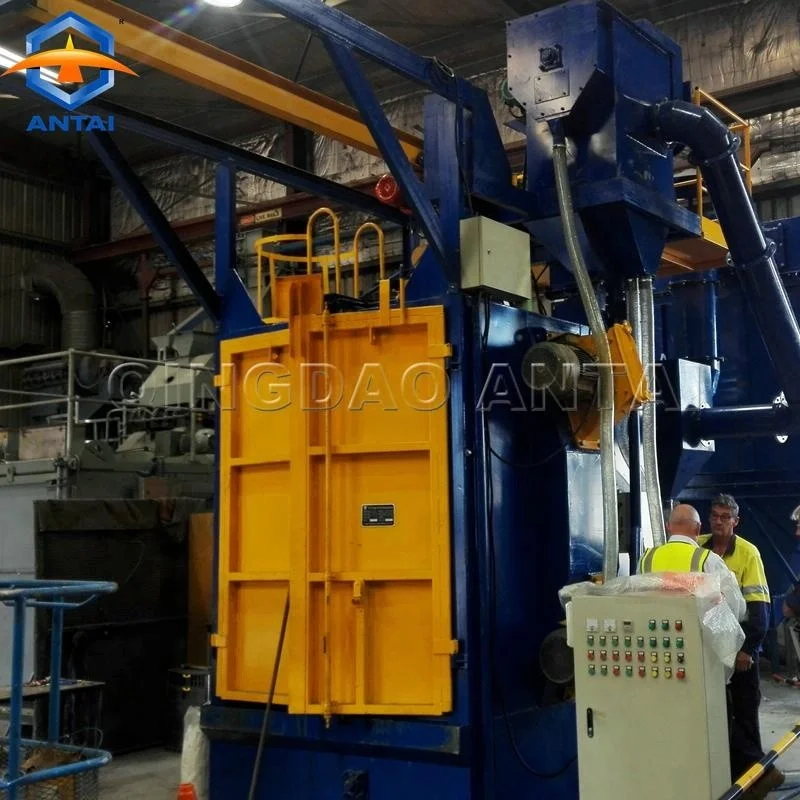

Hook Type Shot Blasting Machine
Products Features: This series hook type shot blasting machine is mainly used for surface cleaning of casting structure nonferrous alloy and other parts.This series shot blasting machine have many types such as single hook type double hook type.
Shot blasting of casts, welded constructions, forged and pressed parts, and various complicated parts (including cylinders, springs), etc. To clean surface, removing casting sand & filings, consolidating the surface (micro handling), roughing the surface before painting, etc.

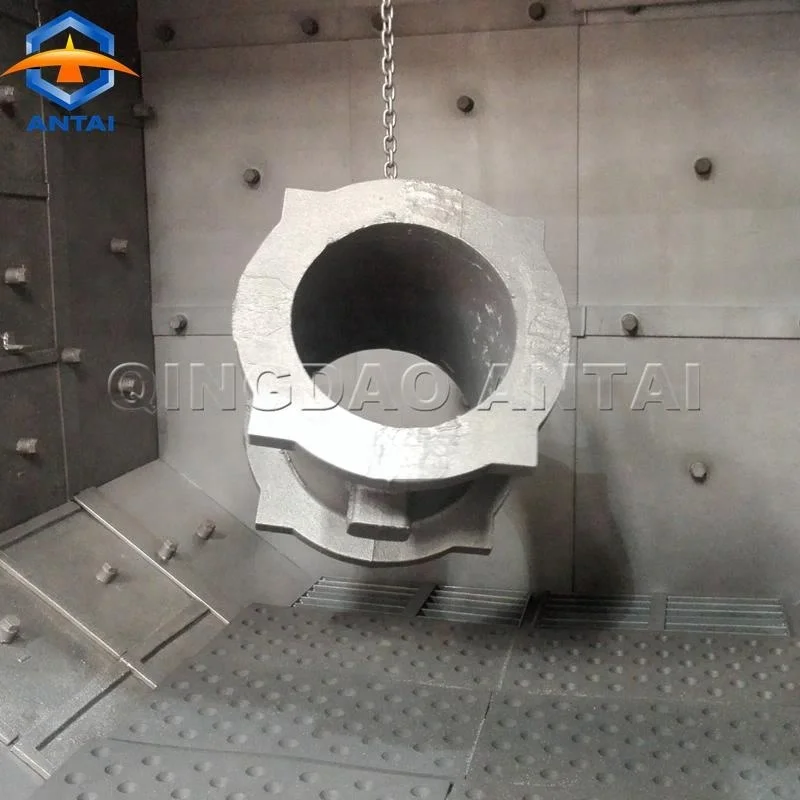

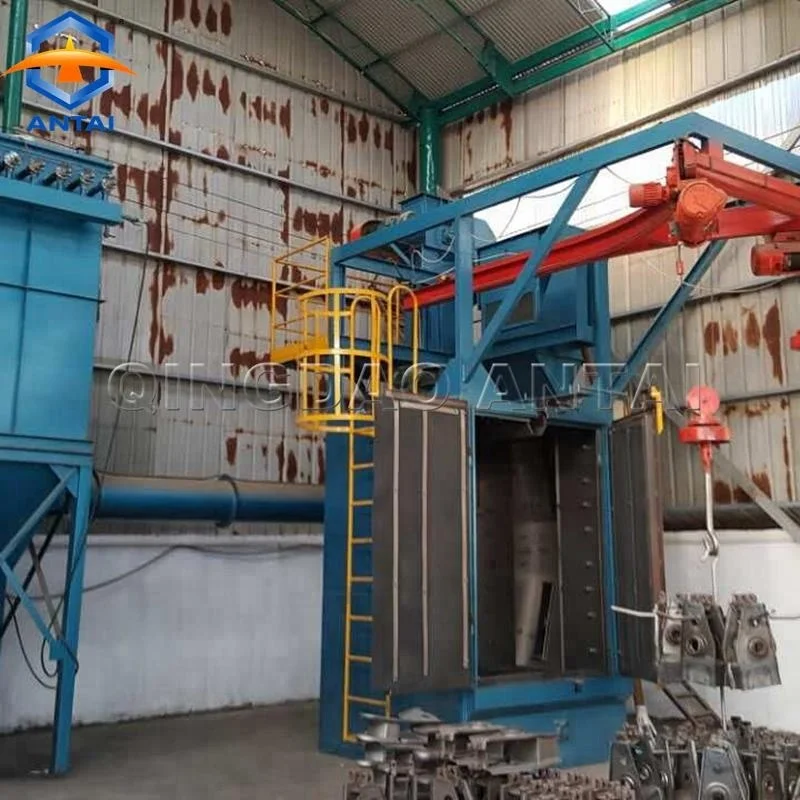

Pretreat objects are individually or in a group hanged to the revolving hoist and transported to the machine via conveyor. Rotating of treated objects provides efficient treatment of less accessible parts of their surface. The machine’s housing is protected by wear-resistant rubber and Rolling Mn13.
Machines may be produced through order, with customized size, quantity and power of turbines, the hanging conveyor type, rotating hangers capacity. The hoist and trolley drive may be manufactured in accordance with the buyer’s requirement.
Pretreat objects are individually or in a group hanged to the revolving hoist and transported to the machine via conveyor. Rotating of treated objects provides efficient treatment of less accessible parts of their surface. The machine’s housing is protected by wear-resistant rubber and Rolling Mn13.
Machines may be produced through order, with customized size, quantity and power of turbines, the hanging conveyor type, rotating hangers capacity. The hoist and trolley drive may be manufactured in accordance with the buyer’s requirement.
Overhead rail shot blast machines can be used for a wide spectrum of applications and workpiece shapes and sizes.
Characteristics
• Versatile transport technology
• Highly efficient blast wheels
• Multiple machine sizes and variations available
Applications
• Removal of mill and forge scale as well as rust
• Removal of burrs and scales
• Removal of moulding sand
• Increase of surface roughness
• Shot peening to increase fatigue strength

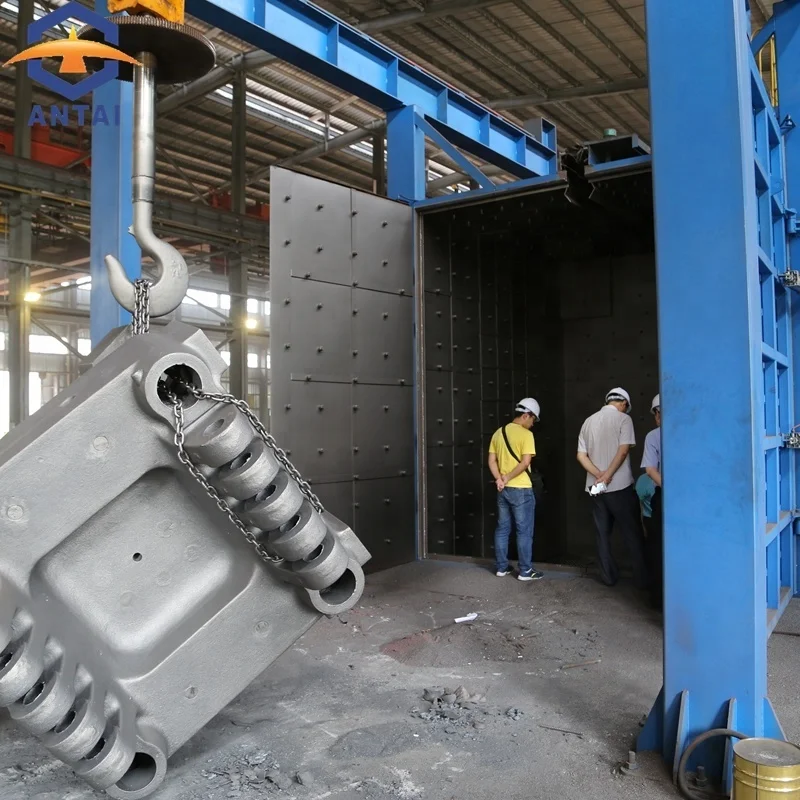

Applications include blast cleaning welded steel fabrications, deburring and homogenising diecast parts, and peening dynamically stressed components. Batches of small components or singular large, heavy workpieces can be treated.
Characteristics
• Versatile transport technology
• Highly efficient blast wheels
• Multiple machine sizes and variations available
Applications
• Removal of mill and forge scale as well as rust
• Removal of burrs and scales
• Removal of moulding sand
• Increase of surface roughness
• Shot peening to increase fatigue strength
Applications include blast cleaning welded steel fabrications, deburring and homogenising diecast parts, and peening dynamically stressed components. Batches of small components or singular large, heavy workpieces can be treated.
Technical Parameters
Type | Max.cleaning workpiece weight(kg) | Cleaning workpiece size(mm) | Blasting volume(kg/min) | Lifting volume(T/h) | Separating volume (T/h) | Total power (kw) | Ventilation quantity (m3/h) |
Q376 | 500 | Φ600×1200 | 2×200 | 24 | 24 | 22.5 | 4000 |
Q376B | 600 | Φ700×1200 | 2×200 | 24 | 24 | 23.5 | 4000 |
Q378 | 800 | Φ1000×1600 | 2×250 | 30 | 30 | 39.65 | 5000 |
Q3710 | 1000 | Φ1200×1800 | 2×250 | 30 | 30 | 47.5 | 5000 |
Q3720 | 2000 | Φ1400×2200 | 3×250 | 45 | 45 | 56.2 | 9000 |
Q3730 | 3000 | Φ1600×2300 | 3×250 | 45 | 45 | 65.45 | 11000 |
Q3750 | 5000 | Φ1800×2500 | 4×250 | 60 | 60 | 85.45 | 14000 |
Q37100 | 10000 | Φ3000×3000 | 5×250 | 75 | 75 | 97.65 | 16000 |

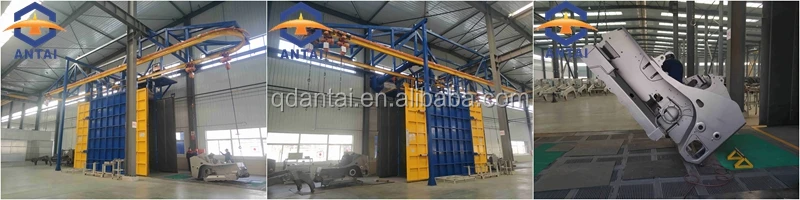

Details Images
Certifications
Manufacturing Technique
Company Profile
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Qingdao Antai Heavy Industry Machinery has founded in 2003, formally changed to its current name in 2011. Located in the beautiful west coast of Qingdao, it is only 30 km to Qingdao seaport, convenient for export transportation. Our workshop area covers more than 15000 square meters, it is a research, design, manufacture, installation and consulting factory company for the surface finishing, environmental protection and foundry solution.
Antai Group and China University of Petroleum jointly established the Qingdao Antai Haibo Technology R&D Center Co., Ltd., which focuses on the research and development of new practical equipment for shot blasting.
The technical department also has many senior engineers and professional 3D designers with more than ten years of design experience.
The chief engineer of the Technology R & D Center has 30 years of design experience and was hired as the chairman of the China Foundry Machinery Standards Committee to participate in the formulation of national standards for surface cleaning equipment in China.
Company has extensive experience and brings the technical and professional workers together, mainly produces shot blasting machine, sand reclamation equipment, molding equipment, and dust collector. Qingdao Antai is strong at providing non-standard design and manufacture according to customer specific needs.
Qingdao Antai shot blasting technology will amaze you with its intelligent design, innovative details and particularly durable components. We offer you an overall solution, as we have our own development, engineering, production and after-sales service.
All systems are inspected and tested prior to delivery in our workshops to ensure fast installation on site and deliver a reliable product on time every time.Here at Qingdao Antai, after-sales support is also a top priority so we ensure that you get all the help you need with your newly delivered and tested system.Our greatest reward is the satisfaction of our customers with the results achieved thus far.
The company has passed ISO9 0 0 1: 2 0 0 8, ISO 1 4 0 0 1: 2 0 04, CE certificate. Our company management strictly according to international standards ISO9 0 0 0 quality system implementation operation.
We have established long term partnership with international brand suppliers, such as ABB motor; SEW gear box, Mitsubishi/OMRON/SIEMENS electric components, SMC cylinder, SKF & NSK bearing, and Asco pulse valves. With quality products, competitive price and attentive service, our products are widely sold in domestic market and exported to Amercia, Germany, Russia, Australia, India ,Greece, Sri Lanka, Vietnam, Pakistan, Uruguay, Ecuador, Colombia, Israel, Ukraine, Bangladesh, Uzbekistan, Philippines, Hungary, Macedonia and Indonesia etc.
We always adhere to “honesty is the best selling, personalized service is the final product. Customer satisfaction is the greatest impetus to the development of enterprises.” Aim to establish a perfect quality management system and network information feedback system for filing separately for each customer, to provide customers with maximum caring and thoughtful, efficient and flexible full service.
We look forward to working with you and your company’s sincere cooperation!
Antai Group and China University of Petroleum jointly established the Qingdao Antai Haibo Technology R&D Center Co., Ltd., which focuses on the research and development of new practical equipment for shot blasting.
The technical department also has many senior engineers and professional 3D designers with more than ten years of design experience.
The chief engineer of the Technology R & D Center has 30 years of design experience and was hired as the chairman of the China Foundry Machinery Standards Committee to participate in the formulation of national standards for surface cleaning equipment in China.
Company has extensive experience and brings the technical and professional workers together, mainly produces shot blasting machine, sand reclamation equipment, molding equipment, and dust collector. Qingdao Antai is strong at providing non-standard design and manufacture according to customer specific needs.
Qingdao Antai shot blasting technology will amaze you with its intelligent design, innovative details and particularly durable components. We offer you an overall solution, as we have our own development, engineering, production and after-sales service.
All systems are inspected and tested prior to delivery in our workshops to ensure fast installation on site and deliver a reliable product on time every time.Here at Qingdao Antai, after-sales support is also a top priority so we ensure that you get all the help you need with your newly delivered and tested system.Our greatest reward is the satisfaction of our customers with the results achieved thus far.
The company has passed ISO9 0 0 1: 2 0 0 8, ISO 1 4 0 0 1: 2 0 04, CE certificate. Our company management strictly according to international standards ISO9 0 0 0 quality system implementation operation.
We have established long term partnership with international brand suppliers, such as ABB motor; SEW gear box, Mitsubishi/OMRON/SIEMENS electric components, SMC cylinder, SKF & NSK bearing, and Asco pulse valves. With quality products, competitive price and attentive service, our products are widely sold in domestic market and exported to Amercia, Germany, Russia, Australia, India ,Greece, Sri Lanka, Vietnam, Pakistan, Uruguay, Ecuador, Colombia, Israel, Ukraine, Bangladesh, Uzbekistan, Philippines, Hungary, Macedonia and Indonesia etc.
We always adhere to “honesty is the best selling, personalized service is the final product. Customer satisfaction is the greatest impetus to the development of enterprises.” Aim to establish a perfect quality management system and network information feedback system for filing separately for each customer, to provide customers with maximum caring and thoughtful, efficient and flexible full service.
We look forward to working with you and your company’s sincere cooperation!
Our Services
What Service Antai can supply?
1. Our engineers can work separately according to the requirements of design for clients of the equipment. and send a customer confirmation to help customers to save costs.
2. During the manufacture of the equipment, we photograph product production progress, and sent to the customer to track the progress.
3. The goods hair go, we will send the original documents for the customer (such as packing list, bill, CO, Form E, Form A, Form F, Form M, B/L etc.)
4. We can provide customers with free English foundation drawing, installation drawings, manuals, maintenance manuals and parts drawings.
5. We can send our engineers to installation and debugging overseas, and free training of operators and maintenance workers.
6. We have a set of After-sales service system, A ID will be sent to each customer, they can log in this system that view all information to buy equipment and parts by it. We provide 24-hour online consultation.
2. During the manufacture of the equipment, we photograph product production progress, and sent to the customer to track the progress.
3. The goods hair go, we will send the original documents for the customer (such as packing list, bill, CO, Form E, Form A, Form F, Form M, B/L etc.)
4. We can provide customers with free English foundation drawing, installation drawings, manuals, maintenance manuals and parts drawings.
5. We can send our engineers to installation and debugging overseas, and free training of operators and maintenance workers.
6. We have a set of After-sales service system, A ID will be sent to each customer, they can log in this system that view all information to buy equipment and parts by it. We provide 24-hour online consultation.
