WJ2472 Automatic Computer Electric Copper Wire Cutting And Stripper Stripping Machine
- Category: Cable Manufacturing Equipment >>>
- Supplier: Kunshan,Weijiang,Automation,Equipment,Co.,Ltd.,[Jiangsu,China]Kunshan
Share on:
Product Overview
Description
WJ-S41 Automatic Wire Stripping Cutting Machine
Parameters
Model | WJ-S41 | WJ-S42 | WJ-S44 | WJ-T41 | WJ-T42 | ||||
Features | One wire stripping | Two wires stripping | Four wiresstripping | One wire stripping & twisting | Two wires stripping & twisting | ||||
Conductor Cross-Section | 0.1-4.5mm² | Single 0.1-4.5mm² Double 0.1-2mm² | Single 0.1-4.5mm² Four 0.1-2mm² | 0.1-4.5mm² | Single 0.1-4.5mm² Double 0.1-2.5mm² | ||||
Stripping Length | 0-35mm | 0-35mm | 0-35mm | 0-30mm | 0-30mm | ||||
Cutting Length | 1-9999.9mm | ||||||||
Cutting Length Tolerances | ±(0.002*L)mm | ||||||||
Intermediate Stripping | Max 15 sections | ||||||||
Display Screen | Chinese / English LCD Screen | ||||||||
Wire Feed Method | Roller feeding | ||||||||
Drive Method | 4 wheels drive | ||||||||
Power Supply | 220V/110V | ||||||||
Conduit Diameter | Φ5mm | Φ5mm | Φ4mm | Φ5mm | Φ5mm | ||||
Production Rate | 3000-6000pcs/h | 5000-10000pcs/h | 5000-18000pcs/h | 4000-8000pcs/h | 4000-8000pcs/h | ||||
Power | 400W | 430W | 450W | 500W | 550W | ||||
Weight | 28kg | 32kg | 34kg | 32kg | 35kg | ||||
Dimensions | 42*40*28cm | 42*40*28cm | 42*42*28cm | 70*40*28cm | 70*40*28cm | ||||
WJ-S41 Features：
1. LCD display, support Chinese and English, all buttons and processing program desiged based on automatic computer programming,easy to operate.
2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.

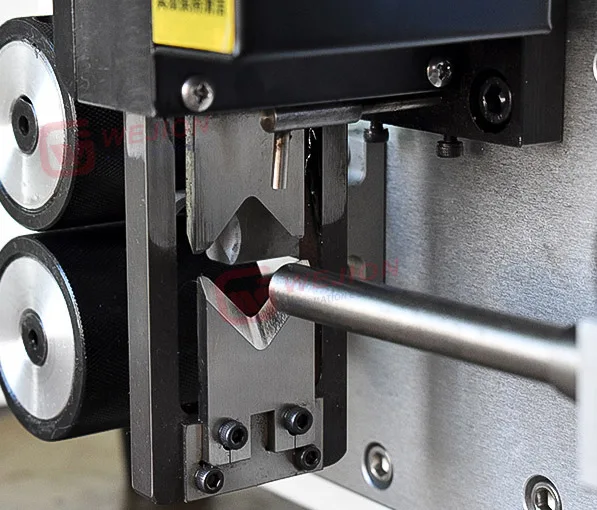

3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.

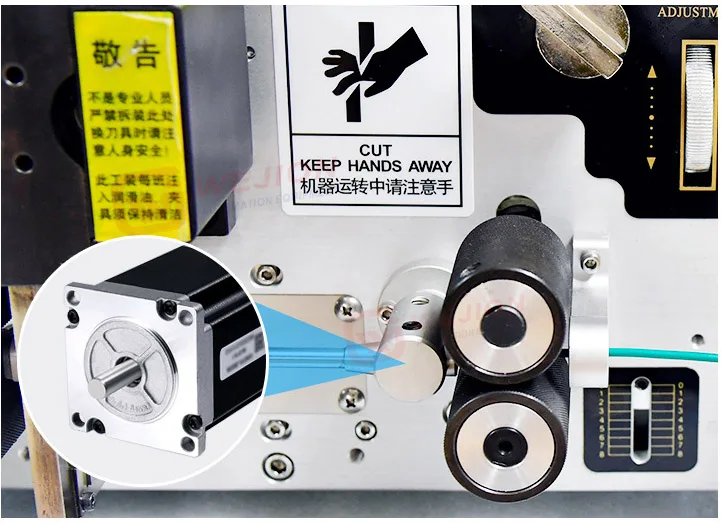

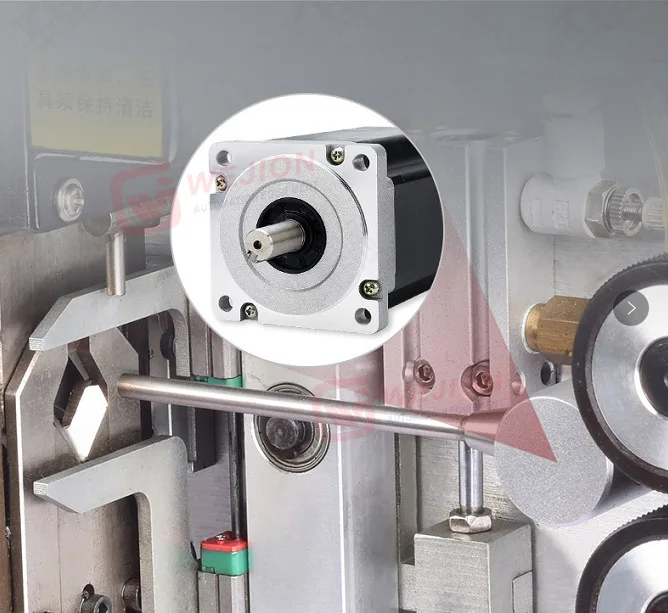

5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.
8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.
5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.
8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
More machine please click here
WJ-S41
0.1-0.45mm²
AWG11-AWG32
One wire cutting & stripping
WJ-S42
0.1-0.45mm²
AWG14-AWG32
Two wires cutting & stripping
WJ-S44
0.1-0.45mm²
AWG14-AWG32
Four wires cutting & stripping
