Changlin 170hp New Design Grader 717H in Kenya
- Category: Road Machinery >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Share on (1600181069273):
Product Overview
Description

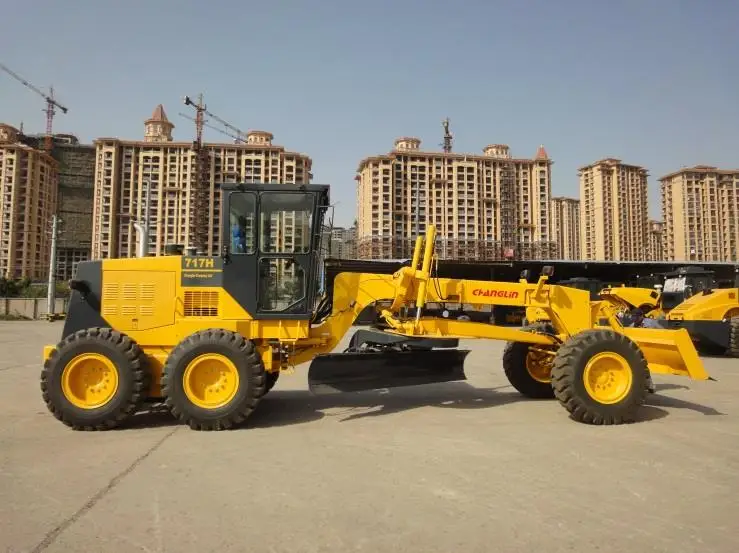

Best Selling Changlin 170Hp Blade Grader 717H In Paraguay
* Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient
* Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
* Ideal axle load allocation provides excellent stability while cutting hard surface
* Serviceable, efficient hydraulic system enables every part to be fully used
* Box-typed frame and advanced T/M enable it to complete heavy-duty work
* A wide working range is accomplished through flexible blade suspension system and articulated frame
* Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
* Ideal axle load allocation provides excellent stability while cutting hard surface
* Serviceable, efficient hydraulic system enables every part to be fully used
* Box-typed frame and advanced T/M enable it to complete heavy-duty work
* A wide working range is accomplished through flexible blade suspension system and articulated frame
Length | 8820mm |
Width | 2600mm |
Height(To the top of the cab) | 3420mm |
Wheel base | 6100mm |
Tread | 2120(mm) |
Min. turning radius | 7.3(m) |
Length | 8820mm |
Operating weight | 14500kg |
Blade length | 3658mm |
Blade height | 580mm |
Blade width | 16mm |
Max. lift above ground | 450mm |
Max. grading depth | 535mm |
Max. shoulder reach outside rear tire | 2000mm |
Traveling speed(km/h) | 6 forward and 3 reverse |
Engine Model | Cummins 6BTA5.9-C180 |
Type | Direct injection. Turbocharged. Water cooling |
Rated output | 132 kW |
Rated speed | 2200(r/min) |
Max. Torque | 750(N.m) at 1300r/min |
Transmission Model | 6WG180 (ZF technology) |
Type | power shift, single-shift lever, natural-shift lock device |
Gear shift position | 6 Forward and 3 reverse gears |
Max. drawing force | 74.6kN(f=0.75) |
Size of tire | 17.5-25-12PR(standard) 13.00-24-12PR(optional) |
Model of oil pump(include steering pump) | CBGj2045/1025 |
System pressure | 17.5MPa |
Model of distribution valve | HUSCO 5000 |
Model of oil motor | EATON, JS-130 |
Product Description
Company Profile
ORIEMAC Machinery & Equipment (Shanghai) Co., Ltd. is a top package equipment solution provider in Shanghai China, especially for construction machinery, heavy industrial equipment and vehicle. We represent high quality China machinery brands such as XCMG, SANY, ZOOMLION, LIUGONG, LONKING, SEM, SDLG, SHANTUI, YTO, SINOMACH, SINOTRUK, SHACMAN, BEIBEN etc., and also export famous international brands such as CATERPILLAR and HYUNDAI. We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule.
With over eleven years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, ORIEMAC had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present.
To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, ORIEMAC has been often praised by our customers and has taken great reputation as a trustworthy project partner.
ORIEMAC believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
With over eleven years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, ORIEMAC had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present.
To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, ORIEMAC has been often praised by our customers and has taken great reputation as a trustworthy project partner.
ORIEMAC believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2008,sell to South America(42.00%),Africa(18.00%),Mid East(16.00%),Central America(7.00%),South Asia(5.00%),Southeast Asia(3.00%),Eastern Europe(2.00%),Oceania(2.00%),North America(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Construction Machinery,Industrial Equipment
4. why should you buy from us not from other suppliers?
(i) 11 Years Professional Experience in construction machinery;
(ii) International Sales Team;
(iii) Long Term Dealership from Top China Manufacturers;
(iv) Excellent Logistics Services;
(v) Comprehensive After-sales Service;
(vi) Quality Control.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shanghai, China, start from 2008,sell to South America(42.00%),Africa(18.00%),Mid East(16.00%),Central America(7.00%),South Asia(5.00%),Southeast Asia(3.00%),Eastern Europe(2.00%),Oceania(2.00%),North America(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Construction Machinery,Industrial Equipment
4. why should you buy from us not from other suppliers?
(i) 11 Years Professional Experience in construction machinery;
(ii) International Sales Team;
(iii) Long Term Dealership from Top China Manufacturers;
(iv) Excellent Logistics Services;
(v) Comprehensive After-sales Service;
(vi) Quality Control.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
