Price:$250,000.00 - $290,655.00
Price in USD:Details

Quantity:


Product Overview

Description





Products Description




U1680-1TS
Unit
A
B
C
D
INJECTION UNIT
SCREW DIAMETER
mm
120
130
140
150
SCREW L/D RATIO
L/D
23.8
22
20.4
19.1
SHOT VOLUME(THEORETICAL)
cm3
7464
8760
10159
11662
INJECTION PRESSURE
Mpa
192.5
164
141.4
123.2
SCREW SPEED
rpm
90
SHOT WEIGHT(THEORETICAL)(PS)
g
6792
7972
9245
10613
SHOT WEIGHT(THEORETICAL)(PS)
oz
239.581
281.204
326.108
374.363
CLAMPING UNIT
CLAMPING FORCE
Kn
16800
OPEN STROKE
mm
1600
SPACE BETWEEN TIE BARS(W*H)
mm
1555*1430
MAX.MOULD HEIGHT
mm
1500
MIN.MOULD HEIGHT
mm
680
EJECTOR STROKE
mm
400
EJECTOR FORCE
Kn
363
EJECTOR NUMBER

28+1
DIE HOLE DIAMETER
mm
315
OTHERS
SYSTERM PRESSURE
Mpa
16
MOTOR POWER
Kw
45+45+45
HEATING POWER
Kw
118
OIL TANK CUBAGE
L
2000
MACHINE WEIGHT
Ton
19+86
BOUNDARY DIMENSION(L*W*H)
m
7*2.6*3.4    10.3*3.5*3.5
SERVO DRIVER CAPACITY
Kw
37+37+45+45

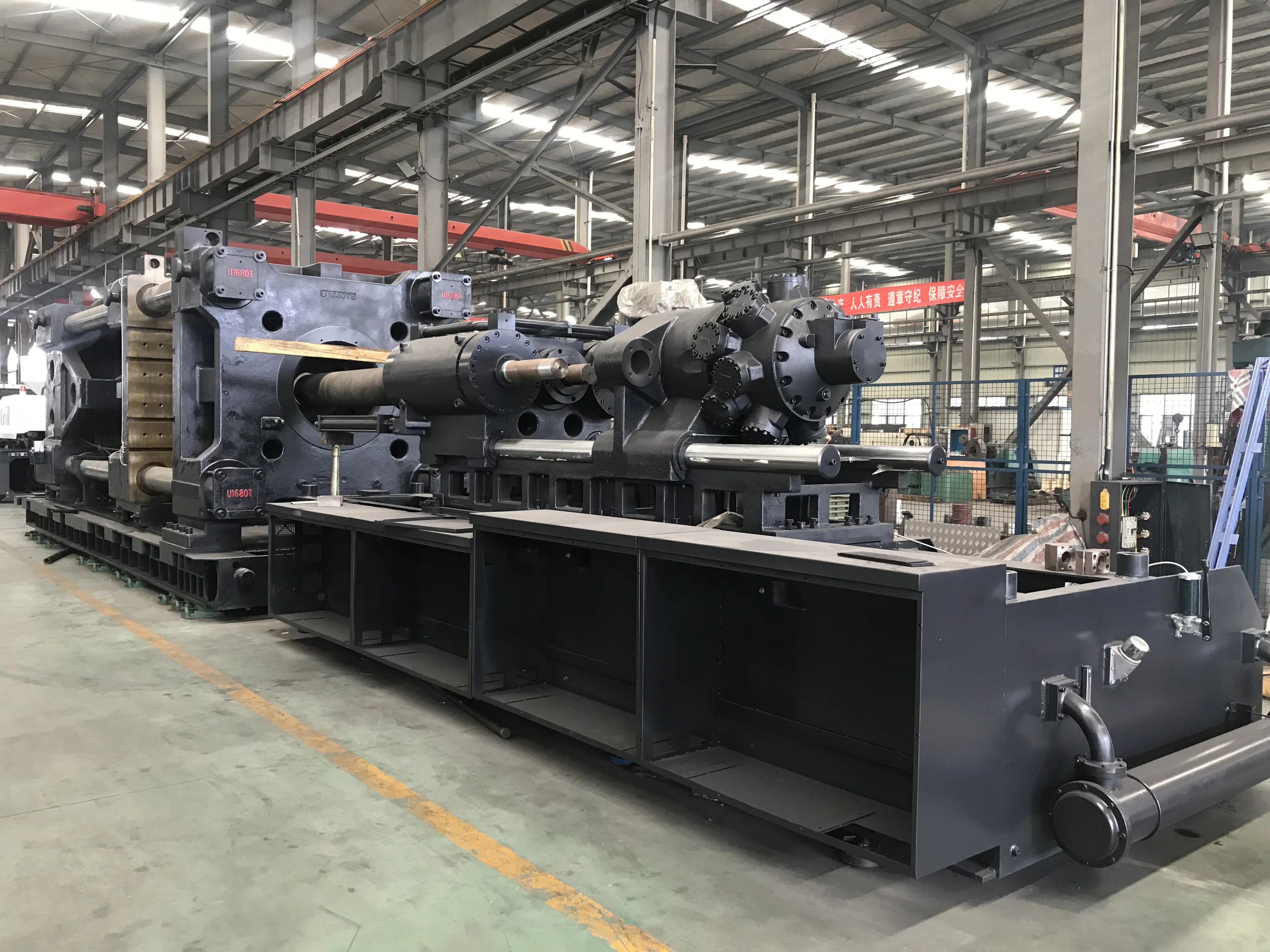

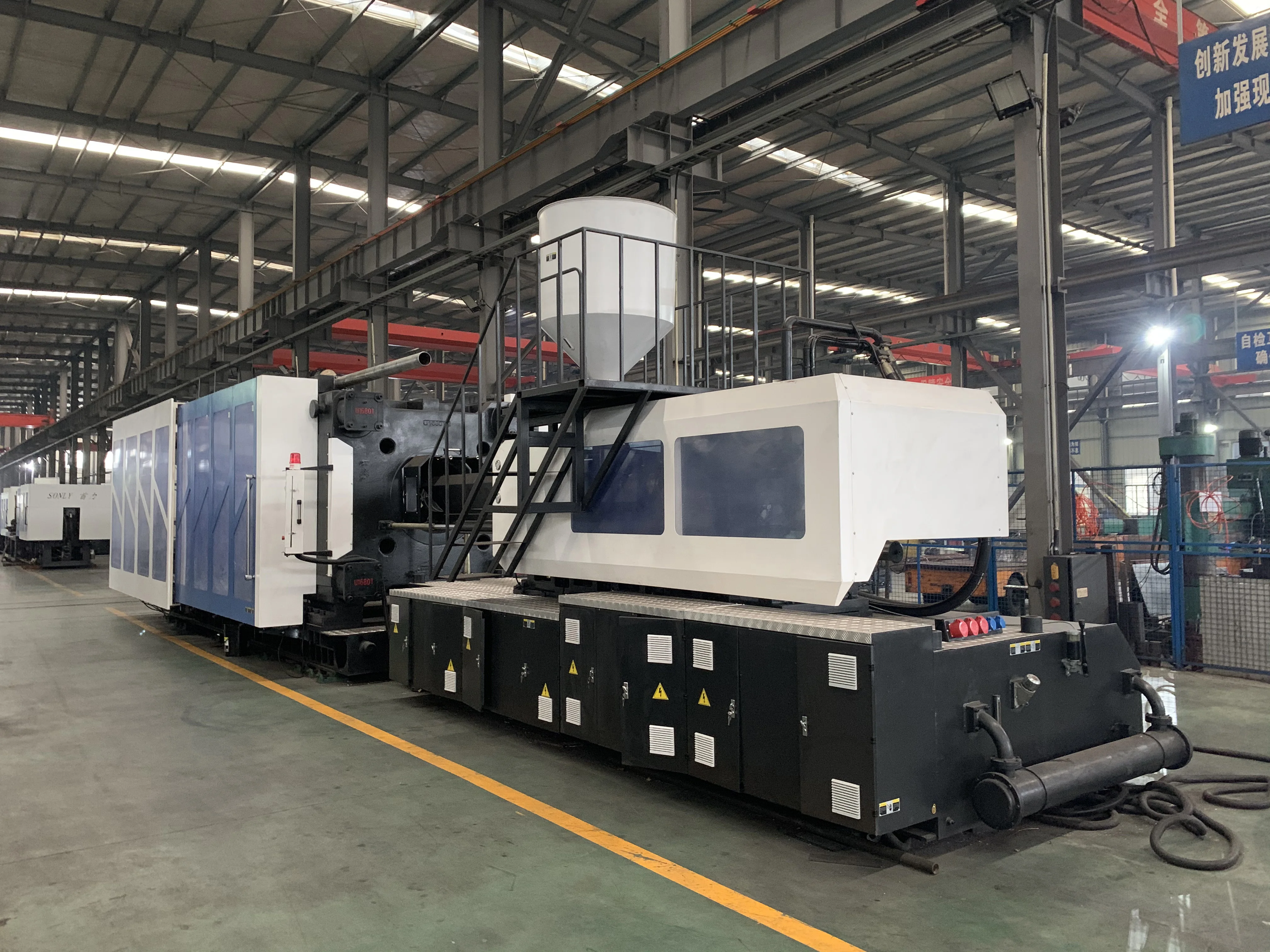

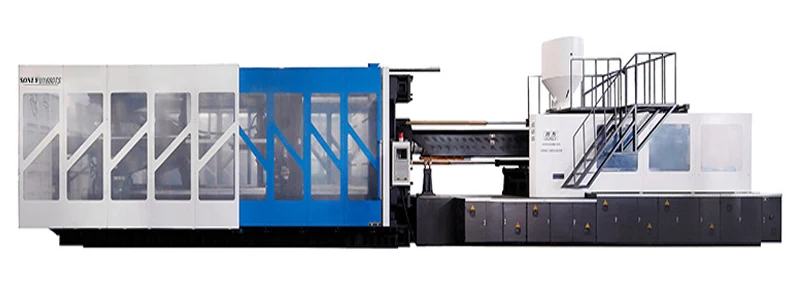

Details Images






Product Advantages


Sonly injection molding machine has a large diameter ratio, faster plasticization speed, short drying cycle, and ultra-high plasticizer capacity provide guarantee for the high efficiency of the whole machine.




1. New conjoined hyperbolic elboe five fulcrum clamping mechanism, after a detailed calculation, manual and software running curve is more stable, smooth process is faster, and longer service life
2. New conjoined template through finite element analysis software, reasonable structure, convenient maintenance, good rigidity, high strength, small deformation
3. Electronic scale attached to cross, speed control is more agile, is conducive to protect the mould
4. Lubrication automatic detection alarm function, can effectively guarantee the lubrication of all nodes in place
5. Compared with the same, we have a bigger bar spacing, molar volume and open mold, processing more plastic products, the high cost performance of the machine
