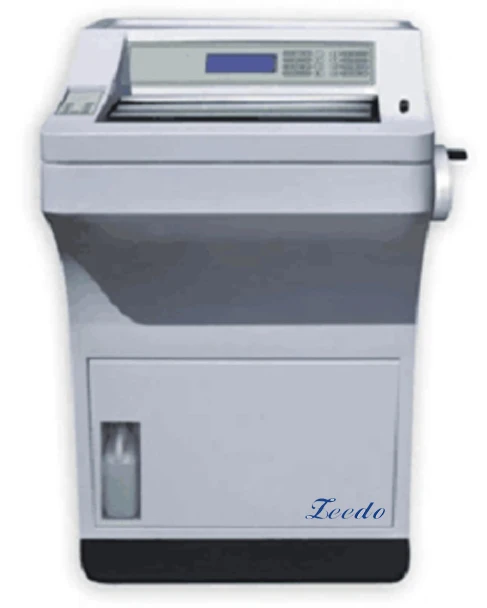

Hisure Cryostat Microtome HS4080 Tissue Pathology Medical Equipment Histology Automatic Freezing

Product Overview

Description

 Medical Consumable Product Jinhua Hisure Medical Equipment Automatic Freezing Used Function Of Cryostat Microtome









Refrigerating range to set	room temperature ~ -60℃
Section thickness	0~100μm
Minimum division value	0.5μm
Trimming range	0~600μm
Specimen horizontal shifting distance	25mm
Specimen vertical shifting distance	60mm
Sectioning angle adjustable	10°
Freezing positions	10~15
Temperature reachable	freezing head -50℃
freezing table	-45℃
freezing knife	-35℃
freezing chamber	-25℃±5℃
Voltage	220V
Power	800VA
Weight	120kg



1.Automation: automatic trimming, automatic sectioning, and manual trimming and manual sectioning available.
2.Control system: computer full-automatic control, 04 temperatures can be displayed in the same LCD.
3.Refrigeration speed: no need pre-cooling, and sectioning can be done while machine starts for 10 minutes.
4.5 points refrigeration: freezing head, freezing knife, freezing chamber, double freezing tables.
5.Freezing head: different sectioning temperature can be set as per different tissues.
6.Functions: withdrawal, sectioning speed adjustment, hardware dynamic state display.
7.Functions: automatic/manual defrosting, lighting, disinfection with ultraviolet.
8.Functions: freezing chamber with sewer pipe, which is convenient to clean, compressor has a function of countdown, counting, and clock display duly.
9.Mechanical system: bearings imported, accurate machining, steady mechanism, tight structure of mechanical cores, free maintenance.
10.Machine is assembled with an anti-curl plate, so sectioning is smooth and reliable.
11.Rapid refrigerating system: if power off was forgot after working for 08 hours, the system will directly enter dormant state.
12.Steel knives are in common use with disposable knives.
13.Operation modes: electric sample feed, and withdrawal; there are quick and slow gears.
14.Heat absorption device for tissues: it will be mated with freezing table, meanwhile the upper and the lower will be refrigerated at same time so that freezing speed is fast.
15.Speed of sample feed and withdrawal: there are quick and slow gears.
16.Temperature is no need too low so that stimulation of hands due to lower temperature can be avoided.
