concrete mixer machine with lift price low JZR350T concrete mixer drum 350l concrete mixer diesel (1600181118546)

Share on:


Price:$5,200.00
Price in USD:Details

Quantity:


Product Overview

Description



concrete mixer machine with lift price low JZR350T concrete mixer drum 350l concrete mixer diesel


Products Description

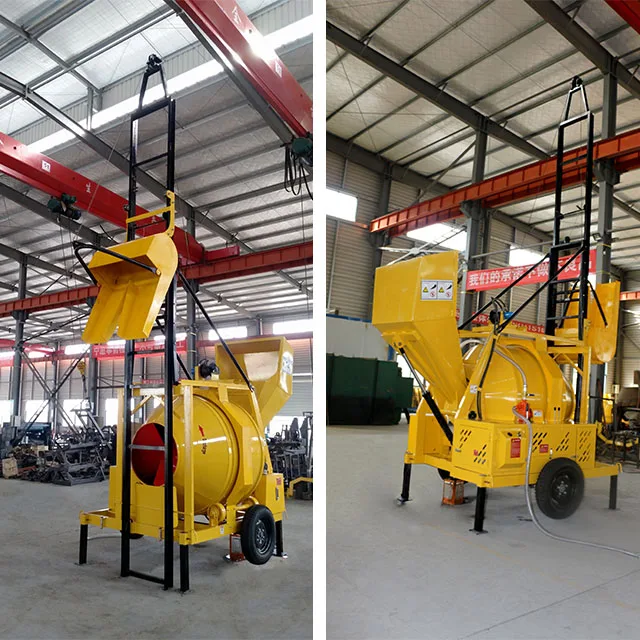

JZR350T Mobile Diesel Concrete Mixer with Lifting Ladder is mixer of double conical drums which discharge concrete by reverse-rotation, which is suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharging is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.


Advantages:
1. Equiped with multiple shaft end sealing protection device and wind pressure sealing protection device and effectively avoid leakage absolutely;
2. Monitoring system of mixer can work concdition of monitor reduction box, dicharege pump and lubricating pump;
3. Equiped with special- purpose motor lubricate oil pump, and four separate pump core respectively feeds oil to four axial heads directly, without using by-pass valve;
4. Multi pipes & way water injecting system can make sure that water can injected uniformly;
5. Heavy design and stable running.



Fetures:
1. It is a middle capacity self-dumping mixer;
2. Heavy duty channel chassis provides durability and stronger support in the areas wher you need it;
3. Jack legs give maximum stability throughout the mixing cycle;
4. Towable chassis with pneumatic tyred wheels;
5. Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available.
6. Power source: diesel engine. So it can also be used in areas without electricity supply.

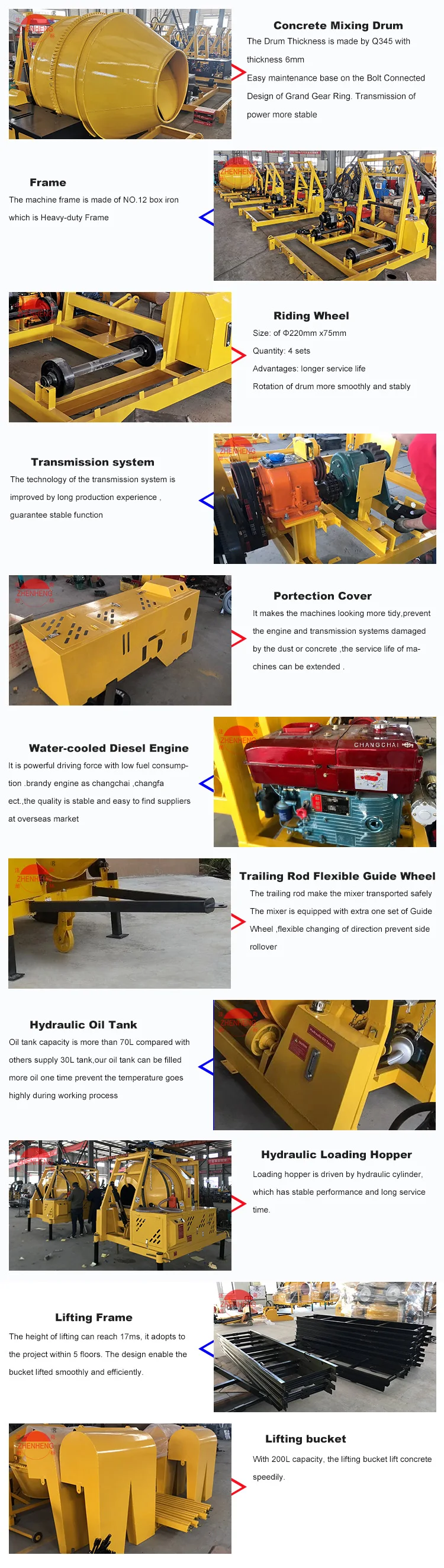

Detailed Images


JZRT series concrete mixers this concrete mixer is featured by diesel engine, lifting ladder, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for projects like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.




Parameters


Model
JZR350T-Diesel mixer with Ladder
Loading Hopper
By Hydraulic System
Basket Lifting system
By Hydraulic System
Output Per Hour
10-14m³
Loading Capacity
560L
Discharging Capacity
350L
Drum Rotation Speed
14 r/min
Drum Thickness
8 mm
Maximum Size of Aggregate
60 mm
Diesel Engine Brand
Brand Diesel Engine16HP
Tyre Size
6.50-16
Overall Size(L×W×H)
3150*2400*3200 mm
Weight
2400 kg

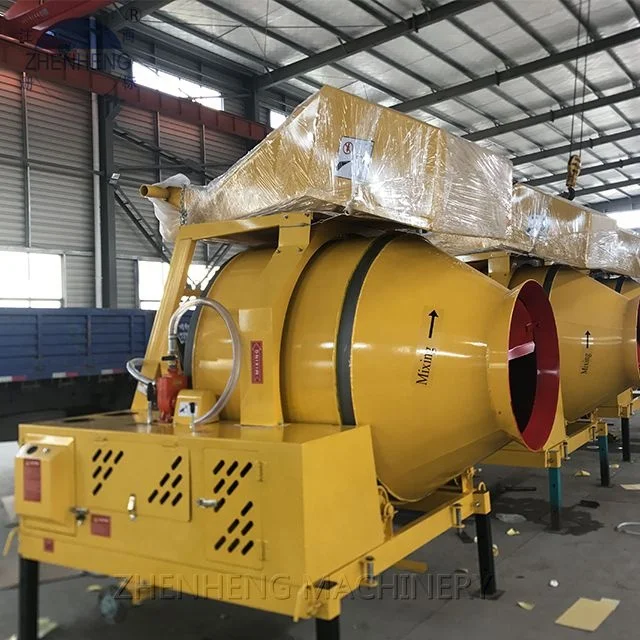

Product packaging




Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)


Company Profile




Zhenheng was established in zhengzhou city in 1982,cover an area of 73370 square meters, have three production bases, have over 300 employees. we produce 3 series of nearly hundreds of varieties construction machines including concrete batching plant, concrete block production line and concrete pump etc. We have attained ISO9001 certificate, CE certificate, and more than 20 patents in the construction machinery line. Zhenheng is well equipped with facilities and strict quality control system. We have a variety of processing lathes and precision machining centers.Advanced laser cutting machines, laser welding machine, Robot welding machines CNC lathing,wire cutting machines and other equipment. leading technology and advanced manufacturing equipment have made zhenheng a leaving level in construction machines industry.








Customer Photos




FAQ


If you have any questions,please contact with us.We will provide 24 hours online service!


Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability :We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days

Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.

Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.

Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
