◆ Made of solvent-free epoxy resin and high-quality curing agent
◆Orange surface effect, the pattern can be large or small
◆Resistant to acid, alkali, salt and oil corrosion
◆ Wear resistance, pressure resistance and impact resistance
Choose place

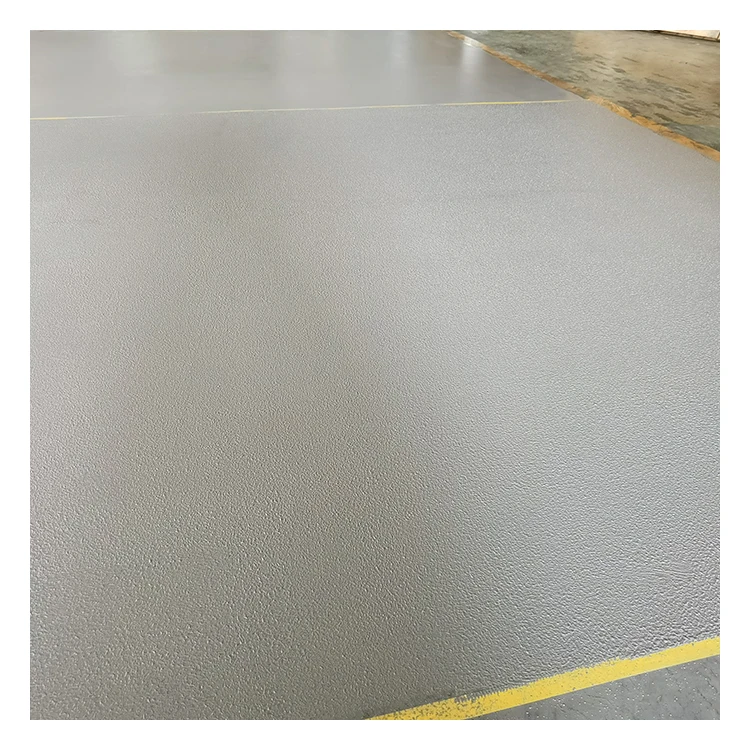

It is suitable for parking lots, slopes, oil-stained workshops, water-filled workshops and artistic floors that require non-slip.
Test projects
Unit
Index
Tensile Strength
Mpa
≥9
Bending strength
Mpa
≥15
Compressive strength
Mpa
≥80
Abrasion resistance（750g/500r）
g
≤0.03
Shore D hardness
≥70
Drying time
Surface dry
h
≤4
Full dry
h
≤24
Resistance to 120# gasoline
7 days
No change
Resistance to 10% sulfuric acid
7 days
No change
Resistance to 10% sodium hydroxide
7 days
No change
Resistance to 10% salt water
7 days
No change
All tests (except the drying time) are performed after curing for 7 days (25℃)

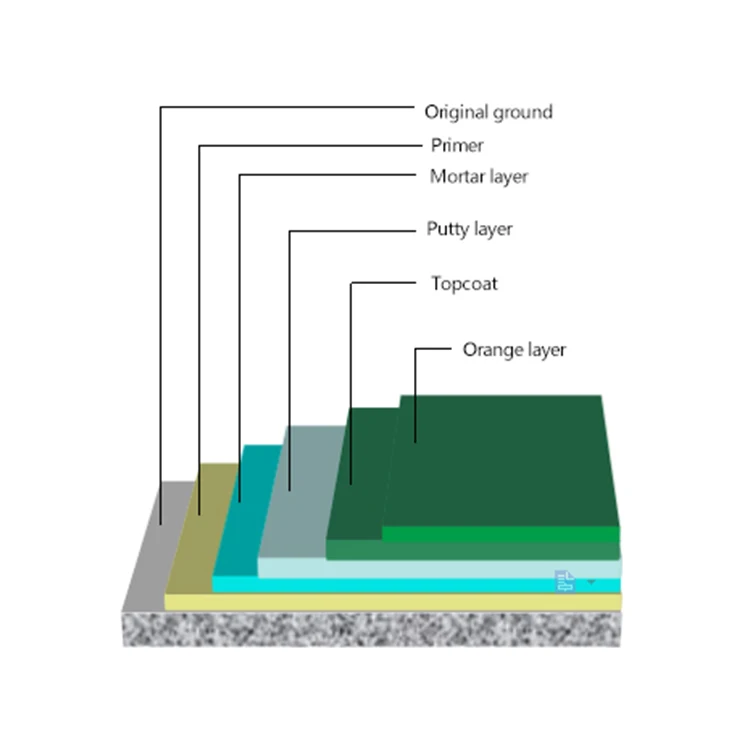

Construction method
Main material
Auxiliary material
Reference dosage
Base surface treatment
Polish the base surface, repair defects, clean and dry
—
—
—
Primer layer
Roll coating epoxy primer
Dongsheng DS-30#
—
About 0.15Kg/m2
Mortar layer
Use epoxy intermediate coating material to mix quartz sand to the thickness required for construction
Dongsheng DS-400
Quartz sand
0.60kg/m2·mm
Putty layer
Use epoxy top coating material to mix quartz powder or double fly powder to scrape putty layer
Dongsheng DS-400
Quartz powder or double fly powder
0.10kg/m2 one pass
The first top coat
Roll coating epoxy top coating material
Dongsheng DS-143
—
0.15kg/m2
Orange coating
Scrape the orange topcoat and use a napping roller to nip
Dongsheng DS-670
—
0.30-0.60kg/m2
●Coating thickness: generally 1mm-3mm, more than 2mm requires sanding
