Honeycomb Charcoal Briquette Machine is commonly known as briquetting machine, briquetting machine, the machine is a briquetting machine equipment, which takes the treated coal as raw material, through mixing, stamping into the shape of honeycomb briquette. The briquetting machine can easily change the mold to produce different specifications of diameter 90, 100, 110, 115, 125, 130, 135, 150, 180, 200, 220 and 250 briquettes, In addition, the honeycomb briquetting machine can be replaced by different shapes of tools, such as round pillar, square briquettes, etc., which greatly expands the function of the honeycomb briquetting machine and makes the honeycomb briquetting machine an ideal product for entrepreneurs.
What are the requirements of coal powder for the coal briquettes machine?
When the honeycomb briquette machine is compressing coal powder, if the pulverized coal lumps are too large, we need to crush the coal first before pressing. At the same time, a certain amount of binder is usually added when using briquettes to press carbon powder, so as to achieve a better molding effect.
This is because when the moisture content of coal powder and carbon powder is high, it is not easy to form. And coal powder and charcoal powder must have proper binding properties, otherwise, the coal powder and charcoal powder must be processed. 10% to 20% of the caking coal can be mixed into the raw materials to enhance its binding properties.

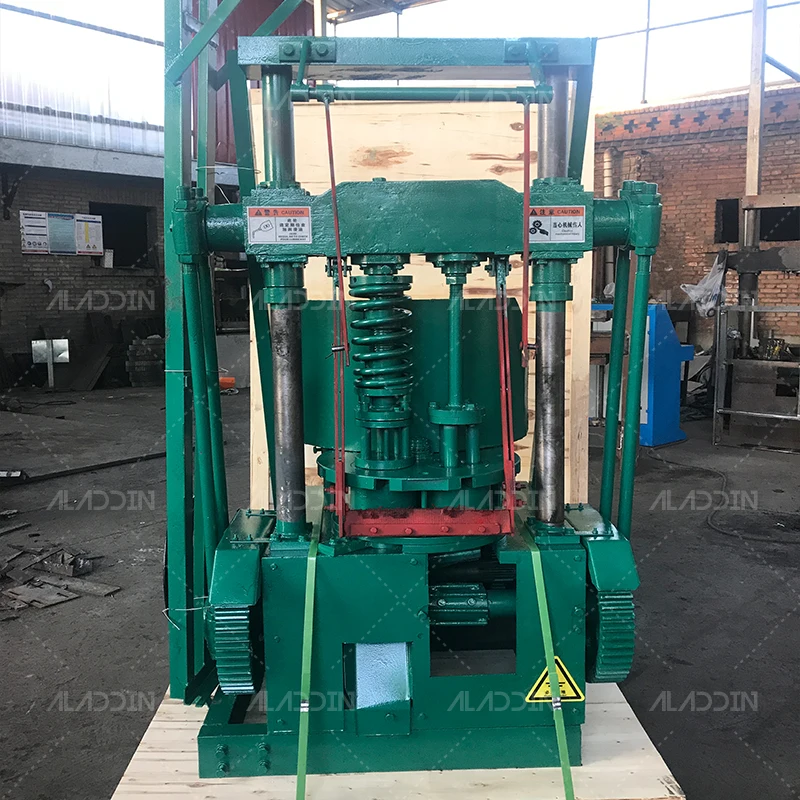

The main structure of the honeycomb coal/charcoal briquette making machine includes the main body, transmission part, feeding part, extrusion system and material conveying part.
1.The main unit of the honeycomb coal machine: It is composed of a platen and a base, which is a combination of the skeleton of the machine.
2. Transmission part: It is composed of motor, pulley, gear, transmission shaft and other components. The motor rotates the gear shaft through a belt pulley and transmits it to the transmission shaft through two gears, and drives the dial through a pair of bevel gears and the rotating shaft, and the dial is turned to the four-hole plate to move.
3. Feeding part: It is composed of rotating shaft, hopper, and agitator. It is driven by axial gear to stir the mixer to mix the coal powder evenly and load it into the mold cylinder.
4. The coal briquettes extrusion system mainly consists of four sliding rods, sliding beams, punches, punch seats, punches, movable pressure plates, movable die bottoms, and springs. When the honeycomb coal machine is working, the sliding beam is driven by the rotation of the two gears through the pull rod.
When the punch goes down, the punch is forced to move down, and the movable plate moves up and the spring is tightened to compress the coal powder. The looseness of the coal briquettes is determined by the spring pressing the movable pressure plate.
Technical Data
Model
CM160
CM180
Capacity
200-300kg/h (for charcoal powder)
300-500kg/h (for charcoal powder)
Power
11kw
22kw
Feeding size
3-5mm
3-5mm
Moisture content
25%-35%
25%-35%
Briquette diameter
20-60mm
20-60mm
Size
2000*1300*1160mm
2252*1430*1600mm
Weight
860kg
1100kg
Product Details
Moulds for making coal/charcoal briquettes with different shapes In order to realize the multi-purpose function of one machine, we can replace the extrusion die of the briquette machine to make briquettes of different shapes. Usually honeycomb coal briquettes are cylindrical with holes, and the number and diameter of the holes can be customized.
Common ones are single hole, four holes, five holes, six holes, eight holes, nine holes, 12 holes, etc. In addition, by changing different molds, the honeycomb briquette machine can also produce quadrangular prisms with holes and hexagonal coal briquettes with holes. Of course, the number and diameter of the holes can also be customized.
