Forward Collision Warning Radar for Agricultural Vehicles, Sweeping Robots with CE Certification

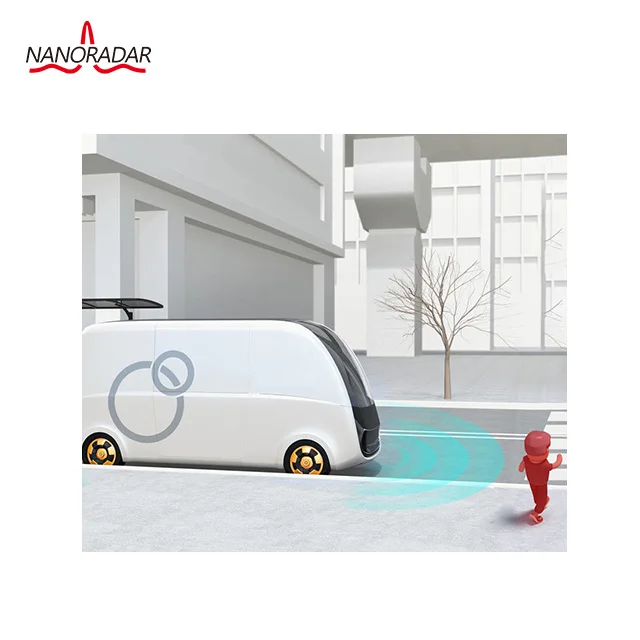

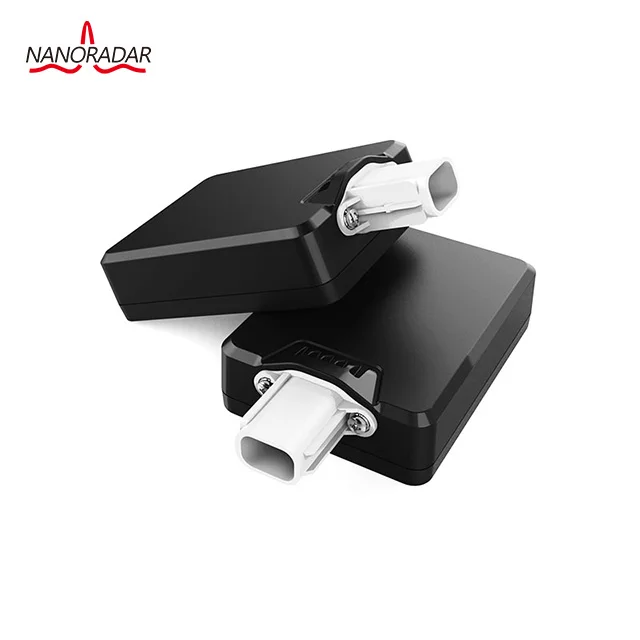

SR73 is a compact 77GHz front/rear collision avoidance radar. It can accurately remind drivers of obstacles in front of heavy equipment by transmitting two-beam fan-shaped microwaves to the front, detecting the reflection of microwaves, judging whether there are obstacles in front, and feedback the relative distance between obstacles and radar.This product adopts double beam design, 0.2~40m measurement distance, small size, high sensitivity, stable performance, light weight, easy to integrate, product performance has been recognized by many partners.


Series:
77GHz MMW radar


Application:
FCW, rear view camera system


Features:



  • Work in 77GHz-ISM-Band for the detection of moving objects

  • Compact size (58x96x24mm)

  • Accurately measure the direction, range, velocity and angle of moving targets

  • Protection class IP66 for outdoor use

  • Hige detection rate







































































































































PARAMETERCONDITIONSMINTYPMAXUNITS
System performance
Transmit frequency 76.00 77.00GHz
Output power(EIRP)adjustable 29.8 dBm
Cycle time  33 ms
Power consumption@12V DC 25℃1.51.651.8W
Communication interface CAN
Range-measurement characteristics
Range intervalvehicles0.2 40m
Velocity-measurement characteristics
Speed interval -60 60km/h
Speed accuracy  4 km/h
Multi-target detecting
Simultaneously detecting targets  8 pcs
Antenna performance
Beam width/TXazimuth(-6dB) 112 deg
elevation(-6dB) 14 deg
Other characteristics
Supply voltage 61232V DC
Protection class IP66
















Professional Nanoradar team produce professio radar products!






Factory direct supply heavy duty vehicle BSD radar sensor automotive sensorFactory direct supply heavy duty vehicle BSD radar sensor automotive sensorFactory direct supply heavy duty vehicle BSD radar sensor automotive sensorFactory direct supply heavy duty vehicle BSD radar sensor automotive sensor








FAQ




(1) OEM?

Yes, as we are manufacturer, OEM is supported, but it depends on the quantity.



(2) MOQ

One sample is accepted.



(3) Lead time

Usually have stocks, the lead time is 3-5 days, it depends on the quantity and the stock.


(4) Technical support

You can contact the related sales manager and they will solve with technician.
