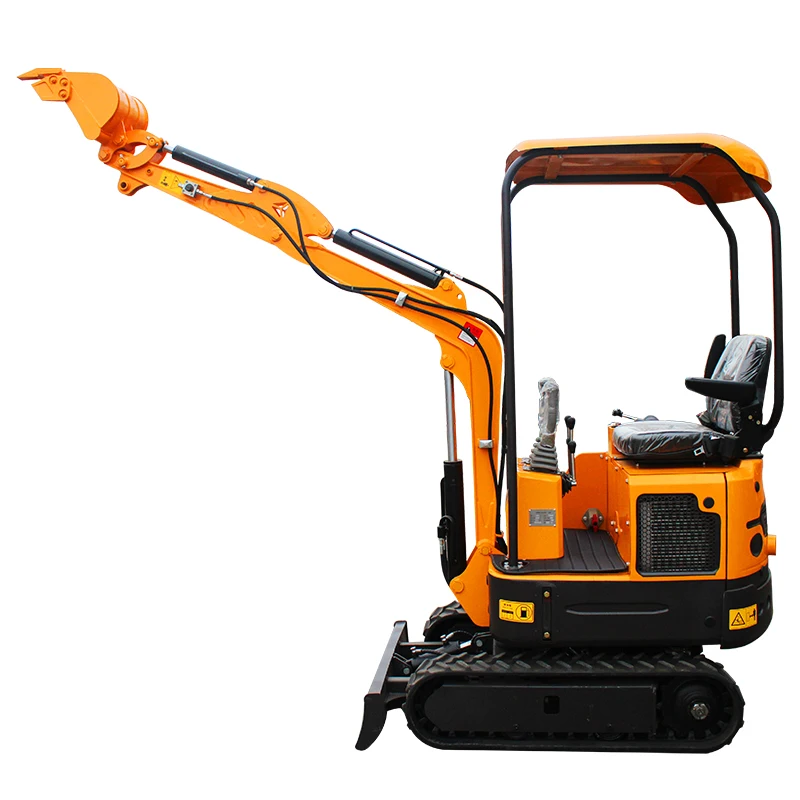

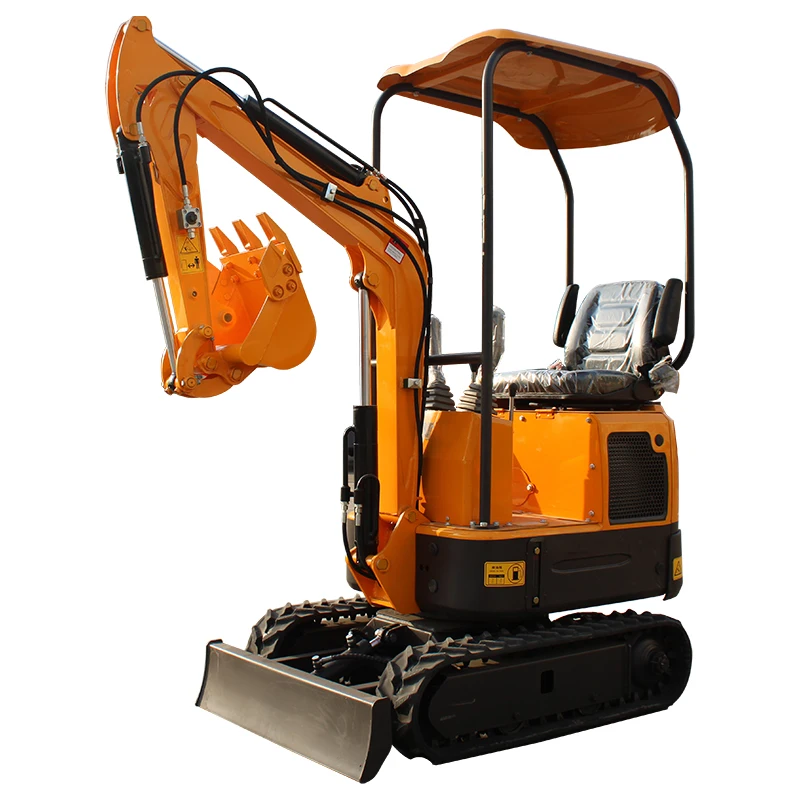

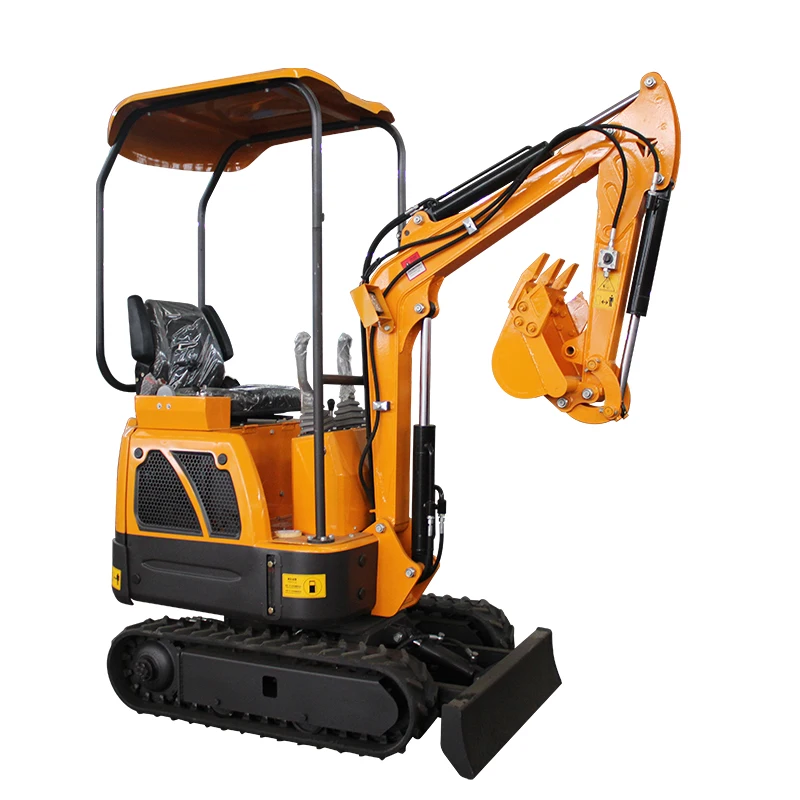

chinese cheaper 1.2ton mini excavator for sale
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600181728563):
Product Overview
Description
Product Description
Specification
Operating Weight | 1040kg | |
Digging bucket capacity | 0.025cbm/120kg | |
Digging bucket width | 350mm, can add narrow bucket is 200mm | |
Rated power | 10.3kw,11.2kw/2400/r/min | |
Displacement | 0.854L | |
Bore stroke | three cylinder, water cool | |
Main pump | SAISIDA | |
Pump flow | 16L/min | |
Hydraulic pump perssure | 16Mpa | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | EATON | |
Hydraulic oil tank | 15L | |
Diesel oil tank | 11L | |
Arm digging force | 5.0Kn | |
Bucket digging force | 9.5Kn | |
Electric pressure | 12V | |
Electrick power | 5W | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 2770x896x1490 mm | |
Wheelbase | 910 mm | |
Total length of track on land | 1230mm | |
Platform ground clearance | 380 mm | |
Platform back turning radius | 784 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1700 mm | |
Max. Vertical digging depth | 1375 mm | |
Max. Digging height | 2610 mm | |
Max. Dumping height | 1850 mm | |
Max. Digging radius on ground | 2850 mm | |
Min. Rotation radius | 1330 mm | |
Max. Upgrade height of bulldozer blade | 345 mm | |
Max. Digging depth of bulldozer blade | 255 mm | |

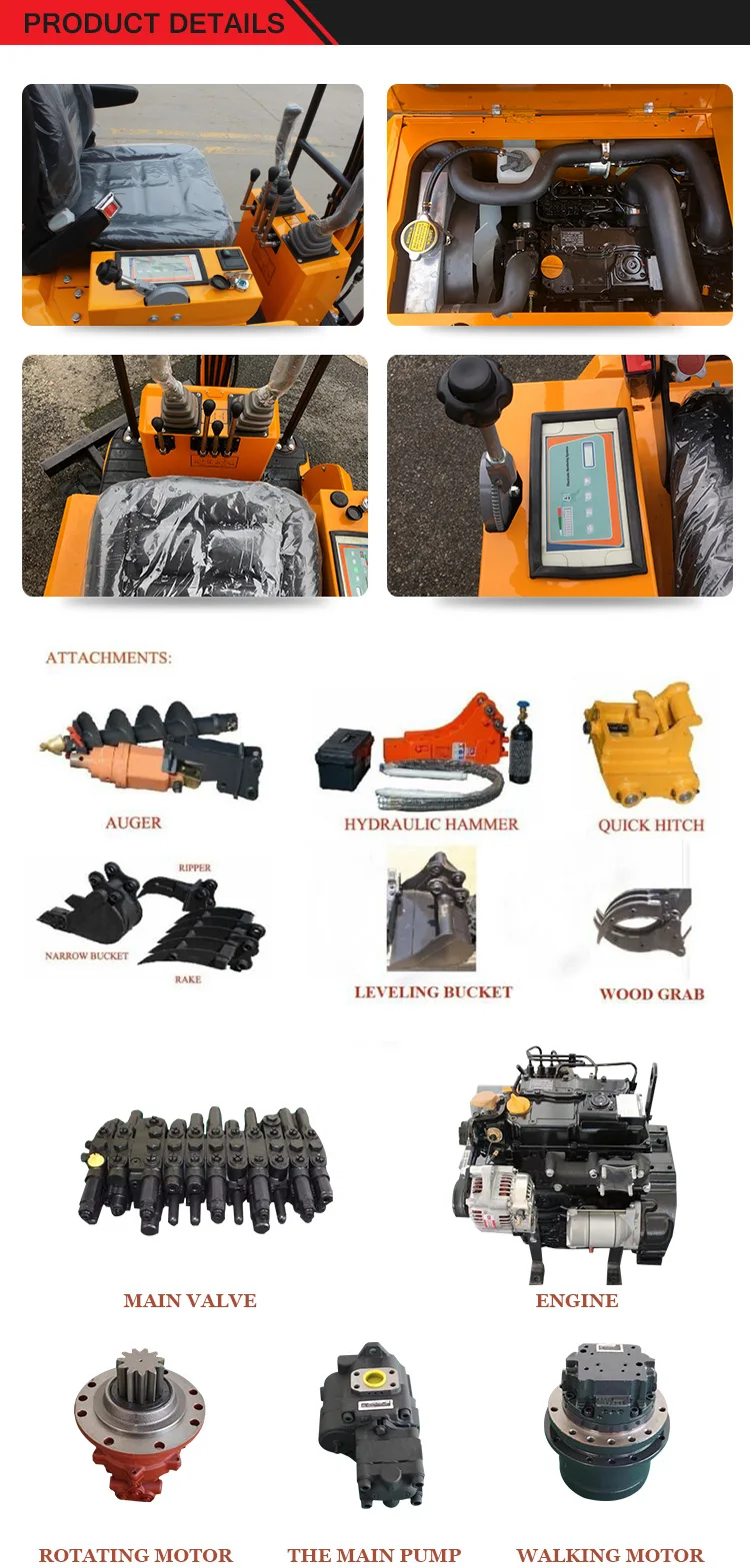

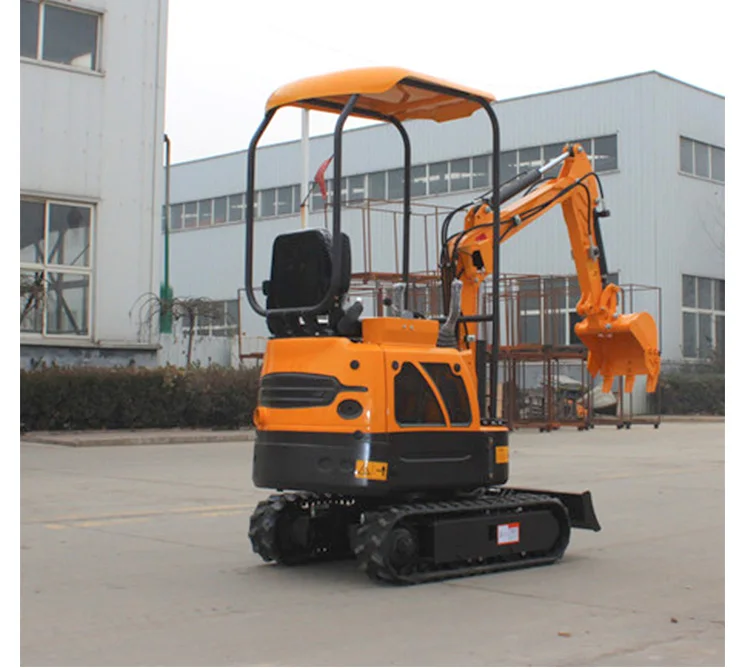

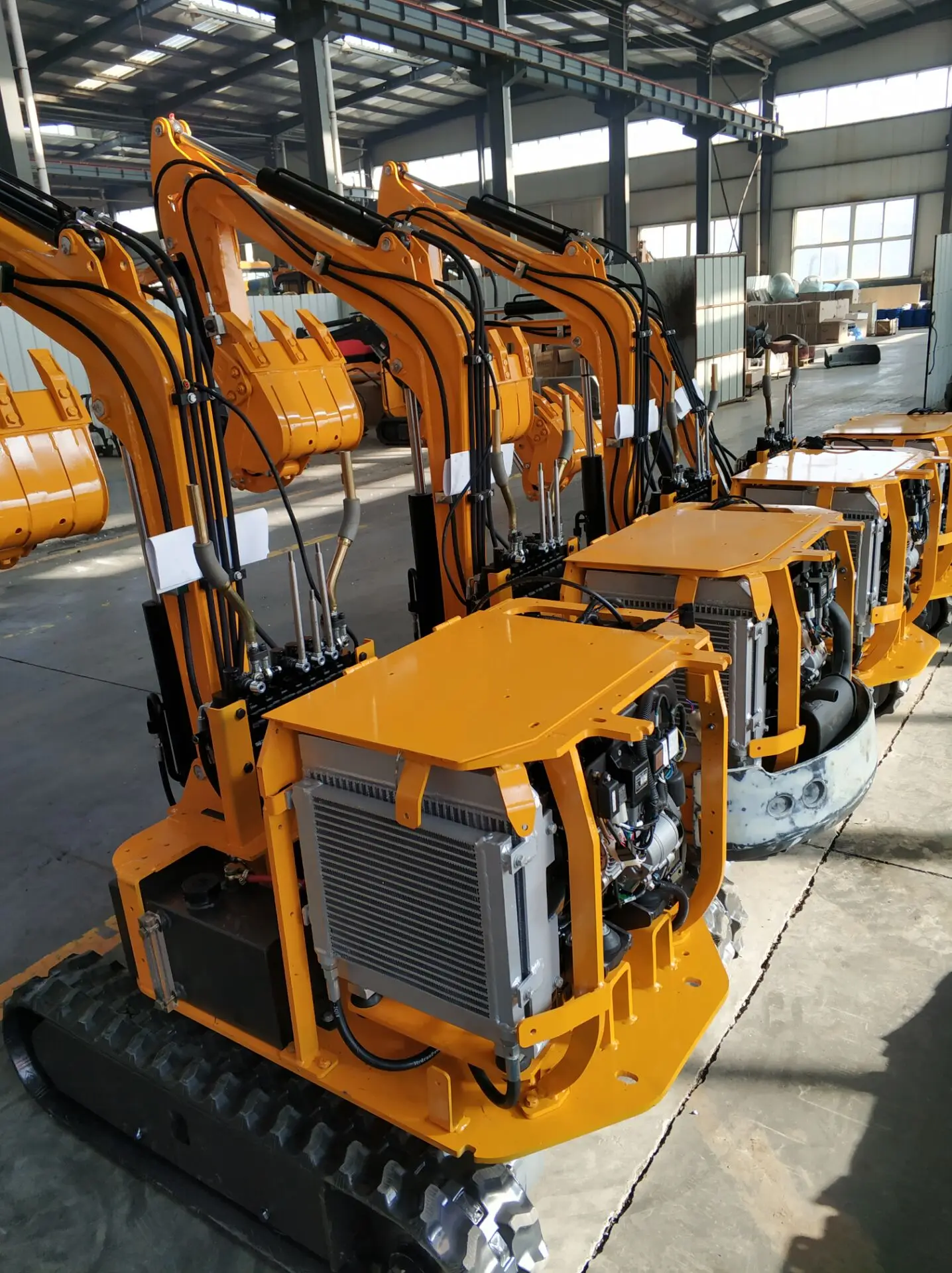

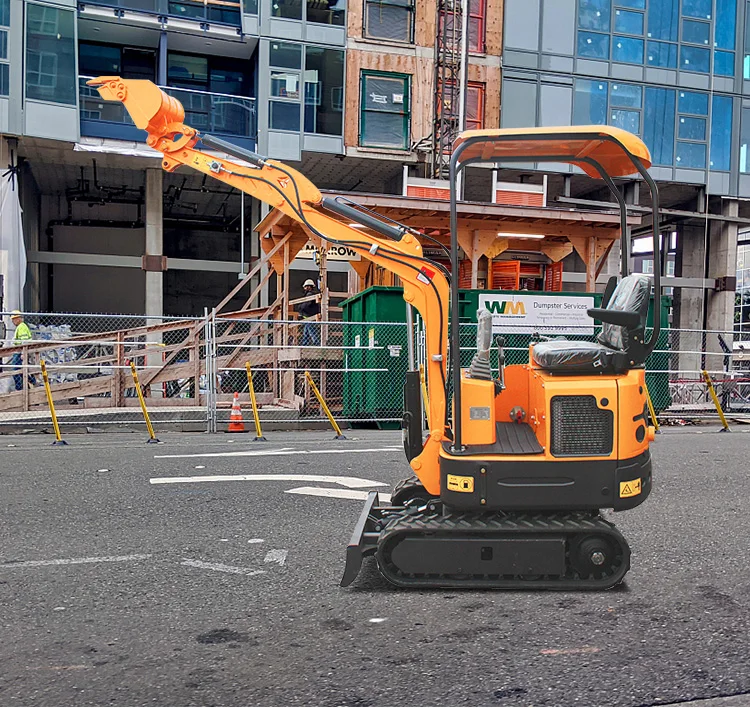

Products show

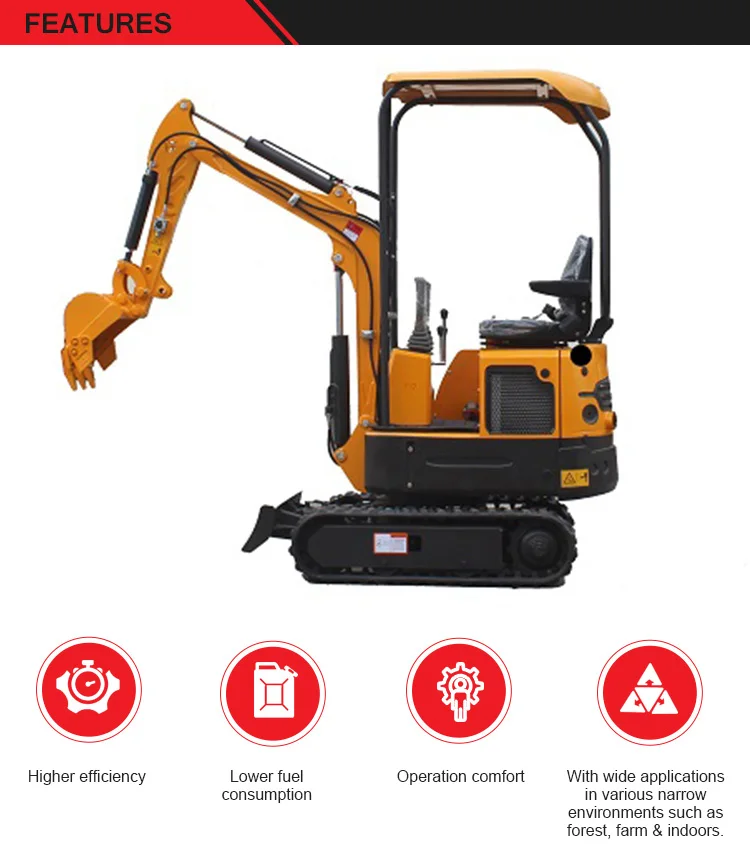

Beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating range.
Multipurpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavementcrushing,sand-gravel material mixing, construction work in the narrow place etc...
It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization.

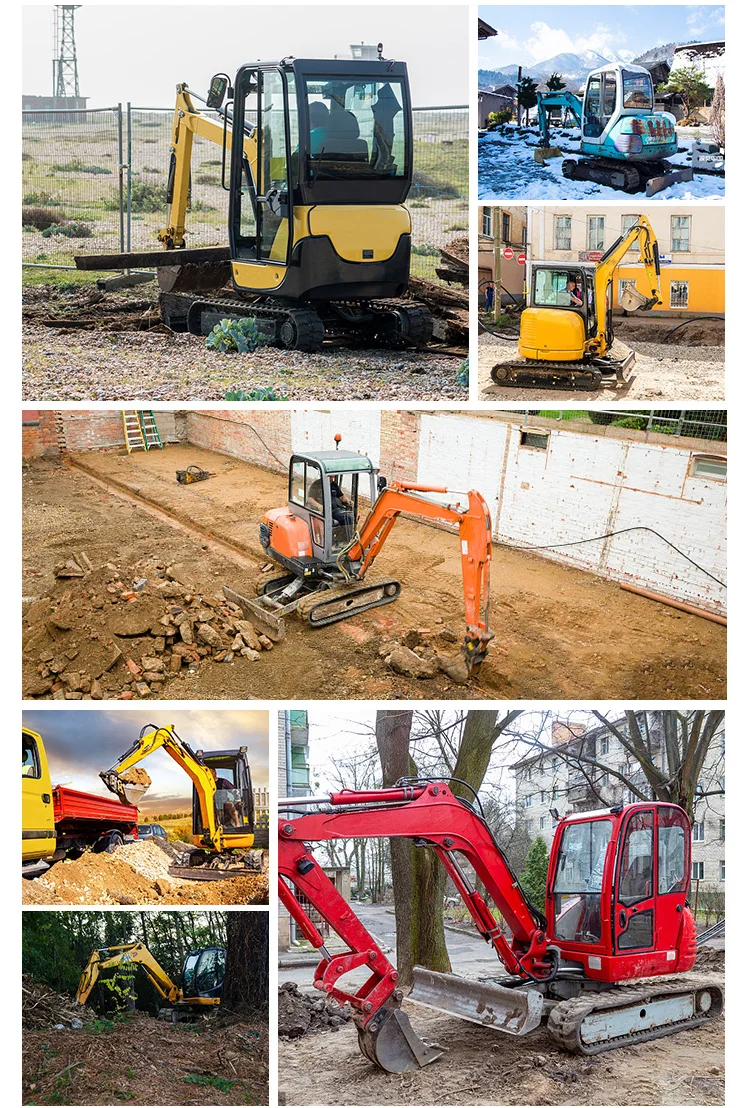

Applications
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
Packing & Shipping
Package: Nude packing or polish with wax before shipping or as customers requirement
Shipping: Within 30 days after payment
Shipping: Within 30 days after payment

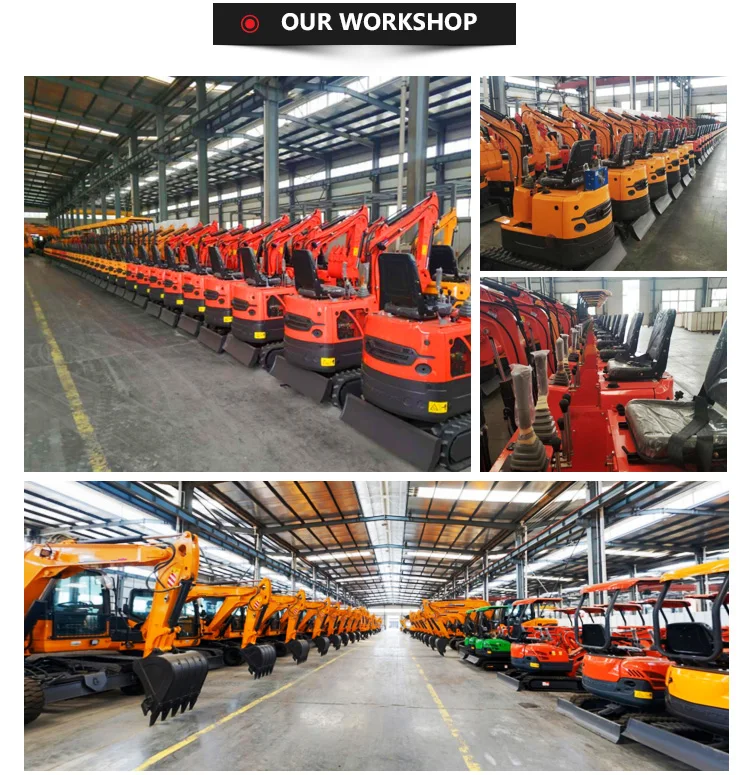

About us
Jining panda construction machinery co.,Ltd.founded in 1989,. We are mainly produce and sell Large and medium-sized Excavators,Wheel Loaders, Road Rollers, Bulldozers, Heavy Trucks, Special Equipment Vehicles, Mini excavators,Wheel Loaders,Road Rollers, Telescopic Boom Loader, Backhoe Loader and Etc .
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
FAQ
1. What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2.What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3.Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
Minimum order is 1 pc only, dealership is warmest welcome.
2.What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3.Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
